GENIE VERTICAL MAST LIFTS — GR26J

Genie® Runabout® aerial work platforms are designed to enhance productivity in the workplace. Flexible features on the Genie GR™, GRC™ and QS™ models offer convenience at a low cost. Their lightweight construction makes them easy to maneuver, use and transport, delivering excellent uptime. Each model offers a variety of options and accessories to customize the machine to match the application. Genie aerial work platforms offer an economical solution for all operators’ access needs.

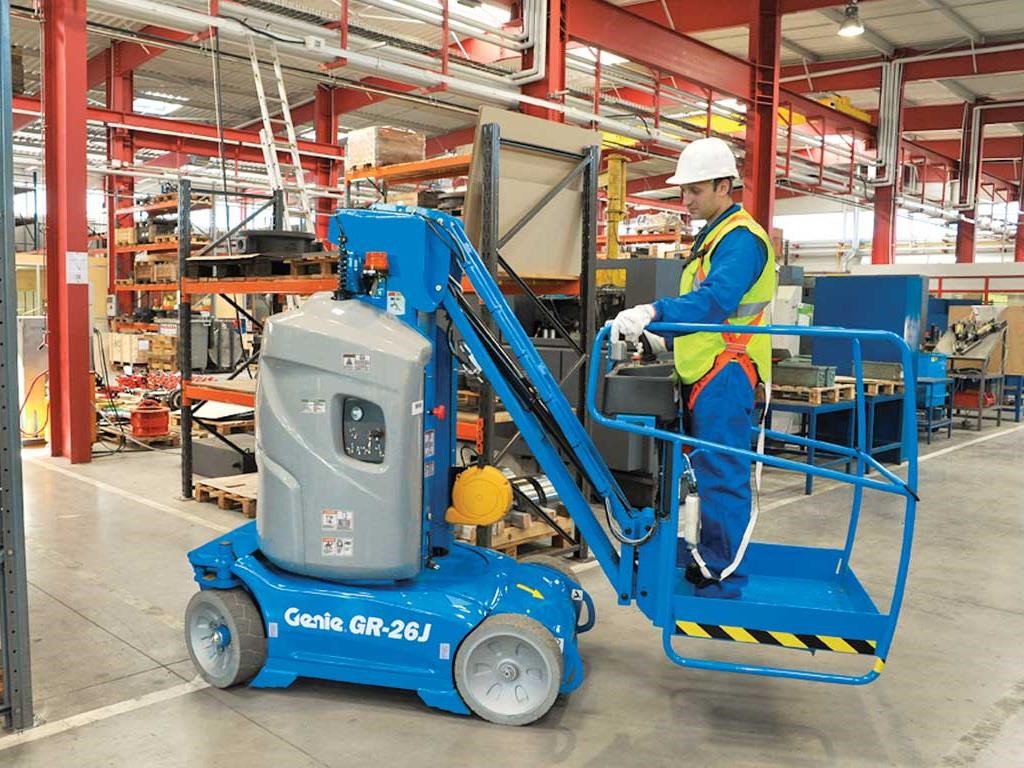

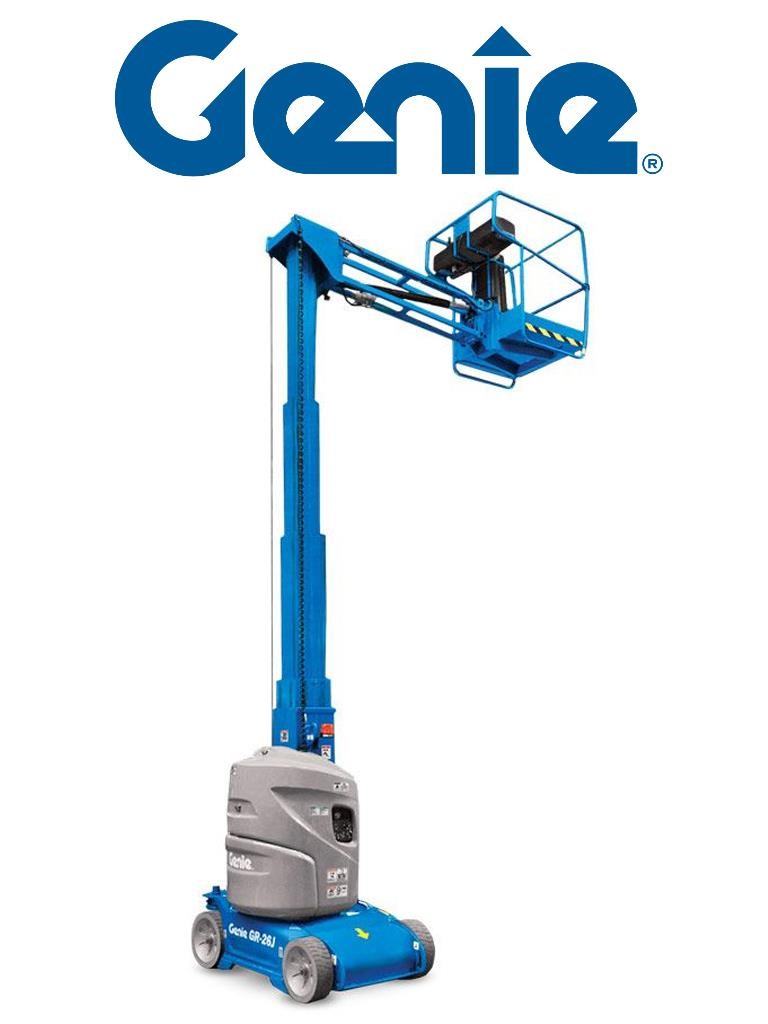

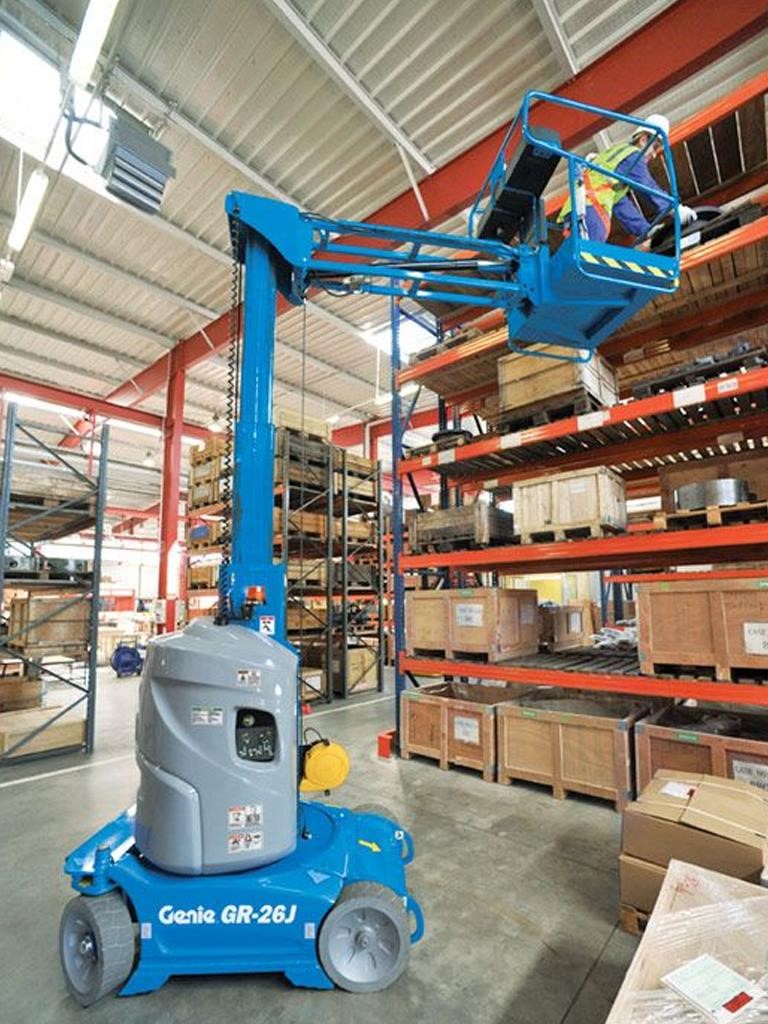

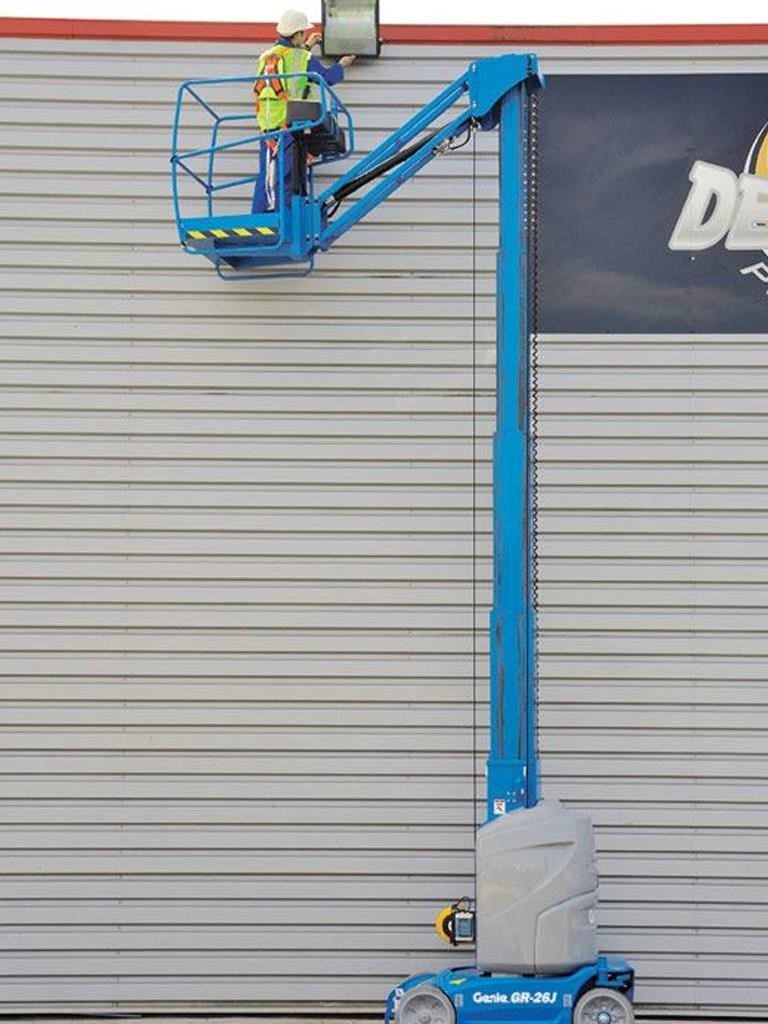

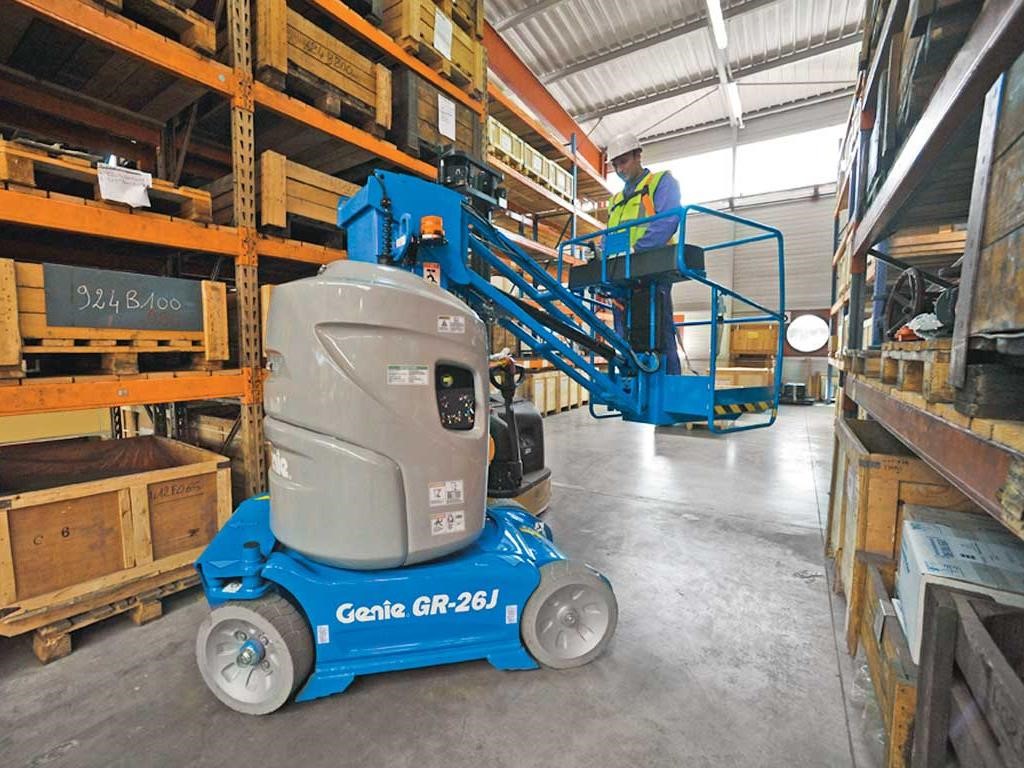

The Genie® Runabout® GR-26J™ lift is a jib machine that offers outreach capability to get virtually any job done. A 140° rotating jib and 350° non-continuous hydraulic turntable allows for exceptional range of motion and precise positioning. These capabilities combined with the efficient electric drive motors and a low machine weight make the Genie Runabout GR-26J lift the solution for hard-to-reach jobsite needs.

FEATURES

• Standard steel platform 2 ft 11 in x 2 ft 5.5 in (0.90 m x 0.75 m) with sliding midrail

• Hydraulic turntable rotation

• Fully proportional lift and drive system

• Drivable at full height

• Low 6 in (15 cm) platform entry height

• Rigid steel tube in hydraulic mast

• 3 ft 3 in (0.99 m) compact width

• Low unit height of 6 ft 6 in (1.99 m)

• Low machine weight of 5,843 lbs (2,650 kg)

• Onboard diagnostic system

• AC power to platform

• Direct electric rear wheel drive with electric parking brake

• Front wheel steering

• Brake release switch

• Reinforced ABS chassis covers

• Two tie down attachemnt points at overhead crane point

• Non-marking solid tires

• Drive enable system

• Horn

• Hour meter

• Tilt level sensor with audible alarm

• Platform overload sensing

• Manual platform lowering valve

• Emergency stop at both platform and ground controls

• Motion alarm

• Flashing beacon

• Fork pockets

POWER

• Automatic 30 Amp 24 V battery onboard charger

• 24 V DC (twelve 2V batteries, 250 Ah capacity)

• Battery charge indicator

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
