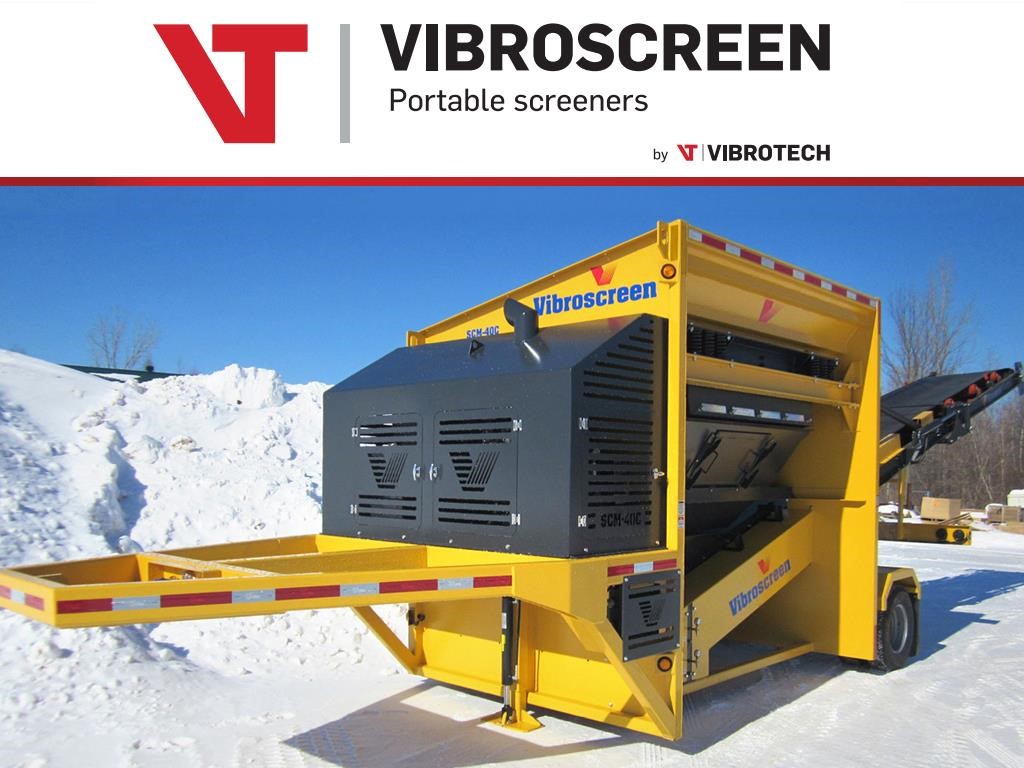

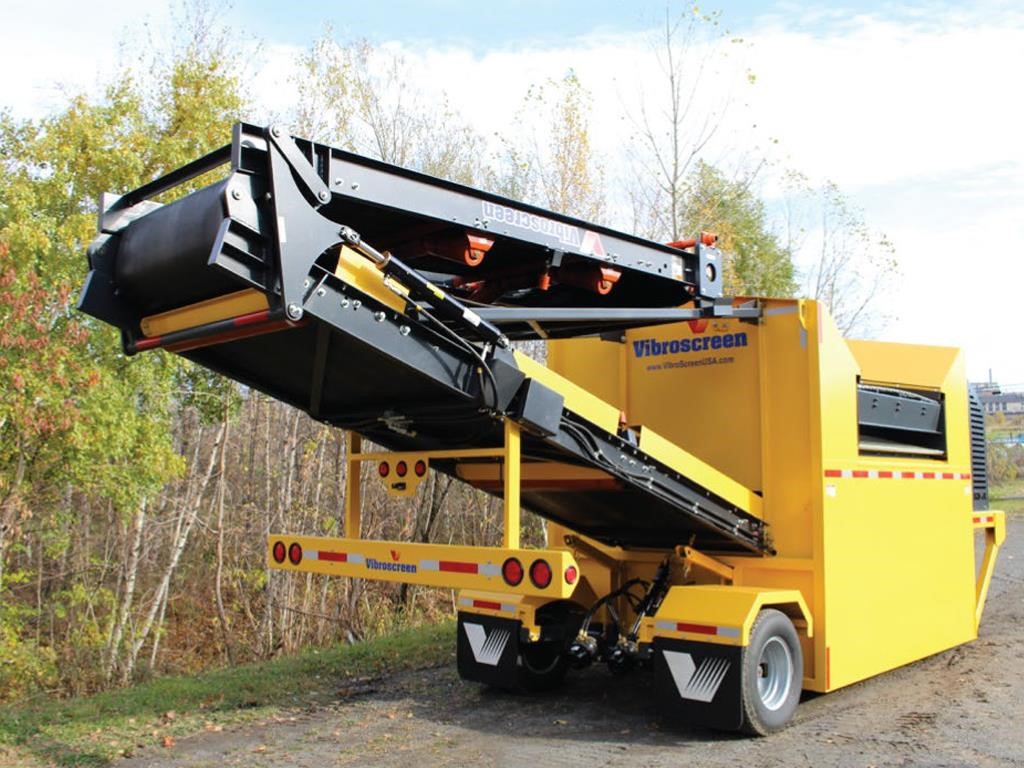

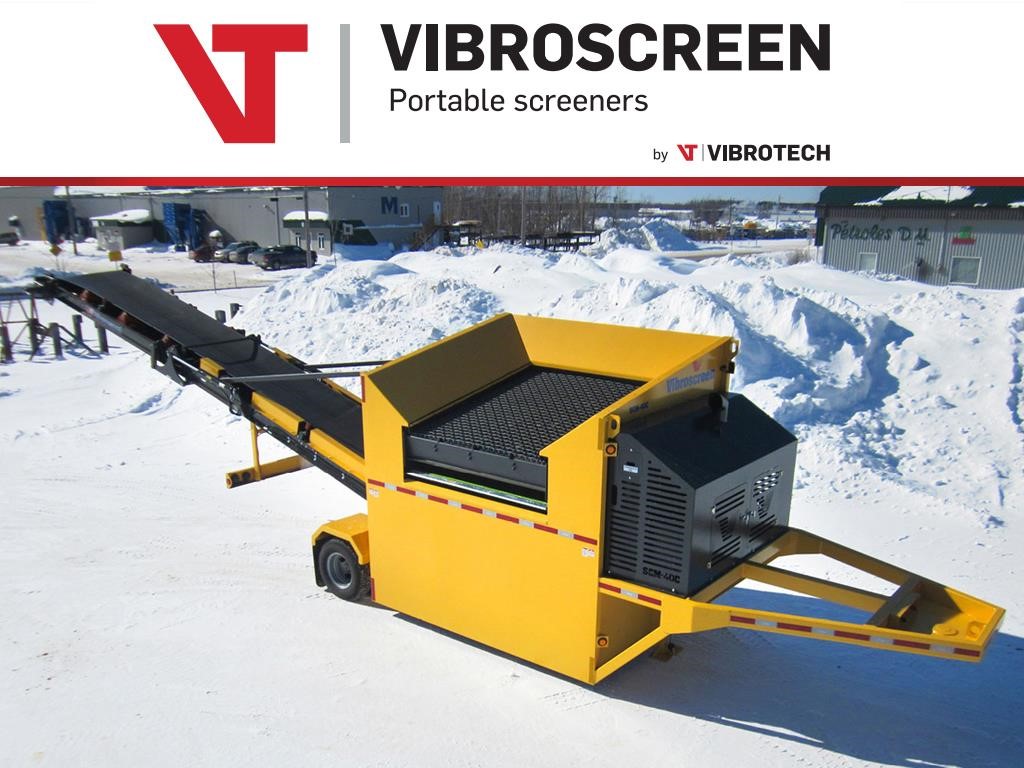

VIBROTECH VIBROSCREEN SCM-40C–PORTABLE SCREENER

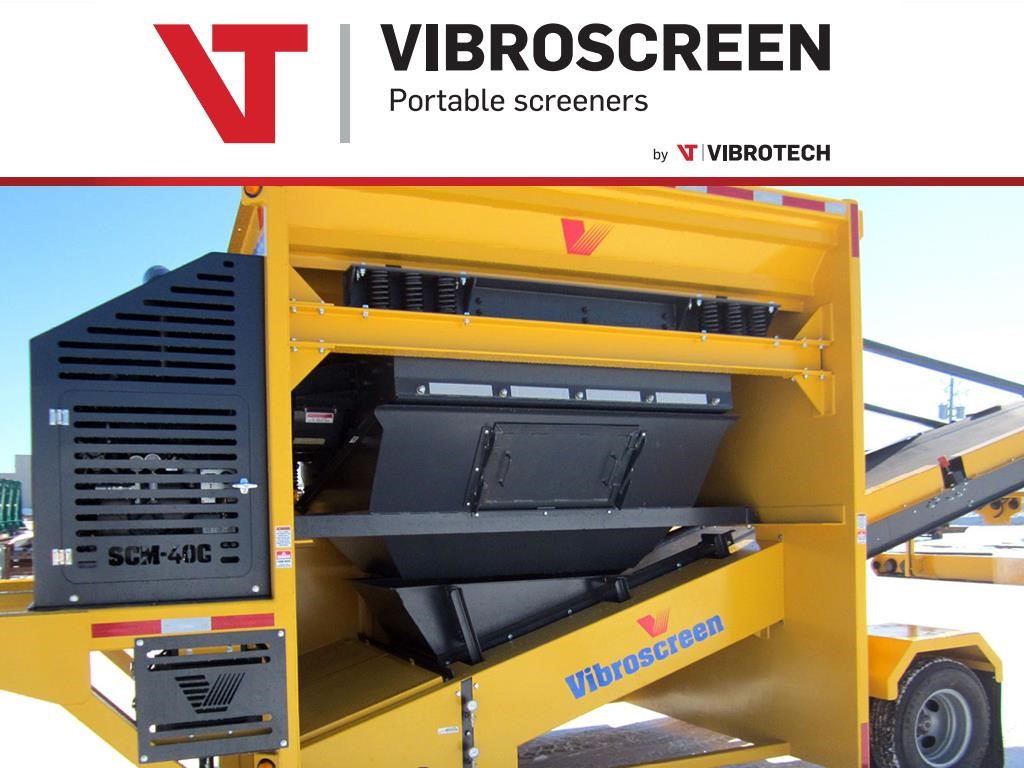

The SCM-40C Vibroscreen is ideal for a loader with a bucket of between 1 to 3 cubic yards. The SCM-40C Vibroscreen has a screen surface of 40 square feet. The vibrating head with two decks offers a screening capacity of up to 100 cubic yards per hour.
The material is loaded from above in the hopper’s superior section. The superior deck is generally used to make a first rough sorting, protect the lower screen, and optimized quality and productivity. The sifted material is found under the hopper, while the coarser material of 2 decks is found on the side of the frame.
GREAT QUALITY, GREAT VALUE!
• Heavy Duty construction
• Portable equipment
• Up to 100 cubic yards per hour
• Low maintenance
• Reversible shakerhead for better screening effect
• Quick screen change
OPTIONS AVAILABLE
• Wings plates extensions (included)
• Hydraulic grizzly
• Pintle hook hitch type
• Flexmat screen
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- Engine - Fuel autonomy: Up to 8 hours
- Hydraulics - Control valves: Shakerhead (forward - reverse) Front jack cylinder Axle cylinder Conveyor (start-stop, open-close)
- Weight - Tongue weight: 4775 lbs (2165 kg)
- Capacity - Shaker head decks: 2
- Working Dimensions - Loading height: 9' 11"
- Working Dimensions - Hopper width (feeding): 9' 4"
- Engine - Type: Diesel, vertical, water cooled
- Freight Dimensions - Total height on wheel: 10' 9"
- Towing - Hitch type: Fifth wheel
- Towing - Axle type: Single axle, double wheels
- Freight Dimensions - Total length: 34' 1"
- Towing - Brakes: Air
- Working Dimensions - Free height (under conveyor): 10' 9"
- Working Dimensions - Working length: 45' 5"
- Capacity - Maximum single load: Up to 3 cubic yards
- Engine - Manufacturer: Perkins
- Engine - Electric starter: Included
- Hydraulics - Cooling: Hydraulic cooler
- Engine - Cold starting aid: Glow plug
- Engine - Tank: 84 liters (22 gal)
- Towing - Suspension: None
- Freight Dimensions - Total width: 8' 0"
- Engine - Alternator: Included
- Towing - Landing gear: Hydraulic
- Working Dimensions - Discharge belt width: 42"
- Warranty - :
- Towing - Lights and mud flaps: Included
- Capacity - Cycle time, average: 30 seconds
- Engine - Number of cylinders: 4
- Capacity - Screening area: 71" x 82" (40 sq-ft)
- Engine - Power: 60 HP
- Warranty - Equipment: 12 months
- Weight - Gross weight: 18820 lbs (8536 kg)
