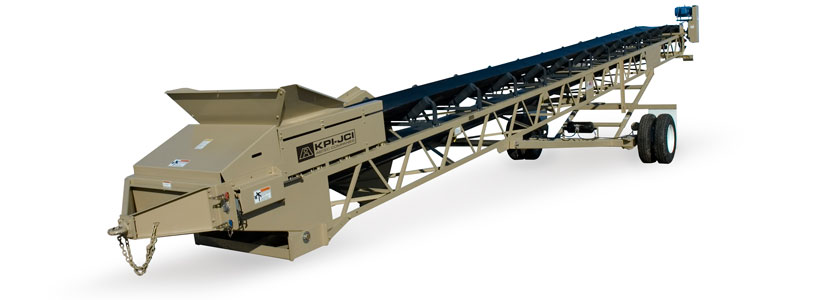

Available in standard sizes from 42 inches x 150 feet, these conveyors partner seamlessly with our full line of portable and stationary crushing, screening and material handling equipment. Incredibly easy to set up, our radial stackers will have you moving material in no time.
ModelTable
| Model | Size (in x ft) | Capacity (tph) | Motor (HP) |
|---|---|---|---|
| Series 11 | 11-2440 | 24 x 40 | 250 | 7.5 | 11-2450 | 24 x 50 | 250 | 10 | 11-2460 | 24 x 60 | 250 | 10 | 11-2470 | 24 x 70 | 250 | 10 | 11-3040 | 30 x 40 | 500 | 10 | 11-3050 | 30 x 50 | 500 | 15 | 11-3060 | 30 x 60 | 500 | 15 | 11-3070 | 30 x 70 | 500 | 20 | 11-3640 | 36 x 40 | 750 | 15 | 11-3650 | 36 x 50 | 750 | 20 | 11-3660 | 36 x 60 | 750 | 20 | 11-3670 | 36 x 70 | 750 | 25 | 11-4240 | 42 x 40 | 1,000 | 25 | 11-4250 | 42 x 50 | 1,000 | 30 | 11-4260 | 42 x 60 | 1,000 | 30 | 11-4270 | 42 x 70 | 1,000 | 40 |
| Series 13 | 13-2480 | 24 x 80 | 250 | 10 | 13-24100 | 24 x 100 | 250 | 15 | 13-24125 | 24 x 125 | 250 | 15 | 13-24150 | 24 x 150 | 250 | 25 | 13-3080 | 30 x 80 | 500 | 20 | 13-30100 | 30 x 100 | 500 | 25 | 13-30125 | 30 x 125 | 500 | 25 | 13-30150 | 30 x 150 | 500 | 40 | 13-3680 | 36 x 80 | 750 | 25 | 13-36100 | 36 x 100 | 750 | 30 | 13-36125 | 36 x 125 | 750 | 40 | 13-36150 | 36 x 150 | 750 | 50 | 13-4280 | 42 x 80 | 1,000 | 40 | 13-42100 | 42 x 100 | 1,000 | 50 | 13-42125 | 42 x 125 | 1,000 | 60 | 13-42150 | 42 x 150 | 1,000 | 75 |
