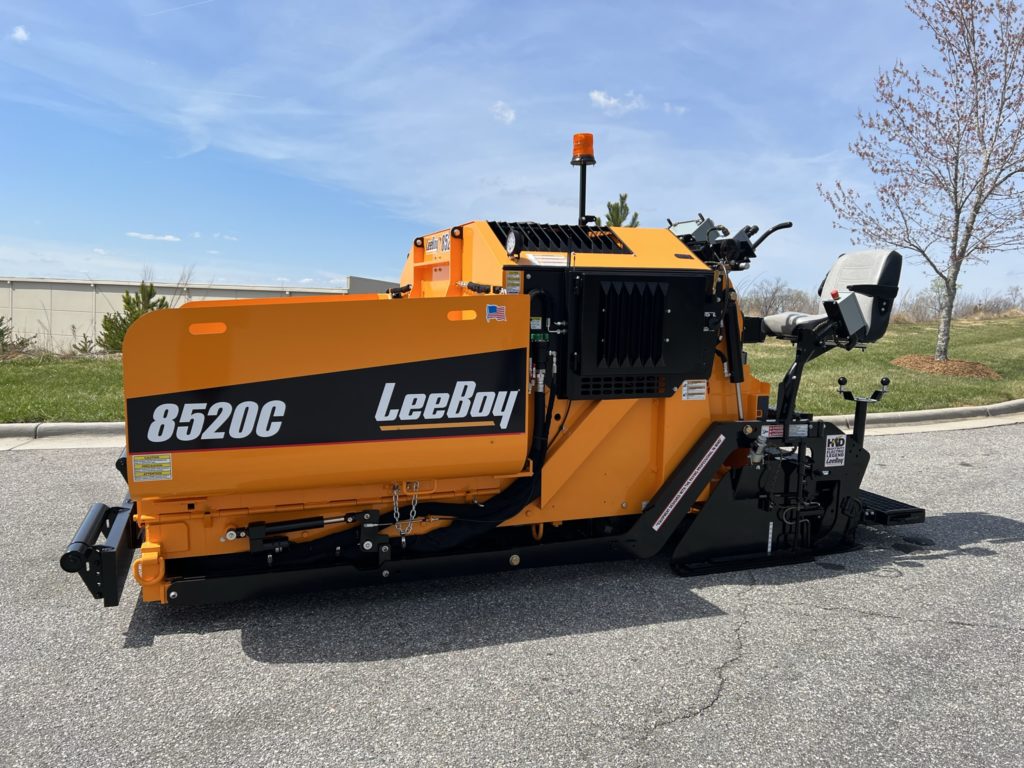

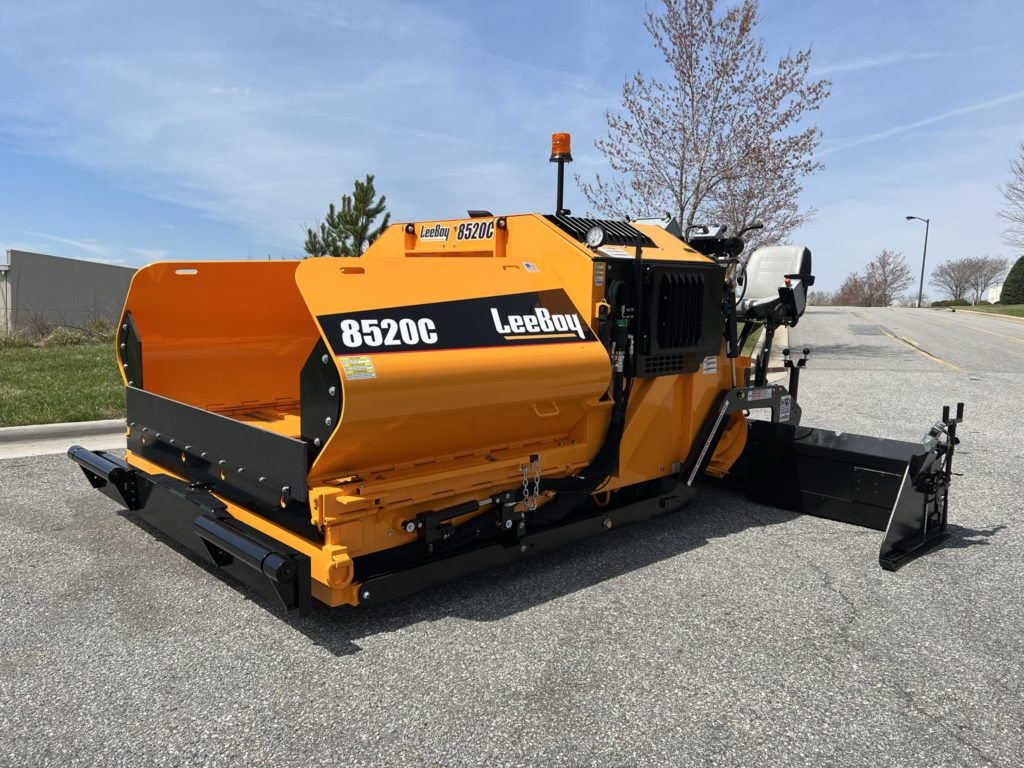

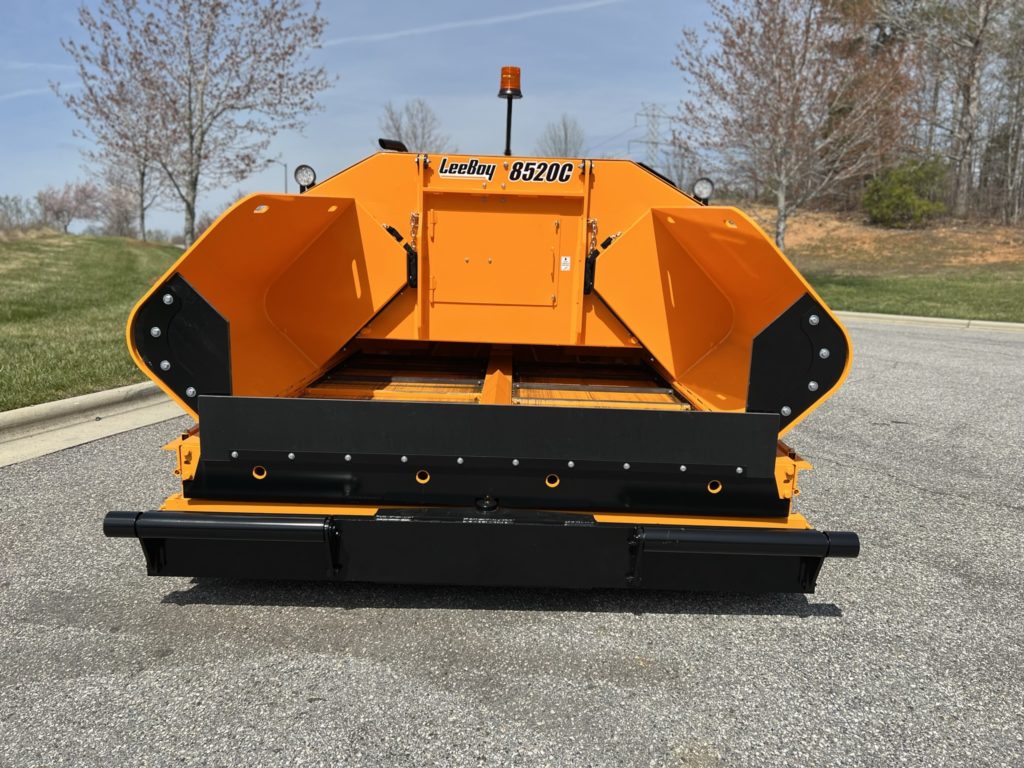

We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8520C is a 125hp workhorse. Standard machine assets include the 3,450 lbs Legend HD Screed with, heavy-duty conveyor chains, dual seating and sliding main controls, a LeeBoy 2-year product warranty as well as many other enhancements. As always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat.
- Fuel: 32 Gallons
- Washdown Tank: 7 Gallons
- Length: 14’ 10” 13’ 10” transport
- DEF Tank: 5 Gallons
- Width: 8’ 6” transport 10’ hopper wings down
- Total Weight (with screed): 21,400 lbs. 22,100 lbs. (with HD Pro Screed)
- Height: 6’ 8” low deck 6’ 10” high deck
- Hydraulic: 25 Gallons
Paving Widths
-
Machine has variable paving widths up to 15’
-
Machine has variable paving widths up to 15’ 6” (with HD Pro Screed)
Engine
-
Kubota turbocharged diesel
-
Tier 4 Final – 125 HP (93 kW) @ 2,200 rpm
-
Remote mounted DOC + DPF + SCR

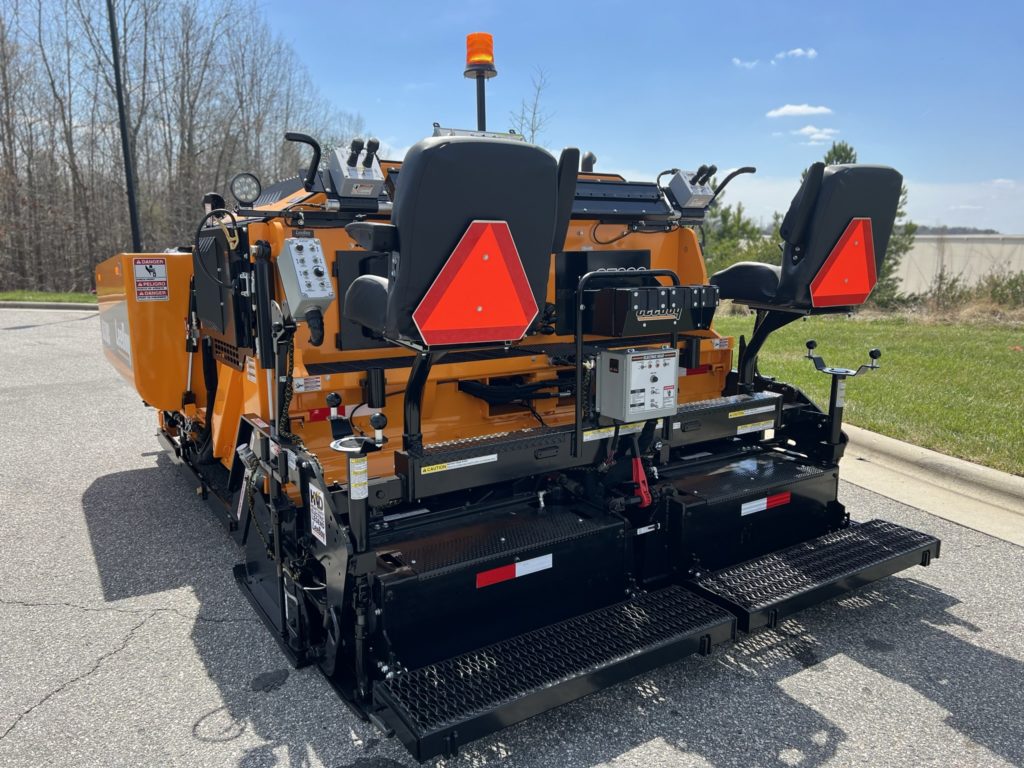

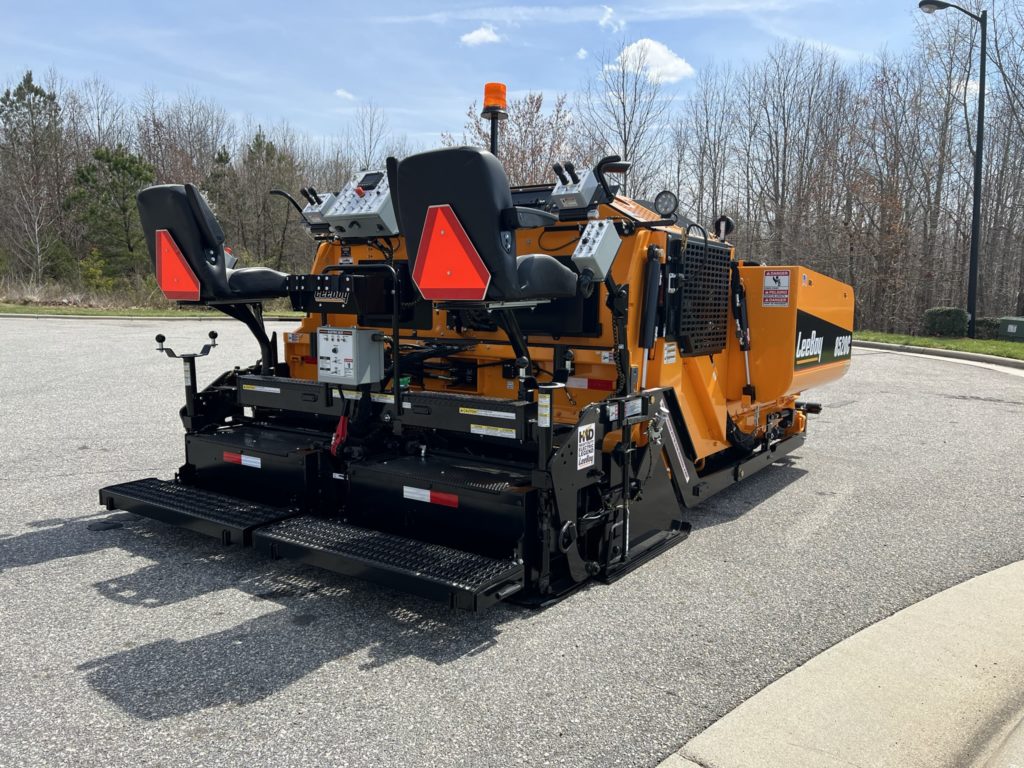

Operator’s Controls
-
High deck/low deck configuration
-
Includes dual electronic steer
-
All control switches are located in one box that can be slid to each side. Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, and lights
-
Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
