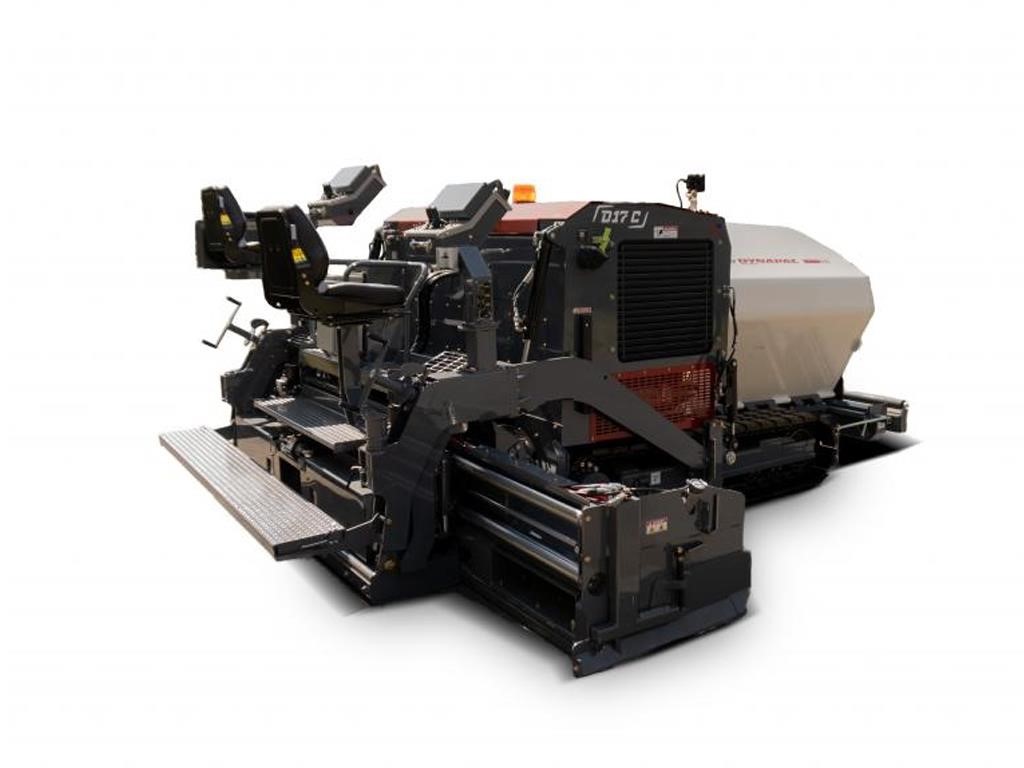

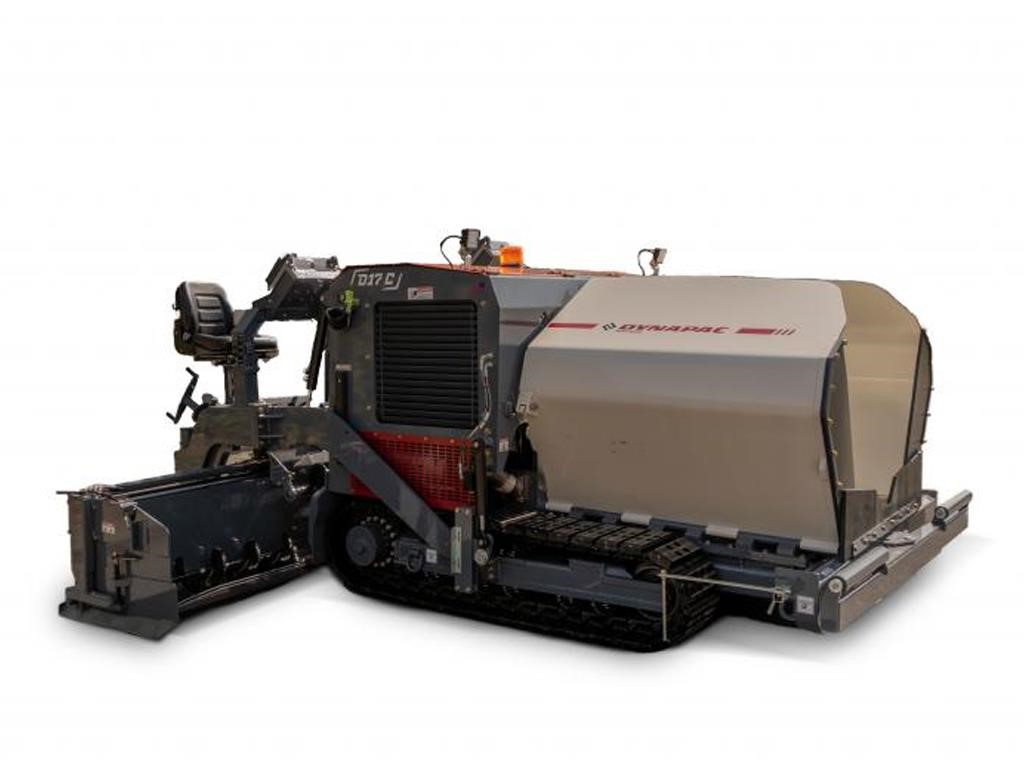

D17C — COMPACT PAVERS
EQUIPMENT (STANDARD AND OPTIONS)
STANDARD
• LED Work Lights
• Backup Alarm & Rotating Beacon
• Reversible auger and conveyor
• Rebuildable wear resistance conveyor floor plates
• Segmented High Wear Augers
• Hydraulic Tow Point
• Screed Power Crown
• Creed Power Match height
• Dyn@link Telematics
• Ultrasonic sensors auger
• Wash down spray system
• Dual operator console with conventional electrics
• Screed ext. power slope control
• Heated end gate
OPTIONAL
• Road Crew Kit
• 3 Man operation
• Levelling System
• Averaging Ski beam
• CutOff plates
• Screed Extension
• Truck Hitch
• Umbrella
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
- Dimensions - Working width, hydraulic extendable: 4.70 m
- Engine - Rated power, SAE J1995: 120 hp @ 2200 rpm
- Dimensions - Standard Paving Width : 2.4-4.7 m
- Engine - Electrical system: 12V
- UNDERCARRIAGE - Type: Steel track with poly pad
- Capacity - Paving thickness (max/min) : 150 mm /0 mm
- UNDERCARRIAGE - Crawler length: 1830 mm
- Material Hopper - Capacity: 7.3 t
- CONVEYOR - Conveyor control: Automatic with Auger control
- Dimensions - Working width, minimum (with reducing shoe): 0.30 m
- Masses - Mass (incl. standard screed) : 8.8 t
- Material Hopper - Dumping height, center: 406 mm
- Engine - Heating generator capacity: 16 kW, 240 V 1 phase
- Engine - Manufacturer/Model : Cummins QSF 3.8
- Engine - Fuel tank capacity: 83 l
- Capacity - Theoretical placement capacity: 550 t/h
- UNDERCARRIAGE - Crawler width: 355 mm
- Engine - Emissions according to: EPA T4f/EU4
- CONVEYOR - Conveyor width: 560 mm
- Auger - Auger control: Automatically with ultrasonic sensor
- Auger - Auger height adjustment : 230 mm (9 in) mounted on screed extensions
- Auger - Auger diameter: 304.80 mm
- Engine - Engine alternator capacity: 140 Amps
- Material Hopper - Hopper width, internal: 3125 mm
- Dimensions - Transport width: 2.60 m
- Dimensions - Front ramp angle : 11°
- UNDERCARRIAGE - Final drive: Hydrostatic with gear reducer
- CONVEYOR - Conveyor type: Dual slat conveyor
- Dimensions - Working width, max.: 5.50 m
- Masses - Mass (tractor): 6.8 t
