Easy, Accurate and Lowest Cost of Operation
The MA4 was designed to make longitudinal joint sealing, VRAM and fog sealing features such as rumble strips and paint
lines easy for any crew to perform. Operators will find the controls simple and intuitive with minimal training necessary
which means your crew will be ready to make expert applications, accurately and consistently every time. No CDL is
required. The MA4 can be towed by a 1-ton work truck giving your company the ability to perform the job on your own
schedule, freeing you from the constraints of contractors and creating greater profit margins on your jobs.
- Material Capacity: 410 gal. (1,552 l.)
- Axles/ Suspension: 2x5200 Lbs. / Torsion Type
- Engine: Isuzu Tier IV 19HP Diesel
- Heat Rating: 400,000 BTU
- Heating Method: Diesel
- GVWR: 9,950 lbs. (4,513 kg.)
- Material Pump: Variable Speed 40 GPM at 200 RPM
- Indicator lights tell the driver when the system is active and speed is within rate application range
- Application bar can be set to specified width and material application rate in seconds

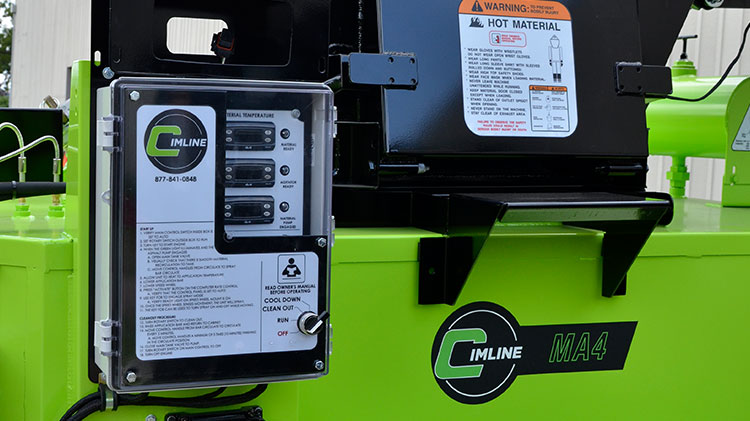

- Basic set up and easy operation with Cimline automated controls
- Works well with VRAM and other HOT products
- Works well with bulk material and material in solid block form
Benefits
-
First and only towable VRAM (Void Reducing Asphalt Membrane) applicator that does not require a CDL (Commercial Driver’s License)
-

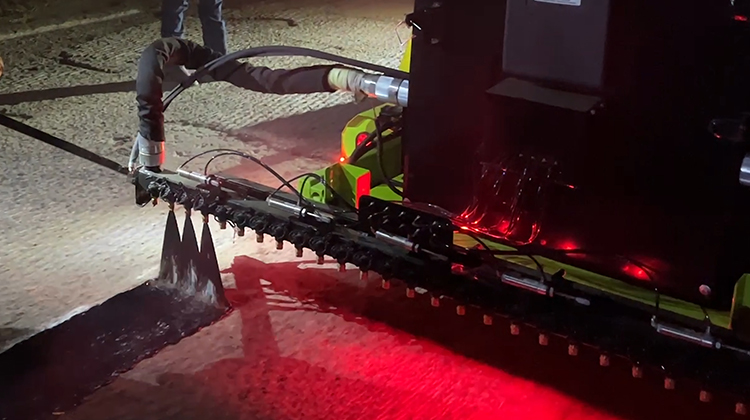

Fog sealing of profiled milled features such as rumble strips paint lines are easy to seal with the MA4
-
Saves you money by enabling you to take control of longitudinal joint sealing
-
Faster and simpler logistics on every project when you control this step of the paving process
-
Control the pace. Only seal what is needed for the day so motorists are not exposed to slick centerlines
Additional Specifications
-
Brake Type: Electric(available with surge brakes)
-
Loading Height: 54 in.(1372 mm.)
-
Loading Doors: Single Curbside
-
Fuel Capacity: 33 gal.(125 l.)
-
Hydraulic Capacity: 33 gal.(125 l.)
-
Heat Transfer Oil: 40 gal.(151 l.)
-
Dimensions: 211 x 87 x 90 in. (5359 x 2210 x 2286 mm)
-
Shipping Weight : 6954 lb.(3154 kg.)
-
Warranty: 1 Year Limited
