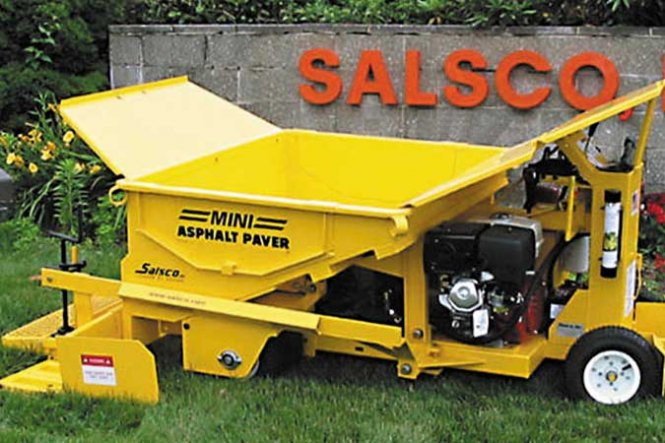

Salsco has been manufacturing the Mini-Asphalt Rubber Tire Paver for almost 35 years, and it has been a very useful, productive, time and labor saving unit for many asphalt contractors, municipalities and golf courses. Sidewalks, Golf Cart Paths, Walkways and much more. Paving width is from 36″ to 72″, at a paving speed up to 50′ per minute.
Specifications
|
HOPPER: |
Hopper is constructed of 11 gauge steel, formed and gusseted for strength. Removable sides for ease of loading with wheelbarrows or a curb feeder. |
|
SCREED: |
Free floating and adjustable; compensates for variations in ground contour. |
|
SIDEWALLS: |
Constructed of 11 gauge steel, formed and gusseted for extra strength. |
|
ENGINE: |
Honda 13 HP, electric start mounted on 1/2″ thick steel plate motor mount. |
|
PUMP: |
Sunstrand |
|
MOTOR: |
Char-Lynn |
|
HOSES: |
2,500 P.S.I., working, 10,000 P.S.I., burst |
|
BATTERY: |
12 volt, automotive type. |
|
DRIVE: |
Hydrostatic; variable forward and reverse |
|
TIRE/WHEEL ASSEMBLIES: |
FRONT TIRES: Dual rubber tires, Quantity (4), 4 ply, 13 x 5.00-6. REAR TIRES: Quantity (2), 2 ply, 13 x 5.00-6. |
|
FENDERS: |
1/4″ thick steel heavy duty fenders over front tires. |
|
MAIN FRAME: |
One (1) piece, 1/4″ thick steel main frame. 2″ x 2″ square tubing supports. |
|
PAVING SPEED: |
50′ per minute |
|
PAVING WIDTH: |
36″ to 72″ |
|
PAVING THICKNESS: |
1/4″ – 5″ |
|
DIMENSIONS: |
Length: 96″ Width: 54″ Height: 36″ Weight: 1,040-lbs. Approximately |
