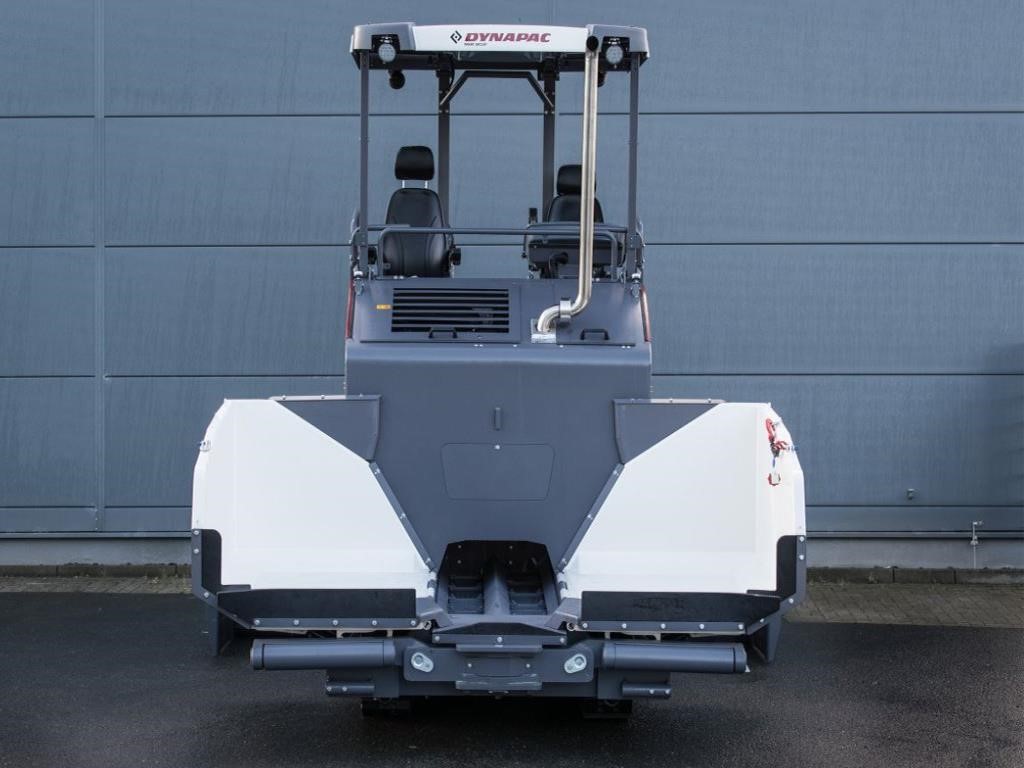

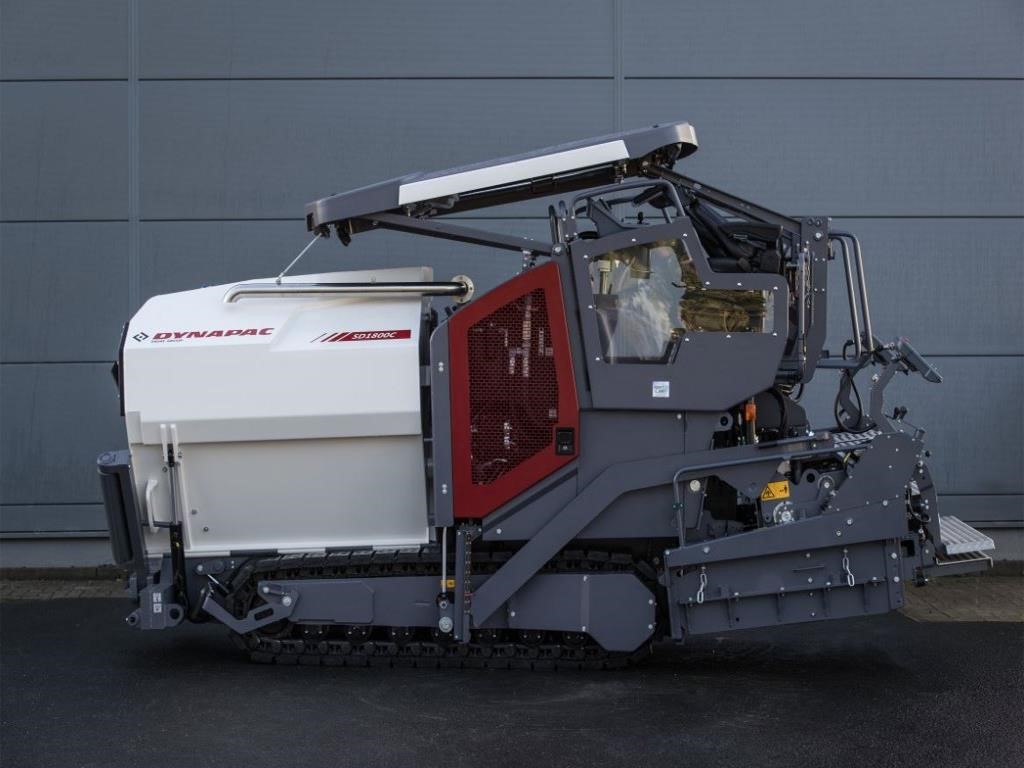

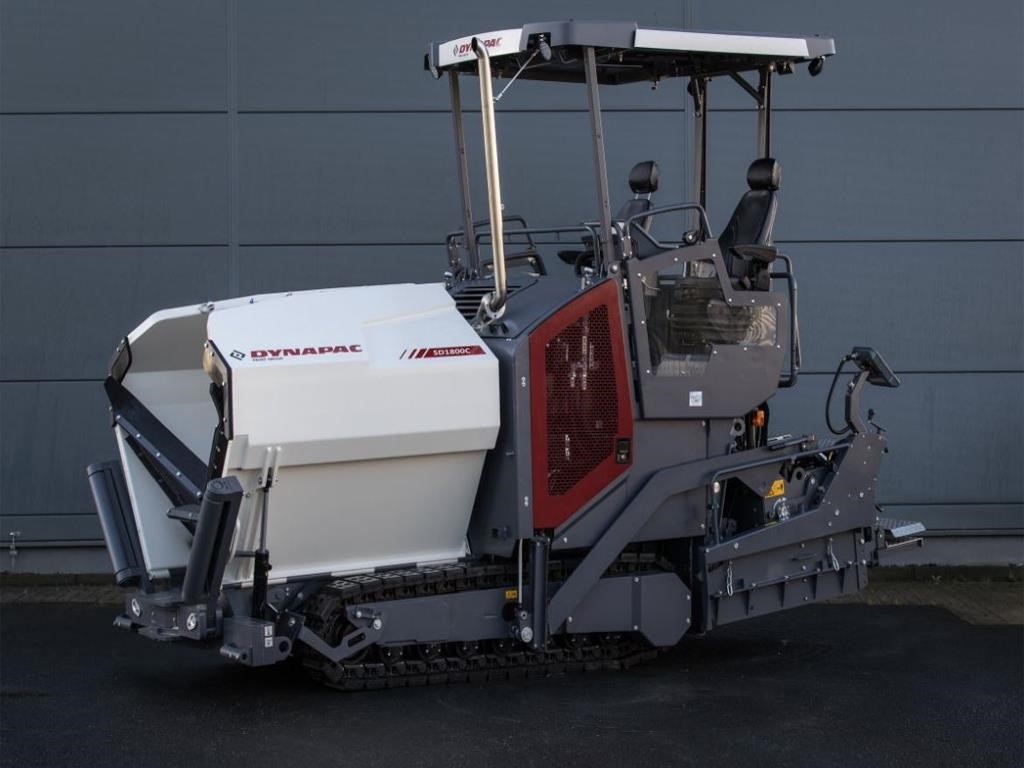

DYNAPAC SD1800C — CITY PAVERS
The tracked pavers in the Dynapac range sets impressive standards, since these pavers are convincing at all kind of paving widths by their ease of adapting, simple use and serviceability. Long track drives and wide pads guarantee for maximum traction and low maintenance due to their sealed and lifetime lubrication. The rugged track types of these pavers compensate uneven ground level and a precise electronical steering ensures excellent laying results.
THE DYNAPAC CITY PAVER has a laying capacity of 350 t/h and covers paving widths from 0.70 m up to 4.70 m. It is ideal for street and city road constructions and a perfect fit on repair jobs. The class is composed of four different models. Customers can chose from two operating systems: either the Conventional Control, a simple system, easy to operate and maintain; or PaveManager 2.0 which is a CANBased control system featuring a wide variety of automated functions. The machines are offered as Tracked or Wheeled.
Specifications are subject to change without prior notice. Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Conveyor - Conveyor control: Proportional speed control, Both sides driven independently
- Operation - Operational controls: Pavemanager 2.0 (PLC)
- Dimensions - Height, max.: 3.60 m
- Traction - Maximum paving speed: 295,280 fpm
- Conveyor - Conveyor type: Dual bar feeder
- Dimensions - Width, standard: 1.80 m
- Dimensions - Wheelbase:
- Dimensions - Length: 5.02 m
- Dimensions - Height, transport: 2.92 m
- Dimensions - Track length: 2.09 m
- Engine - Electrical system: 24 V
- Dimensions - Height: 2.40 m
- Traction - Transport speed: 218.72 fpm
- Engine - Fuel tank capacity: 19.29 gal
- Dimensions - Width, center of tracks: 1.20 m
- Dimensions - Track width: 0.26 m
- Engine - Emissions according to: Tier 3/Tier 4
- Dimensions - Dumping height: 0.50 m
- Engine - Rated power: 54 kW @ 2200 rpm
- Masses - Paver weight (incl. standard screed): 23,100 lbs
- Dimensions - Length, hopper: 1.99 m
- Conveyor - Conveyor width: 27.56 in
- Dimensions - Width, max.: 3.15 m
- Engine - Manufacturer/Model: Deutz, 2,9L TD 4 Cylinder
- Operation - Platform: Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
