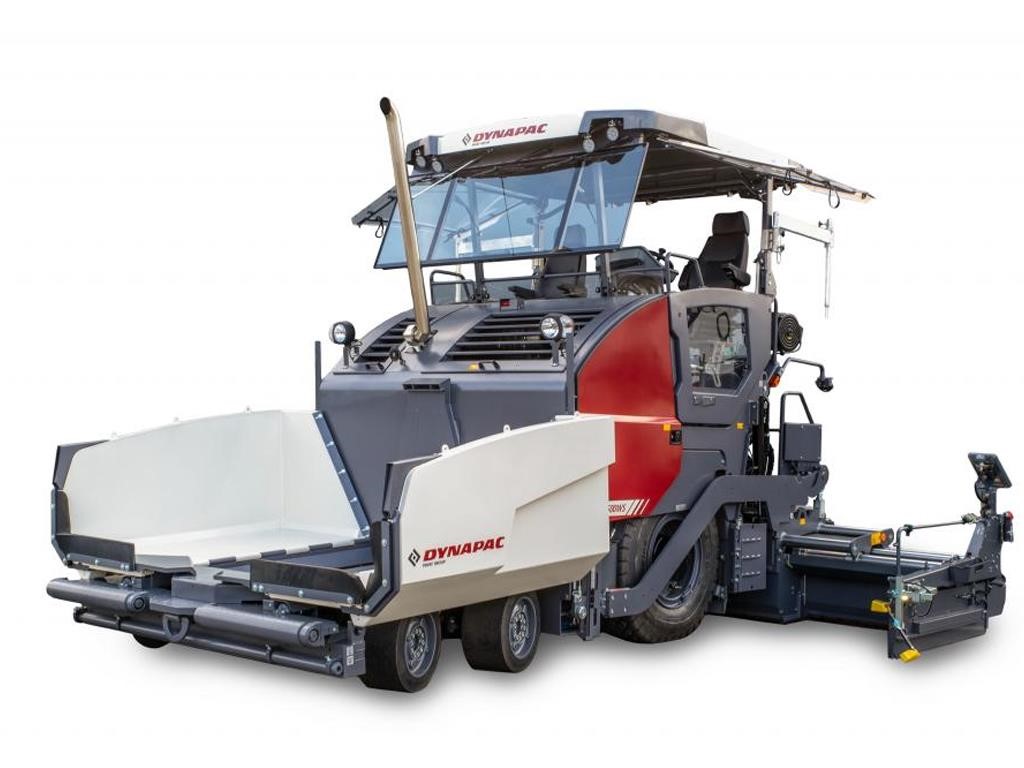

SD2500W — LARGE PAVERS

• Integrated advanced leveling solutions

• Perfect overview with slidable cabin

• Intuitive PaveManager 2.0

• Long lasting track design

• Efficient drive train

The Dynapac SD Pavers combine decades of engineering experience with constant innovation. All our expertise in the paving process, paving quality, and reliability went into their design. The Dynapac SD range offers the widest variety of options. Choose from gas or electric heating, standard or high-capacity work. The range also comes with four different power classes, including a sustainable drive concept with Eco mode or the optional VarioSpeed high-performance system. All pavers come with the same service concept and operating system to ensure maximum uptime.

A NEW PERSPECTIVE ON PAVING – BRINGS PAVING QUALITY TO A NEW LEVEL

PROTECTED FROM ALL WEATHER CONDITIONS

Thanks to a higher seat position and movable plat-form, operators have an excellent view of the hopper and all working areas for optimal paving results.

LOW NOISE & LESS VIBRATIONS

Thanks to an efficient drive concept, additional roof insulation, and a noise-optimized screed design, our highway paver range reduces noise levels to 104db(A). Additionally, they are designed to lower vibrations during transfer.

MATERIAL RECEIVING MADE EASY

Unmatched capacity for reduced segregation & improved paving quality combined with a clear visual indication for the truck driver with TruckAssist.

REDUCE IMPACT FROM TRUCKS

Safe Impact System: Hydraulic anti-shock push rollers get rid of the typical marks on the surface due to truck docking. The system also extends the docking length, thus giving you greater flexibility when working with different truck models. Thanks to the Dynapac Safe Impact System unwanted contacted with the screed is avoided.

PERFECT DRIVE BEHAVIOUR

More ground contact and better grip with Alpha tracks. These unique track pads are specially designed for paving applications and have a higher rubber thickness for longer a service life and less costs.

OPTIMIZED MATERIAL FLOW

The auger drive system is a centrally driven system with a slim gearbox (15cm) and small outer bearings and offers optimal mixture homogeneity despite the high material throughput of up to 1100 tons per hour.

BRILLIANT LIGHT CONCEPT

Dynapac offers sophisticated lighting systems for night work: LightAssist, LED lights, LED lighting balloons, auger & engine compartment lights, as well as side and screed lights for wider working widths.

PAVE SMART WITH VARIO SPEED

Load sensing hydraulic system reduces fuel consumption. VarioSpeed is a Dynapac patented drive concept that recognizes the required rpm for the specific working situation and adjusts accordingly.

SAVE FUEL WITH ECO MODE

EcoMode’s stepless operation makes it unique in its category. Simply adjust the engine rpm to suit the conditions of your particular job site. Instead of having a fixed rpm level, you can individually set the level for that particular working situation using the eco-function.

EXTREMELY STABLE SCREED

Our time-proven four-guiding tube principle ensures ideal screed stability. Our screeds are easy to assemble and don’t require additional supporting rods, even at large working widths.

IMPROVE PAVING

The intelligent paving control system Pavemanager 2.0 can be deployed for numerous applications, from highways, to city paving, while offering quality results and easy monitoring.

JOB SITE CONFIDENCE

Keep your team confident, productive, and secure on the job site. Enjoy optimal work safety, more ergonomics, and easy-to-use operating systems.

MACHINE USABILITY

COMFORTABLE MACHINE ADJUSTMENT

Effortless control is one of our key focuses. We are bringing driven controls on the paver with hydraulic crowning, hydraulic auger height adjustment, electric screed lock, electric rock deflector, electric roof lifting and hydraulic side shields.

FULL VISIBILITY ALSO AT NIGHT JOBS

Dynapac LightAssist and the powermoon option optimally illuminate your night job.

AUTOMATE STANDARD PROCESSES

Permanent steering is out. Let our steering assistant take over, or switch to full automation with 3D Levelling systems.

CHOOSE THE PERFECT SIDE SHIELD

Our machines were built with variability in mind. That’s why we offer a wide variety of side shields to perfectly fit your worksite needs.

SPEED UP YOUR DAILY USE

Our VarioSpeed & SetAssist features help you automate and optimize your daily operations for more operating convenience and productivity.

ERGONOMICS

EFFORTLESS PAVING

Enjoy more working ease with our ergonomic comfort seats with their slidable platform and flexible seating position. And when things get hot, look forward to a cool beverage from the included cooling box.

MINIMIZED VIBRATIONS

Say goodbye to shaking with this unique feature, designed to reduce the transfer of vibrations from the machine to the operator.

EASIEST SET UP

Enjoy a hassle-free workday: lift the roof with a touch of a finger, fold your side shields into place without needing a wheel loader, or light up the jobsite with homecoming lights.

REACHABLE CONTROLS

The HMI, the side shield controls, and the screed remote are the key interfaces between the operator and the paver. Stay in perfect control of both sides with the split view feature and remote controls.

KEEP YOUR TOOLS HANDY

Have the tools right there where you need them with additional storage compartments.

HEALTH & SAFETY

AVOID WORKING IN DANGER ZONES

With the MatTracker, the electric rock deflector and the optional camera system you don’t need to access danger zones during operations.

KEEP THE FUMES AWAY

A high-capacity fume suction device ensures a cleaner working environment and reduces 96% of fumes according to a NIOSH test.

WEATHER PROTECTION ALL AROUND

Stay protected from the elements with our practical and handy cabin options.

REDUCED NOISE PRESSURE

The Dynapac 104 dB(A) guidelines ensure less noise exposure, thus helping to lower job related health risks.

LATEST STANDARD

We are committed to designing and creating the most advanced screed series around and maximum compaction results. And always with the latest safety and emission standards in mind.

HIGH PRODUCTIVITY

Increase the productivity of your jobsites through efficient paving and compaction operation. Reduce downtime-related costs.

PLANNING, DOCUMENTATION & CALCULATION PROCESS

KEEP THE OVERVIEW

Track your jobsites live with our Dyn@Link & MatManager systems, or check on your status with the integrated Material Calculator.

STAY CONNECTED

Get the system your project needs with an integrated and wireless open CAN interface to 3rd party solutions.

DOCUMENTATION AS A PART OF YOUR JOB

Enjoy integrated jobsite documentation with MatWiser or systems like Pave IR or PaveTM.

IDLE AND WAITING TIME

MATERIAL RECEIVING MADE EASY

Clear visual indication for the truck driver with TruckAssist.

HEATING-UP WITHOUT THE ENGINE

The gas-heated screeds are quickly and quietly brought up to the right temperature without any fuel consumption.

OPTIMIZED SERVICE ACCESS

Fast access to all valves and liquids with the Dynapac Service concept.

APPLICATION THROUGHPUT & OUTPUT

MAXIMIZE THE MACHINES CAPACITY

Reach the highest possible output by equipping your machine with a high-capacity conveyor in combination with a variety of auger sizes.

MAXIMUM POWER

The Dynapac SD-Paver Series offers you all the power and performance your jobsite needs.

GET THE JOB DONE IN ONE GO

Enjoy a 14m working width at 1100t/h. Even the biggest of jobsites are no match for our SD2550 Highway Paver in combination with our Rigid-Screed-Series or Vario Screed working widths. And when used in combination with our Dynapac Feeder, you can reach up to 25m with consolidated material.

REACH YOUR PRE-COMPACTION FASTER

Get projects done faster, reduce the number of roller passes and enjoy optimal quality on all layers with the Dynapac TH-Screed-Series.

MAXIMUM UPTIME

A machine has to run to make money! Minimize non-productive times, and avoid unscheduled break-downs.

ALL ABOUT MACHINE RELIABILITY

THE ENGINE YOU CAN RELY ON

The powerful and highly durable Cummins Engines have driven our pavers for around 10 million hours. And that across the globe.

TESTING ROUTINES

Every machine is thoroughly tested regarding noise emissions and safety-related functions according to ISO3744:2010, ISO 2867, and EN500.

CONTINUOUS VERIFICATION

Each machine is checked for 100% quality before shipment.

SELF DIAGNOSE AND PREDICTIVE MAINTENANCE

Stay on top of your machine’s status with Dyn@link and even get early notifications from Pave Manager 2.

COMPANY STANDARDS

To deliver the same high quality and reliability throughout all Dynapac production sites, we hold ourselves to rigorous and frequently audited internal guidelines.

MAINTENANCE AND REPAIRS

SERVICE AT ITS BEST

Be always prepared with easy access to all critical machine areas with our comprehensive service and maintenance concepts.

INVESTMENTS STAY LONGER

Extend your warranty or set up a complete service agreement for your Dynapac machines.

SPARE PARTS AVAILABLE WHEN YOU NEED THEM

Enjoy fast delivery times and 24/7 availability for Dynapac spare and wearing parts until ten years after the machine’s original shipment.

SCHEDULE YOUR MAINTENANCE NEEDS

With Dyn@Link, you have an easy and concise overview of your machine’s status, complete with service intervals & failure notifications.

SETUP, DISMANTLING & CLEANING TIME

FASTEST HEATING

Both of our heating systems speed up paving time for quicker results and maximum quality.

QUICK MACHINE CLEAN UP

Get things clean faster with the integrated emulsion spray equipment, tank, and hose reel. A dedicated cleaning mode for the conveyor auger and screed, plus the cleaning friendly design of the front flap saves time and muscle power.

FAST RELOCATION

Save your paving settings and restore them automatically with the convenient SetAssist system.

HIGH QUALITY RESULTS

Avoid penalties and rework! Stabilize the quality of your paving and compaction jobs.

SEGREGATION AVOIDANCE

DESIGNED TO KEEP THE MATERIAL MIXED

The special hopper design and a wide material tunnel ensure significantly less cross movement within the material.

LESS TURBULENCES

The high-capacity conveyor helps get rid of movements inside the material itself by increasing the tonnage you transport.

OPTIMIZED FLOW

Enjoy an optimized material flow from the truck hopper to the end of the screed.

SMALLEST DISTORTION

The special auger drive design ensures a continuous material flow in front of the screed.

PERFECT FIT TO YOUR JOB

Enjoy greater flexibility with a wide choice of auger sizes and adjustable screed arms.

EVENNESS

CLEAN UP YOUR WAY

The machine needs to drive as even as possible. The solution to ensure that without accessing danger zones is the electric rock deflector.

STIFFEST SCREED IN THE MARKET

Avoid bending or torsion which will have a direct impact to the paved surface with Vario Screeds and the 4-Tube guiding system.

CONSISTENT SCREED TEMPERATURE

A constant heat distribution throughout the complete working width for tamper, bottom plates and high-compaction-bars with the Dynapac heating systems.

THE VARIETY OF LEVELING SYSTEMS

Perfect results by using advanced Leveling solutions like the MOBA Sonic Sensors, the rotary sensor, big ski systems or 3rd party 3D levelling systems.

THE PRE-TENSIONED RIGID SCREED

No surface inconsistencies throughout large working widths with the pre-tensioning system in our rigid screed range.

QUALITY DOCUMENTATION

MONITOR YOUR RESULTS

Get quality tracking for seamless documentation with MatScanner, Pave IR, & Pave TM.

ONLINE ACCESS

Easy and intuitive automatic documentation with Dyn@link.

CHOOSE YOUR FAVORITE

Enjoy more compatibility with 3rd party systems. Just add the job site optimization system you prefer, like the MatWiser with direct access to your paver’s data.

LOW COST OF OWNERSHIP

Improve the overall profitability of your investment by reducing machine operating costs while maintaining a high equipment value.

MAINTENANCE COST

FAST ACCESS

Our Dynapac Service concept ensures that everything is easily and quickly reachable.

PERFECT TIMING

Plan your maintenance when the machine has free slots with Dyn@link.

WEARING RESISTANT

Look forward to comprehensive service for the operational life of all parts.

RESALE VALUE

REDUCE ENGINE RUNNING TIMES WHILE WORKING

Activate the gas-heated screeds without having to run the engine for greater savings.

MADE IN GERMANY

High-quality, long-lasting materials are engineered and built according to the latest regulations.

PERSONNEL COST

ONE PERSON TO SET-UP

Reach the transport position quickly and conveniently with the foldable side shields.

SUPPORT LESS TRAINED EMPLOYEES

The easy-to-use machine steering, combined with our Pave Manager 2.0 and advanced integrated leveling solutions simplifies operations for everyone involved.

AUTOMATE THE PROCESS

Reduce personnel needed to operate the machine with automation systems like the MatTracker or the Steering Assistant.

DESIGNED TO STAY CLEAN

Avoid additional manual interaction or material in areas where it disrupts the paving process with the hydraulic front flaps. Our TruckAssist feature ensures a clean and seamless material receiving process.

RUNNING COST

ENGINE AUTOMATION

Our VarioSpeed feature lets you use the lowest possible engine RPM for greater fuel and cost savings – fully automatic.

EFFICIENT INTEGRATED CLEANING

Enjoy easy and efficient post-job cleaning. With the integrated emulsion spray equipment, you always have the right tools by your side.

ALWAYS THE RIGHT AMOUNT OF GREASE

Save on resources with our intelligent central lubrication system.

ENVIRONMENT & SUSTAINABILITY

Protect the environment while showing your social responsibility and collect on tenders that require low CO2 and noise emissions.

RECYCLING CONTENT

RE-USE IS A CORE VALUE

All our machines are made using up to 95% recyclable material to reduce the carbon footprint in production.

PAVE WHAT YOU HAVE PLANNED BEFORE

Dynapac Rigid- and Vario-Screed Series are capable to handle also the stickiest recycling material.

NOISE EMISSION

LOWEST ENGINE POWER NEEDED

Our engines regulate themselves to use as little fuel as necessary while still providing all the power you need for paving based on the VarioSpeed concept. It also ensures the lowest possible engine noise level.

STRINGENT INTERNAL GUIDELINES

Our goal is that all of our machines operate within a noise level range of below 104 dB(A).

QUIET COMPACTION

Because there is no frictional contact during paving, there is no difference between the TV or the TH- Screed regarding noise emission.

CARBON FOOTPRINT

OPTIMIZE YOUR OUTPUT

Stay in control of what you pave while using only the necessary amount of material. The integrated screed width measuring system, material calculator, and job site management systems like the MatManager make it possible.

ENVIRONMENT FRIENDLY

Reduce your carbon footprint with efficient systems like VarioSpeed or the TH-Screed series. Both are powered by engines using the latest Stage V after-treatment technology.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
