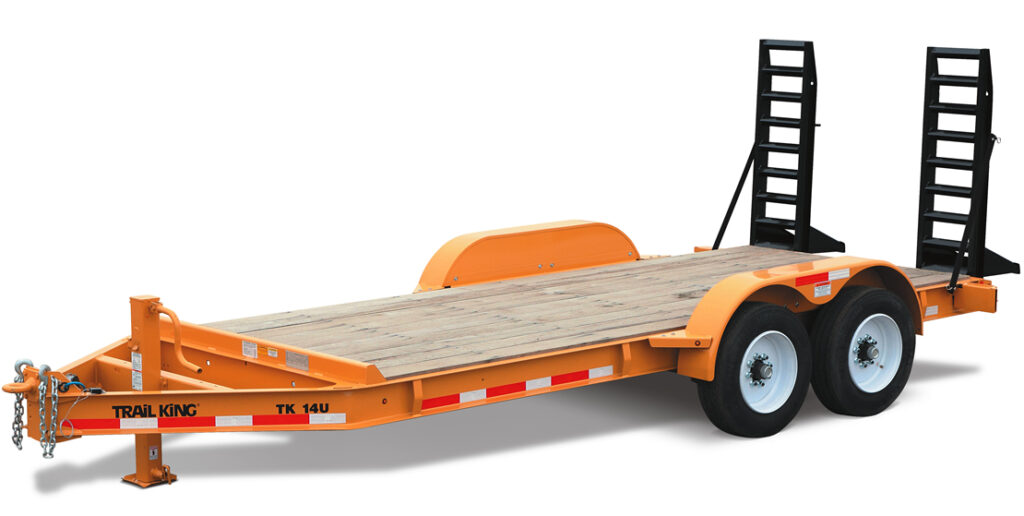

Our Utility trailer is manufactured to be small, strong, and stable. These models have a 12,000-lb to 16,000-lb capacity, including self-supporting, lightweight ramps that create secure loading for versatility and maximum payload.
Model Specifications
| TKU Standard Equipment | TK12U | TK14U | TK16U |
|---|---|---|---|
| Payload Capacity | 12,000 lb. | 14,000 lb. | 16,000 lb. |
| Structural Steel Main Frame | X | X | X |
| Overall Width | 102” | 102” | 102” |
| Deck Width between Fenders | 82” | 82” | 82” |
| Overall Deck Length | 16’ | 16’ | 16’ |
| Loaded Deck Height | 23” | 23” | 23” |
| 1.5″ Oak (Raised) Decking | X | X | X |
| Torflex Axles | (2) 7,000 lb. | (2) 7,000 lb. | (2) 8,000 lb. |
| 12,000 HD Jack with Spring Foot | X | X | X |
| 4-Bolt Pintle Eye Hitch, adjustable range | 19” – 23.5” | 19” – 23.5” | 19” – 23.5” |
| (6) Tie-Down Brackets | X | X | X |
| 5’ Self-Supporting Loading Ramps | X | X | X |
| Electrical System per DOT Regulations | X | X | X |
| Safety Chains with Grab Hooks | X | X | X |
| 14 Gauge Fenders | X | X | X |
| Headboard | X | X | X |
| Breakaway Switch | X | X | X |
| Single Disc Wheels (8 Hole) | X | X | X |
| Tires | 235/80R x 16 | 215/75R x 17.5 | 215/75R x 17.5 |
| Red and White Conspicuity Markings | X | X | X |
