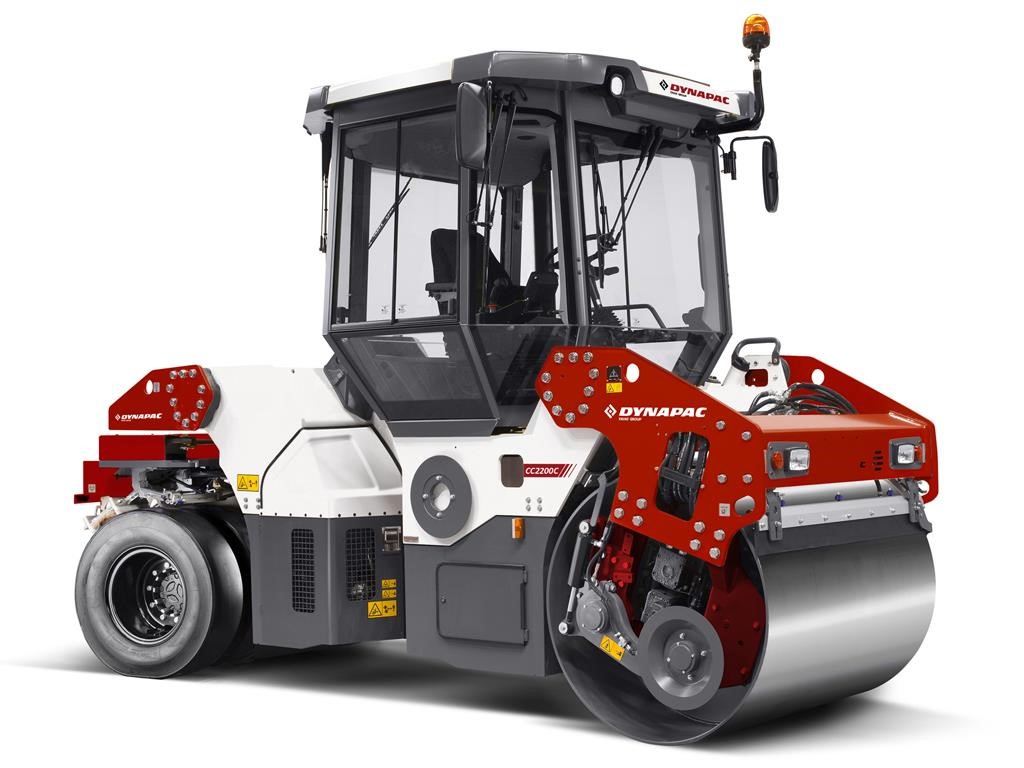

CC2200C — DYNAPAC COMBI ROLLERS
The combi-versions are equipped with four rubber tires at the rear instead of a drum. The rubber wheels are driven in pairs by separate propulsion motors, thus minimizing the risk of damaging newly laid asphalt compound when making sharp turns. The rubber wheels ensure a denser and smoother surface on the asphalt, a feature that is sometimes required.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
- Compaction - Wheel load: 1.950 (pounds/wheel)
- Engine - Fuel tank capacity: 34 gal
- Engine - Manufacturer/Model: Deutz TCD 3.6 HT T4f
- Traction - Speed range: 0-7.5 mph
- Hydraulic System - Service brake: Hydrostatic in forward and reverse lever.
- Compaction - Water tank: 198 gal
- Alternative Engine - Rated power, SAE J1995: 74 kW (99 hp ) @ 2,200 rpm
- Compaction - Vibration frequency (high/low amplitude): 2,880/4,020 vpm
- Masses - Operating mass (incl. ROPS): 16,300 lbs
- Compaction - Static linear load: 144 lbs/in
- Alternative Engine - Fuel tank capacity: 34.35 gal
- Compaction - Centrifugal force (high/low amplitude): 17,540/15,060 lb
- Compaction - Nominal amplitude (high/low): 0.028/0.012 in
- Hydraulic System - Vibration: Axial piston pump with variable displacement. Axial piston motor with constant displacement.
- Masses - Module mass (front/rear): 8,500 lbs/7,800 lbs
- Traction - Theor. gradeability: 49 %
- Alternative Engine - Manufacturer/Model: Cummins QSB 3.3 IIIA/T3
- Traction - Max. theoretical gradeability: ±7
- Hydraulic System - Parking/Secondary brake: Failsafe multidisc brake in both drums.
- Hydraulic System - Driving: Axial piston pump with variable displacement. Axial piston motors (3) with variable displacement.
- Engine - Type: Water cooled turbo diesel
- Engine - Rated power, SAE J1995: 55 kW 74.0 hp @ 2,200 rpm
- Masses - Max. operating mass: 18,100 lbs
- Compaction - Emulsion tank: 21 gal
- Hydraulic System - Steering: Gear pump with constant displacement.
- Alternative Engine - Type: Water cooled turbo Diesel
