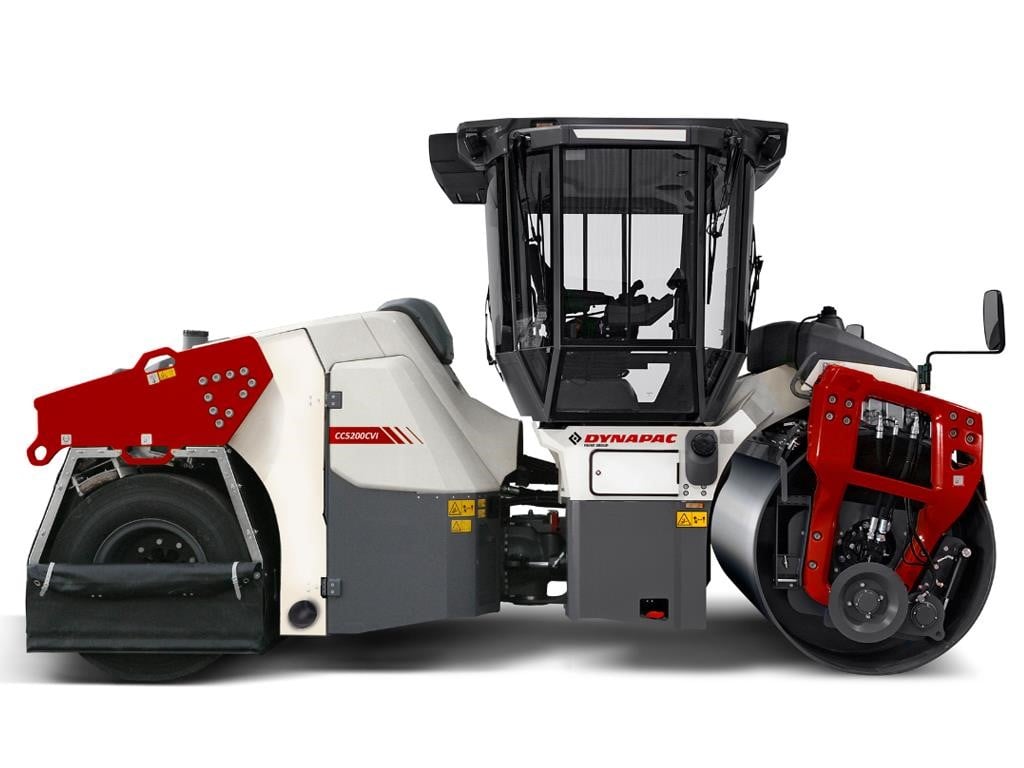

CC4000CVI — DYNAPAC COMBI ROLLERS
The combi-versions are equipped with four rubber tires at the rear instead of a drum. The rubber wheels are driven in pairs by separate propulsion motors, thus minimizing the risk of damaging newly laid asphalt compound when making sharp turns. The rubber wheels ensure a denser and smoother surface on the asphalt, a feature that is sometimes required..
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
- Hydraulic System - Driving: Axial piston pump with variable displacement. Radial piston motors (3) with variable displacement.
- Compaction - Water tank (front drum steering): 143 gal
- Engine - DEF tank capacity: 4 gal
- Dimensions - Wheel track: 18.3 in
- Compaction - Water tank: 180 gal
- Compaction - Static linear load: 162 lbs/in
- Masses - Max. operating mass: 23,600 lbs
- Hydraulic System - Steering: Gear pump with constant displacement.
- Dimensions - Turning radius, outside: 286 in
- Alternative Engine - Fuel tank capacity: 48 gal
- Dimensions - Width, with cab: 84 in
- Dimensions - Steering angle: ±32°
- Alternative Engine - Rated power, SAE J1995: 97 kW (130 hp ) @ 2,200 rpm
- Dimensions - Wheelbase: 146 in
- Compaction - Emulsion tank: 52.84 gal
- Engine - Type: Water cooled turbo diesel
- Alternative Engine - Type: Water cooled turbo diesel
- Traction - Speed range: 0-7.5 mph
- Dimensions - Width, front: 75 in
- Engine - Rated power, SAE J1995: 100 kW (135.0 hp ) @ 2,200 rpm
- Dimensions - Drum width: 66 in
- Traction - Vertical oscillation: ±7°
- Dimensions - Wheel spacing: 5.0 in
- Dimensions - Width, wheel module: 63 in
- Dimensions - Curb clearance: 32 in
- Hydraulic System - Service brake: Hydrostatic in forward and reverse lever.
- Dimensions - :
- Hydraulic System - Parking/Emergency brake: Failsafe multidisc brake in drum and wheel motors.
- Engine - Fuel tank capacity: 48 gal
- Engine - Manufacturer/Model: Cummins F3.8 V
- Dimensions - Drum shell thickness: 0.71 in
- Compaction - Centrifugal force (high/low amplitude): 25,400 lb/16,640 lb
- Dimensions - Turning radius with off-set, outside: 215 in
- Dimensions - Ground clearance: 12.2 in
- Alternative Engine - DEF tank capacity: 3.96 gal
- Dimensions - Turning radius, inside: 220 in
- Compaction - Vibration frequency (high/low amplitude): 3,060 vpm/4,020 vpm
- Dimensions - Off-set: 20.5 in
- Dimensions - Height, with ROPS: 118 in
- Masses - Operating mass (incl. ROPS): 20,300 lbs
- Dimensions - Turning radius with off-set, inside: 149 in
- Hydraulic System - Vibration: Axial piston pump with variable displacement. Axial piston motor with constant displacement.
- Alternative Engine - Manufacturer/Model: QSF3.8 IV/T4f
- Traction - Theor. gradeability: 46 %
- Dimensions - Drum diameter: 48 in
- Compaction - Wheel load: 2,403 lbs/wheel
- Dimensions - Width, tire: 12.7 in
- Dimensions - Length: 194 in
- Masses - Module mass (front/rear): 10,700 lbs/9,600 lbs
- Compaction - Nominal amplitude (high/low): 0.031/0.012 in
