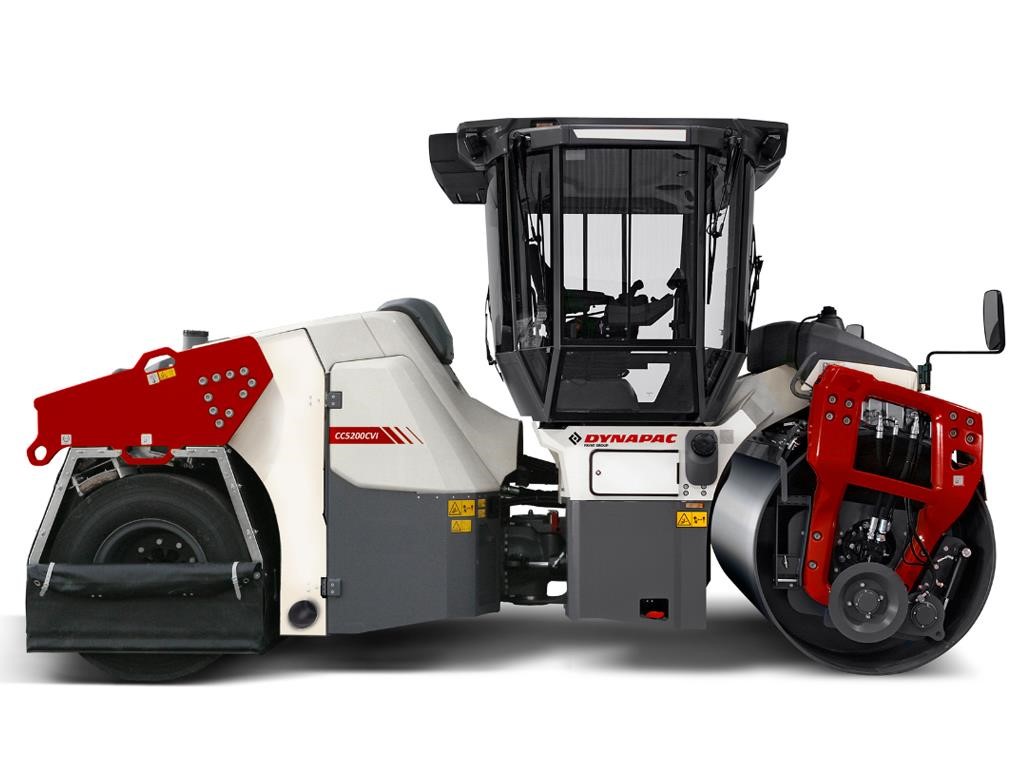

CC4200CVI — DYNAPAC COMBI ROLLERS
The combi-versions are equipped with four rubber tires at the rear instead of a drum. The rubber wheels are driven in pairs by separate propulsion motors, thus minimizing the risk of damaging newly laid asphalt compound when making sharp turns. The rubber wheels ensure a denser and smoother surface on the asphalt, a feature that is sometimes required.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
- Hydraulic System - Steering: Gear pump with constant displacement.
- Alternative Engine - Drum shell thickness: 0.79 in
- Alternative Engine - Wheelbase: 146 in
- Engine - Manufacturer/Model: Cummins F3.8 V
- Alternative Engine - DEF tank capacity: 3.96 gal
- Alternative Engine - Width, front: 75 in
- Hydraulic System - Parking/Emergency brake: Failsafe multidisc brake in drum and wheel motors.
- Masses - Max. operating mass: 24,300 lbs
- Alternative Engine - Manufacturer/Model: Cummins QSF3.8 IV/T4f
- Alternative Engine - Drum width: 66 in
- Alternative Engine - Height, with ROPS: 118 in
- Masses - Module mass (front/rear): 11,000 lbs/ 9,700 lbs
- Masses - Operating mass (incl. ROPS): 20,700 lbs
- Alternative Engine - Turning radius with off-set, inside: 149 in
- Compaction - Static linear load: 167 lbs/in
- Compaction - Water tank volume (front drum steering): 143 gal
- Alternative Engine - Off-set: 20.5 in
- Compaction - Vibration frequency (high/low amplitude): 3,060/ 4,020 vpm
- Alternative Engine - Width, with cab: 84 in
- Alternative Engine - Rated power, SAE J1995: 97 kW (130 hp ) @ 2,200 rpm
- Propulsion - Vertical oscillation: ±7°
- Hydraulic System - Driving: Axial piston pump with variable displacement. Radial piston motors (3) with variable displacement.
- Alternative Engine - Drum diameter: 51 in
- Compaction - Water tank volume: 180 gal
- Alternative Engine - Wheel spacing: 5.0 in
- Propulsion - Speed range: 0-7.5 mph
- Alternative Engine - Curb clearance: 32 in
- Engine - Type: Water cooled turbo diesel
- Compaction - Wheel load: 2,425 lbs/wheel
- Alternative Engine - Turning radius, inside: 220 in
- Hydraulic System - Vibration: Axial piston pump with variable displacement. Axial piston motor with constant displacement.
- Alternative Engine - Wheel track: 18.3 in
- Alternative Engine - Turning radius with off-set, outside: 215 in
- Alternative Engine - Ground clearance: 12.2 in
- Compaction - Centrifugal force (high/low amplitude): 28,780/ 18,880 lbs
- Alternative Engine - Steering angle: ±32°
- Engine - DEF tank capacity: 4 gal
- Alternative Engine - Type: Water cooled turbo diesel
- Compaction - Emulsion tank: 53 gal
- Alternative Engine - Width, tire: 12.7 in
- Propulsion - Theor. gradeability: 41%
- Alternative Engine - Fuel tank capacity: 48 gal
- Alternative Engine - Length: 197 in
- Alternative Engine - Width, wheel module: 63 in
- Engine - Fuel tank capacity: 48 gal
- Compaction - Nominal amplitude (high/low): 0.031/ 0.012 in
- Alternative Engine - Turning radius, outside: 286 in
- Engine - Rated power, SAE J1995: 100 kW (135 hp ) @ 2,200 rpm
- Hydraulic System - Service brake: Hydrostatic in forward and reverse lever.
