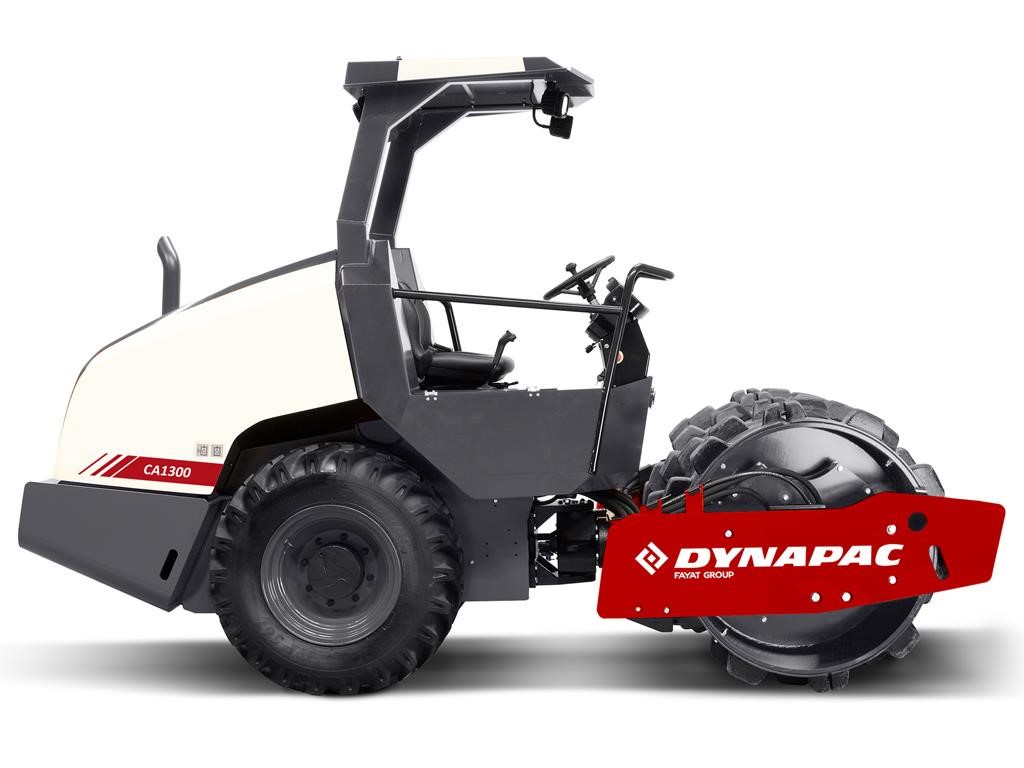

CA1300PD — DYNAPAC SINGLE DRUM VIBRATORY ROLLERS

Dynapac’s range of small and medium-size vibratory rollers are used to compact all types of soil with the exception of rockfill. The rollers are suitable for most types of road construction, airfields, dam construction, harbour projects and industrial constructions. Heavy-size vibratory rollers are used for a very wide range of applications. The thickness and grade of the drum’s steel are adapted for compacting rockfill, although vibratory rollers are also known for their excellent performance on other types of fill. A special version with a padfoot drum (PD) is available for compacting cohesive soils.

FEATURES & BENEFITS

ECO MODE

Big fuel savings with ECO!

STAGE IV / TIER 4F

Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

STAGE V / TIER 4F

Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

JOB SITE CONFIDENCE

Keep your team confident and healthy when operating on the job site. Ensure good working safety, ergonomics and easy to use operating systems.

1 X 1 METER VIEW

Fulfils insurance companies’ specifications for lower fee, both ROPS/FOPS & cab versions

PERFECT VIEW TO ALL SIDES

Drive with confidence in critical areas, nothing obstructs the view over surroundings and working area. Levelling blade full visible also in working position

LEVELLING BLADE ACTIVATED SEPARATELY

Not possible to lower levelling blade if not actively engaged, includes mechanical lock as well

LOW NOISE

Perfect airflow in engine compartment, both combustion air and cooling air and hydraulically driven fans. Both surrounding noise and operator’s ear (ROPS& cab) at a minimum

SEPARATE PARKING BRAKE

Not combined with F&R lever of safety reasons

MAXIMUM UPTIME

A machine has to run to make money! Minimize non-productive times, avoid unscheduled breakdowns.

EXCELLENT LIGHT PACKAGES

For high productivity even at night with workings LED working light and driving lights

COUNTERSUNK BOLTS IN THE FRAME SIDES

Transporting or compaction close to obstacles made easy, no protruding bolts

HYDRAULIC HOSES PROTECTED IN FRONT FRAME

Not outermost point and not covered to clog dirt that can damage the hoses

ONLINE MANUALS

Download your manuals when needed free-of-charge

EASY SERVICE CONCEPT

No need to climb or remove anything to access service

LOW COST OF OWNERSHIP

Improve the overall profitability of your investment by reducing the costs of operating the machine while maintaining a high equipment value.

DYN@LINK

Avoid machine damages by easily keeping track of maintenance needs and telemetric data

PAD SHELL AVAILABLE

Easy change from D to PD and vice versa, scrapers always included

HYDRAULICALLY DRIVEN FANS

Low noise and low energy consumption with fans regulated to needed cooling circumstances

ECO MODE

Substantially reduces the fuel consumption still controlling the vibration frequency

OPTIMIZED SERVICEABILITY

All maintenance from ground without climbing or dismantling to be performed at shortest time

HIGH PRODUCTIVITY

Increase the productivity of your job sites through efficient paving and compaction operation. Reduce non-productive times on the job site.

CA1300: STATIC LINEAR LOAD UP TO 15 KG/CM AVAILABLE

Static linear load is the most vital parameter to reach compaction

OPERATOR’S PLATFORM RUBBER MOUNTED

Less vibrations for operator, both body & hand/arm

CA1300: TILTABLE STRIKE-OFF BLADE AVAILABLE FOR PD

Possibility to profile the soil prior to compaction

PAVE COMP

Plan and predict every project

CA1400: DUAL SPEEDS AND DUAL AMPLITUDES

For best compaction performance and traction

HIGH QUALITY RESULTS

Avoid penalties and rework! Stabilize the quality of your paving and compaction jobs.

EXCELLENT MANEUVERABILITY

The small machine dimensions make it easy to work in confined areas

DRUM EDGE EASILY VISIBLE

With no instruments blocking the view – allows good compaction also in confined spaces

CHAMFERED DRUM EDGES

Helps to get the wear controlled and not creating “a knife” that will cut hydraulic hoses

HIGH GRADEABILITY

Easy to climb from trenches

HIGH GROUND CLEARANCE AND ANGLE OF ATTACK

To allow trench work reversing up from trenches

ENVIRONMENT/SUSTAINABILITY

Protect the environment. Show your social responsibility and collect on tenders that require low CO2 and noise emissions.

COST CTRL

Keep in control over the cost for every compacted cubic meter of soil

LED TECHNOLOGY

Working light as well as reversing lights are with latest technology to save environment

LOW NOISE EMISSIONS

Transverse mounted engine gives perfect air flow in the engine compartment to lower both surrounding noise and at operator’s ear

LATEST ENGINE TECHNOLOGY

ECO mode helps operator to keep down fuel consumption to a minimum as well as C02 footprint

STANDARD EQUIPMENT

• Back up alarm

• Battery switch (std)

• Brake release

• Cup and can holder

• Differential lock (limited slip)

• Drive control (right side)

• Drum drive (pad drum)

• ECO mode

• Emergency stop

• Engine 75 hp (Tier4final)

• Engine hood (lockable)

• Fuel level display

• High mounted exhaust pipe

• Horn

• Hour meter display

• Hydraulic checkpoints

• Hydraulic fluid filter (“spin-on”)

• Hydraulic fluid (mineral)

• Interlock

• Key (starter)

• Lifting points

• Lifting points for jack

• Manuals (Operation & Maintenance)

• Manuals (Spare parts catalogue)

• Operator’s platform (rubber mouted)

• Operator’s station (fixed)

• Parking brake

• ROPS (fixed) or Cab with AC/Heater/Fan

• Seat (adjustable)

• Seat belt 3″

• Storage box (on platform for ROPS)

• Storage for laminated manuals

• Tie down points

• Vandal cover (instrument panel for ROPS)

• Warning lights (brake, engine oil pressure, engine oil temperature, engine diagnostics, low charge, low fuel level)

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
