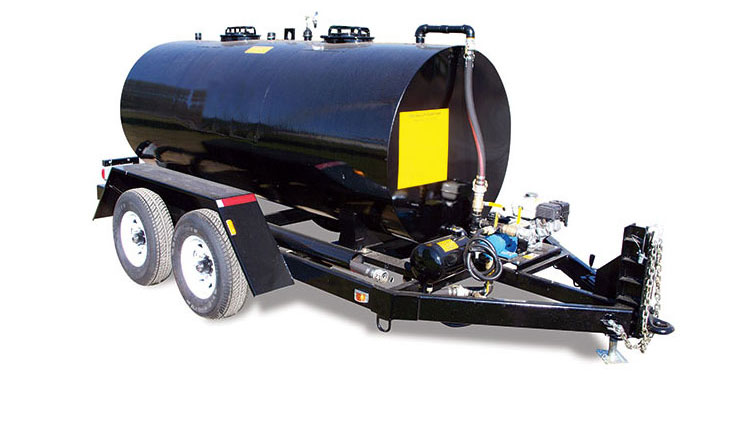

T1™ Mobile Emulsion Tank with DuraPatcher™ Technology
Benefits:
-
Saves fuel and transport costs with fewer trips to the emulsion plant
-
Optimizes your operation with the ability to heat to your climate and specifications
-
Efficient and safe tank includes 2” of insulation and a fire-retardant cover
- Convenient 1000 gallon portable storage capacity
- Fast filling with a 15 gallon per minute pump
- Simple 14” vented, locking loading port
- Large, user-friendly temperature gauge
- Preheating via two 1500 watt heating blankets with thermostat
Specifications
Due to continuous improvement, specifications are subject to change without notice.
-
Emulsion Capacity: 1000
-
Engine: 5HP Gas Honda
-
Heating Method (overnight): Electric Blanket
-
Heat Rating(watts): 1500 x 2, 110VAC (220VAC optional)
-
Material Pump: 15 gpm
-
GVWR (lbs): 12,500
-
GAWR (lbs): 7000×2
-
Axles/ Suspension: 2 (slipper spring)
-
Brake Type: Electric
-
Loading Hose: 2″ ID x 96″
-
Loading Ports: 14″ x2 (one vented and lockable)
-
Fuel Capacity: 2 gallons
-
Insulation:: 2” with fiber reinforced cover
-
Trailer Construction: 2” x 6” x ¼” Tube Steel
-
Drain Valve 3”
-
Temperature Gauge 5″ Dial type
-
Dimensions (l x w x h) 190” x 90” x 90”
-
Shipping Weight : 3,760 lb.
