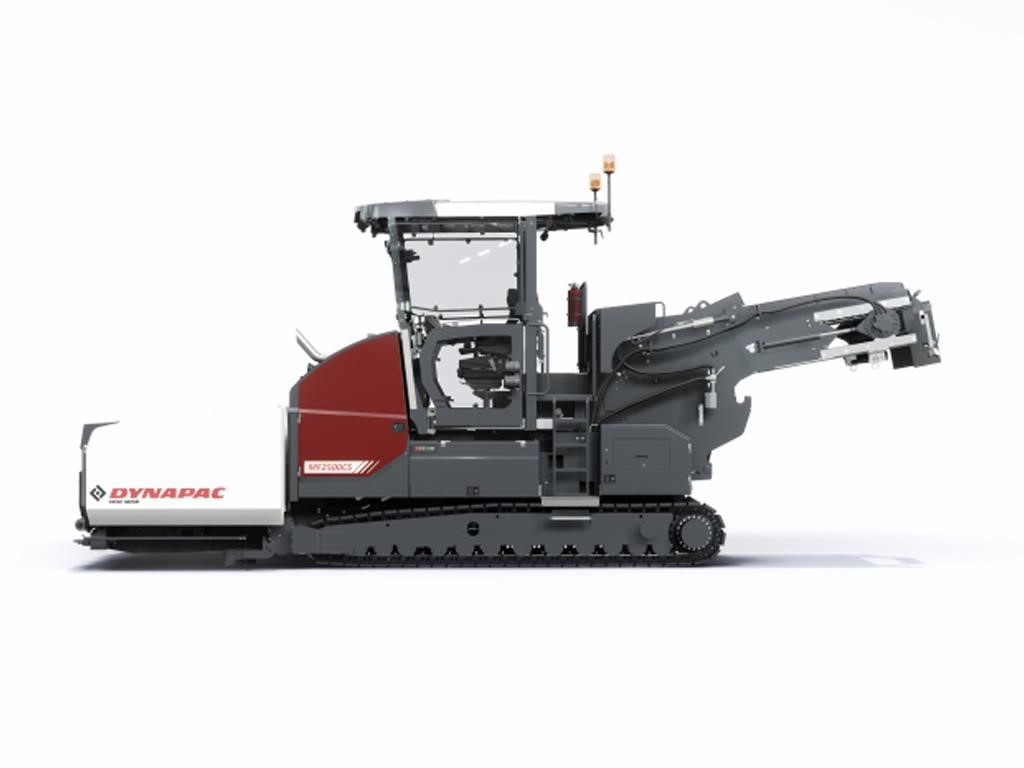

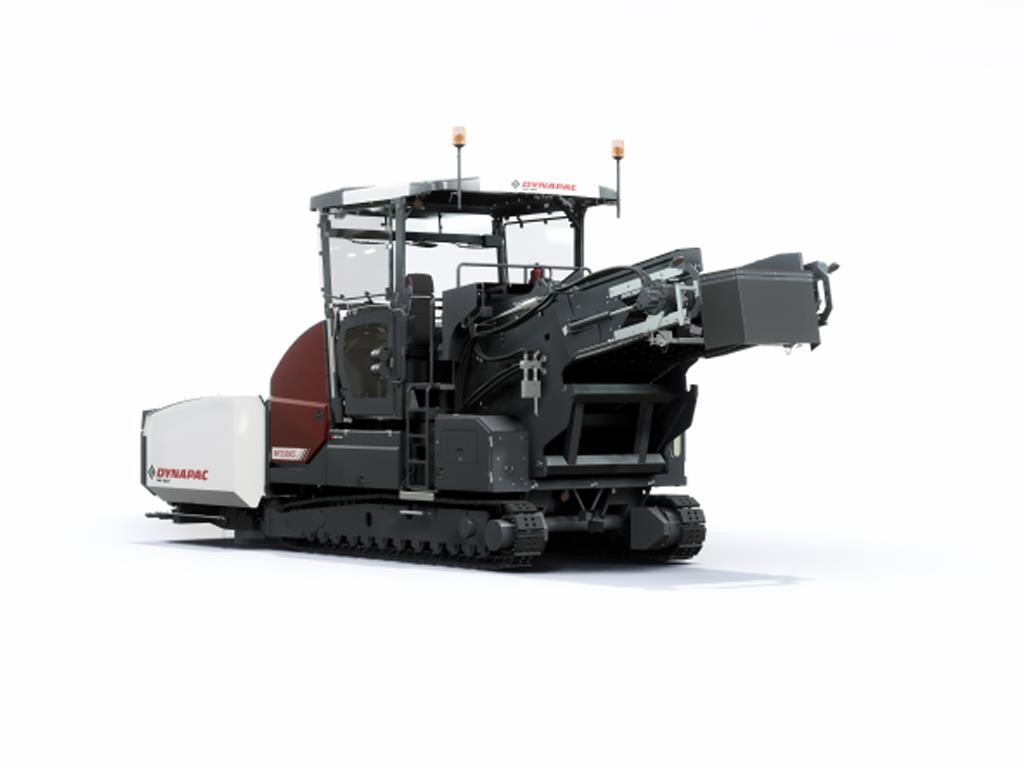

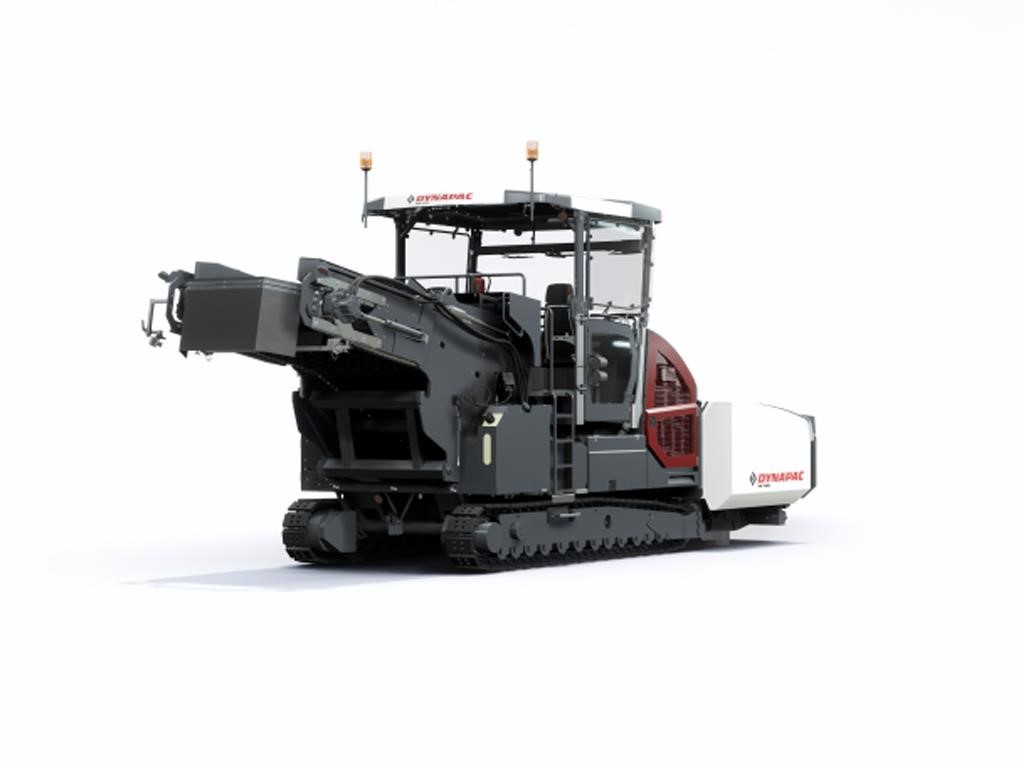

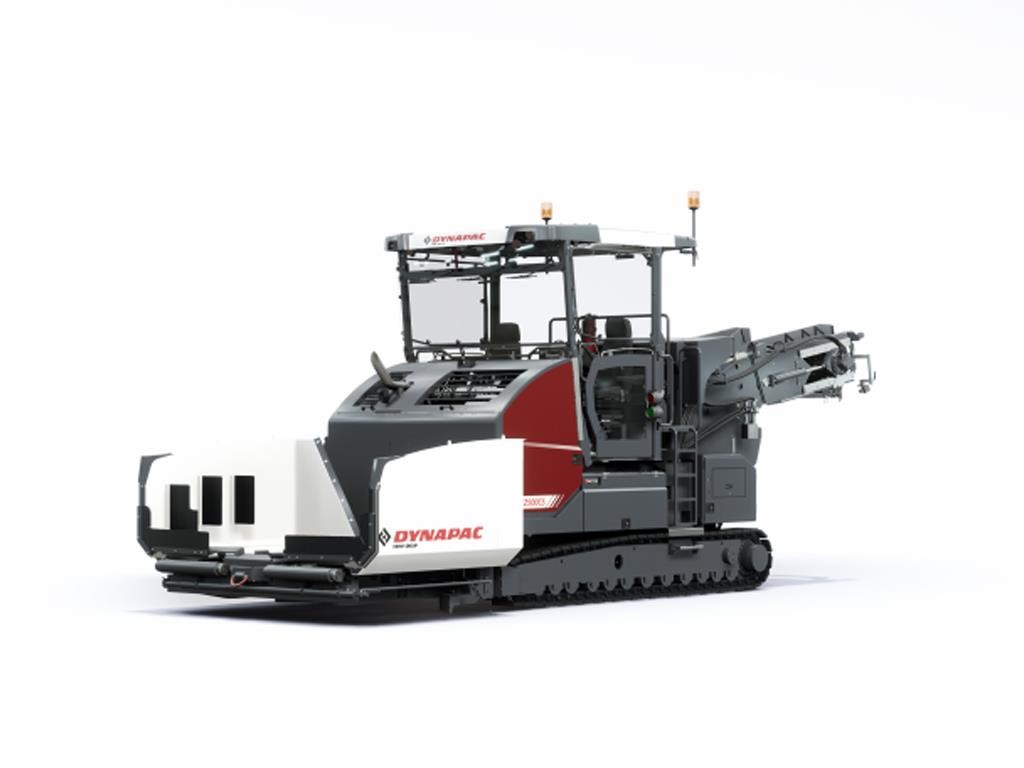

MF2500CS — MOBILE FEEDERS

Mobile feeders are a transport and conveying system which is used as a non-contact connecting element between road finishing machines and transport vehicles carrying mixed goods. A hopper for mixed goods is used for storing the material, which is transported on a heat-resistant rubber type band to a sensor controlled, automatically height adjusted conveyor at the front end of the feeder.

MF2500CM

The heart of the Dynapac MF2500 is its reliable high performance conveying system. With a feeding capaity of up to 4000 tons per hour it can transport 30 tons of asphalt, sand or gravel in just 35 seconds. The durable belt is directly mounted on metal bracing for a long service lifetime. The only 2.55 m feeder in it’s class the Dynapac MF2500 combines cost effective transport with impressive feeding capacity. An optional SwingApp makes the MF2500CS incredible flexible and versatile.

BETTER ROADS – EASY & FAST

SMOOTH PAVING PROCESS

To achieve the best paving quality a constant paving speed is mandatory. The Dynapac MF2500 feeder in combination with the paver hopper container MH2500 guarantees uninterrupted material supply. This ensures a continuous and smooth paving process. The track driven feeder has large pivotable pushrollers with scrapers to dock easily with diverse kind of trucks.

OPERATOR IN CONTROL

The new TruckAssist feature makes communication between the feeder operator and truck driver really easy. The operator can swing the seat out of the side of the machine, and adjust the control panel to the most comfortable position, giving them excellent visibility of the truck side, feeder hopper and paver side. Auto modes ensure that all the main feeder operations can be done in a smooth and hassle free manner.

CONVEYING TECHNOLOGY

Dynapac feeders are best known for their powerful and durable conveying systems. The 1200 mm wide conveyor with highly reliable rubber belt has been designed for optimal flow and minimal segregation. Stiffening bars together with roller chains make the conveyor system extremely robust. Special alloy steel supports for the bars ensure optimal conveying performance.

HOMOGENOUS MIX

The material stays hot during transport on the belt due to the width and speed of the conveyor. Covers minimize the heat loss. Large tunnel and the unique Dynapac conveyor ensure bulk material transfer, which ensures that the mix stays hot. The feeders are equipped with foldable hopper wings with front hopper flaps. Chamfered hopper corners prevent cold asphalt being left in the hopper. The new tri-flap system allows even faster material transfer. Minimum number of transfer points reduce the asphalt aging which is caused by oxygen to a minimum. Least interference to the asphalt mix ensures a high-quality mix.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
