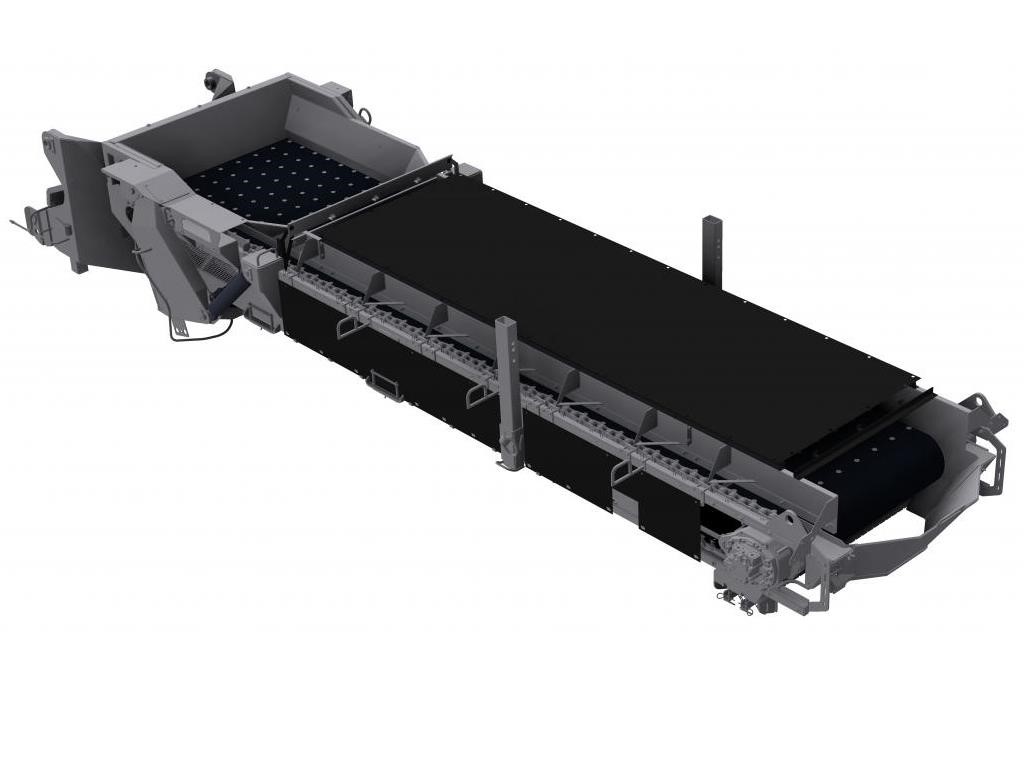

SW6500 — MOBILE FEEDERS
With the unique Dynapac SW6500 a standard MF2500CS can be transformed into a swinging feeder in less than 30 minutes. The hydraulic jacks make the mounting easy and convenient, since it takes less than 10 minutes. With a swing angle of 55° and a side reach of 3.4m, the Dynapac feeder is the perfect machine for a lot of applications.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
- Dimensions - Transport height: 1.60 m
- Conveyor - Conveyor type: Rubber belt on two chains, mounted with metal stiffeners
- Conveyor - Conveyor width: 1.20 m
- Dimensions - Transport width: 2.20 m
- Conveyor - Feeding height (max/min): 4.35 m /1.3 m
- Conveyor - Feed capacity: 2000 t/h
- Dimensions - Transport length: 8.60 m
- Conveyor - Conveyor speed: Constantly variable
- Dimensions - Swing angle to left or right, max. : 55°
- Masses - Transport mass: 4.40 t
