ME-SERIES ME3 MELTER
A DEDICATED MASTIC MELTER WITH CIMLINE INNOVATION AND QUALITY:
Cimline has created a new product line for customers that use prepackaged mastic as part of their pavement maintenance process. The ME3 was designed to be a straightforward, reliable and safe way for operators to be able to apply mastic repairs to asphalt roadways and parking lots.
HIGH CAPACITY:
Higher capacity and higher productivity. With a 350 gallons capacity it can be filled and used for extended periods before reloading. This pays dividends for larger government entities who cover a lot of ground or contractors where time is money.
CIMLINE RELIABILITY:
Sturdy and simple to understand controls, proven Isuzu Tier IV diesel engine reliability, heavy duty auger and bearings, thick 7 gauge steel tank design. The Cimline ME3 is the obvious choice.
HIGH QUALITY:
Renowned Cimline quality, extensive dealer network and post sale support teams make it the customer preferred machine for prepackaged mastic applications.
BUY AMERICAN MADE:
Cimline’s ME3 mastic melter delivers safety and ease of use in a large capacity machine made right here in the USA.
- GAWR: 14,000 Lbs.
- Engine: Isuzu Tier IV 19HP Diesel
- Warranty: 1 Year Bumper to Bumper
- Dimensions (LxWxH): 220 x 86 x 75 Inches
- Material Chute Heating Method: Propane
- Temperature Gauge: Electronic Control and 5 Inches Analog
- Diesel Fuel Capacity: 30 Gallons
- Material Capacity: 350 US Gallons
- Shipping Weight: 6000 Lbs.
- Material Outlet Port: 6 Inches
- Material Loading Height: 67 Inches
- Heating Method: Diesel
- Hydraulic Capacity: 13 Gallons
- Heat Rating: 340,000 BTU’s
- Axles: 2x7000 Leaf Spring
- Tank Insulation: Fiberglass, 1.5 Inch Thickness
- Diesel burning for safe heating of materials
- Digital temperature control monitors oil and material temperatures ensuring precise and reliable temperature control
- Propane heated rear chute keeps material hot and flowing
- 6” Guillotine valve for controlled flow of material
- Three models to choose from to match your exact application needs
- Overnight heating blanket on ME2 and ME2 for early AM startups
- Best-in-class mixing agitator for complete mixing and suspension of materials

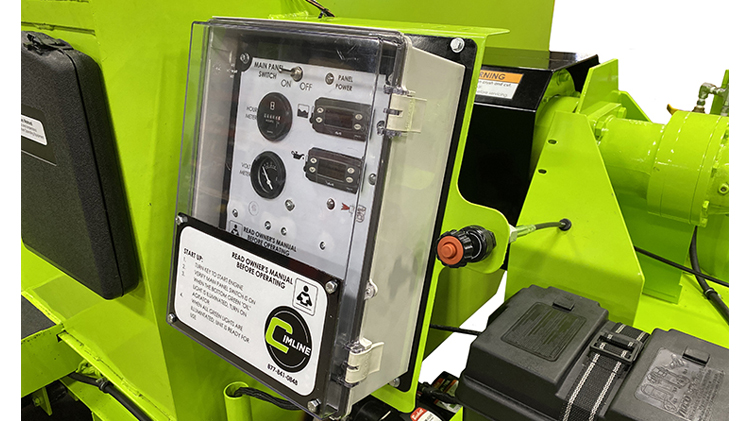

- Easy-to-use controls make anyone an expert operator quickly
- Quick heat-up times to get the material on the ground faster
