3300 SLIPFORM PAVER

Intelligent Multi-Application Paver.

BENEFITS

• The GOMACO 3300 features a symmetrical design for right-side and left-side slipforming.

• The 3300’s ability to pave on the right-side is an advantage for paving operations, because it allows a contractor to pour in the same direction as traffic.

• GOMACO’s 3300 features a U-shaped operator’s platform which is the ideal shape for ultimate operator visibility when pouring from either side of the machine.

• The operator’s platform is isolated for optimum operator comfort throughout a day of paving.

• The unique frame design, multiple smart sensors, and GOMACO’s G+® control system allows the 3300 to automatically slipform a tight radius with ease.

• The operator’s console slides from the right side to left side depending on which side the mold is mounted. The console can be locked away and out of sight when not in use.

• GOMACO’s 3300 is equipped with a 17 foot (5.18 m) charging auger or 20 foot (6.1 m) folding conveyor for loading the hopper from either side of the machine.

• The 3300 features GOMACO’s simultaneous trim/pour concept

• GOMACO’s 3300 can slipform multiple applications such as curb & gutter, safety barrier, sidewalk, and undermounted slipform paving.

• The 3300 is designed with safety features to give years of safe and dependable service.

FEATURES

XTREME DESIGN

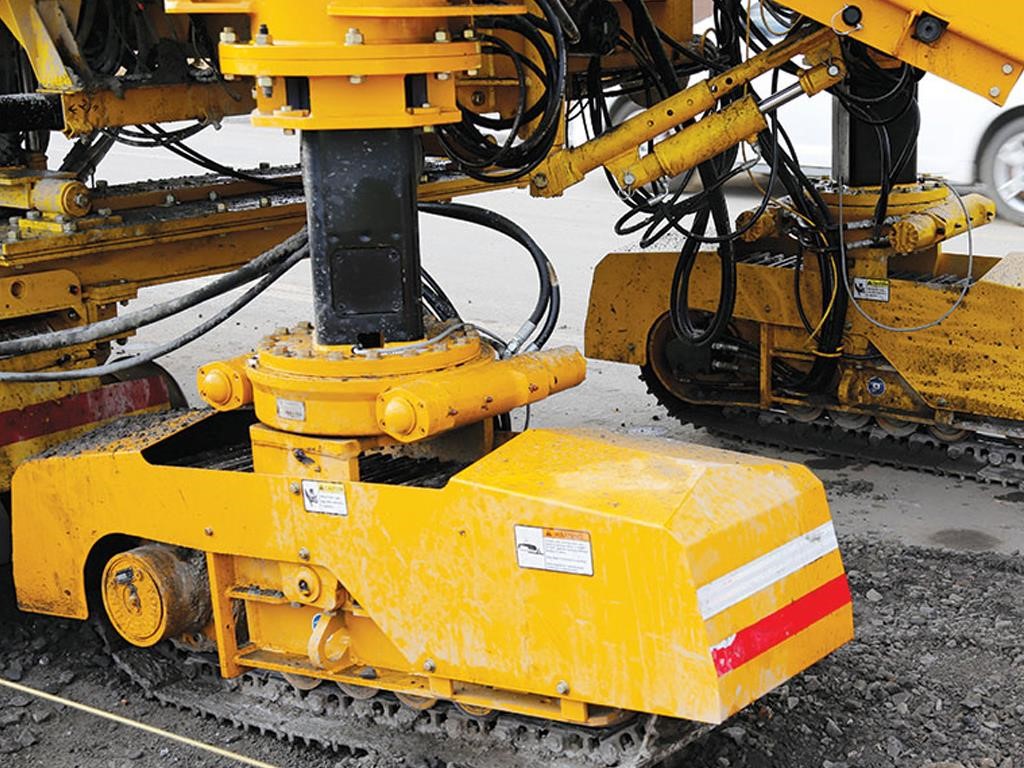

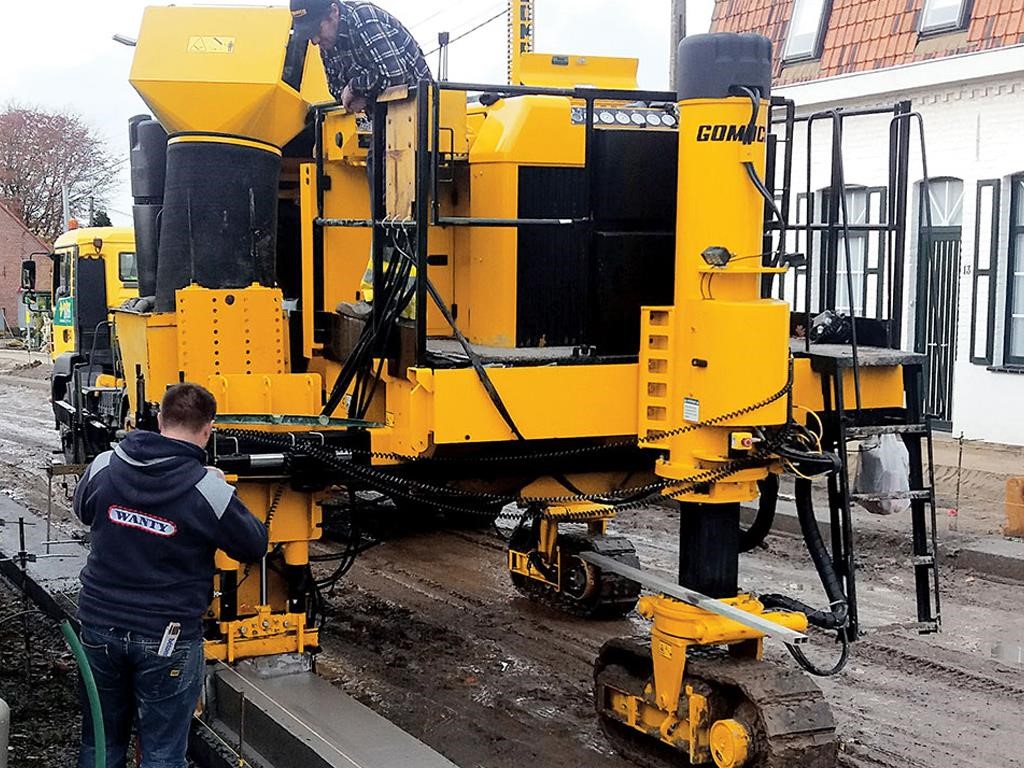

Extreme steering capabilities are standard on the 3300 with rotary-sensored slew drives on each track. The two front legs are mounted on parallelogram-style pivot arms allowing for adjustments out from the right side and left side of the machine. The rear power-slide leg can be positioned to the right or left of center. The front leg pivot arms and power-slide on the rear leg allow for correct positioning feedback through G+® control. Smart leg positioning and smart steering provide the 3300 with correct steering angles through a radius.

XTREME HYDRAULIC PACKAGE

Independent hydraulic travel control to each track allows G+ to control the individual track’s speed through a radius.

XTREME STEERING CAPABILITIES

The 3300 is equipped with rotary-sensored slew drives on each of the three tracks for extreme steering. The extreme steering capabilities, combined with the 3300’s sensored All-Track Steering and sensored All-Track Positioning, make it the ultimate intelligent slipform paver. The intelligent All-Track Positioning on the 3300 includes a smart hydraulic cylinder on each of the three legs. The smart cylinders allow G+ control to know the position of all three tracks to make steering adjustments as needed.

XTREME RADIUS

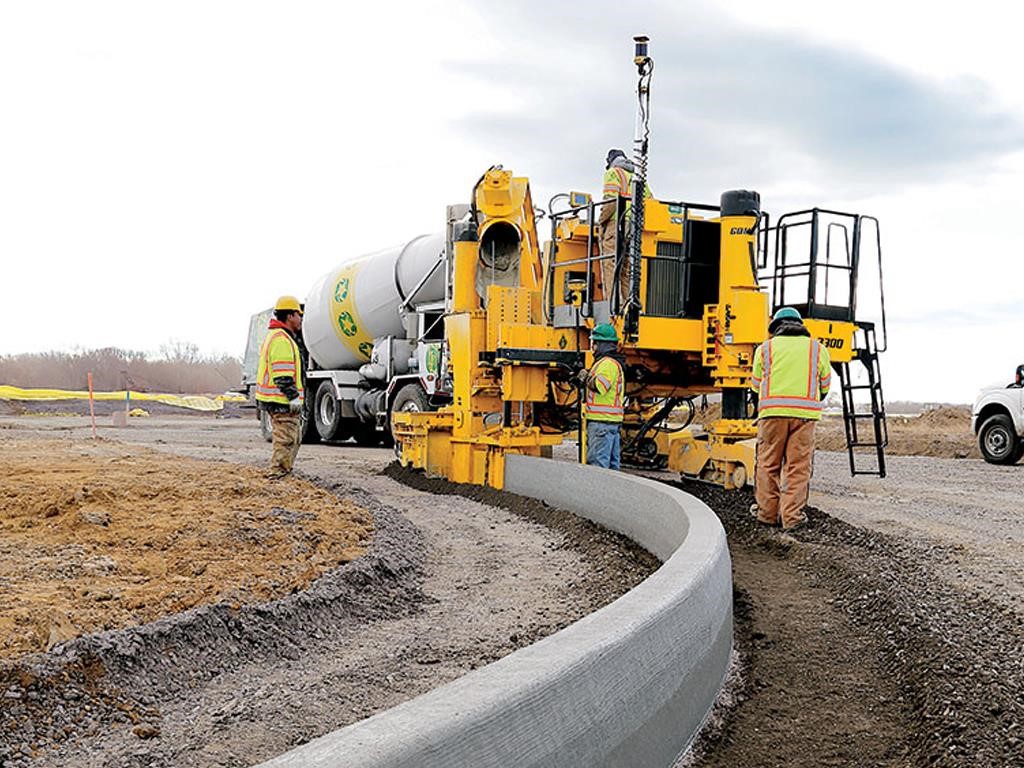

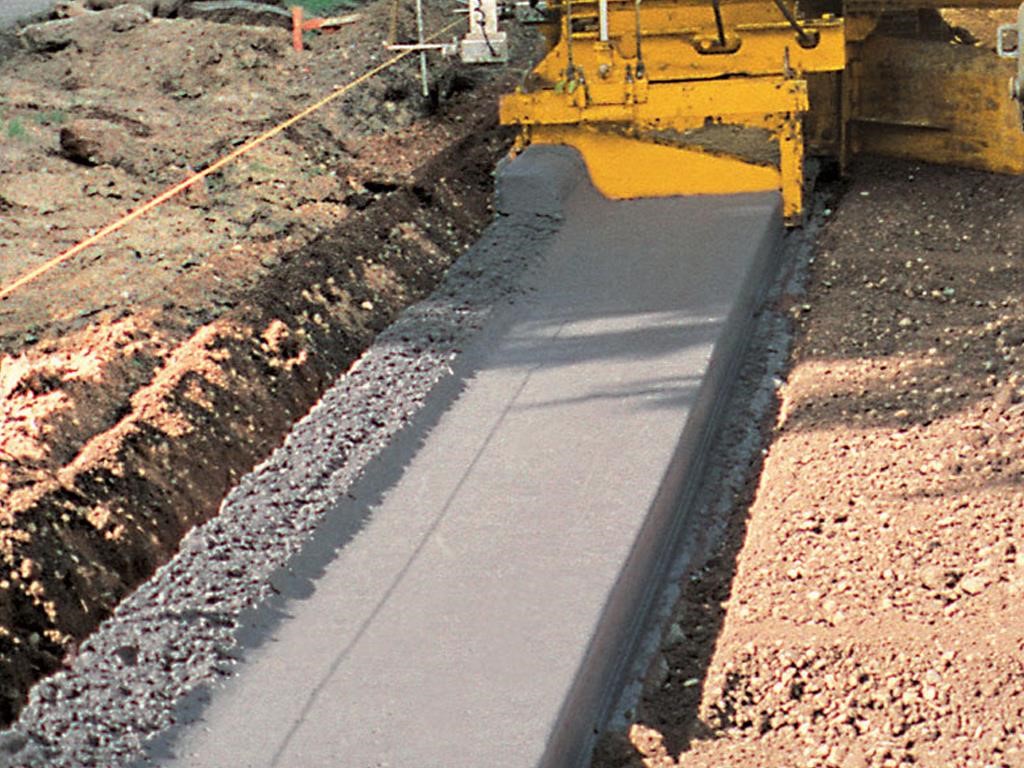

The GOMACO 3300 can pour a 24 inch (610 mm) radius. The 3300 G+® control system easily interfaces with stringline or a 3D guidance system for curb and gutter and tight radius applications. The 3300 features the GOMACO three-sensor radius system for stringline. When paving with stringline, the lead steering wand is allowed to leave the stringline and reference is switched to sensor number two for traveling around the tight radius. Individual track speed control provides smooth machine travel around the radius.

G+ RADIUS SOFTWARE FOR STRINGLINE OPERATION

Choose your radius and G+ calibrates and manages all aspects of traveling around the radius, including track angles and individual variable track speeds. The G+ radius software for the control system allows the operator to program the size of the radius into the controller. As the 3300 approaches the radius, with the values already dialed in, the operator activates the radius program, and the curb and gutter machine slipforms around the radius.

XTREME INTELLIGENCE

Smart cylinder sideshifting of the mold provides G+ the ability for repeatable mold off set. Intelligent off set is accomplished with a smart hydraulic cylinder for telescoping the mold mounting system. The trimmerhead and mold have independent vertical adjustments allowing each to raise and lower separately.

HOOK & GO

GOMACO’s Hook-and-Go mold mount system has no pins or latches and makes it quick and easy to change molds. Simply drive the 3300 up to the mold and hook the mount to a special attachment plate. The mold is then hydraulically lifted up and can go to work slipforming the project… just hook and go. Tight-clearance paving is accomplished with the sideshifting capability of the mold on the GOMACO 3300.

REPEATABLE MOLD OFFSET

The 3300 features intelligent off set which is accomplished with smart hydraulic cylinders for telescoping the mold mounting system. This provides G+ the ability for repeatable mold off set. The mold can be hydraulically lifted over obstacles found on a job site. The GOMACO 3300 also features All-Track Steering (ATS) allowing the 3300 to slipform tight radius work and allows the machine to move easily around the job site. ATS saves time getting on and off stringline, job-site mobility, and loading and unloading for transport. The ability to steer all of the tracks allows accurate steering around tight radii.

TRIMMER & TRIMMING POWER

The GOMACO 3300 slipform paver features a sideshifting and vertical adjusting trimmerhead and mold. The trimmerhead has a maximum hydraulic sideshift distance of 48 inches (1219 mm) and an 18 inch (457 mm) hydraulic vertical adjustment for slipforming right up to the obstacle before lifting up to go over the obstacle to continue paving. The trimmerhead is directly driven with a radial piston hydraulic motor which provides maximum torque for trimming capacity.

FAST LOADING PROVIDES INCREASED PRODUCTION

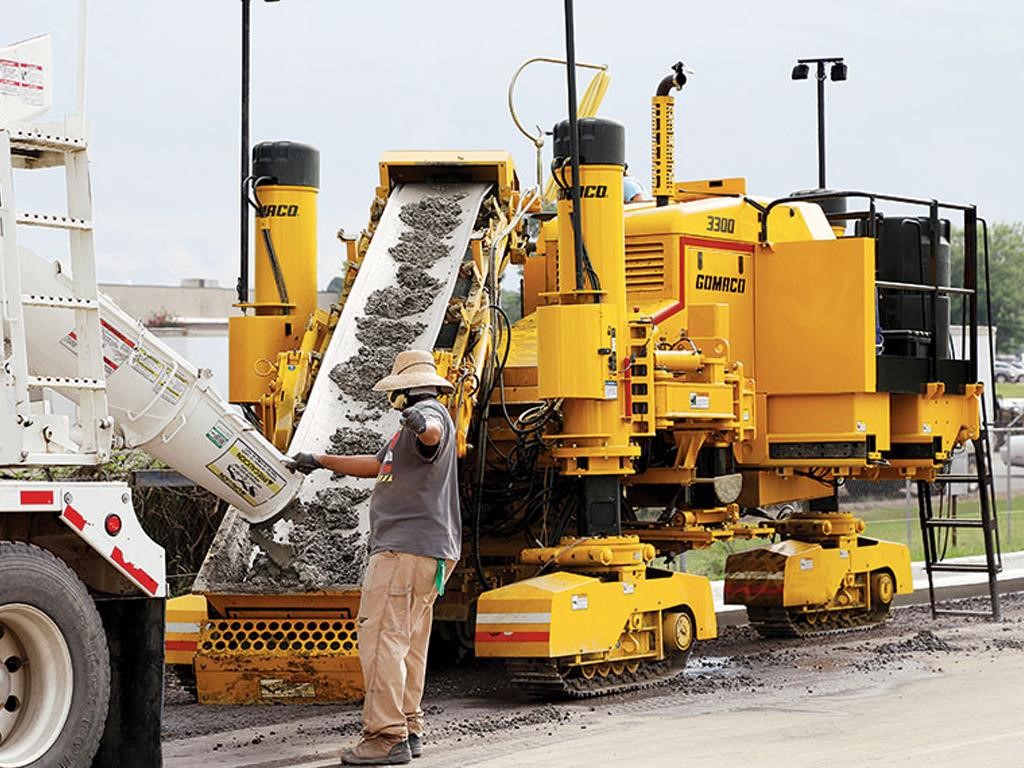

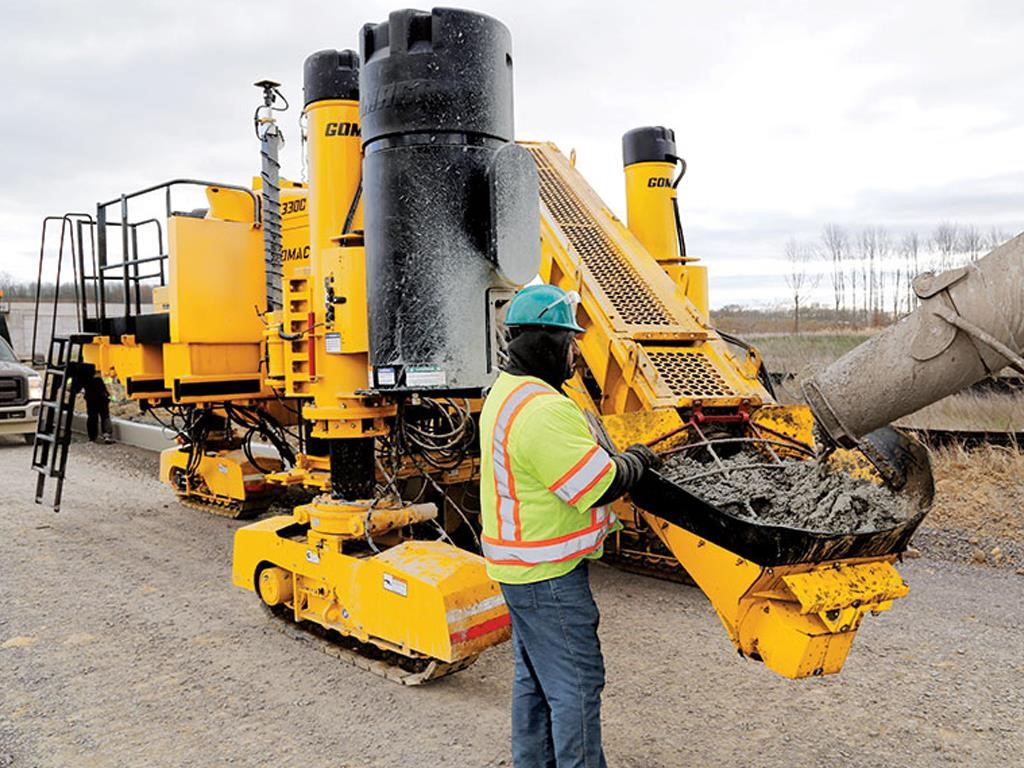

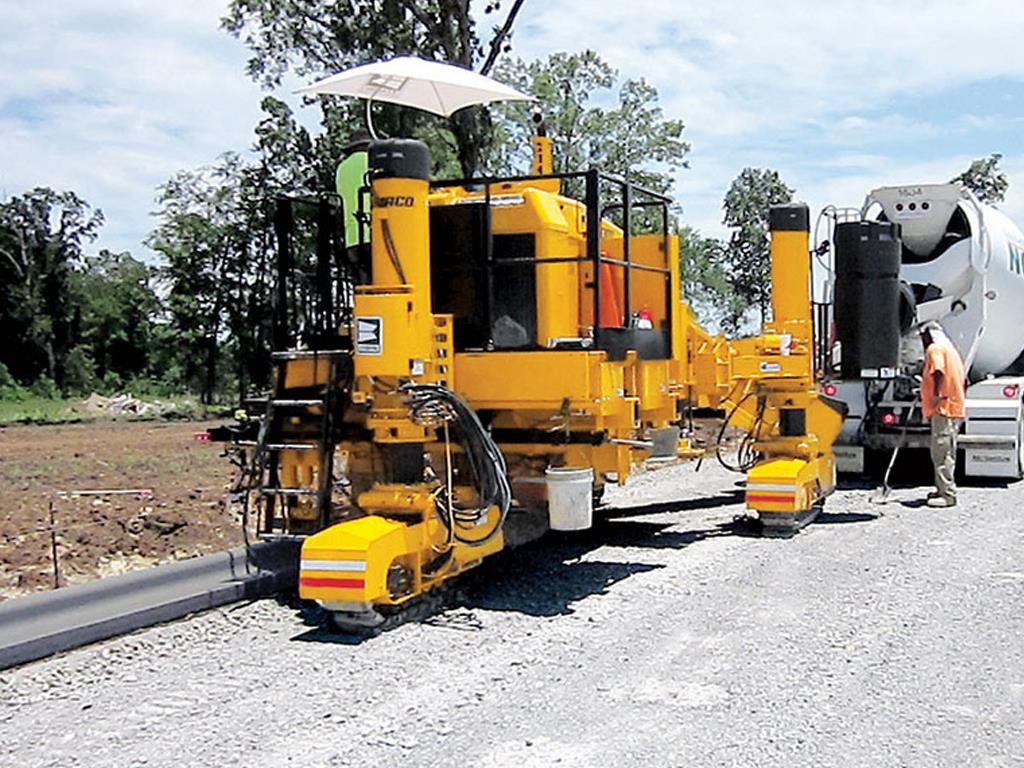

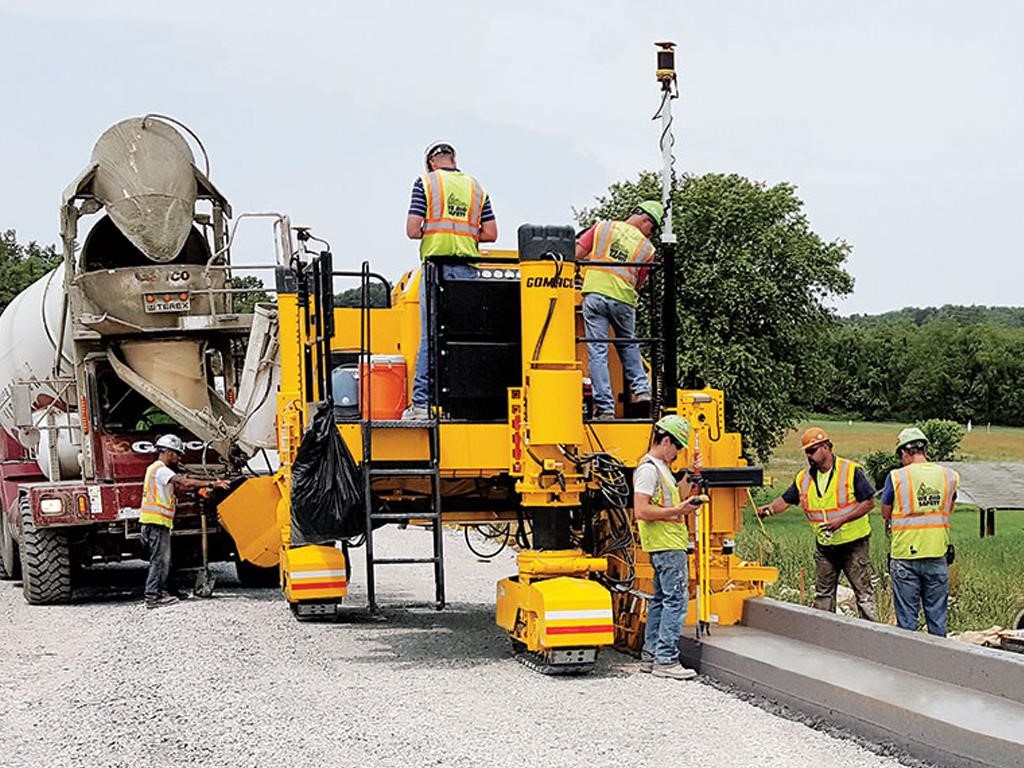

Fast concrete loading provides high-production results. There are two concrete delivery systems to choose from with the GOMACO 3300, the charging auger and the folding conveyor. The 17 foot (5.18 m) long, 16 inch (406 mm) diameter charging auger provides fast and efficient concrete flow with an auger speed variable up to 88 rpm. The charging auger features vibration at the end of the hopper allowing concrete build-up to be released. The vibration is manually activated by the ground personnel.

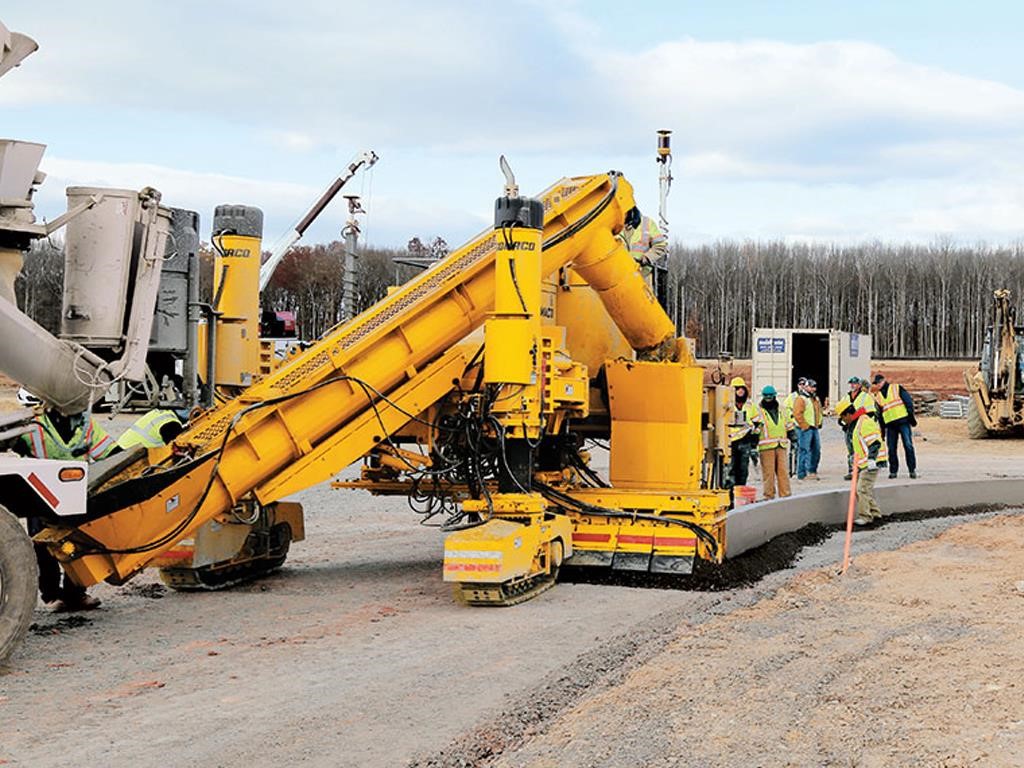

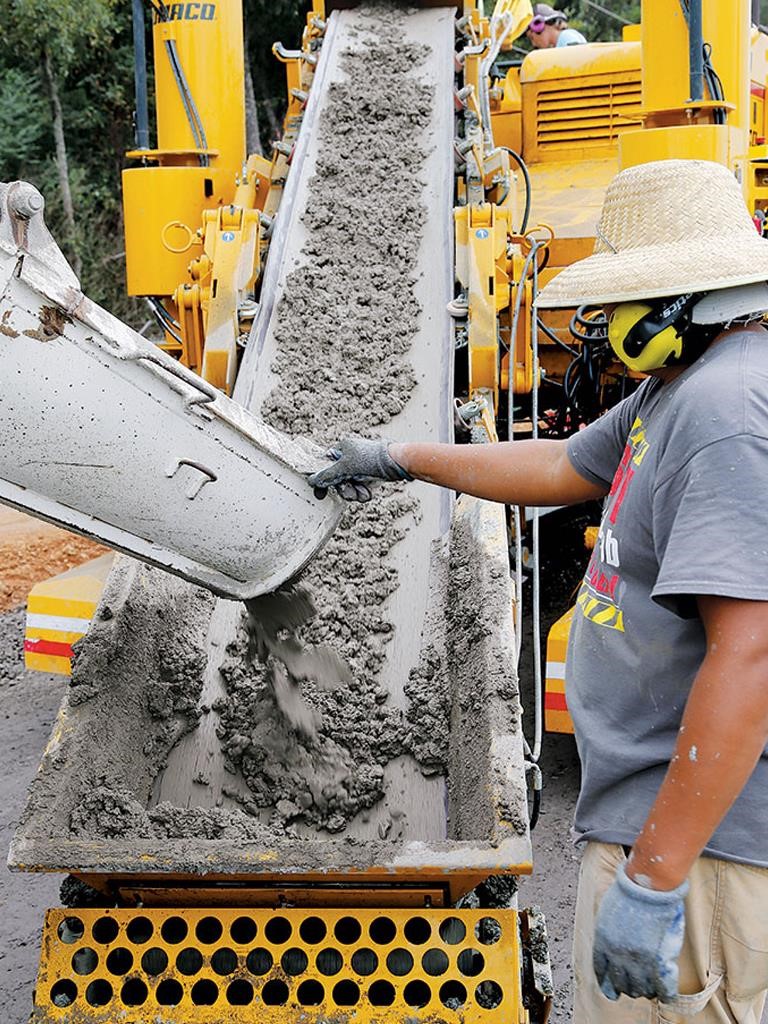

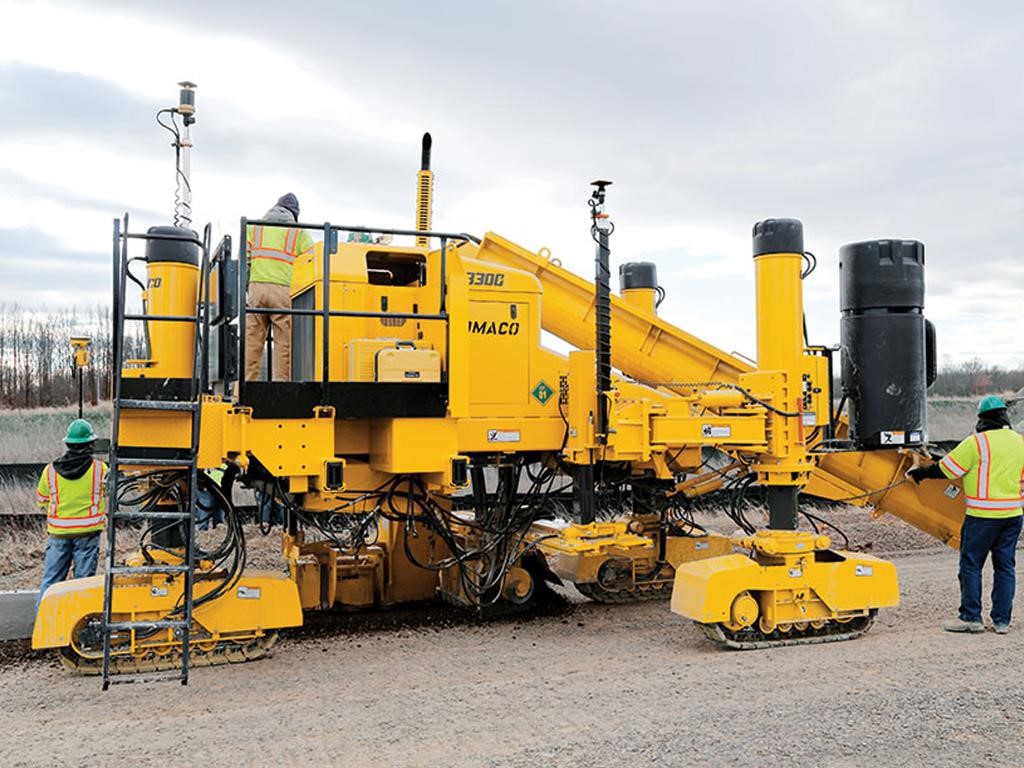

The conveyor is 20 feet (6.1 m) long, 24 inches (610 mm) wide, and has a belt speed variable up to 254 feet per minute (77.4 mpm). It is hydraulically powered and reversible with a charging hopper. The conveyor is pivot mounted with hydraulic lift and positioning. The mold is designed with extra concrete capacity, to allow slipforming through a tight radius without waiting for concrete truck repositioning.

G+® CONTROLS – DESIGNED FOR CONCRETE PAVING

It is now the technology that pulls everything together… G+ is the center that Connects all of the resources.

Once you experience G+ controls, you won’t be satisfied with anything else. It’s a control system that is both easy to learn and easy to operate. G+ expresses itself in easy to understand international icons and full script explanations. It operates in all the major languages of the world and in imperial or the metric system. It has a lightning-fast processing speed and features two-way communications between the accessories and G+. Its instant digital feedback combined with the tight closed-loop electronic and hydraulic control creates a G+ experience that is smooth, efficient, and accurate. There is nothing on the market that can compare, because G+ is a proprietary system that was designed by our in-house control experts incorporating what we have learned from decades of experience in the field, and from what we have learned from you, our customer.

• Machine operation is simple.

• Machine response is fast.

• Troubleshooting is pinpointed, quick, and easy.

• Fault history available.

• Control from stringline, 2D, or 3D guidance.

A flat-panel 6.5 inch (165 mm) anti-glare display screen is provided with sensor-controlled backlight levels for superior visibility in all operating conditions. The screen is rugged and shock resistant in its construction to protect against dust, moisture, and rain. G+ provides a full color display on the control panel to illustrate the various aspects of the paver for set up and operation. A “run” screen on the control panel illustrates the various aspects of the paver. It includes leg position, paving speed and percentage of drive, steering, travel information, grade information, deviation meters, and more. Newly designed icons and color graphics make it easy to understand and easy to identify the targeted functions. G+ receives a track speed reading from pulse pickups in the track motors to give you real time feet (meters) per minute and total linear footage (meters). G+ controls feature a detailed fault history with the time stamp, date, and information to track when each fault occurred. GOMACO’s G+ control system has been proven around the world.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
