5400 SERIES PAVING MOLD

The box design of the 5400 series mold has a 54 inch (1372 mm) finishing length front to back and is equipped with a durable 0.5 inch (13 mm) thick paving skin that is welded to the mold to increase the structural integrity.

FEATURES

• 5400 series paving mold features a box design with durable 0.5 inch (13 mm) thick paving skin.

• Vertically-adjustable mold mount for precise leveling of mold to machine.

• Telescoping end sections with 24 inches (610 mm) of width variation on each side are optional.

• Edge slump adjustment.

• Hydraulic Vertical Hinged Sideplates, self contained inside the mold.

• Pressure-compensated sideplates are standard.

• Split sideplates are optional on the 5400 series paving mold.

• Folding sideplate wings for transporting without removing.

• Pivoting mold mounting beam to eliminate stress points, created by crowning the mold.

• Self-supported power transition adjuster (PTA) is hydraulically driven with 3.5 inch (89 mm) ACME screws for up to a six inch (152 mm) crown.

• Front and rear top T-bar on mold for attaching accessories and structural integrity.

• Inserts are bolted together with front and rear alignment pins for easy mold assembly.

• Vibrator mounting tube attaches to T-bar on mold.

– Vertical vibrator lift.

– Rear lubrication system with grease zerks accessible from the work bridge.

• Tamper bar optional.

• Trailing stainless optional.

TELESCOPING END SECTIONS FOR EASY WIDTH CHANGES

Inserts are available in quarter-inch (6 mm), half-inch (13 mm), three inch (76 mm), or six inch (152 mm) increments.

BAR INSERTION SYSTEMS DESIGNED TO FIT YOUR PROJECT SPECIFICATIONS

GOMACO offers several bar insertion systems that are designed to accommodate your project specifications. Hydraulic cylinder, air-powered, and manual insertion are the three types of bar insertion. Bar inserters include the frame-mounted, sidemounted, 5400 series, and trailing form. GOMACO’s bar inserters provide easy and accurate bar placement to job specifications.

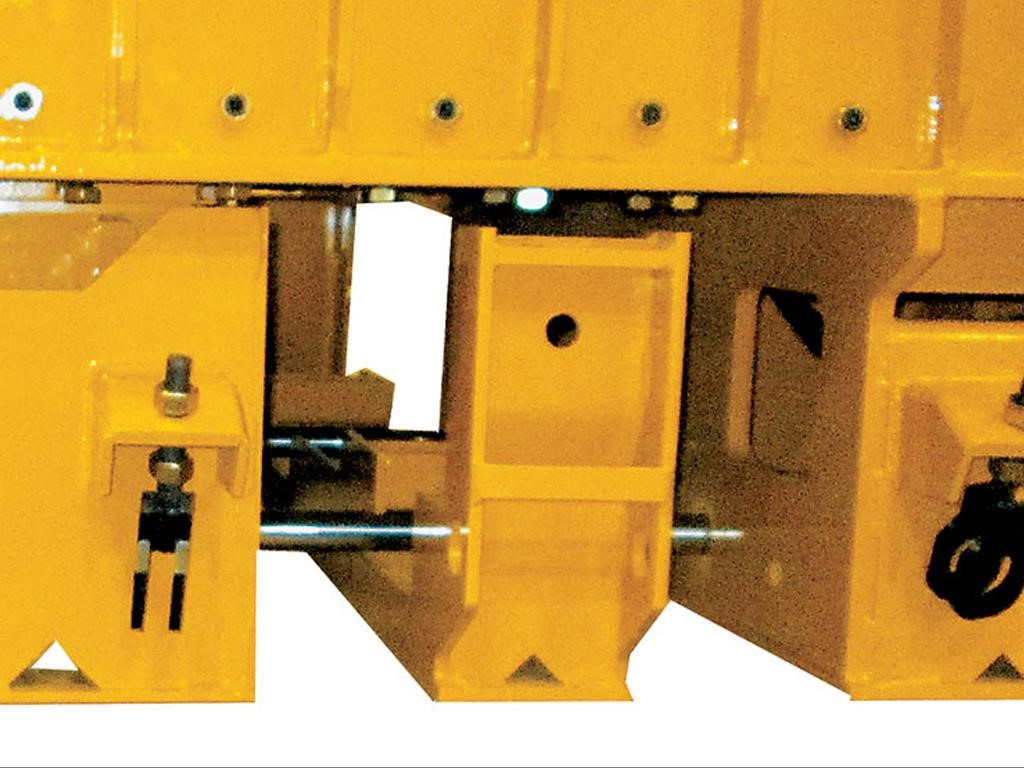

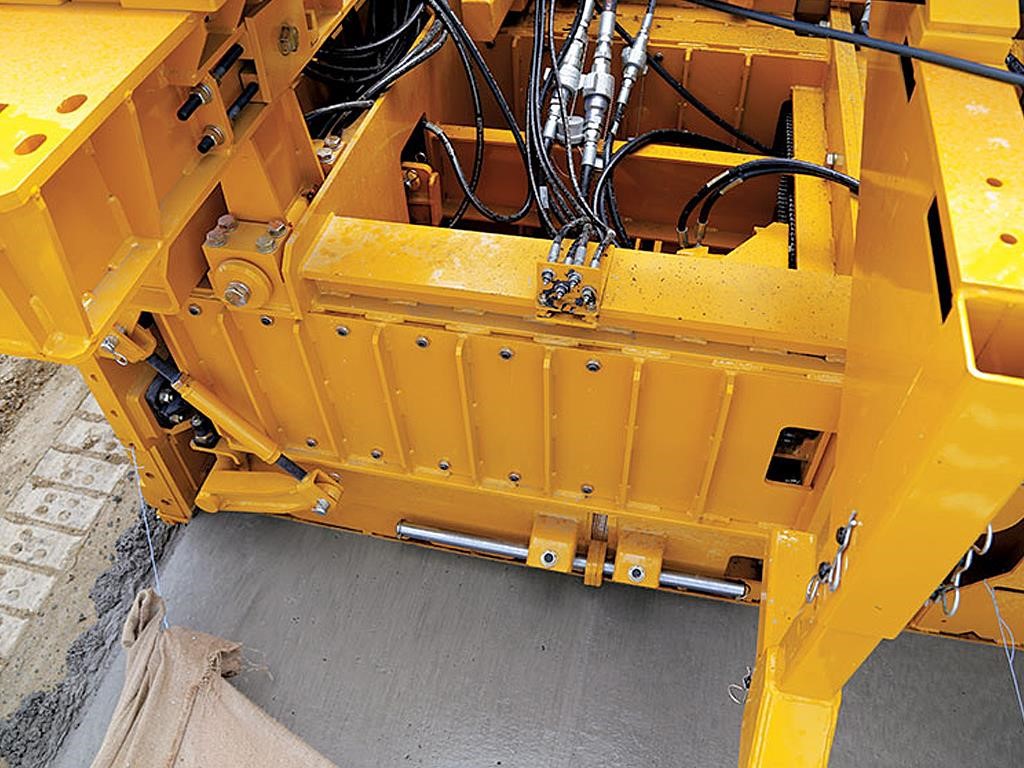

The 5400 series bar inserter is front or rear loading and front inserting for ease of use. It mounts to the mold’s T-bar and allows on-the-go crown changes, while maintaining a constant depth. The bar box is mounted to the paver’s rear T-beam mounting rail for easy access and loading of the bar magazine. There are individual depth guides on the right and the left side of the bar inserter in order to keep bars parallel to the top of slab. The 5400 series bar inserter can hold up to 50 bars in the bar magazine and bar loading chain system.

The trailing form with manual, air-powered, or hydraulic bar insertion is designed to trail the track on two-track pavers. This system will accommodate most types of bars.

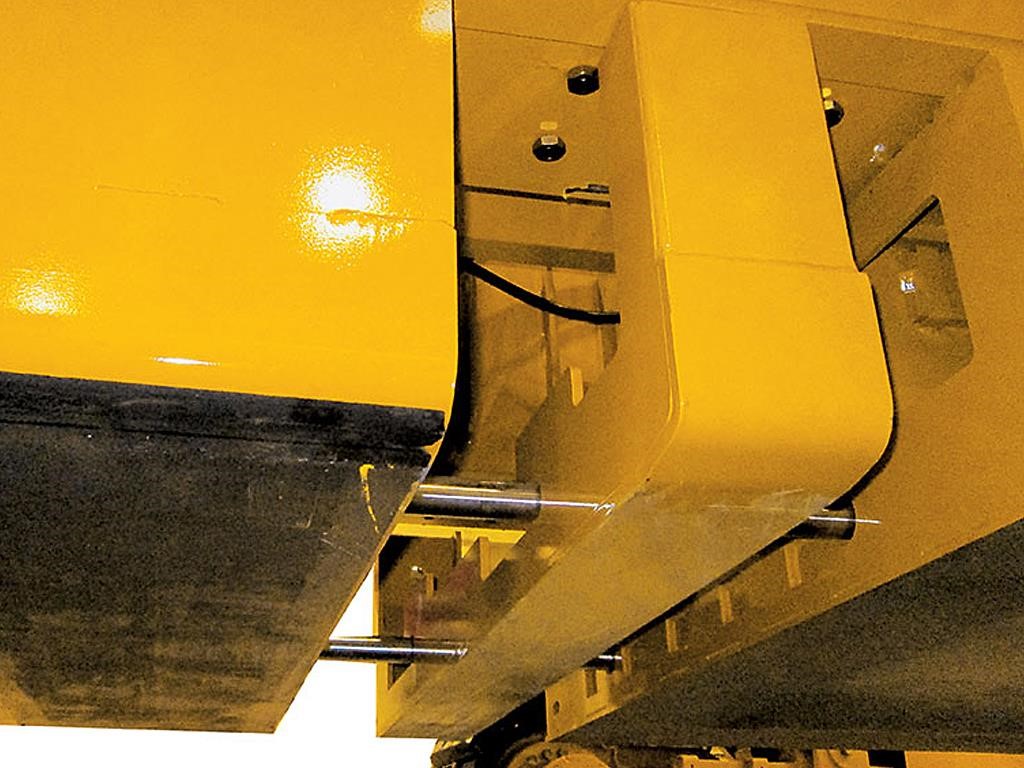

The hydraulic system includes vibration to the bar, and is designed for large bars. Vibration is applied to the bar during insertion, which provides consolidation of concrete around the bars. This system requires one vibrator circuit. The minimum slab depth required is six inches (152 mm) and the maximum bar length is 48 inches (1219 mm).
