CC1200E — SLIPFORM CONCRETE CURB MACHINE

World’s first battery-powered slipform concrete curb machine.

BENEFITS

• The CC-1200e is powered by 48-volt DC lithium-ion battery pack and will slipform various concrete curb. The result of using lithium-ion batteries allows for zero exhaust emissions, reduced vibrations, and zero engine noise. It is self-propelled and compact in size for easy loading and transporting from job-to-job.

• It is capable of working a full paving day, and is equipped with the standard eight to 10 hour charging system. A two-hour fast charge system is an optional feature for the CC-1200e.

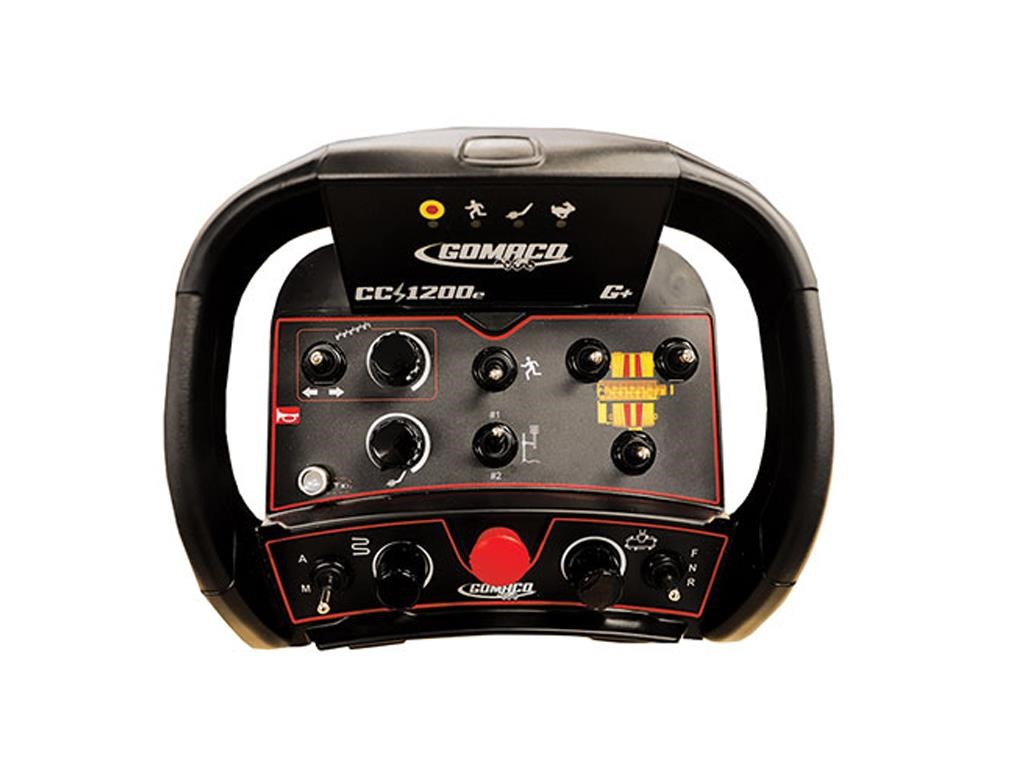

• The CC-1200e is controlled with a Radio Remote Control and puts all machine operations in the hands of the operator. The Radio Remote Control is equipped with the exclusive GOMACO G+® control system.

• Rotary-sensored slew drive steering on front wheel assemblies allows maximum turning capability, smooth paving, and easy control.

• The CC-1200e has the capability of pouring a 24 inch (610 mm) radius, depending on the mold profile.

• It is equipped with one variable speed electric vibrator and is coordinated with the stop switch that provides automatic on/off control of vibrator synchronized with forward travel.

• The CC-1200e has a paving speed of up to 40 feet per minute (12.2 mpm) and an auxiliary speed of 93 feet per minute (28.3 mpm) for fast job-site mobility.

• Leg elevation of the battery-powered slipform curb machine is controlled by three hydraulic cylinders with ten inch (254 mm) stroke and an additional five inch (127 mm) manual adjustment.

• Molds are easily interchangeable and can accommodate concrete mold configurations that will fit within a 12 inch (305 mm) wide by 14 inch (356 mm) high section. For other slipform mold configurations, please consult the factory.

• Curb may be poured on either side of the machine. The hopper and mold are adjustable up to 15 inches (381 mm).

• Safety by Design – The CC-1200e is equipped with an E-stop (emergency stop) on every corner of the machine and on the remote control. The CC-1200e is also equipped with an operator’s horn and back-up alarm to keep all personnel safe during the paving operation.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
