SL-650 — CYLINDER FINISHERS
JOB-PROVEN CYLINDER FINISHER
GOMACO’s cylinder finishers are designed with versatility. They are easy to operate and save time and labor costs on all your concrete finishing needs.
MULTI-APPLICATION CAPABILITY FOR
• Streets
• Highways
• Building slabs
• Parking lots
• Airport aprons
• Tennis courts
• And almost any concrete slab

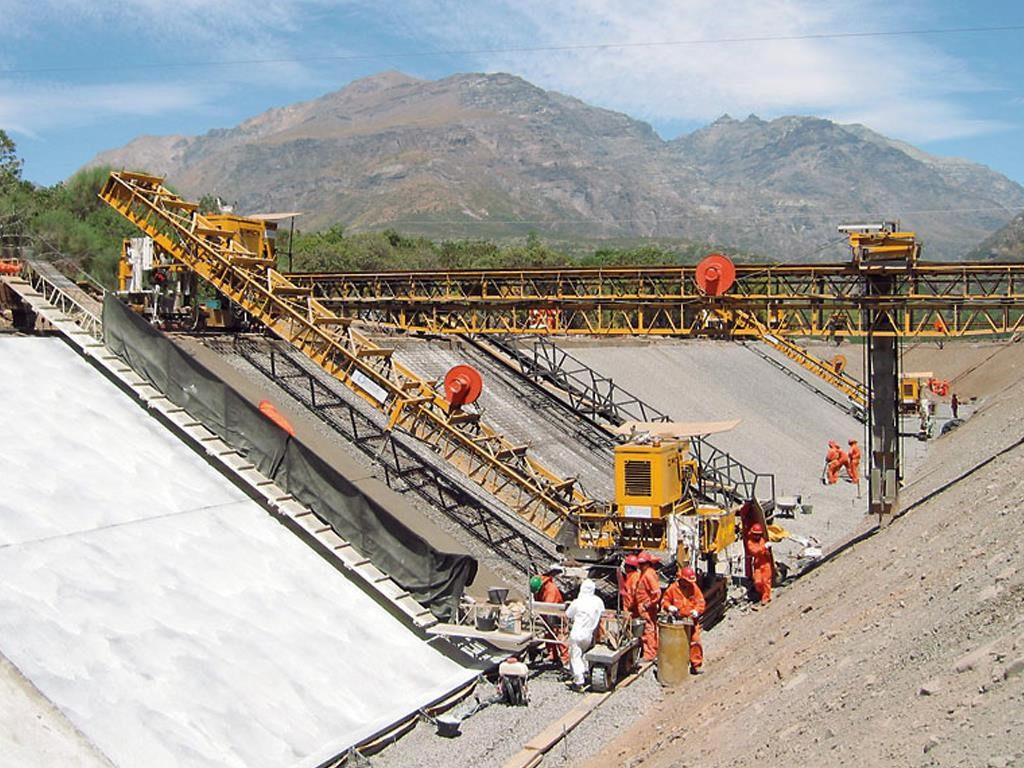

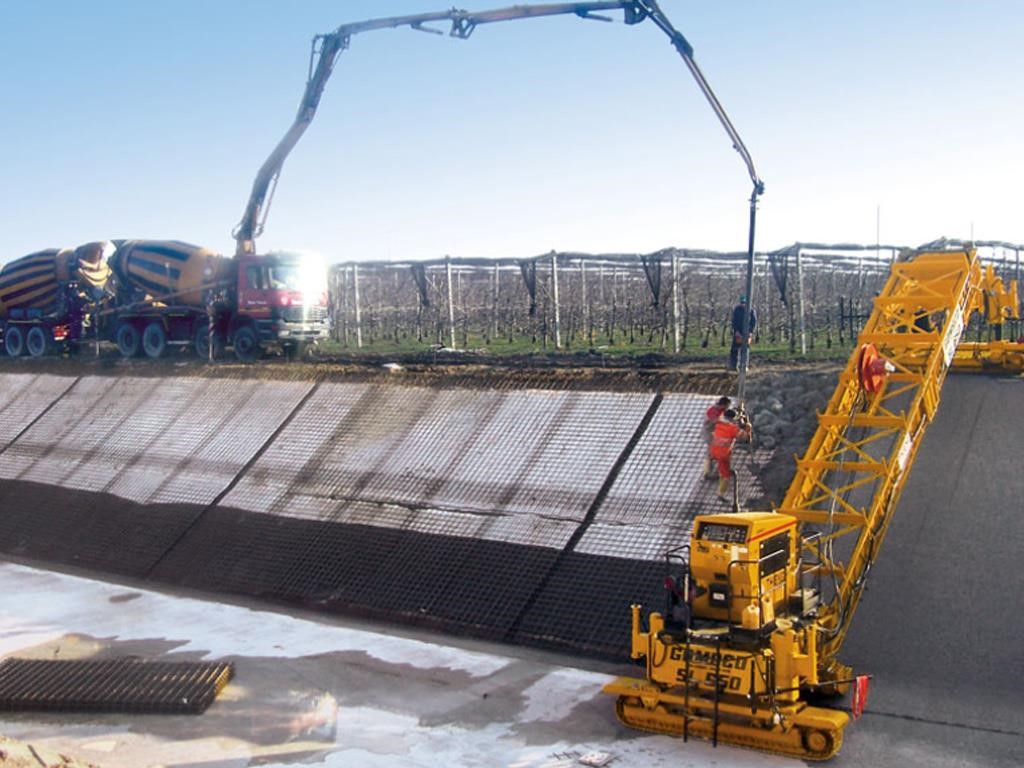

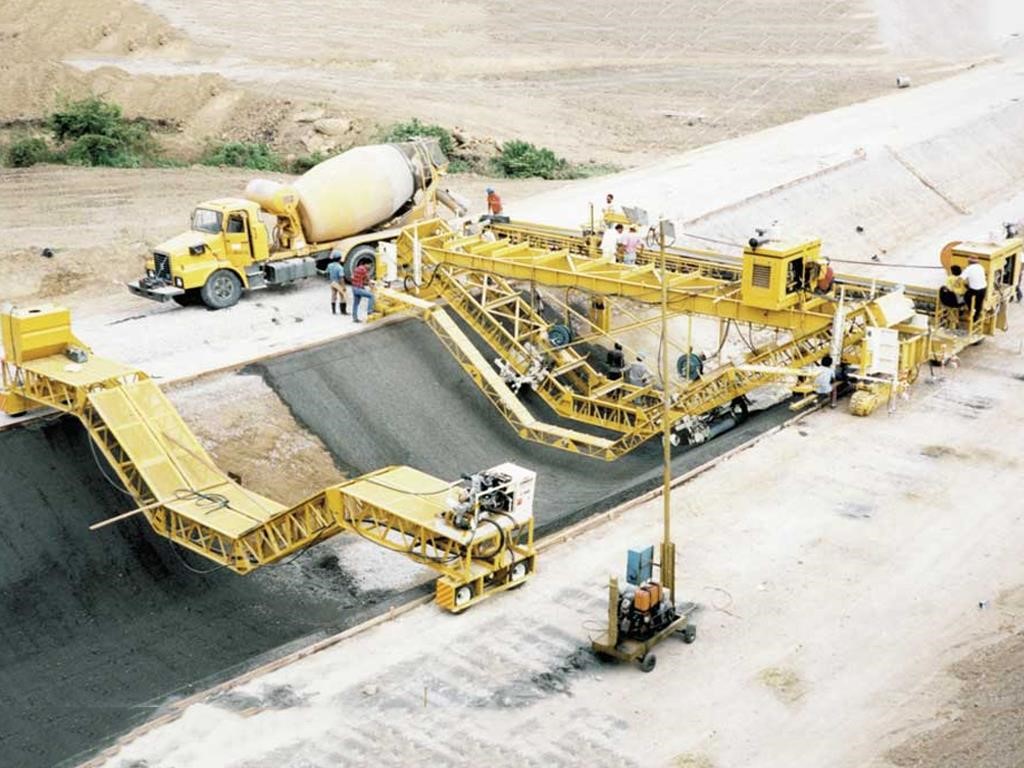

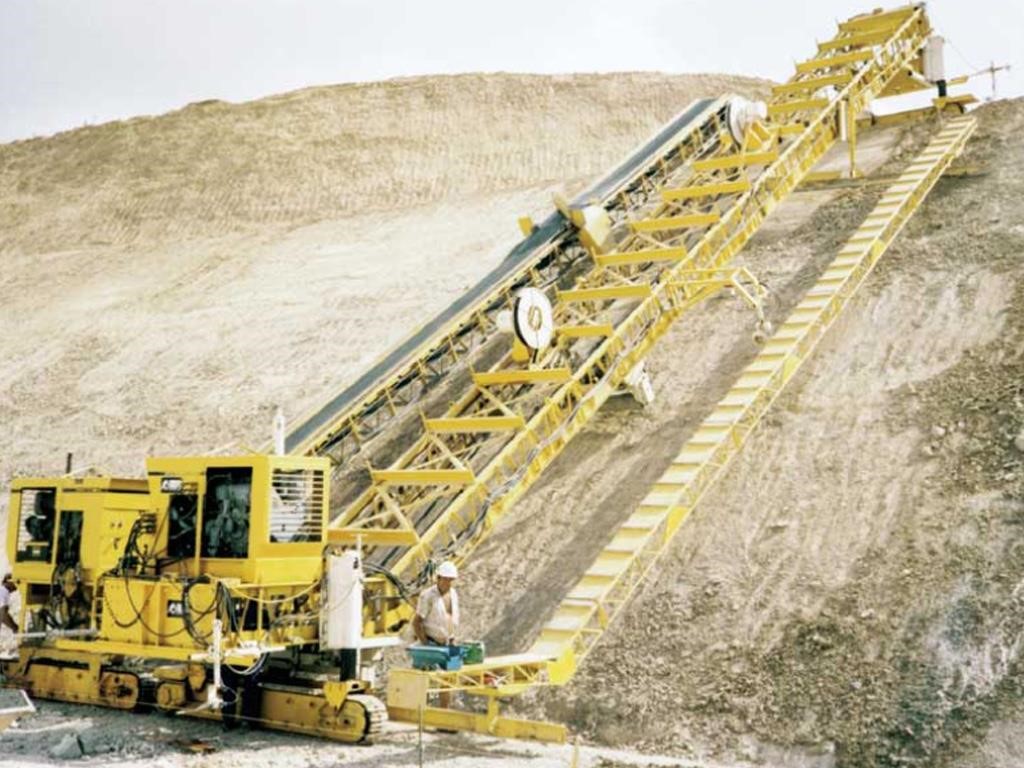

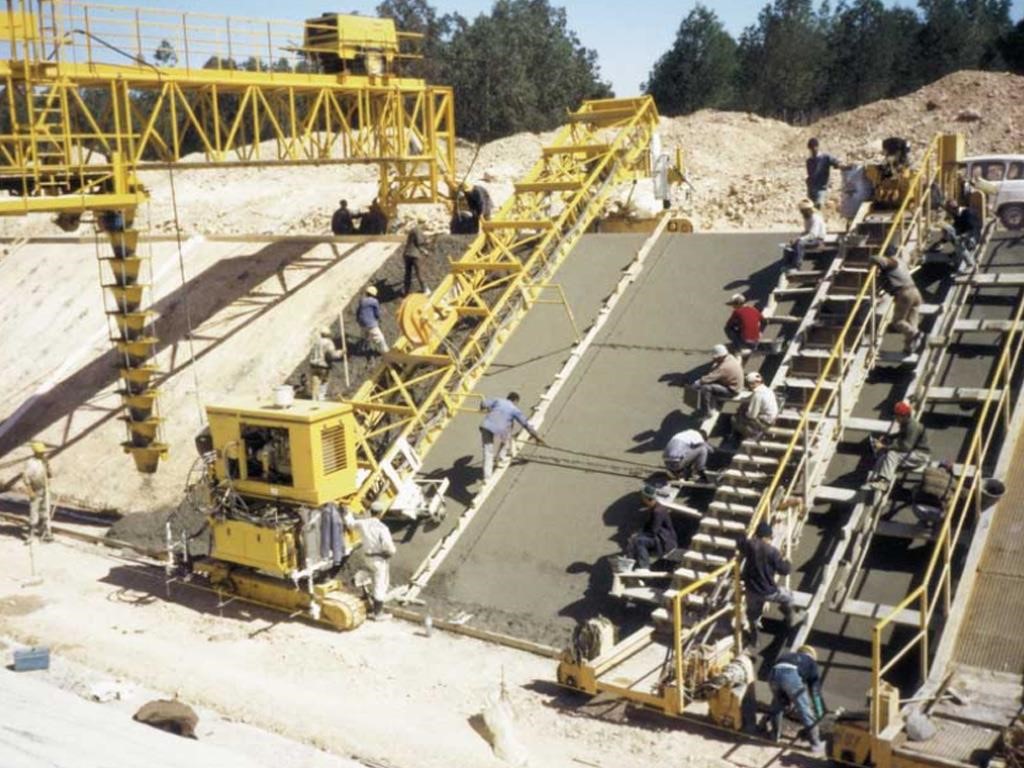

GOMACO’S SL-650 SLOPE & CANAL FINISHER
GOMACO’s SL-650-S is a slipform cylinder slope and canal finisher equipped with tracks and the SL-650-F is a form cylinder slope and canal finisher equipped with bogie wheels. Both machines are easy to operate and save time and labor costs on all your concrete finishing projects. The SL-650-S and SL-650-F are designed for fast trimming and finishing, strict tolerances, even on 1:1 (45 degree) slopes, with a minimum of hand-finishing. Finishing widths are from 19 ft. (5.79 m) to 51 ft. (15.54 m).
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- TRACTION SYSTEM - Operating speed: Variable up to 20.5 fpm (6.25 mpm)
- VARIABLE FINISHING WIDTHS - Finishing width: The normal finishing width is 5 ft. (1.52 m) less than frame width indicated. Finishing widths are from 19 ft. (5.79 m) to 51 ft. (15.54 m).
- FRAME WIDTH - 24 ft. (7.32 m) to 56 ft. (17.07 m): Consult factory for other widths
- SERVICE CAPACITIES - Fuel reservoir: 33 gal. (124.9 L)
- CONSTRUCTION - Frame: All-welded steel, pin-connected main frame
- CARRIAGE/FINISHER ASSEMBLY - Augers: One 10 in. (254 mm) diameter (right-hand) and one 10 in. (254 mm) diameter (left-hand) with auger guard
- FRAME WIDTH - Adjustable frame width: The frame is adjustable with extensions in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m), or 12 ft. (3.66 m) increments
- CARRIAGE/FINISHER ASSEMBLY - Finishing cylinder: One 10 in. (254 mm) diameter, 48 in. (1219 mm) long
- SPANIT® WORK BRIDGE - Details: Two lines of adjustable 1000 series Spanit® work bridge. One Spanit is positioned directly behind the finisher and used as a cross-walk and for hand finishing. The other Spanit is positioned further behind the machine and serves as a form tie and can be used for a burlap drag support.
- WEIGHTS (Approximate) - 24 ft. (7.32 m) unit: C-650-S @ 12,620 lbs. (5,724.4 kg) | C-650-F @ 9,100 lbs. (4,127.8 kg)
- ENGINE - Type: CAT diesel
- TRACTION SYSTEM - SL-650-S traction drive: Two gear-driven crawler tracks, hydraulically powered, 11 ft. (3.35 m) long; center-to-center sprocket/idler length, 9 ft. 4 in. (2.84 m)
- WEIGHTS (Approximate) - Frame extensions: 12 ft. (3.66 m) @ 750 lbs. (340 kg) | 8 ft. (2.44 m) @ 525 lbs. (238.1 kg) | 4 ft. (1.22 m) @ 300 lbs. (136.1 kg) | 2 ft. (.61 m) @ 150 lbs. (68 kg)
- SLIPFORM ASSEMBLIES (SL650S) - Details: One set of slipform assemblies, depth to customer specifications
- CARRIAGE/FINISHER ASSEMBLY - Finishing pan: 25 in. (635 mm) x 22 in. (559 mm) trailing float pan
- CONSOLE - Self-contained: Hydraulic console with easy-to-operate controls
- TRACTION SYSTEM - SL-650-F traction drive: Two hydraulically driven bogies and two idler bogies with 3.25 in. (83 mm) wide double-flanged bogie wheels
- TRACTION SYSTEM - Track pad width: 11.8 in. (300 mm)
- SERVICE CAPACITIES - Hydraulic oil reservoir: 57 gal. (215.8 L)
- CARRIAGE/FINISHER ASSEMBLY - Carriage speed: Variable to 50 fpm (15.24 mpm)
- CARRIAGE/FINISHER ASSEMBLY - Cylinder rotation: 353 rpm
- ENGINE - Power: 50 hp (37.3 kW) @ 2800 rpm
