T/C-400 — TEXTURE/CURE MACHINE

BENEFITS

• Versatility is provided with GOMACO’s texturing/curing machines. Versatility with one machine… texturing, curing, poly-roll, and burlap/astroturf drag.

• The T/C-400 frame permits width adjustments from 12 feet (3.66 m) to 48 feet (14.63 m), contact the factory for wider width needs.

• The T/C-400 features two end cars, each having two hydraulically powered foam-filled rubber flotation tires.

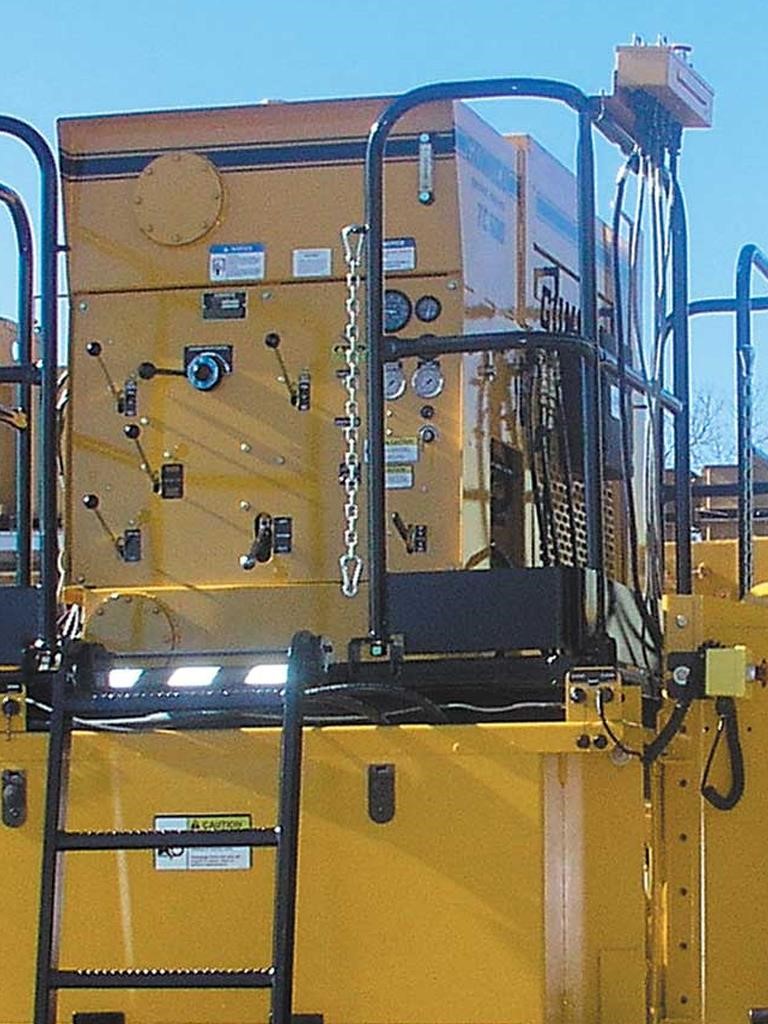

• A central operator station and power supply provides hydraulic control from one location.

• Available with the GOMACO exclusive G+® digital control system.

• An optional power transition adjuster (PTA) hydraulically adjusts for crown height and permits on-the-go crown adjustments.

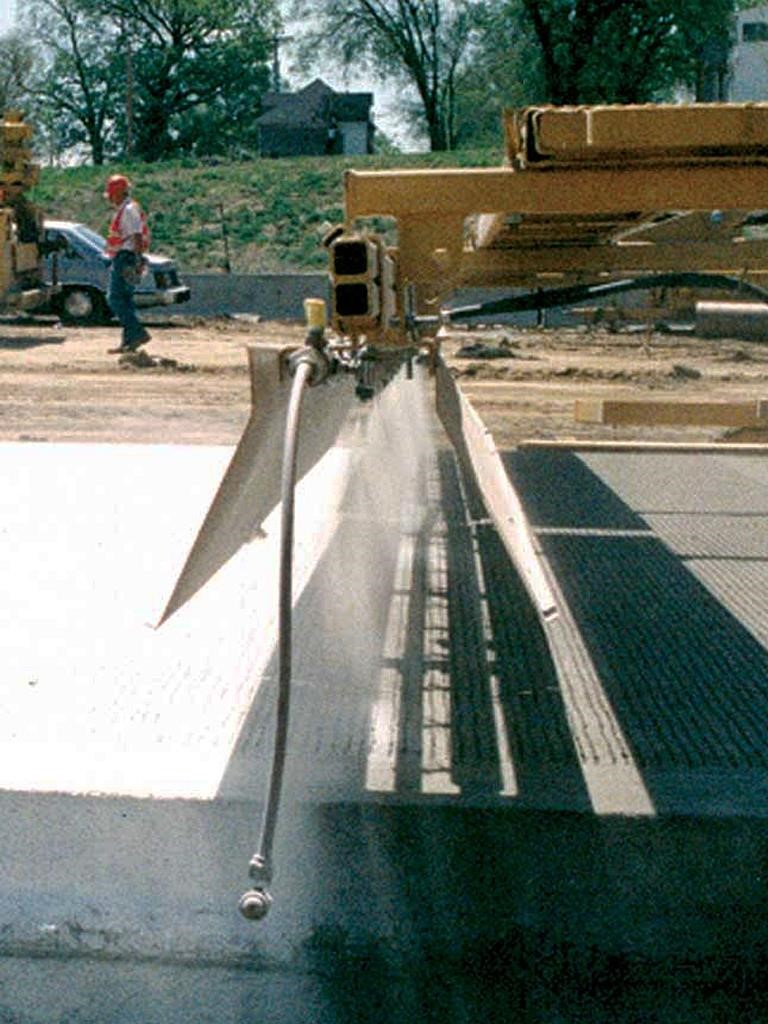

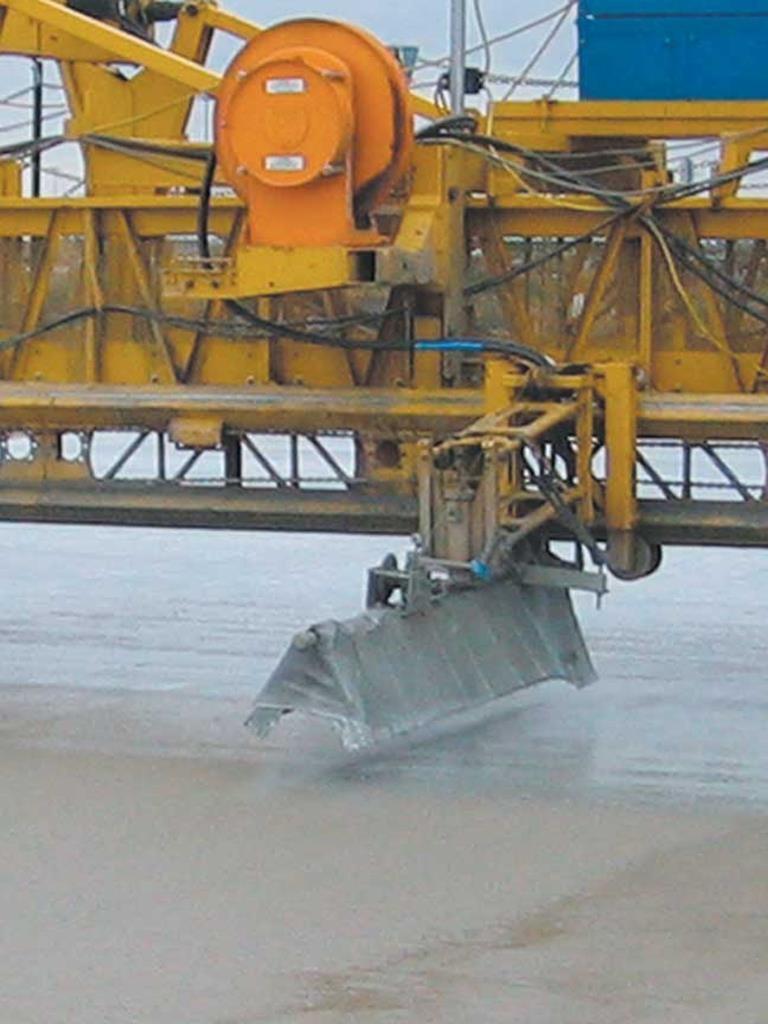

• Curing assembly includes a reservoir with hydraulic motor, pump, and controls. The spray bar has nozzles spaced 12 inches (305 mm) apart and adjustable height above the surface of the concrete for even coverage. The optional transverse curing system allows you to simultaneously texture and cure, saving you time and money.

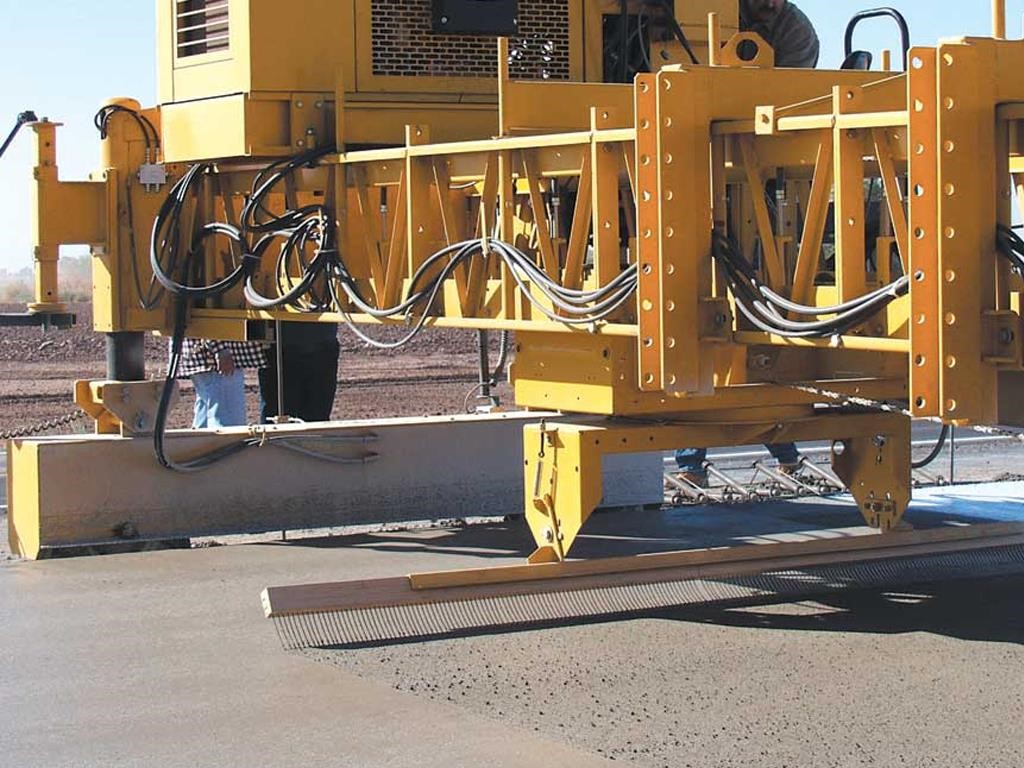

• The texturing assembly travels transversely across the width of the concrete slab. Carriage speed is variable, up to 168 feet per minute (51 mpm). Texturing wire tine members automatically pivot to trail at the end of each pass, and adjustable pressure on surface contact between the texturing member and the concrete controls the depth and angle of the wire tines. Longitudinal texturing is available where required by project specifications.

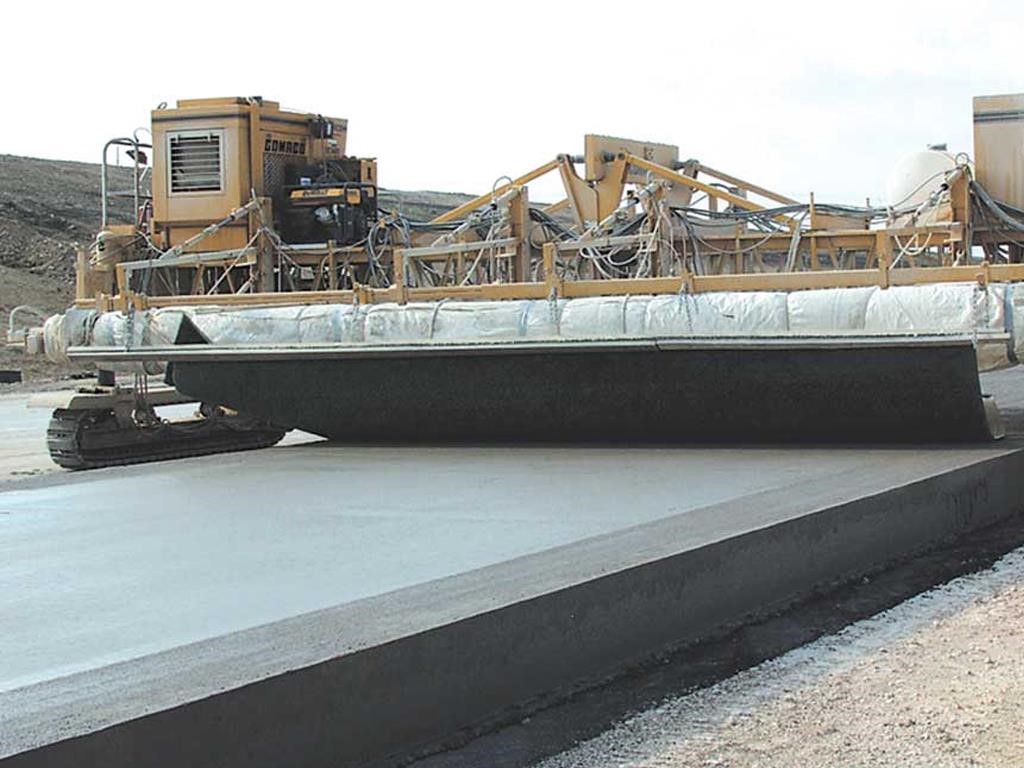

• Extra versatility is provided with an optional burlap/astroturf drag or poly-roll which hydraulically lowers for the texturing process and raises off the slab for the curing operation.

• GOMACO’s T/C-400 texture/cure machine is available with a skewed tining option. The skewed tining option allows the travel of the tining bars to run a skewed path while the frame of the machine is square to the slab. It simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.

DESIGNED FOR SAFETY

The GOMACO Texture/Cure Machines are carefully designed to give years of dependable and safe service. The emergency stop buttons are on the operator’s console, and on corners of the machine, which are easily accessible from the ground level. Another safety feature is a backup alarm, which is designed to alert personnel around the machine when the tracks are set to operate in reverse. Machine decals are shown as internationally recognized symbols. Other safety features include track guards, warning decals, an operator’s manual, and a safety manual.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
