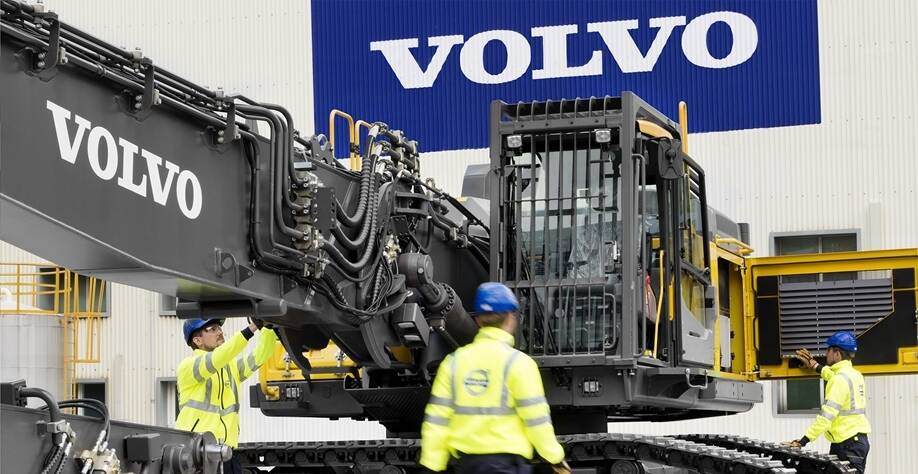

DESIGNED, BUILT AND SUPPORTED BY VOLVO
With pin reach capabilities stretching all the way from 36 m above ground to 10 m below ground, the Tier 4 Final-compliant EC750E HR is a heavy duty multi-use demolition excavator that has exceptional performance and safety at its core.

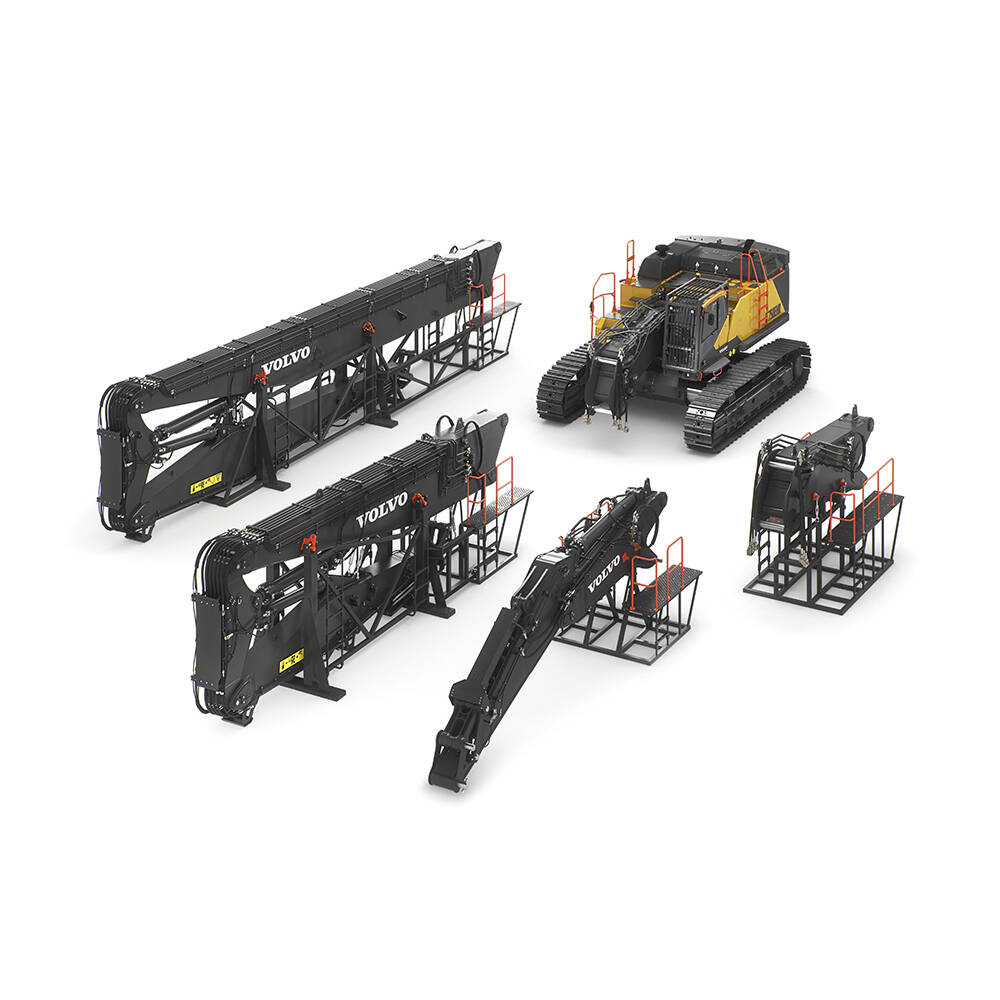

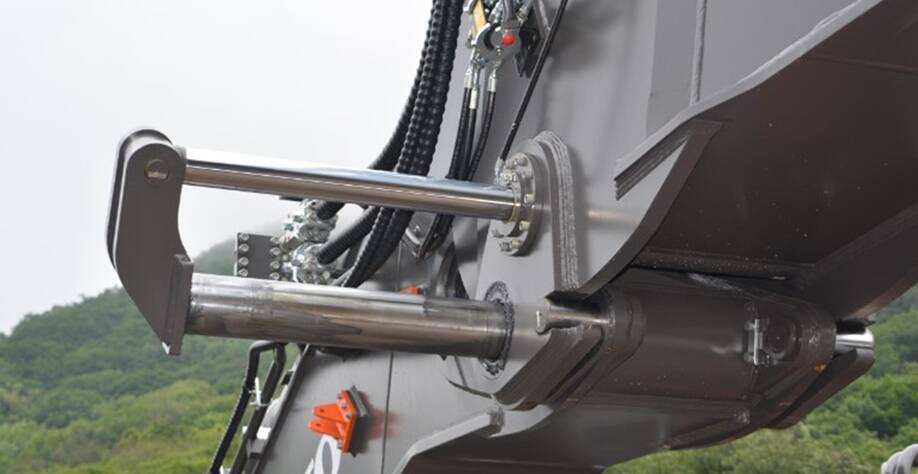

- For ultimate versatility, the innovative hydraulic modular joint uses a hydraulic lock mechanism to release digging equipment and change from high reach demolition boom (36m -118ft- pin height arm or 26m -85ft- pin height arm) to a standard digging configuration (with an additional 4.4m -14.4ft- boom extension). These components can then be further configured – straight-straight (for high reach), straight-bent (for better center-of-gravity and extended forward safe working area), and bent-bent – for underground work. The hydraulic modular joint uses a hydraulic lock mechanism to release digging equipment and change from high reach to backhoe configuration.

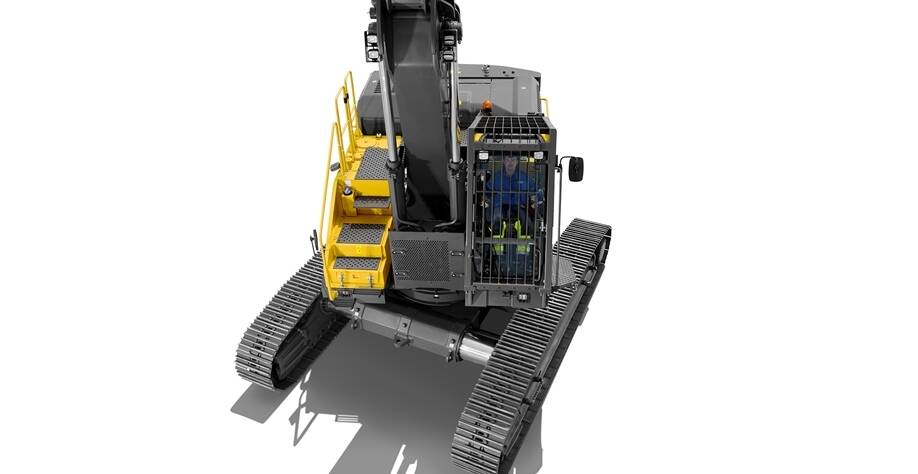

- These high reach excavators are equipped with a Volvo cab that has been designed to offer industryleading levels of comfort. A high visibility cab and carefully placed cameras ensure operators have a clear view of the jobsite at all times, for the ultimate safe, productive working environment.
- Volvo high reach excavators are built to ensure maximum safety in all demolition applications. A sturdy frame and cab offer ultimate protection against the falling debris that is common in demolition projects, and a wide, clear view of the jobsite provides excellent visibility for enhanced safety.
- Volvo CE is dedicated to producing the ultimate in heavy-duty demolition machinery. Purpose-built to suit the needs of this demanding task, these high reach excavators are equipped with robust components and a powerful engine to ensure you can keep working shift after shift.
TECHNICAL SPECIFICATIONS FOR EC750E HR
|
Operating weight |
227,138Â lbs |
|---|---|
|
Engine gross power |
381Â hp |
|
Engine speed at max engine torque |
1,800Â rpm |
|
Max. allowable tool weight |
7,937Â lbs |
|
Max. pin height |
118′ 1″ ft in |
|
Max. pin reach |
73′ 1″ ft in |
|
Operating angle |
23.5Â degree |
|
Max. cab tilting angle |
30Â degree |
|
…Undercarriage hydraulically retractable – Extended |
169.3Â in |
|
…Undercarriage hydraulically retractable – Retracted |
120.1Â in |
