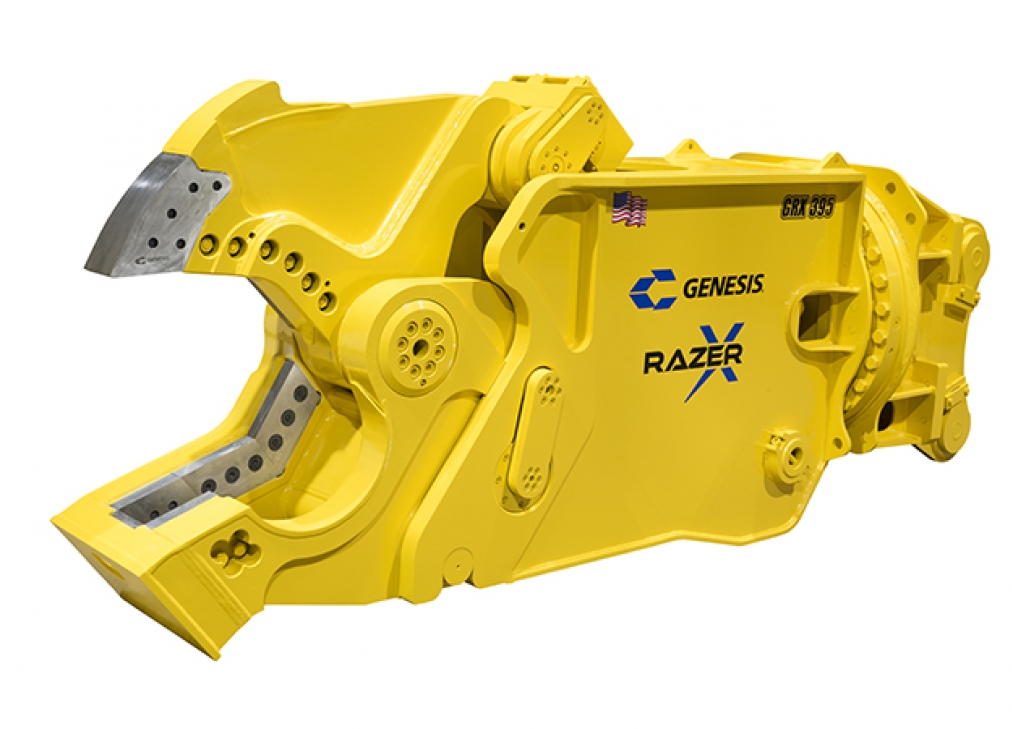

The award-winning Razer X Multi-Jaw Demolition Tool (GRX) from Genesis Attachments is a demolition attachment that enables excavator operators to change jaw sets in less than 2 minutes, without leaving the cab.
This concrete processor’s body contains hydraulically-actuated pins, controlled from the cab, that connect to the cylinder and jaw set. This enables the operator to change jaws without assistance, and while staying in the cab, making change-outs faster and safer.
The Razer X concrete processor is available with cracker, shear and pulverizer jaws to process a variety of materials, and each GRX jaw set comes with its own stand specifically designed for correct positioning and efficient handling.
Additionally, the GRX features bolt-on and reversible wear parts to simplify maintenance, and a flat-top head with bolt-on bracket makes it easy to change lugs for different carriers.
For additional product, application or service information, call us at 1-888-SHEAR-IT.
- Short, flat-top head with bolt-on bracket shortens the center of gravity, making it easy to change mounting for different carriers
- Hydraulic pin engagement and removal for jaw change-outs in less than 2 minutes without leaving the cab
- Reverse-mounted cylinder protects the rod from debris
- Heavy-duty pivot design is integral to the jaw set, providing a power curve to match the jaw’s primary application
- Available in cracker, shear and pulverizer jaw configurations
ModelTable
| Model | Jaw | Weight* (lbs.) | Jaw Opening (ins.) | Jaw Depth (ins.) | Reach** (ft. ins.) | Min. Excavator Weight Stick Mount (lbs.) |
|---|---|---|---|---|---|---|
| GRX 395 | Cracker | 10,750 | 45 | 42 | 10′ 6″ | 90,000 |
| GRX 395 | Shear | 10,500 | 24 | 25.5 | 10′ 6″ | 90,000 |
| GRX 395 | Pulverizer | 11,000 | 45 | 36 | 10′ 6″ | 90,000 |
