BUILT FOR YOUR BIGGEST UTILITY JOBS

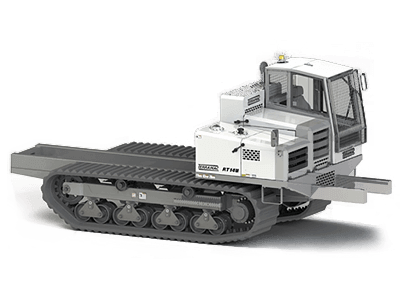

The largest machine in our utility lineup, the RT14U, tackles jobs 35,260 lbs. at a time – but still allows crews to reach some very difficult to get to utility locations.
Extended front and rear frame extensions, and multiple hydraulic configurations, mean you can customize your machine nearly any way you need with the attachments required for the job.
- Versatile Hydraulics: Hydraulic pump drive configurations simplify customized support equipment.
- Low Ground Pressure: With only 7.4 psi of ground pressure, the RT14U can conquer challenging terrain with minimal damage.
- Extended Frame: Extended front and rear frame extensions accommodate utility support equipment.
Engine
|
Manufacturer |
Cummins |
Cummins |
|
Model |
QSB 6.7 |
QSB 6.7 T4F |
|
Emissions Certifications |
T4F |
|
|
Displacement |
408 cu. in. |
6.7 L |
|
Horsepower |
310 HP @ 2200 RPM |
231 kW |
|
Electrical System |
12 VDC |
12 VDC |
|
Battery |
(2) GRP 31, 1125 CCA |
(2) GRP 31, 1125 CCA |
|
Fuel Capacity |
82 gallons |
310 L |
Dimensions
|
Full Length |
24’ |
7.3 m |
|
|
|
|
|
Full Height |
10’ 5″ |
3.2 m |
|
|
|
|
|
Width Over Tracks |
10’ |
3.0 m |
|
|
|
|
|
Track Gauge (Center-to-Center) |
7′ |
2.1 m |
|
|
|
|
|
Min Ground Clearance |
24″ |
7.9 m |
|
|
|
|
|
Track Width |
31.5″ |
10.3 m |
|
|
|
|
|
Undercarriage Length (Idler to Drive Hub) |
12′ 4″ |
3.8 m |
|
|
|
|
|
Rail Width |
3.7′ |
1.1 m |
|
|
|
|
|
Rear of Cab to Rear of Rail** |
14.1′ |
4.3 m |
|
|
|
|
|
Front Rail Extension** |
3.6′ |
1.1 m |
|
|
|
|
Hydraulics
|
Transmission |
HST |
HST |
|
Drive Pump Max Flow (x2) |
64 gpm / side |
242 L/m |
|
Drive Pump Max Pressure |
5,500 PSI |
379 bar |
|
Tandem Gear Pump Max Flow |
|
|
|
   Front Section (AUX Output) |
30 gpm @ 3000 PSI |
113 L/m @ 207 bar |
|
   Rear Section (HST Drive) |
25 gpm @ 500 PSI |
95 L/m @ 34 bar |
Performance
|
Base Weight |
27,000 lbs. |
12.247 kg |
|
Max. Carrying Capacity |
35,260 lbs. |
15,994 kg |
|
GVWR |
62,260 lbs. |
28,241 kg |
|
Travel Speed – 1st Gear |
4.0 mph |
6.4 kph |
|
Travel Speed – 2nd Gear |
6.8 mph |
10.9 kph |
|
Gradability |
58% (30°) |
1 rad |
|
Turning Radius |
Zero Turn |
Zero Turn |
|
Ground Pressure (Loaded) |
7.4 PSI |
.52 kg/c2 |
|
Ground Pressure (Unloaded) |
4.9 PSI |
.34 kg/c2 |
