COMPACT CARRIER DELIVERING STRONG SOLUTIONS
Tackle rugged terrain with our most adaptable compact carrier – the RT7U. This unit accommodates large support attachments while maintaining a small footprint for ease of transport.

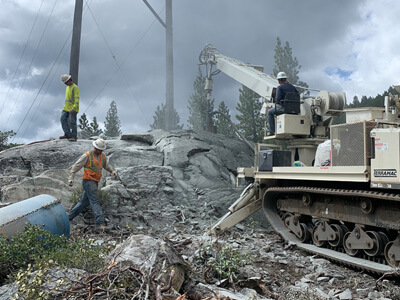

Stronger steel, extended front and rear frame extensions, enhanced torque, and multiple hydraulic configurations facilitate the development of robust machines for every industry’s off-road work.
- Drive System: Enhanced drive system for increased power and torque.

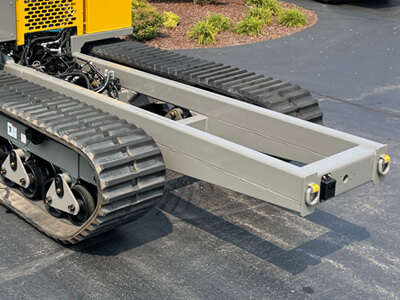

- 1/2" Steel Frame: Thick steel frame for supporting a wide range of large attachments.

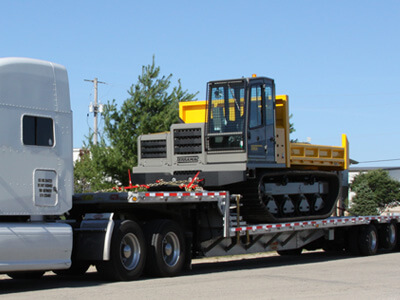

- Ease of Transport: The RT7U does not require a special transport permit for height or width.
Hydraulics
|
Transmission |
HST |
HST |
|
Drive Pump Max Flow (x2) |
32 gpm / side |
121 L/m |
|
Drive Pump Max Pressure |
5,500 PSI |
379 bar |
|
Tandem Gear Pump Max Flow |
|
|
|
Front Section (AUX Output) |
14 gpm @ 3000 PSI |
53 L/m @ 207 bar |
|
Rear Section (HST Drive) |
20 gpm @ 550 PSI |
76 L/m @ 38 bar |
Engine
|
Manufacturer |
Cummins |
Cummins |
|
Model |
B4.5 Performance Series |
B4.5 Performance Series |
|
Emissions Certifications |
US T4F / EU Stage 5 |
US T4F / EU Stage 5 |
|
Displacement |
275 cu. in. |
4.5 L |
|
Horsepower |
155 HP @2200 RPM |
116 kW |
|
Electrical System |
12 VDC |
12 VDC |
|
Battery |
(2) GRP 31, 1125 CCA |
(2) GRP 31, 1125 CCA |
|
Fuel Capacity |
40 gallons |
151 L |
Performance
|
Base Weight |
16,924 lbs. |
7,678 kg |
|
Max. Carrying Capacity |
16,576 lbs. |
7,519 kg |
|
GVWR |
33,500 lbs.⁴ |
15,195 kg |
|
Travel Speed – 1st Gear |
3.3 mph |
5.3 kph |
|
Travel Speed – 2nd Gear |
6.7 mph |
10.5 kph |
|
Gradability⁵ |
58% (30°) |
58% (1.0 rad) |
|
Turning Radius |
Zero Turn |
Zero Turn |
|
Ground Pressure (Loaded) |
5.8 PSI |
.41 kg/c2 |
|
Ground Pressure (Unloaded) |
2.9 PSI |
.20 kg/c2 |
¹ The overall length may vary depending on utility build model selected.
² Travel height it 9′ 3″ when beacon bracket is flipped down.
³ Frame length can be modified, please contact Terramac for details.
⁴ GVWR up to 38,000 lbs with application approval by Terramac.
⁵ Gradability may vary based on support equipment added to the carrier, please contact Terramac for details
Dimensions
|
Full Length¹ |
20′ 3″ |
6.2 m |
|
|
|
|
|
Full Height² |
9′ 3″ |
2.8 m |
|
|
|
|
|
Width Over Tracks |
8′ 3″ |
2.5 m |
|
|
|
|
|
Track Gauge (Center-to-Center) |
6′ 2″ |
1.9 m |
|
|
|
|
|
Min. Ground Clearance |
18.3″ |
0.5 m |
|
|
|
|
|
Track Width |
23.6″ |
0.6 m |
|
|
|
|
|
Undercarriage Length (Idler to Drive Hub) |
10′ 3″ |
3.1 m |
|
|
|
|
|
Rail Width |
3′ |
0.9 m |
|
|
|
|
|
Rear of Cab to Rear of Rail³ |
11.5′ |
3.5 m |
|
|
|
|
|
Front Rail Extension³ |
3.1′ |
1.0 m |
