MIDSIZE CARRIER FOR MASSIVE JOBS

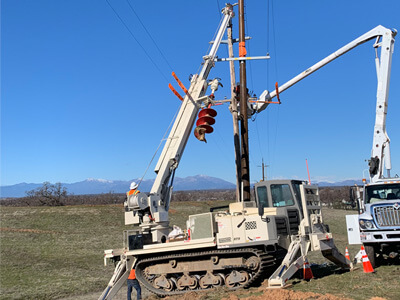

Compact enough non-permitted load when transporting, but still featuring an 18,000 lb. carrying capacity, the RT9U is ready to streamline utility transmission and distribution.
Extended front and rear frame extensions and multiple hydraulic configurations allow you to customize the RT9U nearly any way you need.
- Advantageous Size: Largest carrier in its class allowing it to accommodate over-sized support equipment.

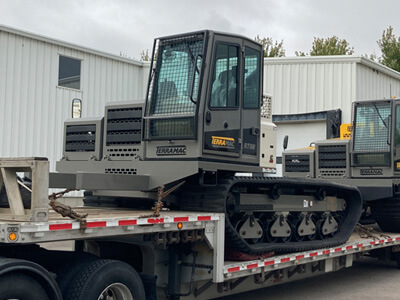

- Ease of Transport: Haul the unit from jobsite to jobsite on a tag trailer without special permits.
- Cummins Engine: Carrier delivers maximum power and torque for traversing rugged terrain with ease while at maximum capacity.
Engine
|
Manufacturer |
Cummins |
Cummins |
|
Model |
QSB 6.7 |
QSB 6.7 T4F |
|
Emissions Certifications |
T4F |
|
|
Displacement |
408 cu. in. |
6.7 L |
|
Horsepower |
255 HP @ 2200 RPM |
168 kW |
|
Electrical System |
12 VDC |
12 VDC |
|
Battery |
(2) GRP 31, 1125 CCA |
(2) GRP 31, 1125 CCA |
|
Fuel Capacity |
64 gallons |
242 L |
Performance
|
Base Weight |
20,668 lbs. |
9,375 kg |
|
Max. Carrying Capacity |
23,512 lbs. |
10,665 kg |
|
GVWR |
44,180 lbs. |
20,040 kg |
|
Travel Speed – 1st Gear |
2.5 mph |
4 kph |
|
Travel Speed – 2nd Gear |
5.4 mph |
8.7 kph |
|
Gradability |
58% (30°) |
1 rad |
|
Turning Radius |
Zero Turn |
Zero Turn |
|
Ground Pressure (Loaded) |
6.4 PSI |
.45 kg/c2 |
|
Ground Pressure (Unloaded) |
3.0 PSI |
.21 kg/c2 |
Dimensions
|
Full Length |
24’ |
7.3 m |
|
|
|
|
|
Full Height |
9’ 11″ |
3.0 m |
|
|
|
|
|
Width Over Tracks |
8’ 3″ |
2.5 m |
|
|
|
|
|
Track Gauge (Center-to-Center) |
6′ |
1.8 m |
|
|
|
|
|
Min Ground Clearance |
21” |
0.5 m |
|
|
|
|
|
Track Width |
27.5” |
0.7 m |
|
|
|
|
|
Undercarriage Length (Idler to Drive Hub) |
12′ 3″ |
3.7 m |
|
|
|
|
|
Rail Width |
3.3′ |
1.0 m |
|
|
|
|
|
Rear of Cab to Rear of Rail* |
13.9′ |
4.2 m |
|
|
|
|
|
Front Rail Extension** |
3.9′ |
1.2 m |
|
|
|
|
Hydraulics
|
Transmission |
HST |
HST |
|
Drive Pump Max Flow (x2) |
43 gpm / side |
163 L/m |
|
Drive Pump Max Pressure |
5,500 PSI |
379 bar |
|
Tandem Gear Pump Max Flow |
|
|
|
Front Section (AUX Output) |
25 gpm @ 3000 PSI |
95 L/m @ 206 bar |
|
Rear Section (HST Drive) |
22 gpm @ 550 PSI |
83 L/m @ 38 bar |
|
Optional Pump Drive |
25 gpm @ 2500 PSI |
95 L/m @ 172 bar |
