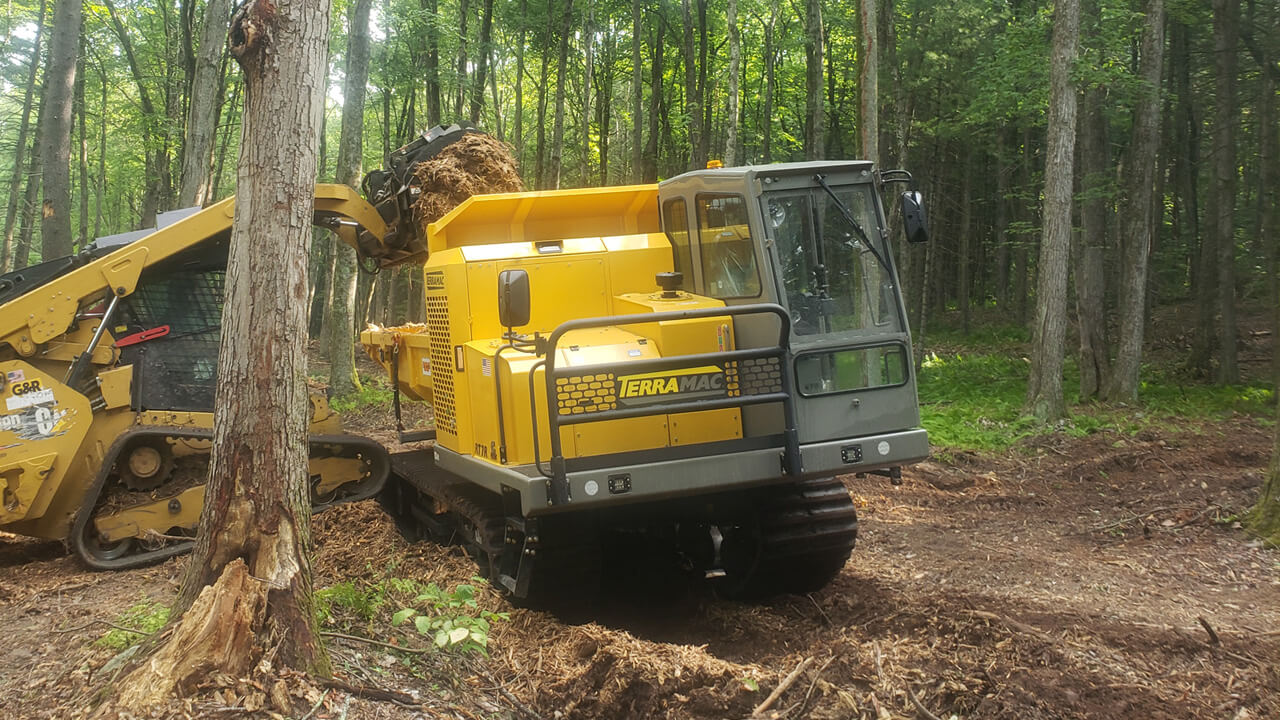

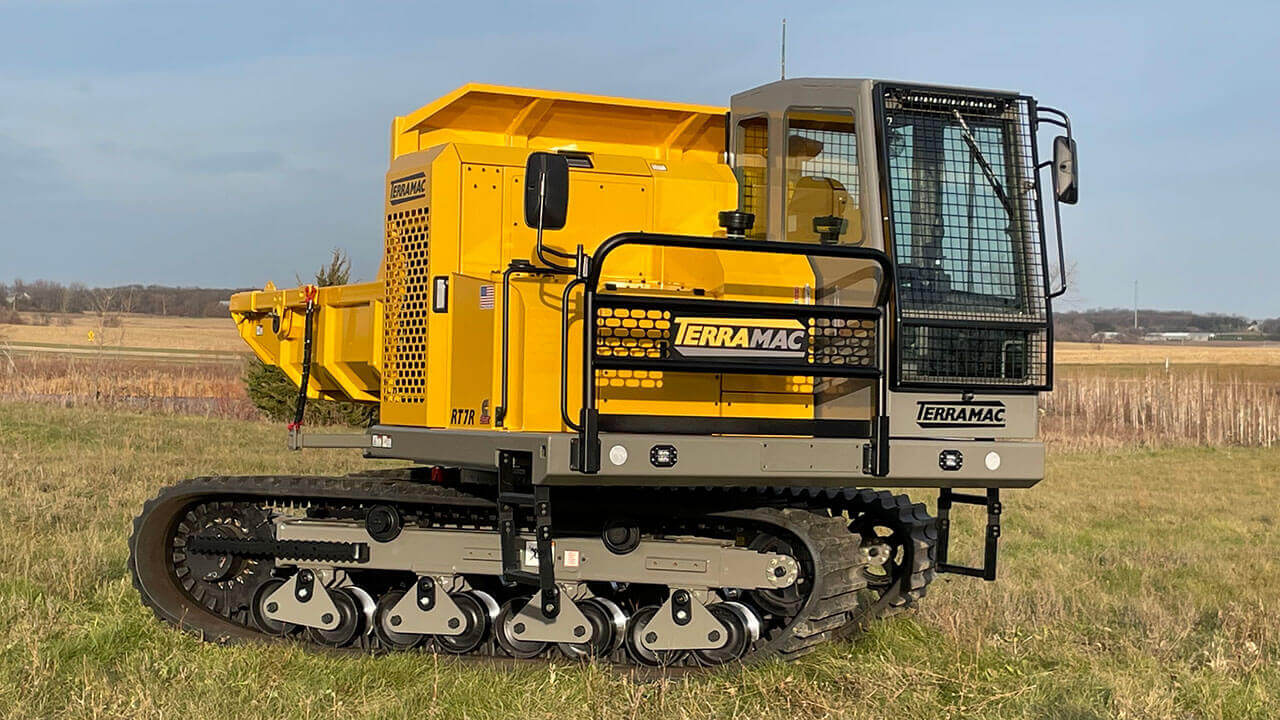

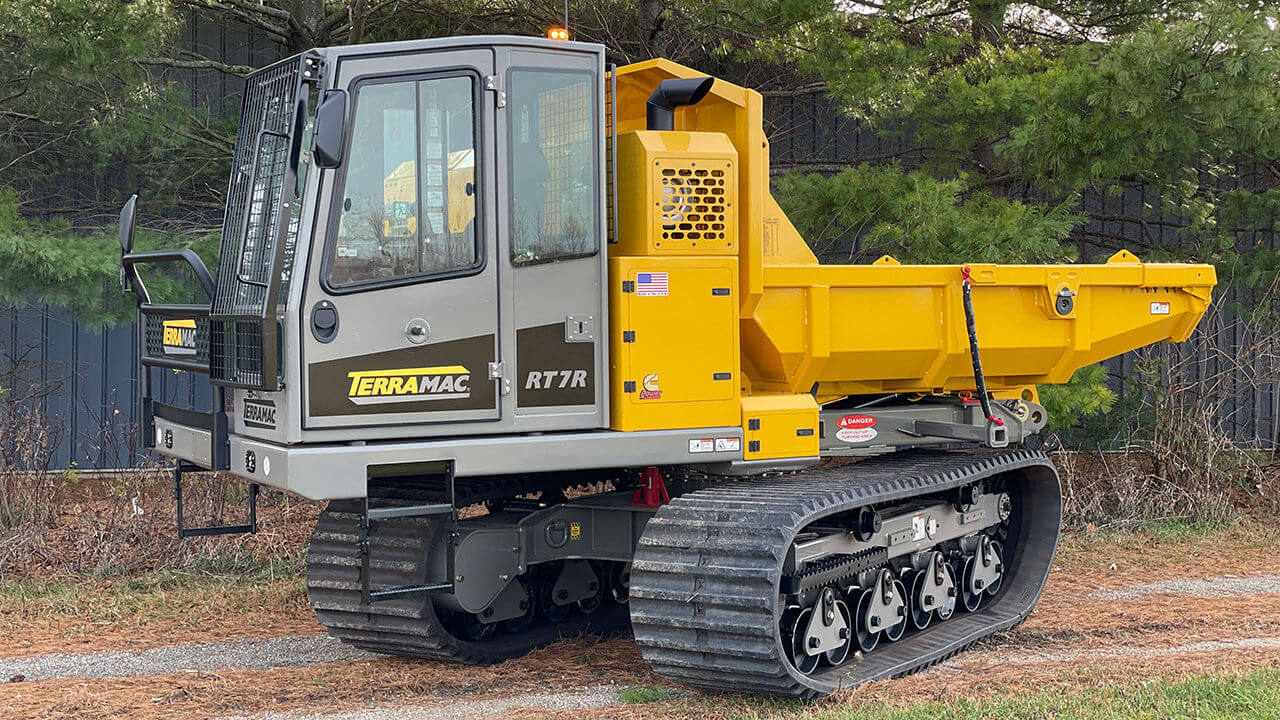

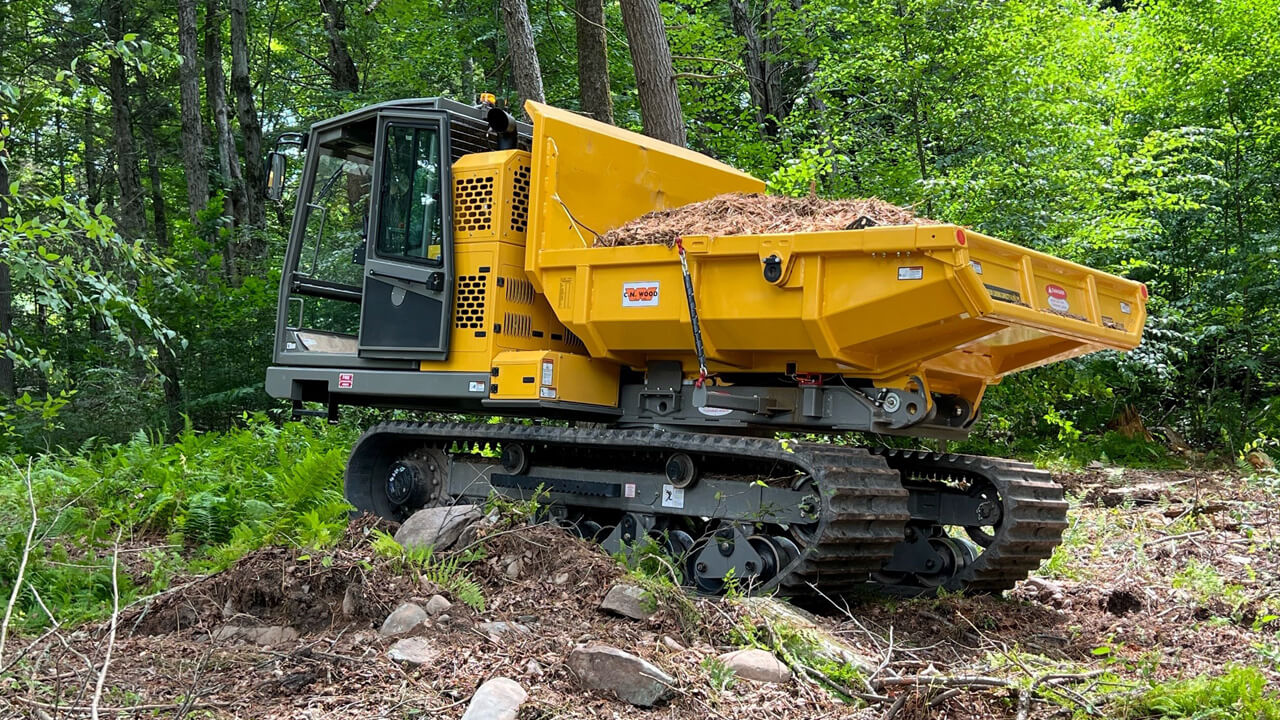

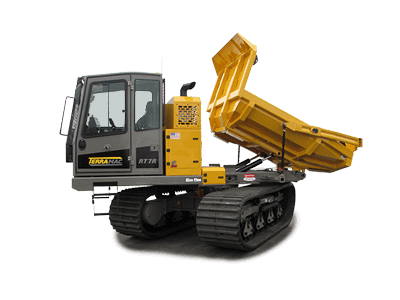

With its compact size and 360° rotation, the RT7R can get in and out of remote job sites with anyone hardly noticing – even on the most challenging of terrain.
The RT7R’s rotation keeps operators in a forward-facing position at all times for enhanced safety while allowing the operator to offload at nearly any angle for added efficiency.

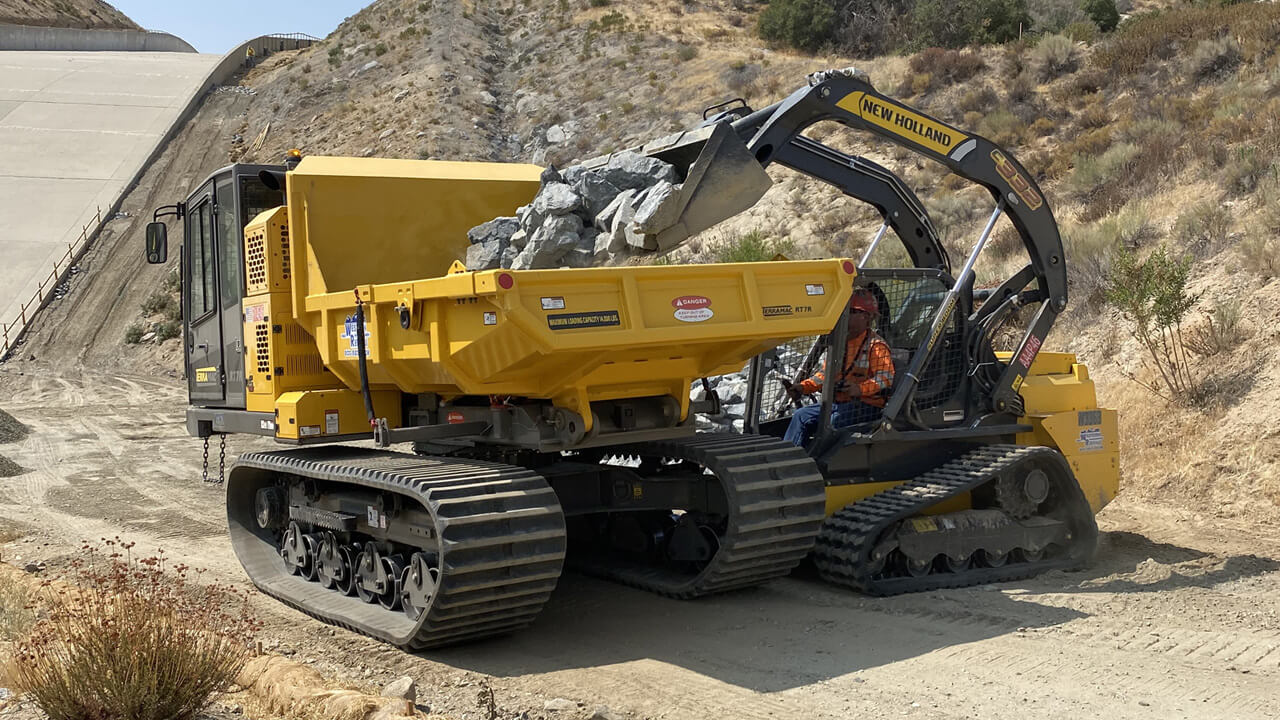

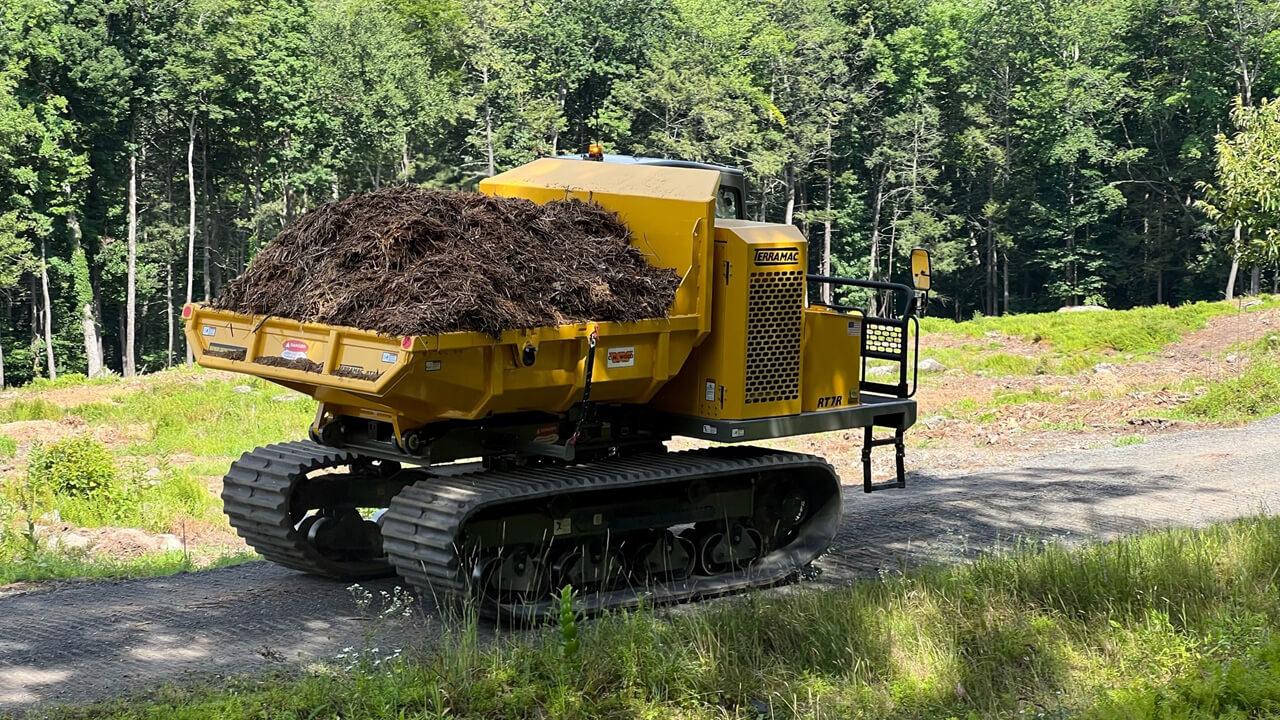

- 14,000 lb. Carrying Capacity: Move 7 tons of material or equipment at a time without disturbing sensitive environments.
- Non-Permitted Load: Transporting your RT7R requires no oversize load permits. Just load it onto a standard flatbed trailer and head to your next job.

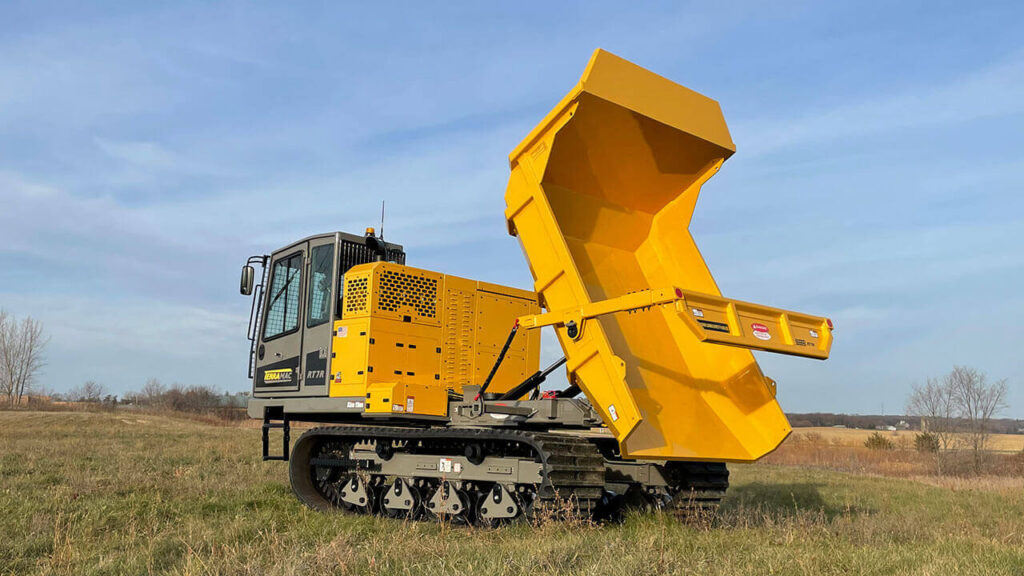

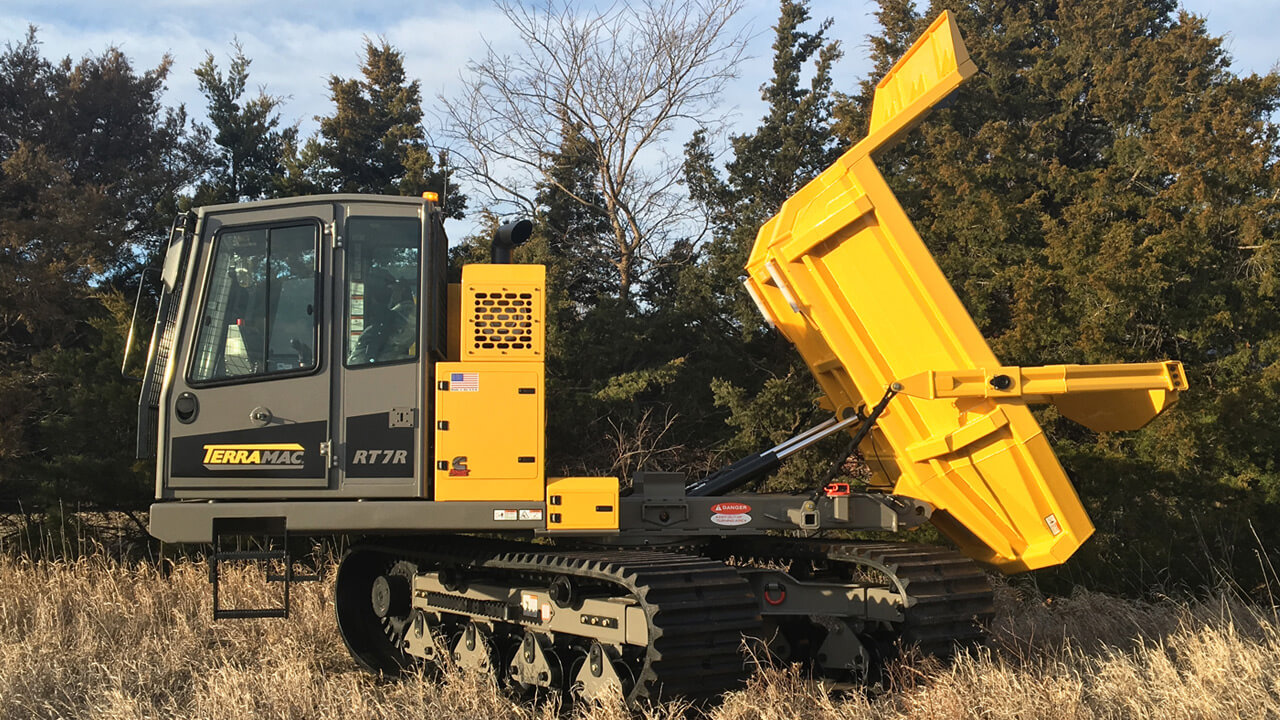

- 360° of Freedom: Offload with precision in the most sensitive and confined job sites with complete 360° rotation.
Engine
|
Manufacturer |
Cummins |
Cummins |
|
Model |
B4.5 Performance Series |
B4.5 Performance Series |
|
Emissions Certifications |
US Tier 4 Final/EU Stage V |
US Tier 4 Final/EU Stage V |
|
Displacement |
275 cu. in. |
4.5 L |
|
Horsepower |
165 HP @ 2200 RPM |
123 kW |
|
Electrical System |
12 VDC |
12 VDC |
|
Battery |
(2) GRP 31, 1100 CCA |
(2) GRP 31, 1100 CCA |
|
Fuel Capacity |
40 gallons |
151 L |
Dimensions
|
Full Length/WITH Rock Bed |
17’ 3″ |
5.3 m |
|
|
|
|
|
Full Height |
9’ 9″ |
3 m |
|
|
|
|
|
Width Over Tracks |
8’ 1″ |
2.5 m |
|
|
|
|
|
Track Gauge (Center-to-Center) |
5’ 9″ |
1.8 m |
|
|
|
|
|
Min Ground Clearance |
20″ |
0.5 m |
|
|
|
|
|
Front Overhang |
2’ 10″ |
0.9 m |
|
|
|
|
|
Track Width |
27.5″ |
0.7 m |
|
|
|
|
|
Undercarriage Length (Idler to Drive Hub) |
9’ 11″ |
3 m |
|
|
|
|
|
Dump Bed Loading Height Over Side |
6’ 5″ |
2 m |
|
|
|
|
|
Height of Dump Bed Side (Vessel) |
22″ |
.6 m |
|
|
|
|
|
Length of Dump Bed (Vessel) |
8’ 8″ |
2.6 m |
|
|
|
|
|
Width of Dump Bed (Vessel) |
6’ 8″ |
2 m |
|
|
|
|
|
Dumping Angle |
60° |
1 rad |
|
|
|
|
|
Machine Weight (with bed) |
23,730 lbs. |
10,764 kg |
Hydraulics
|
Transmission |
HST |
HST |
|
Drive Pump Max Flow (x2) |
32 gpm / side |
121 L/m |
|
Drive Pump Max Pressure |
5,500 PSI |
379 bar |
|
Tandem Gear Pump Max Flow |
|
|
|
  Front Section (AUX Output) |
14 gpm @ 2500 PSI |
53 L/m @ 172 bar |
|
  Rear Section (HST Drive) |
20 gpm @ 380 PSI |
76 L/m @ 26 bar |
Performance
|
Max. Carrying Capacity |
14,000 lbs. |
6,350 kg |
|
Travel Speed – 1st Gear |
3.3 mph |
5.3 kph |
|
Travel Speed – 2nd Gear |
6.7 mph |
10.5 kph |
|
Gradability |
58% (30°) |
58% (.52 rad) |
|
Turning Radius |
Zero Turn |
Zero Turn |
|
Ground Pressure (Loaded) |
5.5 PSI |
.39 kg/c2 |
|
Ground Pressure (Unloaded) |
3.5 PSI |
.25 kg/c2 |
