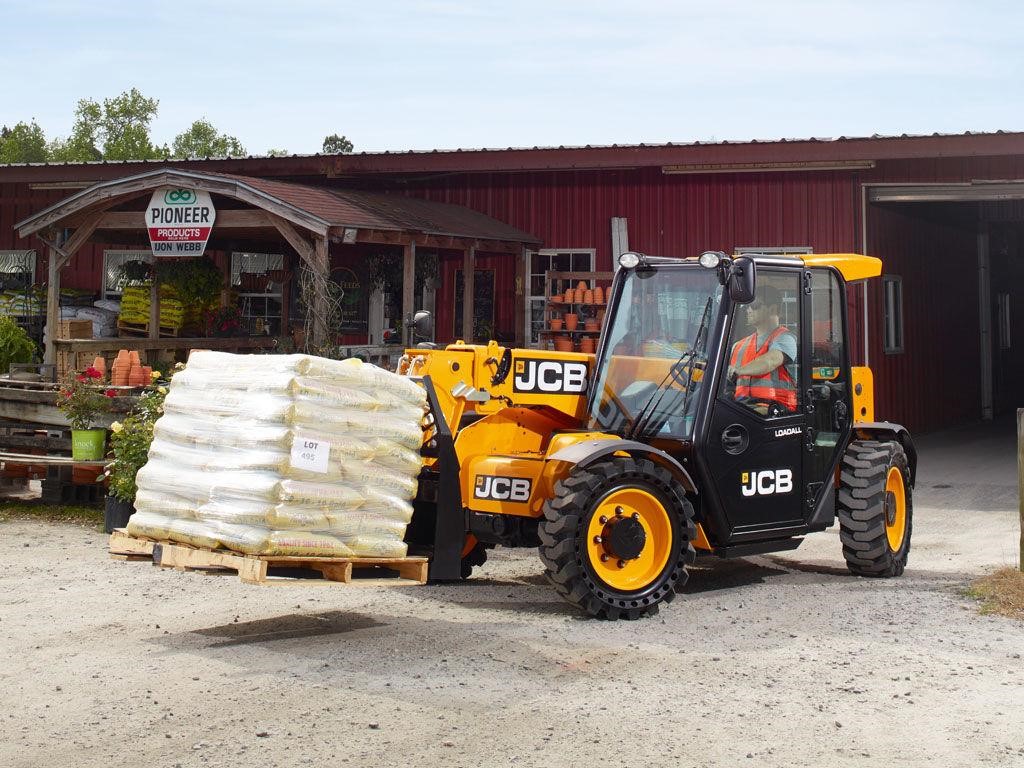

JCB 505-20TC — TOOL CARRIER TELEHANDLER

A COMPACT MACHINE WITH SUPERIOR VERSATILITY

Every JCB telehandler is designed to offer superb productivity, and the 505-20TC telehandler is no different. Excellent visibility and maneuverability, versatile performance, potent power and innovation-driven efficiency are all part of the package.

ULTIMATE COMFORT

DESPITE THE COMPACT FOOTPRINT, THE JCB 505-20TC LOADALL HAS A LARGE, SPACIOUS CAB WITH A WIDE ACCESS DOOR.

• A full size cab ensures the operator benefits from a spacious working environment.

• Air conditioning is available for all cabs, ensuring maximum comfort throughout the day.

• Controlling a JCB 505-20TC is also comfortable, precise and smooth using single lever electro servo controls with proportional auxiliaries.

ULTIMATE EFFICIENCY

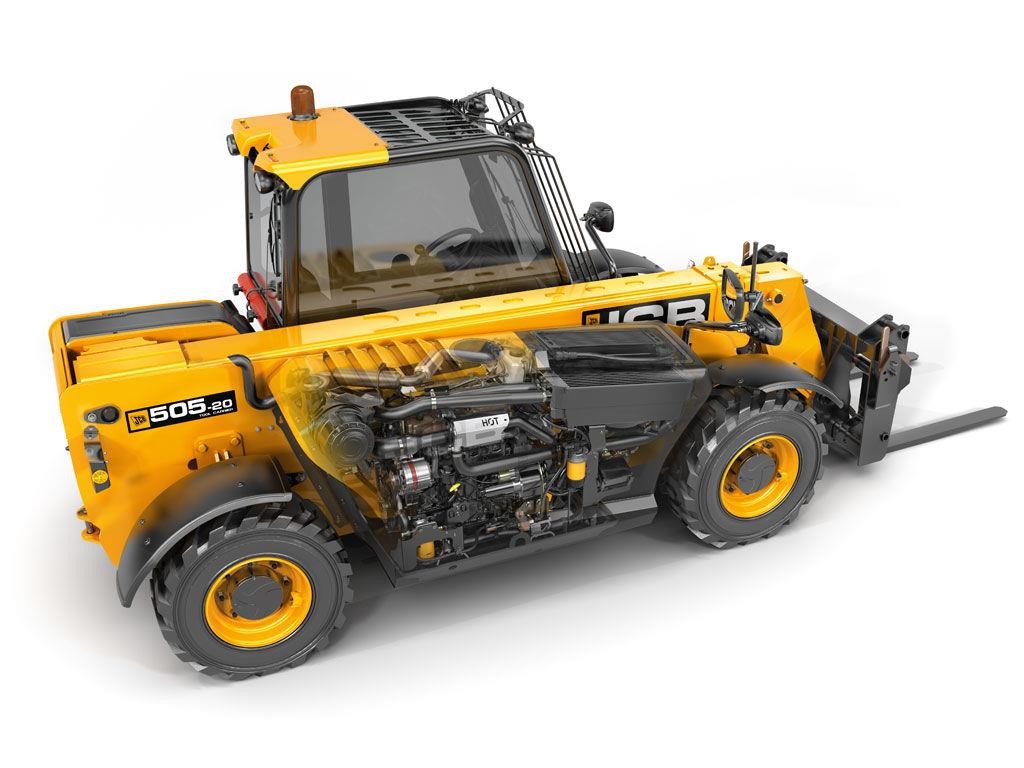

THE 505-20TC LOADALL IS EQUIPPED WITH A POTENT JCB DIESEL BY KOHLER ENGINE THAT PRODUCES 221 lb-ft OF TORQUE AT JUST 1500RPM.

• Because it produces peak levels of torque at revs as low as 1500rpm, this engine can provide fuel-efficient matching of the transmission and hydraulics.

• For excellent traction and performance in difficult conditions, we’ve fitted the JCB 505-20TC telehandler with 4WD as standard.

• A limited-slip differential is available for maximum traction on slippery surfaces.

ULTIMATE PRODUCTIVITY

A LOW HEIGHT OF 6’ 2” AND A NARROW WIDTH OF 6’ ENABLES THE 505-20TC TO ACCESS THE VERY SMALLEST OPERATING ENVIRONMENTS.

• 2-speed transmission allows you to select high and low speeds. The low speed setting complies with building site speed regulations, while high speed is ideal for roading.

• Your telehandler operators can manoeuvre quickly and easily with directional shuttle changes possible via either the shuttle lever on the steering column or the joystick-mounted shuttle switch.

ULTIMATE SAFETY

JCB’S INNOVATIVE ADAPTIVE LOAD CONTROL SYSTEM AUTOMATICALLY PREVENTS YOUR 505-20TC TELEHANDLER FROM OVERTURNING FORWARDS DURING HEAVY LOAD HANDLING.

• JCB LiveLink now has the ability to monitor seatbelt usage, to ensure operators are safe when operating the machine.

• All-round visibility is superb via the large roof screen, opening rear window and fold-back upper door.

• Hose burst check valves (HBCVs) help to protect the rams from collapse in the event of a hose failure.

MOST POPULAR CONFIGURATION

• 2-stage boom

• Cab or Canopy with right and rear glass

• Single-lever joystick

• 12-16.5 pneumatic industrial tires

• JCB by Kohler 74 hp engine – no DPF or DEF

• Skid steer manual locking coupler, single auxiliary

• Vinyl suspension seat with 3-inch seat belt

• Front work lights

• Magnetic rotating beacon

• Engine block heater

• 2WD/4WD/crab (all wheel) steering

• Face-level fan

• 48-inch carriage with 2x4x48” pallet forks

• LiveLink telematics

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
