BIG FUEL SAVINGS
The EC250E Hybrid crawler excavator utilizes pioneering Volvo hydraulic hybrid technology to lower fuel consumption by up to 15%. Using the boom down motion to charge the accumulator, the excavator uses this stored energy to drive the assist motor lowering the torque requirement on the engine. Save big on fuel while benefitting from the power and performance of a conventional EC250E.
- BUCKET CAPACITY: 1 - 2 yd³
- GROSS POWER: 225 hp
- OPERATING WEIGHT: 60,032 - 62,413 lbs

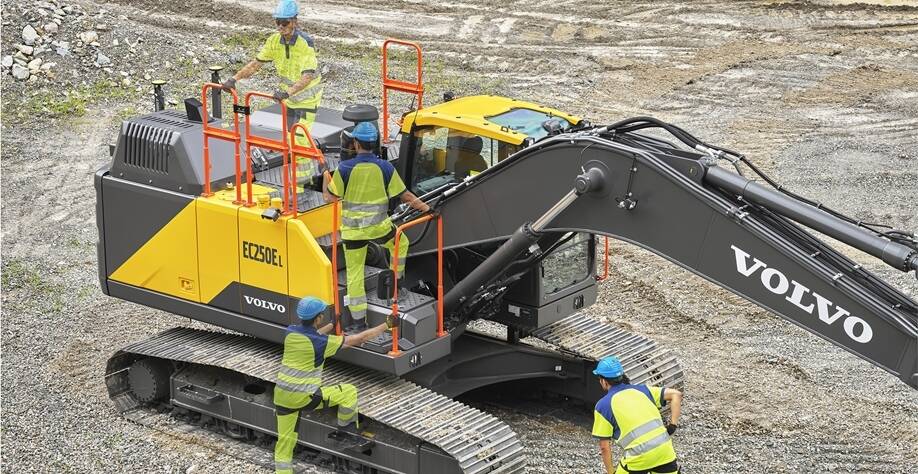

- With a host of new and proven features including enhanced machine access, superior visibility, bouncing reduction technology and customizable settings, the upgraded EC250E Hybrid delivers all the safety and comfort you would expect from your Volvo machine.
- Get the most out of your excavator with our range of purpose-built attachments, designed to work in perfect harmony with your machine. Customize your EC250E Hybrid with quality Volvo attachments, matched to your needs, to form one solid and reliable unit that delivers improved cycle times and increased fuel efficiency.
- The uncomplicated and reliable hybrid solution is easy to maintain and consists of just a handful of add-on components, meaning no disruption or complication to how the high performing EC250E is engineered.

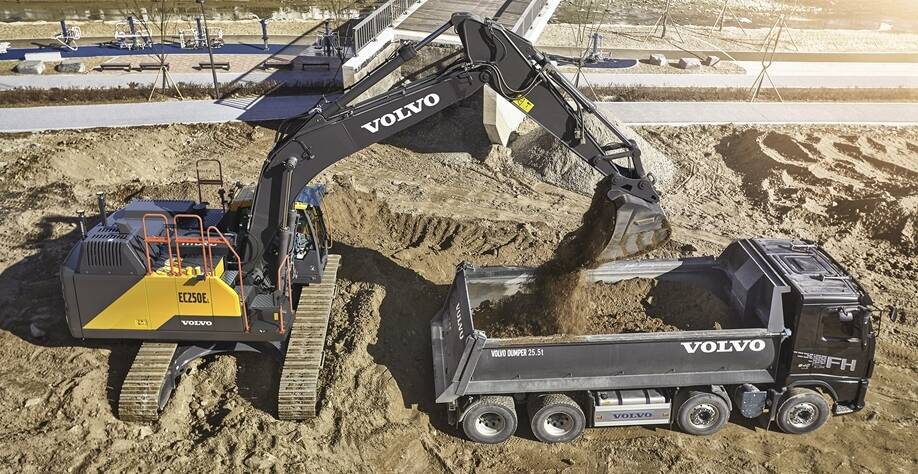

- When working in dig and dump applications, the EC250E Hybrid is a straightforward solution with rapid payback. Save fuel, lower emissions and boost the profitability of your operation.
- Durable by design, the new EC250E Hybrid is ready to take on the toughest applications. The machine delivers outstanding levels of reliability and with features including engine auto-regeneration, reinforced components and reduced maintenance requirements, you can count on the EC250E Hybrid to maximize uptime while keeping maintenance costs to a minimum.
- The EC250E Hybrid reduces COâ‚‚ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
TECHNICAL SPECIFICATIONS
|
Operating weight |
60,032 – 62,413 lbs |
|---|---|
|
Gross power |
225 hp |
|
Engine speed at max engine torque |
1,600 rpm |
|
Bucket capacity |
1 – 2 yd³ |
|
Lifting capacity, along undercarriage |
22,156 lbs |
|
…at reach / height |
20 / 5 ft |
|
Max. digging reach |
33′ 11″ ft in |
|
Max. digging depth |
23′ 2″ ft in |
|
Breakout force, SAE J1179 (Normal) |
32,597.3 lbf |
|
Breakout force, SAE J1179 (Boost) |
35,294.9 lbf |
|
Tear out force, SAE J1179 (Normal) |
25,628.2 lbf |
|
Overall width feet inches |
10′ 6″ ft in |
|
Tear out force, SAE J1179 (Boost) |
27,876.3 lbf |
|
Tail swing radius |
10′ 1″ ft in |
