SIMPLE SOLUTION, BIG SAVINGS

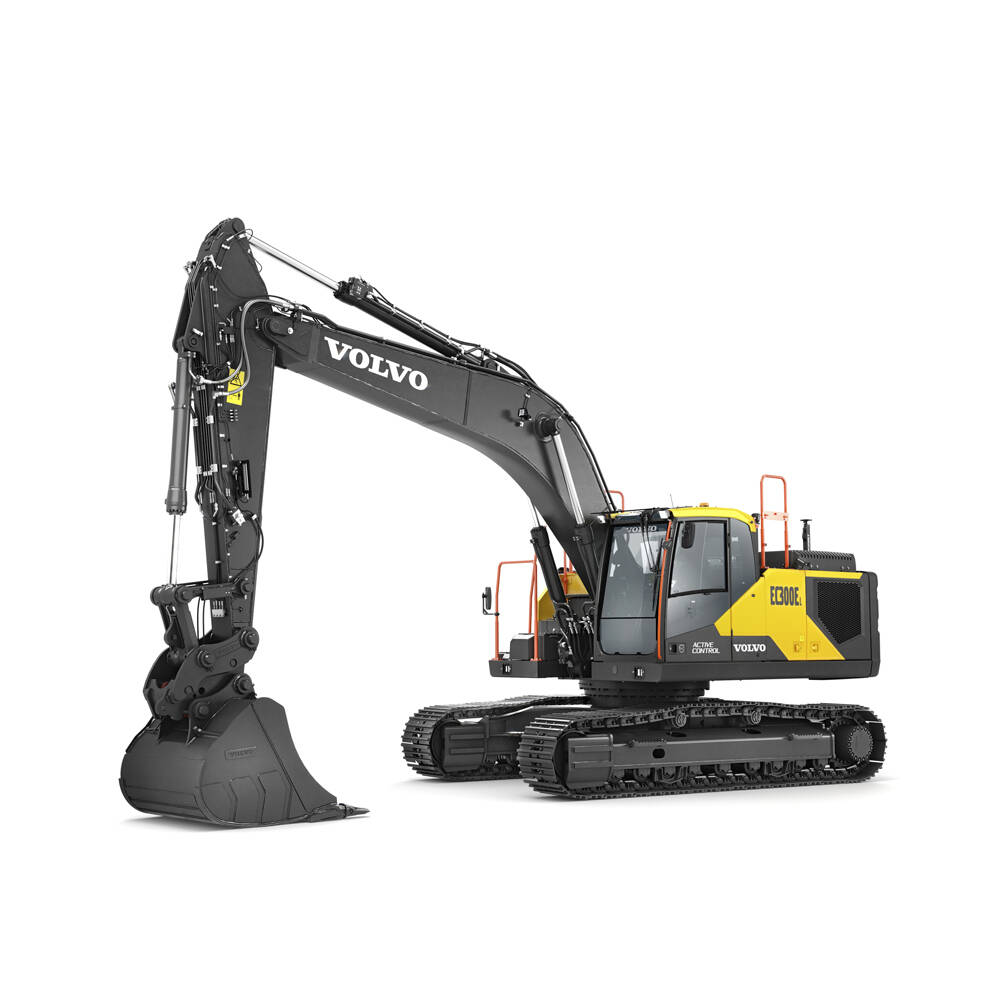

Introducing the upgraded EC300E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor lowering the torque requirement on the engine. The result is up to 15% lower fuel consumption while delivering all the power and performance you would expect from a conventional EC300E.
- OPERATING WEIGHT: 68,608 - 72,135 lbs
- BUCKET CAPACITY: 1 - 3 yd³
- GROSS POWER: 253 hp
- Get the most out of your excavator with our range of purpose-built attachments, designed to work in perfect harmony with your machine. Customize your EC300E Hybrid with quality Volvo attachments, matched to your needs, to form one solid and reliable unit that delivers improved cycle times and increased fuel efficiency.
- The EC300E Hybrid reduces COâ‚‚ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
- With a host of new and proven features including enhanced machine access, superior visibility, bouncing reduction technology and customizable settings, the upgraded EC300E Hybrid delivers all the safety and comfort you would expect from your Volvo machine.

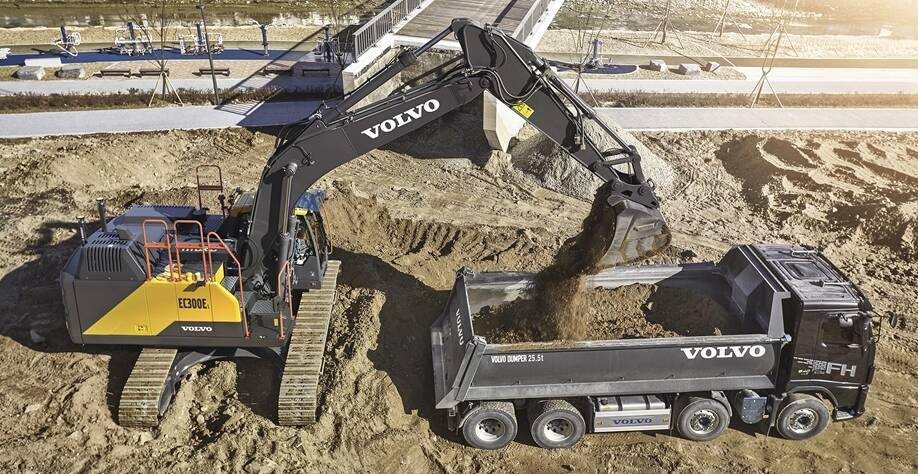

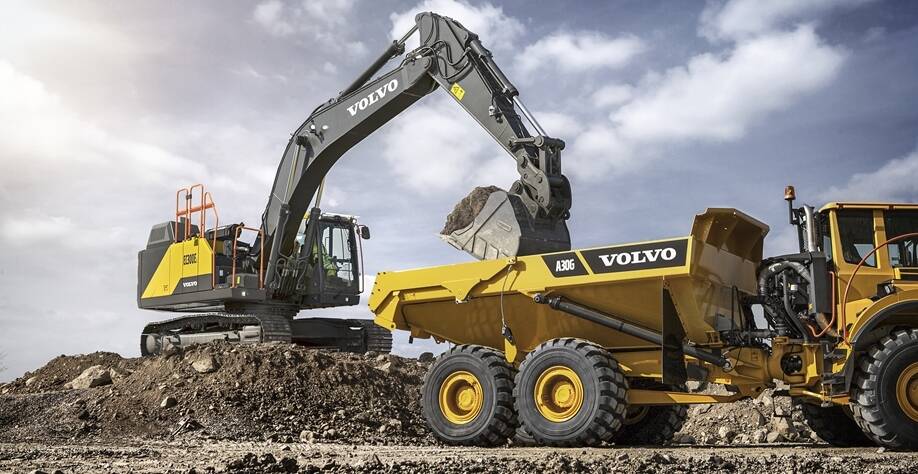

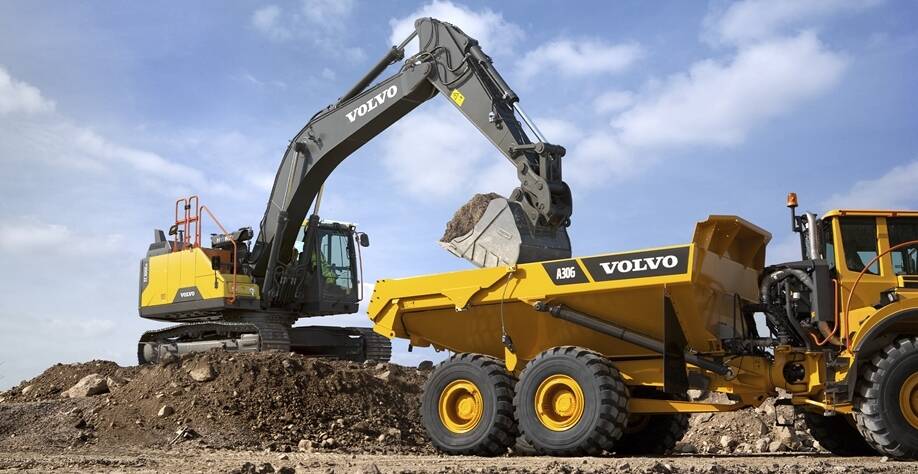

- When working in dig and dump applications, the EC300E Hybrid is a straightforward solution with rapid payback. Save fuel, lower emissions and boost the profitability of your operation.
- The uncomplicated and reliable hybrid solution is easy to maintain and consists of just a handful of add-on components, meaning no disruption or complication to how the high performing EC300E is engineered.
- Durable by design, the new EC300E Hybrid is ready to take on the toughest applications. The machine delivers outstanding levels of reliability and with features including engine auto-regeneration, reinforced components and reduced maintenance requirements, you can count on the EC300E Hybrid to maximize uptime while keeping maintenance costs to a minimum.
TECHNICAL SPECIFICATIONS
|
Operating weight |
68,608 – 72,135 lbs |
|---|---|
|
Gross power |
253 hp |
|
Engine speed at max engine torque |
1,600 rpm |
|
Bucket capacity |
1 – 3 yd³ |
|
Lifting capacity, along undercarriage |
25,264.9 lbs |
|
…at reach / height |
20 / 5 ft |
|
Max. digging reach |
35′ 2″ ft in |
|
Max. digging depth |
24′ 1″ ft in |
|
Breakout force, SAE J1179 (Normal) |
37,093.5 lbf |
|
Breakout force, SAE J1179 (Boost) |
40,240.8 lbf |
|
Tear out force, SAE J1179 (Normal) |
29,899.6 lbf |
|
Overall width feet inches |
10′ 6″ ft in |
|
Tear out force, SAE J1179 (Boost) |
32,372.5 lbf |
|
Tail swing radius |
10′ 3″ ft in |
