SIMPLE SOLUTION, BIG SAVINGS

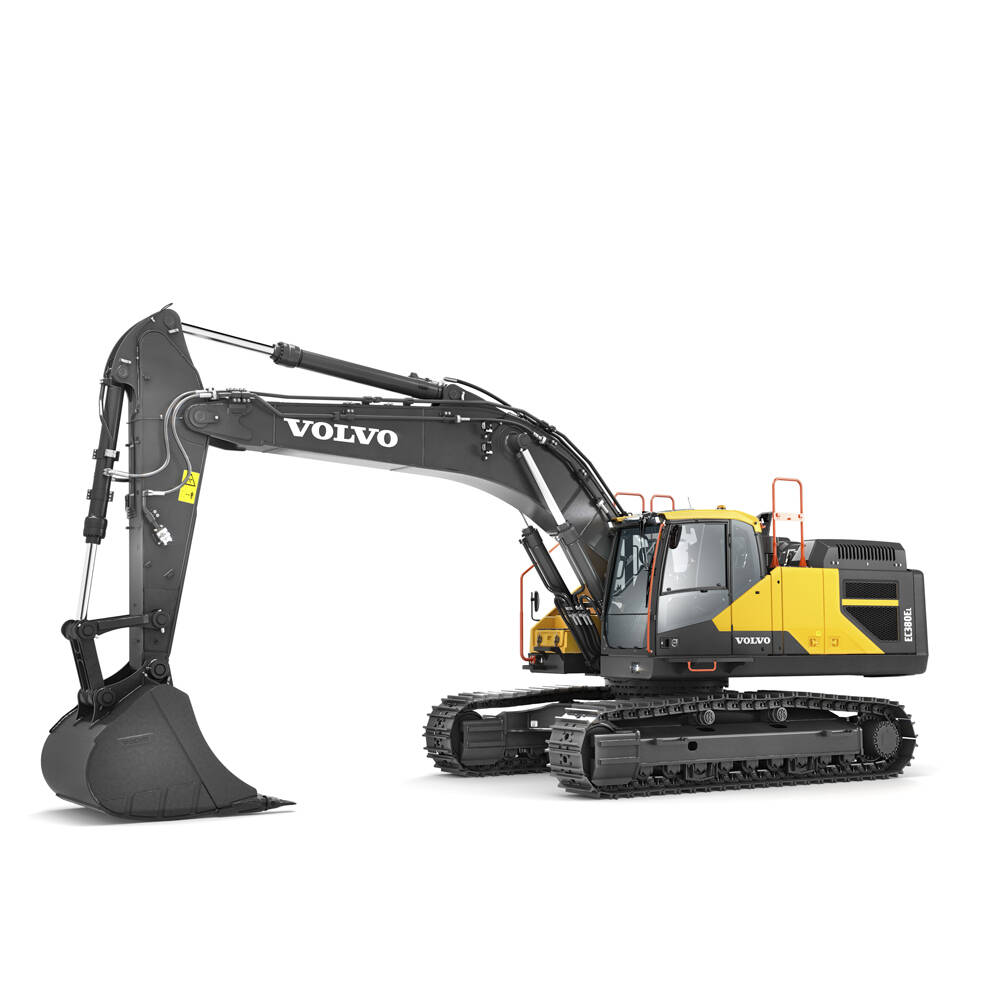

Introducing the EC380E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor which powers the engine system. The result is up to 12% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC380E.
- BUCKET CAPACITY: 1.09 - 3.7 yd³
- OPERATING WEIGHT: 83,330 - 94,800 lbs
- GROSS POWER: 308 hp

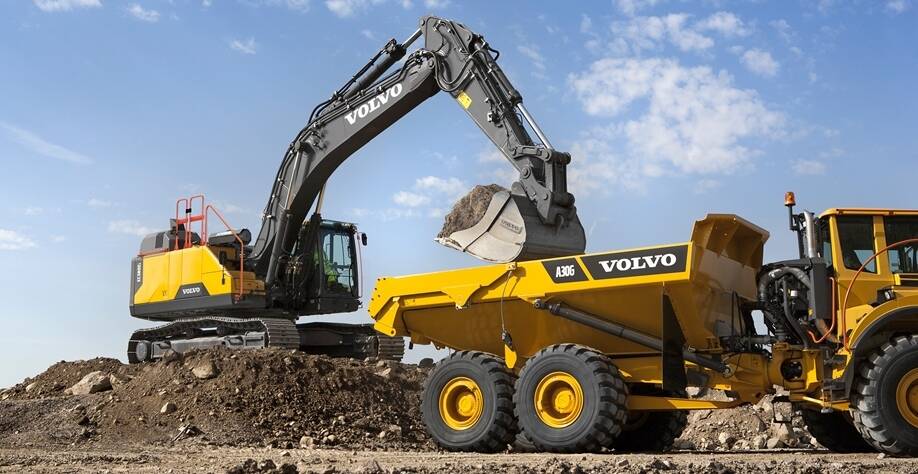

- When working in dig and dump applications, the EC380E Hybrid is a straightforward solution with fast payback. Save fuel, lower emissions and boost the profitability of your operation.
- The undercarriage components are reinforced to ensure long life, high uptime and ultimate durability in tough conditions.
- The uncomplicated and reliable hybrid solution consists of just a handful of add-on components and is easy to maintain, meaning no disruption or complication to how the high performing EC380E is engineered.

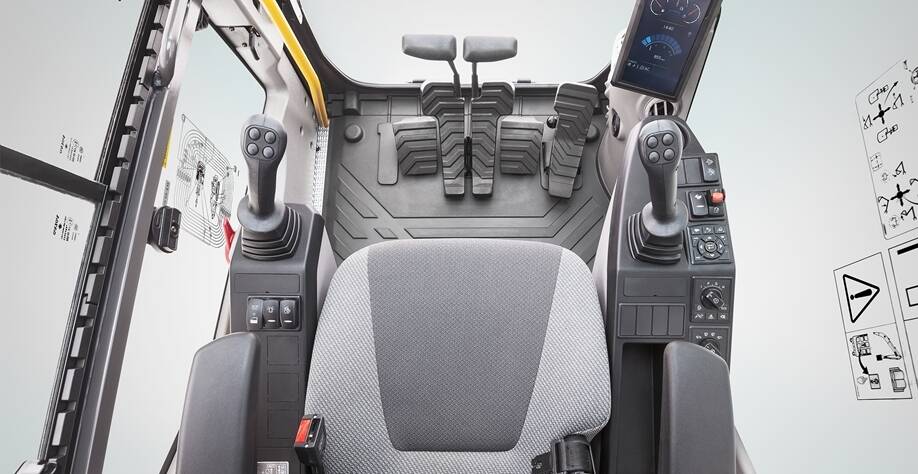

- All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.
- The radiator, charged air cooler and hydraulic oil cooler are situated side-byside on a single layer to maximize efficiency, reduce blockages and aid cleaning.
- The EC380E Hybrid reduces COâ‚‚ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
- Volvo's D13 Tier 4 Final engine boasts more power while reducing both fuel consumption and emissions and delivering superior quality, reliability and durability.
TECHNICAL SPECIFICATIONS
|
Operating weight |
83,330 – 94,800 lbs |
|---|---|
|
Gross power |
308 hp |
|
Engine speed at max engine torque |
1,700 rpm |
|
Bucket capacity |
1.09 – 3.7 yd³ |
|
Lifting capacity, along undercarriage |
33,797 lbs |
|
…at reach / height |
20 / 5 ft |
|
Max. digging reach |
36′ 10″ ft in |
|
Max. digging depth |
24′ 10″ ft in |
|
Breakout force, SAE J1179 (Normal) |
44,512 lbf |
|
Breakout force, SAE J1179 (Boost) |
48,334 lbf |
|
Tear out force, SAE J1179 (Normal) |
36,395 lbf |
|
Tear out force, SAE J1179 (Boost) |
39,770 lbf |
|
Overall width feet inches |
11′ 7″ ft in |
|
Tail swing radius |
11′ 10″ ft in |
