GO BIG
The EC530E is a true 50-tonne excavator. Providing the durability you would expect from a 60-tonner, this machine sets new standards for a 50-tonne machine, delivering 25% more fuel efficiency and 20% more productivity. Featuring revolutionary new generation electro-hydraulics, outstanding reliability and the ultimate in operator comfort, the EC530E is the perfect partner for heavy-duty digging, mass excavation and large site preparation.
- BUCKET CAPACITY: 3.14 - 5 yd³
- GROSS POWER: 456 hp
- OPERATING WEIGHT: 115,830 - 119,560 lbs

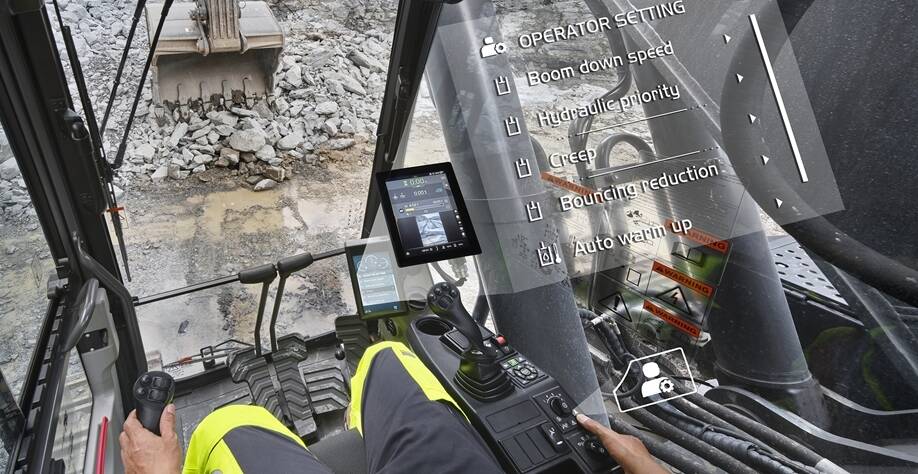

- Welcome to the ultimate in operator control and convenience. The revolutionary new generation electro-hydraulics with Independent Metering Valve Technology enable a range of intelligent functions which take the operator experience to new levels, including creep mode, motion priority functions, reduced bouncing and optional Comfort Drive Control.
- Reduced maintenance requirements, durable design and outstanding reliability means you can count on the EC530E to deliver optimum results – shift after shift, day after day.
- Reduce costs and boost profits in the EC530E. Features including new electro-hydraulic system with Independent Metering Valve Technology, Volvo attachments and operator training all contribute towards the unrivalled levels of efficiency delivered by this 50-tonne crawler excavator.

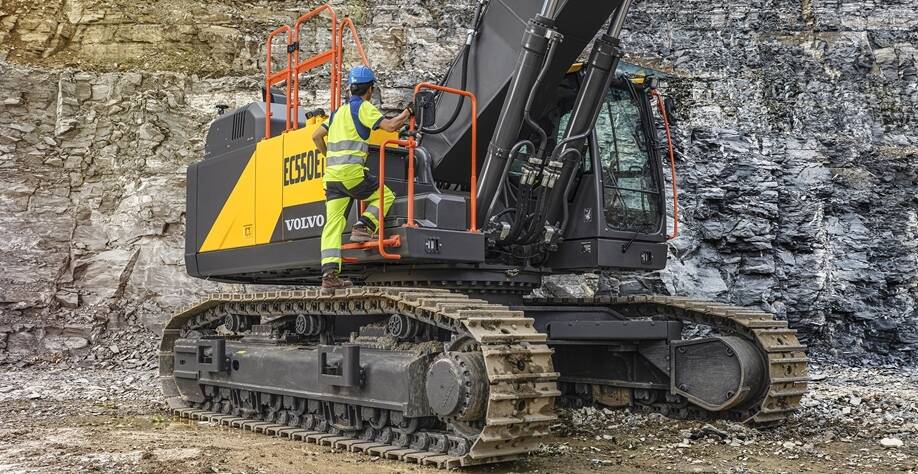

- Whether working inside or on the machine, features such as unrivalled visibility and 3-point right-hand side access mean you can be sure that the highest levels of safety have been considered in every design detail of the EC530E.
- Introducing the EC530E, a true 50-tonne machine and a new size class excavator for Volvo. Outstanding levels of power and productivity make this crawler excavator the perfect partner for heavy-duty digging, mass excavation and large site preparation.
TECHNICAL SPECIFICATIONS
|
Operating weight |
115,830 – 119,560 lbs |
|---|---|
|
Gross power |
456 hp |
|
Engine speed at max engine torque |
1,300 rpm |
|
Bucket capacity |
3.14 – 5 yd³ |
|
Lifting capacity, along undercarriage |
35,957 lbs |
|
…at reach / height |
20 / 5 ft |
|
Max. digging reach |
40′ 0″ ft in |
|
Max. digging depth |
25′ 8″ ft in |
|
Breakout force, SAE J1179 (Normal) |
56,450 lbf |
|
Breakout force, SAE J1179 (Boost) |
60,500 lbf |
|
Tear out force, SAE J1179 (Normal) |
49,480 lbf |
|
Tear out force, SAE J1179 (Boost) |
52,850 lbf |
|
Overall width feet inches |
11′ 5″ ft in |
|
Tail swing radius |
12′ 9″ ft in |
