BIG ON PROFITABILITY

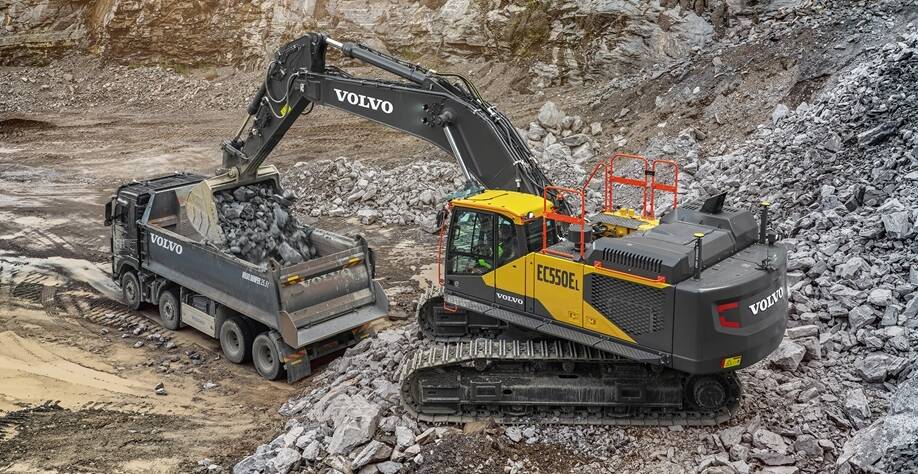

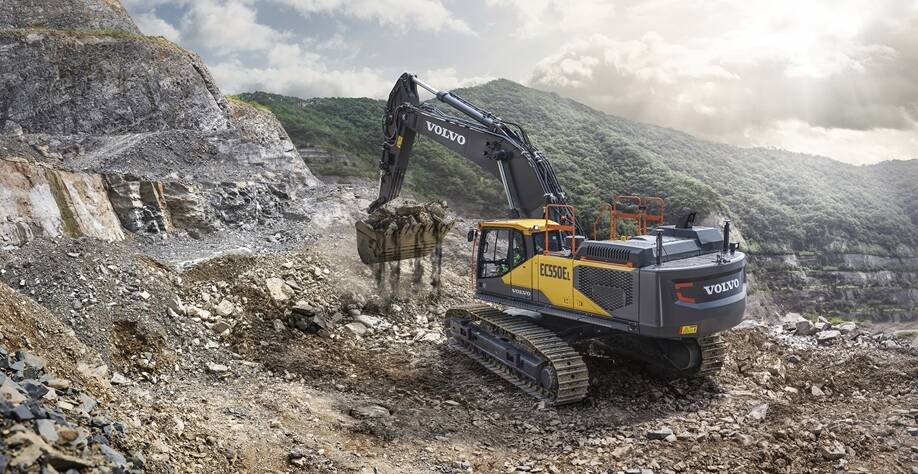

The EC550E provides the levels of durability and performance more commonly expected from a 60-tonne machine, making it the perfect choice for heavy-duty digging, mass excavation and large site preparation. Boasting superb operator comfort, outstanding levels of uptime, new generation electro-hydraulics, a 20% increase in productivity and 25% improvement in fuel efficiency – this machine raises the bar for what a 50-tonne machine can achieve.
- BUCKET CAPACITY: 3.14 - 6 yd³
- GROSS POWER: 456 hp
- OPERATING WEIGHT: 120,000 - 124,100 lbs
- Reduced maintenance requirements, durable design and outstanding reliability means you can count on the EC550E to deliver optimum results – shift after shift, day after day.

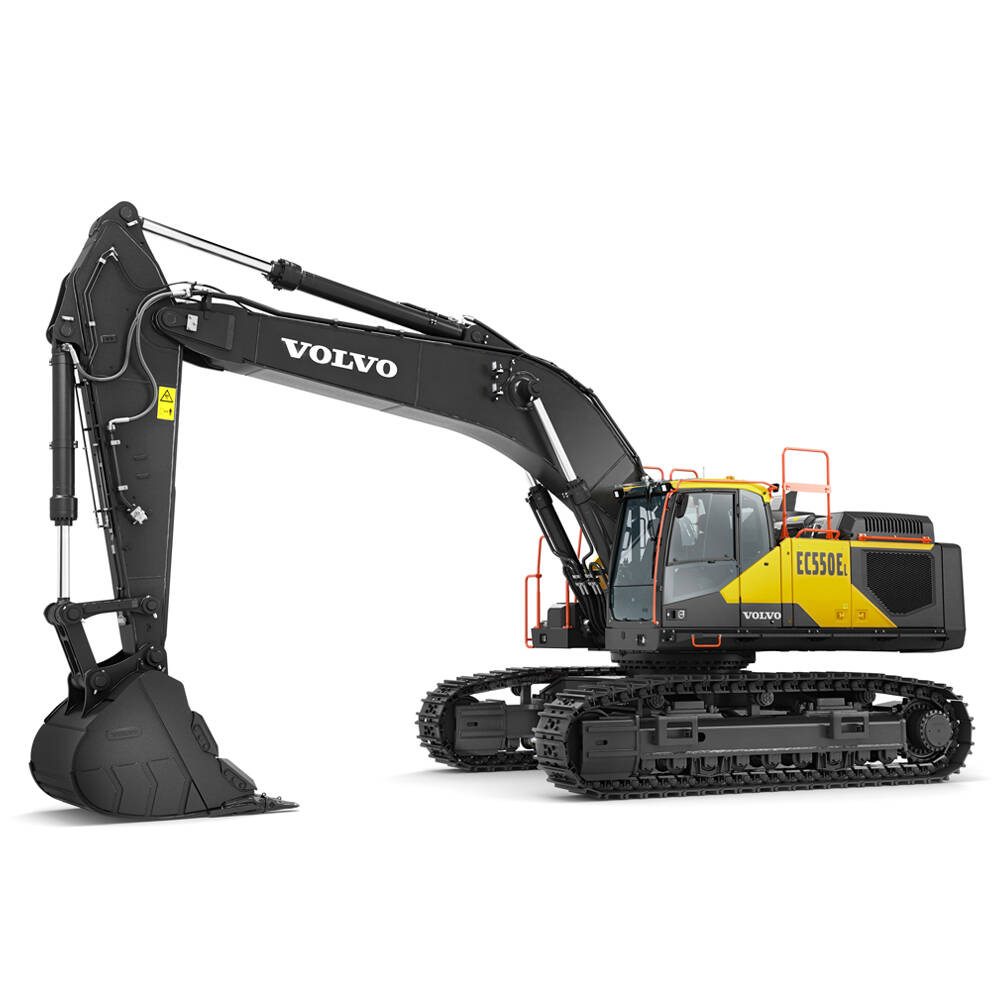

- Introducing the EC550E, a true 50-tonne machine and a new size class excavator for Volvo. Outstanding levels of power and productivity make this crawler excavator the perfect partner for heavy-duty digging, mass excavation and large site preparation.
- Welcome to the ultimate in operator control and convenience. The revolutionary new generation electro-hydraulics with Independent Metering Valve Technology enable a range of intelligent functions which take the operator experience to new levels, including creep mode, motion priority functions, reduced bouncing and optional Comfort Drive Control.
- Reduce costs and boost profits in the EC550E. Features including new electro-hydraulic system with Independent Metering Valve Technology, Volvo attachments and operator training all contribute towards the unrivalled levels of efficiency delivered by this 50-tonne crawler excavator.

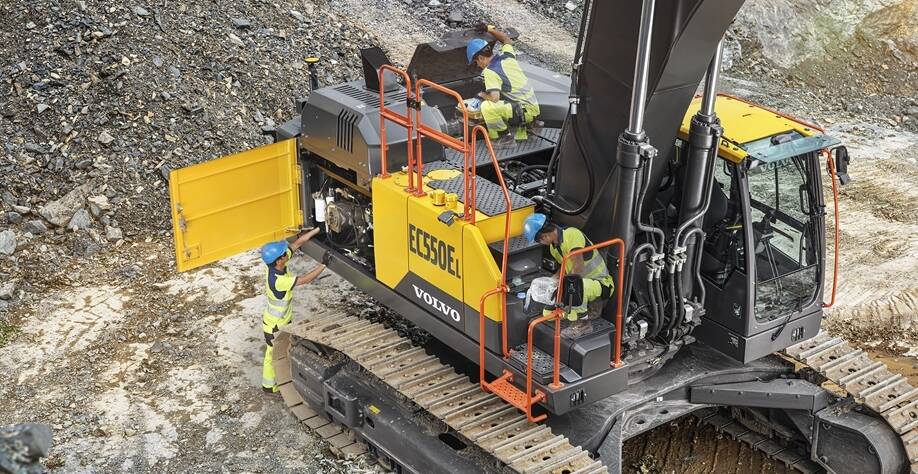

- Whether working inside or on the machine, features such as unrivalled visibility and 3-point right-hand side access mean you can be sure that the highest levels of safety have been considered in every design detail of the EC550E.
TECHNICAL SPECIFICATIONS
|
Operating weight |
120,000 – 124,100 lbs |
|---|---|
|
Gross power |
456 hp |
|
Engine speed at max engine torque |
1,300 rpm |
|
Bucket capacity |
3.14 – 6 yd³ |
|
Lifting capacity, along undercarriage |
35,957 lbs |
|
…at reach / height |
20 / 5 ft |
|
Max. digging reach |
40′ 0″ ft in |
|
Max. digging depth |
25′ 3″ ft in |
|
Breakout force, SAE J1179 (Normal) |
56,450 lbf |
|
Breakout force, SAE J1179 (Boost) |
60,500 lbf |
|
Tear out force, SAE J1179 (Normal) |
49,480 lbf |
|
Tear out force, SAE J1179 (Boost) |
52,850 lbf |
|
Overall width (extended) |
13′ 9″ ft in |
|
Overall width feet inches retracted |
12′ 2″ ft in |
|
Tail swing radius |
12′ 9″ ft in |
