TACKLE TOUGH TASKS WITH EASE

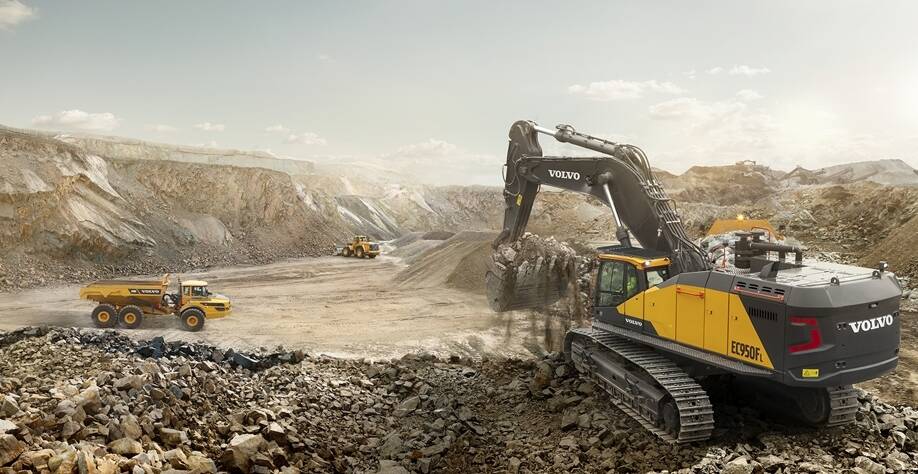

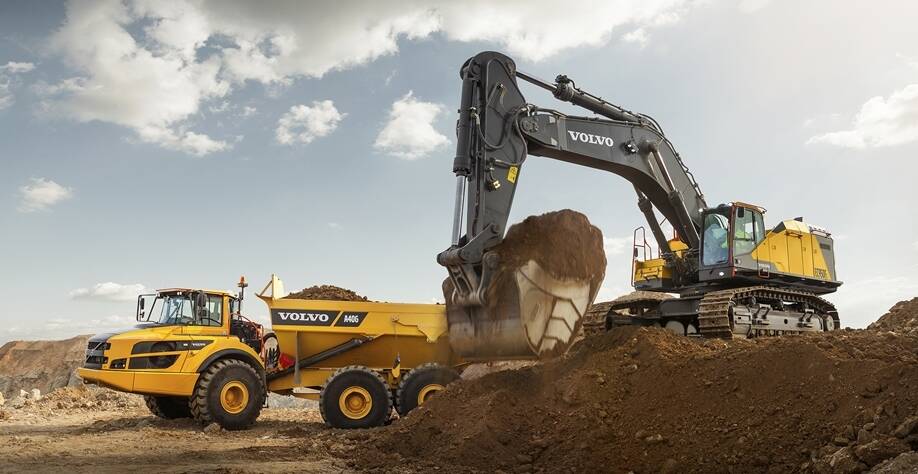

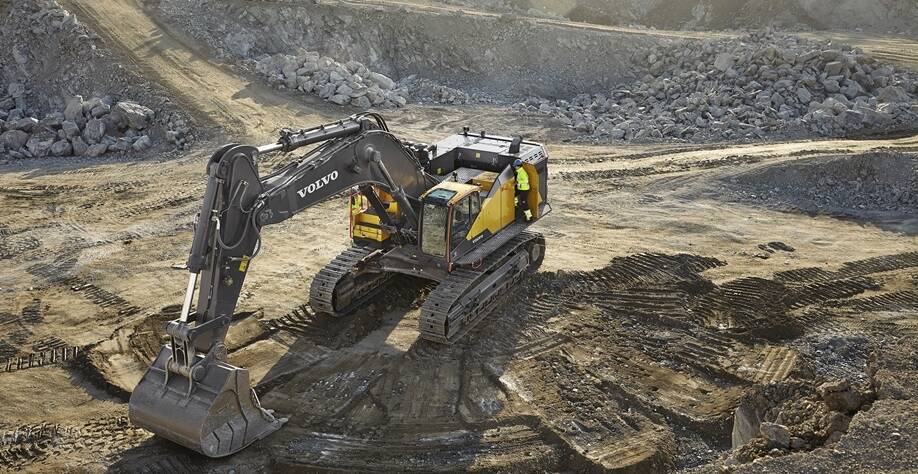

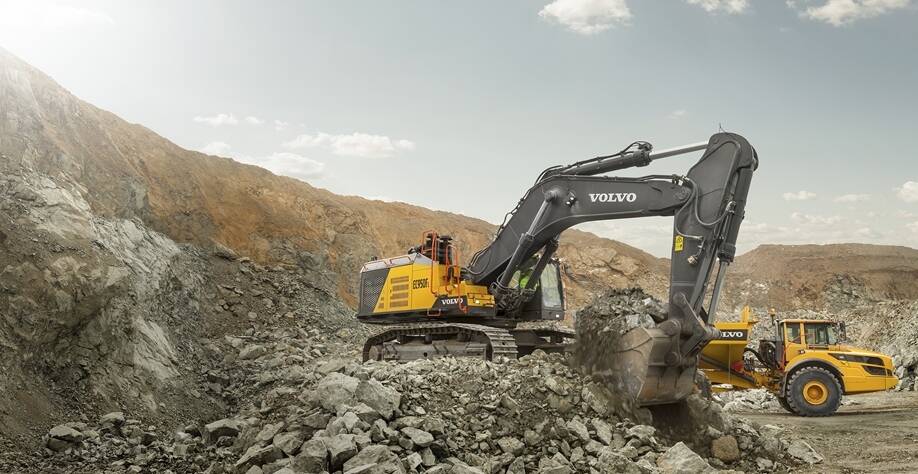

Perform a variety of tasks with greater speed in the heavy-duty EC950F from Volvo, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950F excavator will maximize your profitabilit
- OPERATING WEIGHT: 201,227 - 209,020 lbs
- BUCKET CAPACITY: 5.1 - 10 yd³
- GROSS POWER: 603 hp
- Even in the harshest applications, the EC950F is up to the challenge. Experience superior digging force, particularly when working with hard and heavy materials, thanks to constant high hydraulic pressure delivering power to the machine when you need it.

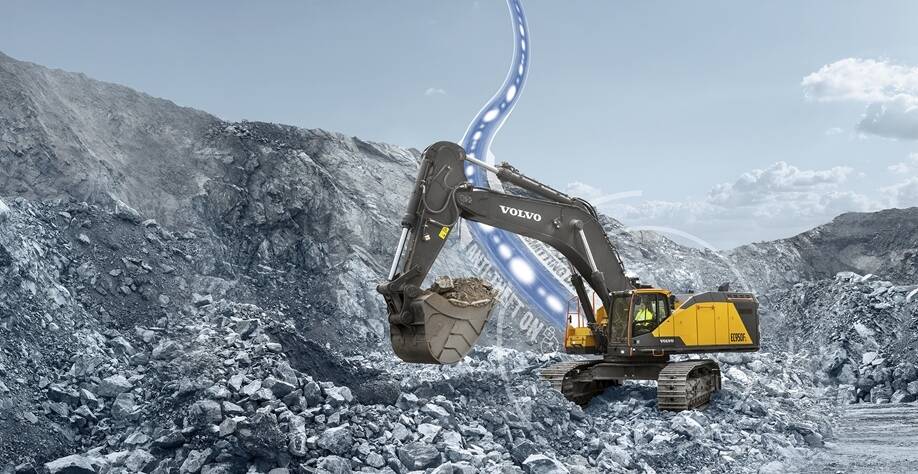

- Maximize machine uptime and reduce repair costs with Volvo ActiveCare Direct. Utilizing CareTrack data, the intelligent service provides round the clock machine monitoring and tailored customer reports, helping you to keep track of your fleet and take preventive maintenance actions.
- Gain more profitability in the EC950F, Volvo’s largest crawler excavator. The 90 tonne excavator delivers a high bucket capacity for more tons per hour, achieving a fast and efficient on-site production.
- Maximize uptime with quick and safe servicing. Essential maintenance points are easily accessed via the wide-opening and conveniently located compartment doors using central and surrounding walkways.
TECHNICAL SPECIFICATIONS
|
Operating weight |
201,227 – 209,020 lbs |
|---|---|
|
Gross power |
603 hp |
|
Engine speed at max engine torque |
1,650 rpm |
|
Bucket capacity |
5.1 – 10 yd³ |
|
Lifting capacity, along undercarriage |
50,486 lbs |
|
…at reach / height |
29.4 / 5 ft |
|
Max. digging reach |
46′ 0″ ft in |
|
Max. digging depth |
29′ 4″ ft in |
|
Breakout force, SAE J1179 (Normal) |
76,660 lbf |
|
Tear out force, SAE J1179 (Normal) |
78,683 lbf |
|
Overall width feet inches |
14′ 8″ ft in |
|
Tail swing radius |
15′ 5″ ft in |
