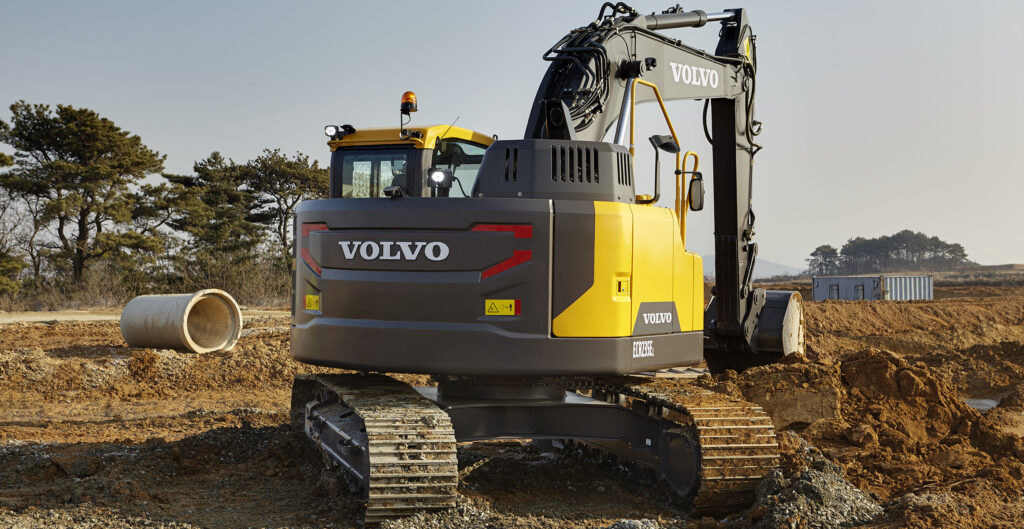

The optimized compact design of the ECR235E Excavator offers a short swing radius for operating in confined spaces without compromising performance. The machine’s Tier 4 Final/Stage IV engine and hydraulics system results in smoother operation and increased productivity.
- Lifting capacity, along undercarriage: 16,770 lbs
- Breakout force, SAE J1179 (Boost): 29,710 lbf
- Tail swing radius: 5′ 11″ ft in
- ...at reach / height: 20 / 5 ft
- Overall width: 10′ 2″ ft in
- Bucket capacity: 0.47 - 1.88 yd³
- Operating weight: 52,250 - 61,440 lbs
- Gross power: 173 hp
- Tear out force, SAE J1179 (Boost): 24,080 lbf
- ...at engine speed: 1,800 rpm
- Max. digging reach: 32′ 5″ ft in
- Breakout force, SAE J1179 (Normal): 28,100 lbf
- Tear out force, SAE J1179 (Normal): 22,780 lbf
- Max. digging depth: 22′ 2″ ft in

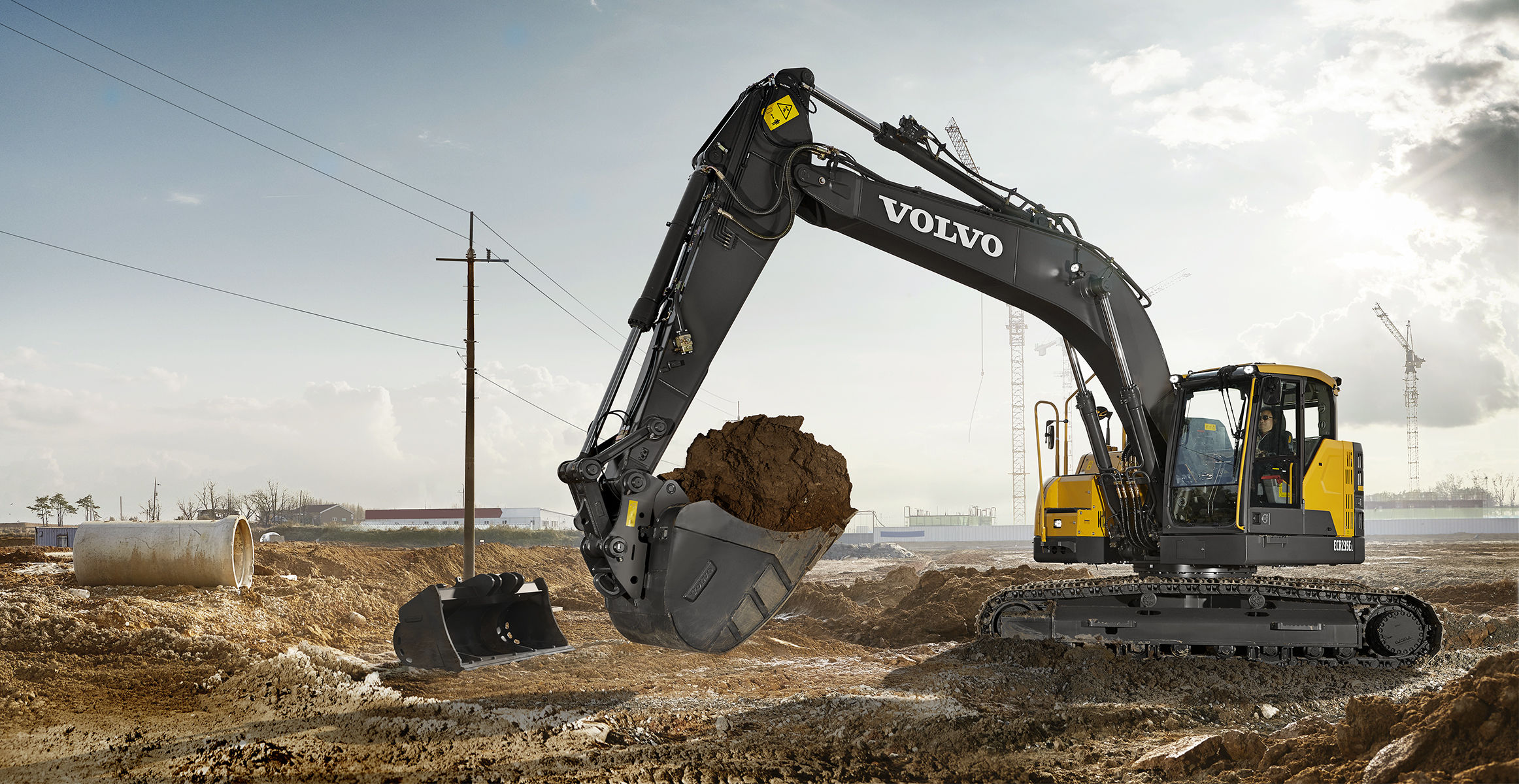

- Volvo's buckets are the perfectly matched tool for digging and re-handling in all working conditions.
- The short swing radius design allows safe and concise operation in confined spaces.
- Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services
- The newly designed ROPS-certified cab has improved all-round visibility, more space and ergonomic controls.
- The hydraulics system, fully electronic control system and advanced ECO mode, result in better fuel efficiency and productivity.
