A PROVEN PAST, AN ELECTRIC FUTURE

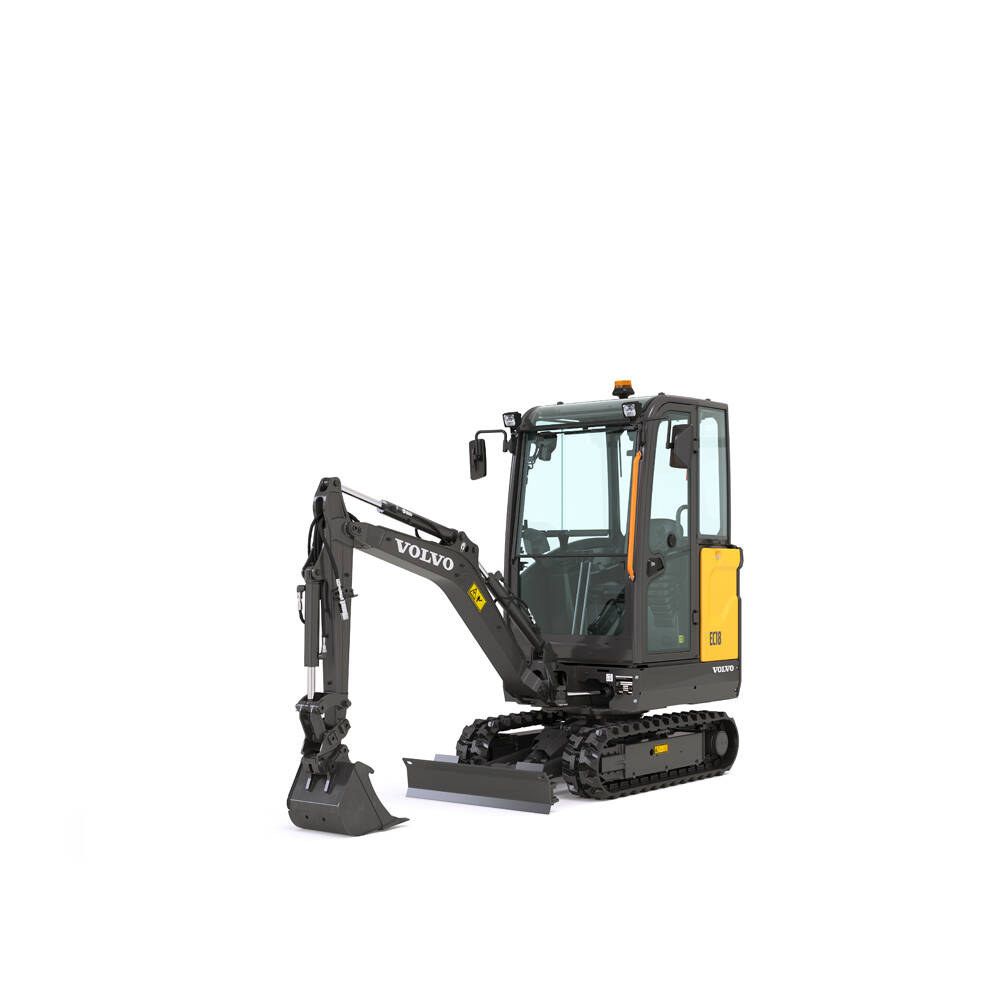

Building on the success of the ECR25 Electric and expanding on the proven technology of its diesel counterpart, the EC18 Electric offers customers a new option within the Volvo electric machinery line-up. Easy to operate and transport this is a machine designed for those looking for a cost-efficient electric compact excavator working in 1.8t applications.
- Battery Capacity (Standard): 16 kWh
- Maximum Digging Depth (Short/Long Arm): 8′ 2″ - 8′ 10″ ft in
- Operating Weight: 4,321 lbs
- The EC18 Electric can be recharged in as little as 1 hours 15 minutes. Choose between multiple charging solutions depending on the requirements of your operation.
- Create new commercial opportunities for your business with the EC18 Electric, all while benefiting the environment and communities.
- Operators will experience world-class levels of comfort in the fully enclosed and heated cab environment, as well as outstanding controllability and ease of operation.

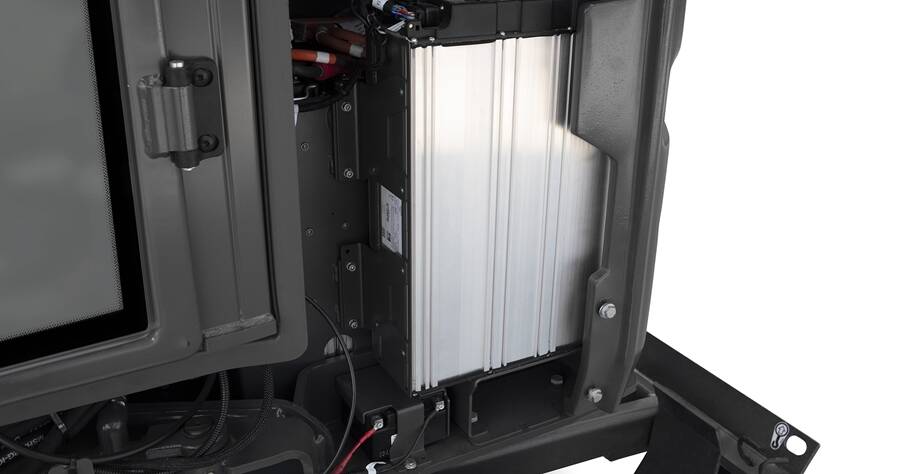

- Featuring industry-leading battery technology, the EC18 Electric offers up to 6 hours of runtime and comes with a range of solutions to help manage the charging process more efficiently.
- Whether working in the machine or on-site, all personnel benefit from the absence of exhaust fumes, industry leading low noise levels and the significant reduction in vibration and heat.

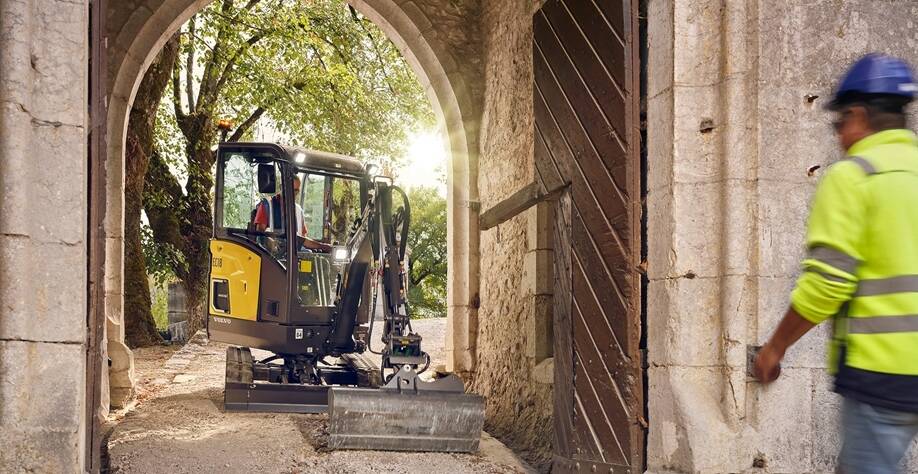

- Work in confined spaces with total confidence thanks to the compact machine dimensions and all-around machine protection.
TECHNICAL SPECIFICATIONS
|
Operating weight |
4,321 lbs |
|---|---|
|
Maximum digging depth (short/long arm) |
8′ 2″ – 8′ 10″ ft in |
|
Maximum dump height (short/long arm) |
8′ 0″ – 8′ 6″ ft in |
|
Travel speed, low / high |
1.18 / 2.36 mph |
|
Breakout force |
2,900 lbf |
|
Tear out force (arm breakout force) (short/long arm) |
1787 – 1562 lbf |
|
Overall width |
3′ 3″ – 4′ 5″ ft in |
|
Overall length (short/long arm) |
11′ 8″ – 11′ 3″ ft in |
|
Battery voltage |
48 V |
|
Battery capacity (standard) |
16 kWh |
|
Battery capacity (optional) |
20 kWh |
|
Indicative runtime (depending on application) |
Up to 6 hours |
|
Charging time Type 1 Level 1 110V |
~ 12 h |
|
Charging time Type 1 Level 2 240V |
~ 6 h* |
|
On board charging time 230 VAC 16A |
~ 6 h |
|
Off board charging time 400 VAC 32A |
~ 1 h 15 m |
