COMPACT VERSATILITY

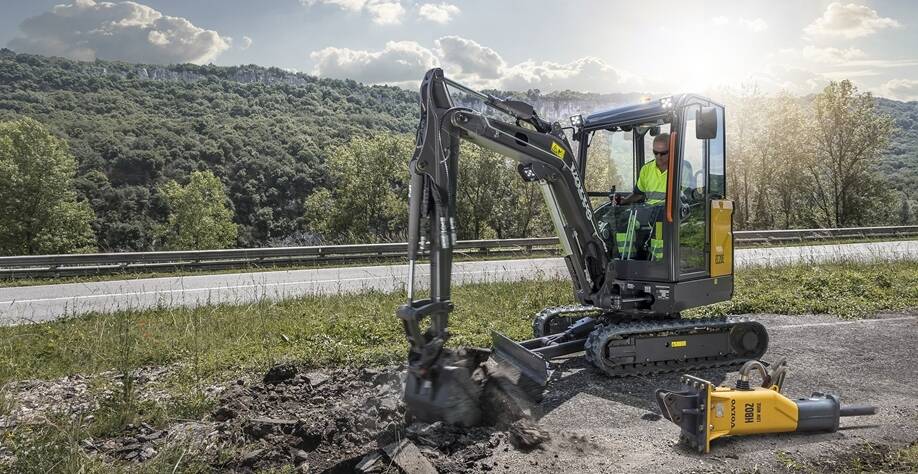

The EC20E compact excavator packs lifting power and stability to handle jobs from backyard landscaping to small utility projects.
- Gross Power: 16.1 hp
- Operating Weight: 4,332 lbs
- Bucket Capacity: 0.04 - 0.1 yd³
- Go where other machines cannot thanks to the compact design of the EC20E. Easy to operate and easy to transport, this 2t excavator is the perfect choice when a compact machine is right for your application.
- A small machine packed with big features, the EC20E is designed to promote low operating costs. Built for durability and easy to service, this compact excavator will make light work of tough jobs.
TECHNICAL SPECIFICATIONS
|
Engine |
Volvo D0.9A |
|---|---|
|
Gross power |
16.1 hp |
|
Net power |
15.8 hp |
|
Engine speed at max engine torque |
2,300 rpm |
|
Operating weight |
4,332 lbs |
|
Operating weight, canopy version |
4,147 lbs |
|
Bucket capacity |
0.04 – 0.1 yd³ |
|
Travel speed, low / high |
1.6 / 2.9 mph |
|
Slewing speed |
9.5 rpm |
|
Breakout force |
4,114 lbf |
|
Tear out force (arm breakout force) |
2,765.2 lbf |
|
Overall width |
3′ 3.2″ ft in |
|
Overall length |
12′ 1.9″ ft in |
|
Main hydraulic pump max. flow |
12.7 gal/min |
