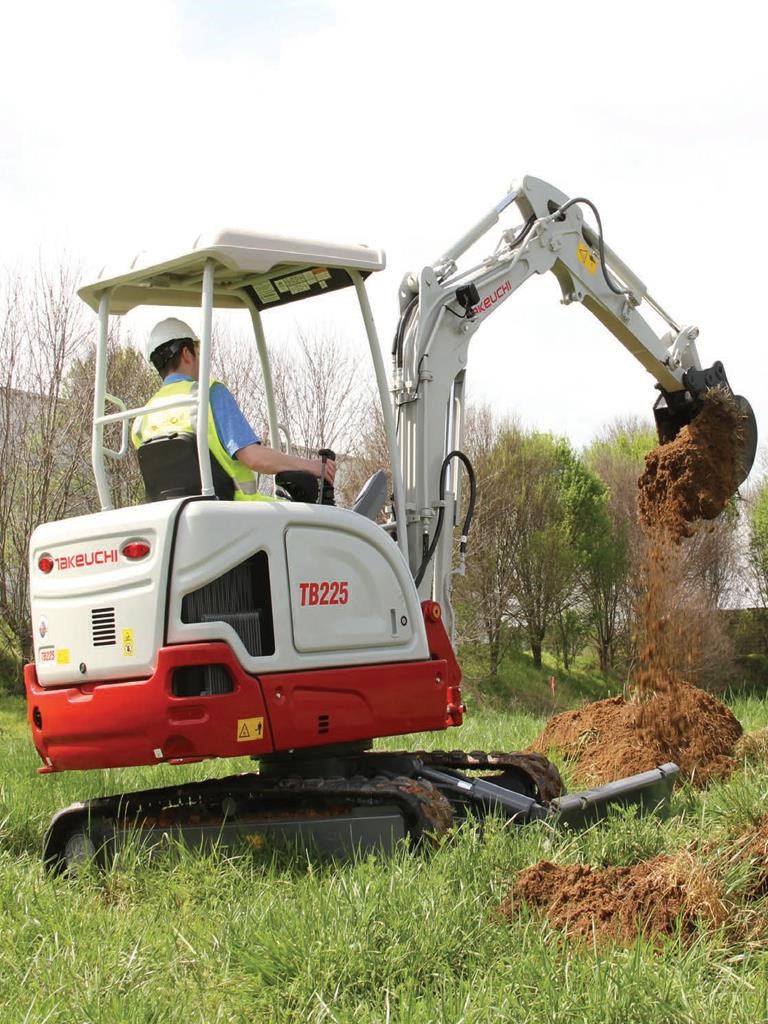

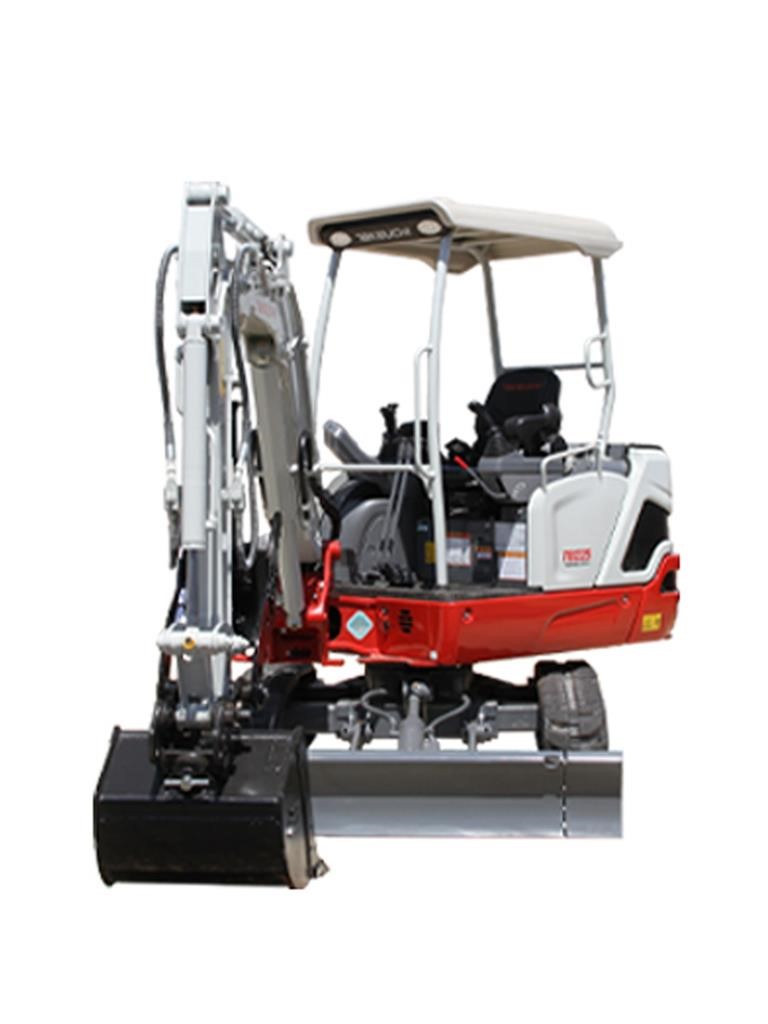

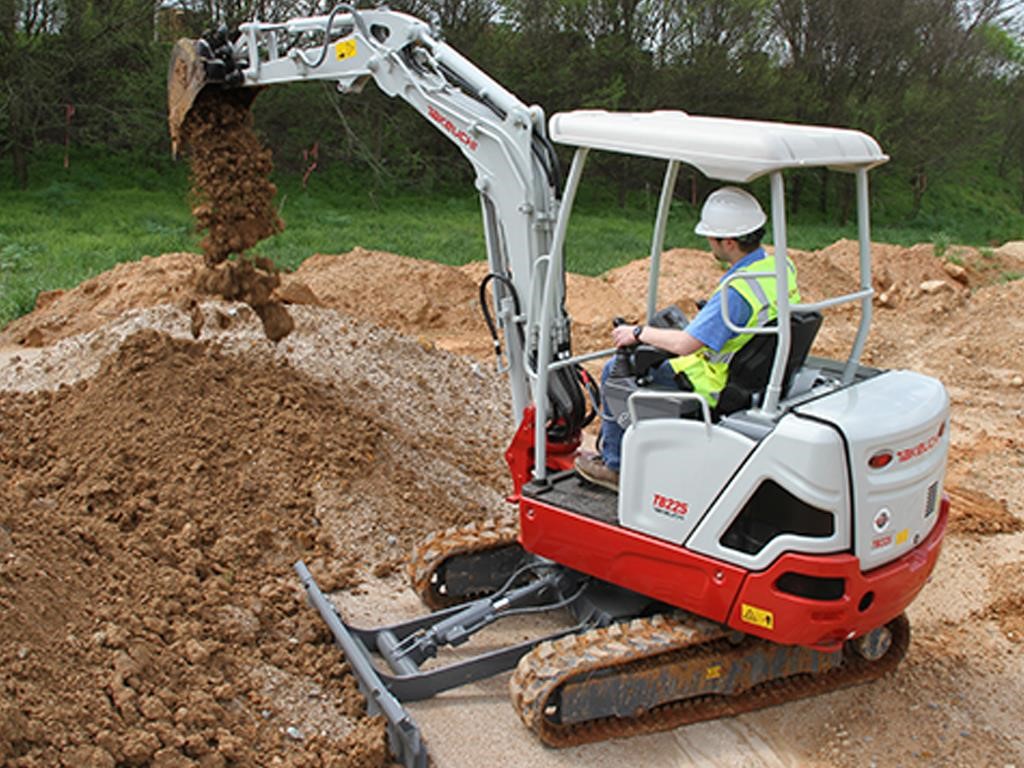

TB225 — COMPACT EXCAVATOR

Designed to work in confined, demanding applications, the Takeuchi TB225 features many advancements in performance and technology that make it an extremely versatile and productive machine. The TB225 sets itself apart by combining features from smaller excavators, such as hydraulically retractable undercarriage, with features from larger excavators, such as electronic throttle control and electronic proportional auxiliary control. All-day comfort is provided by an adjustable suspension seat, large floor with integrated footrests, ergonomically designed pilot controls, and adjustable arm rests.

Powering the TB225 is a Yanmar 3TNV80F diesel engine that is U.S. EPA Tier 4 Final compliant and delivers 19.6 horsepower and nearly 50 ft-lb of torque. Matched to this engine is our four pump hydraulic system which provides smooth, coordinated control during simultaneous operation of the boom, arm, bucket, and slew functions without any reduction in work speed and performance.

In order to minimize machine repositioning, the TB225 features a standard long arm that provides greater reach and dig depth while also maintaining excellent bucket breakout and arm crowd forces. To increase speed and efficiency, automatic step-down travel motors will shift to high torque mode when turning, traveling up an incline, or backfilling with the blade. Once the load is reduced the travel motors will automatically return to high speed, low torque mode.

The operator’s station provides all day comfort with an adjustable suspension seat, large floor with integrated foot rests, ergonomically designed pilot controls, and adjustable arm rests. The TB225 features advanced controls not available in smaller models, such as electronic throttle control with automatic idle and electronic proportional auxiliary control. In addition, the multifunction display can be used to adjust the auxiliary flow rate and save attachment presets.

FEATURES:

ENGINE

•U.S. EPA Tier 4 Final Diesel

•Mechanical Fuel Injection

•40 Amp Alternator

•Automatic Fuel Priming System

•Automatic Engine Idle Feature

•Automatic Cold Start Device

•Dual Element Air Cleaner

•Engine Safe Start System

UNDERCARRIAGE AND FRAME

•Triple Flange Track Rollers

•Load Sensing Two Speed Travel with Automatic Shift

•Hydraulically Retractable Track Frame (43.3 in to 59.1 in)

•Backfill Blade with Pin-on Extensions

•Wraparound Protective Counterweight

•Integrated Tie Down Points

•9.8″ Rubber Tracks

OPERATOR’S STATION

•ROPS / TOPS / OPG Level 1 Four Post Canopy

•LCD Multifunction Display

•Hour Meter

•Sealed Rocker Switches

•12 volt Power Socket

•Adjustable Suspension Seat

•Hand Dial Electronic Throttle Control

•Adjustable Arm Rests

•Foot and Hand Travel Pedals

•2″ Retractable Seat Belt

•Removable, Washable Floor Mat

•Literature Holder

HYDRAULIC & WORKING EQUIPMENT

•Variable Displacement, Open Center Hydraulics

•Cushioned Boom and Swing Cylinders

•Multifunction Joystick Controls

•Proportional Auxiliary Controls with Detent

•Auxiliary Circuit Plumbed to Mid Arm with Shut-off Valves

•Automatic Slew Brake with Integrated Shockless Relief Valve

•Hydraulic Reservoir with Fluid Level Sight Gauge

•Auxiliary Flow Adjustable from Monitor

•Easy Access Pattern Change Valve (ISO or SAE)

•Pilot Pressure Accumulator Valve

•LED Work Lights

•Travel Alarm

•Long Arm with Integrated Thumb Mount

•Boom Swing Function

•Main Boom Cylinder Guard

•Dual Pin Position Bucket (optional)

•Mechanical Bucket Quick Coupler (optional)

•Main Pin Hydraulic Thumb (optional)

BENEFITS:

COMPACT DESIGN

•A retractable undercarriage and compact dimensions allow you to access job sites with limited access.

EASE OF MAINTENANCE

•The overhead opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.

FUNCTION AND EFFICIENCY

•The lower horsepower rating of the TB225 does not require the use of a DOC/DPF exhaust aftertreatment system.

•The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.

•The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.

•Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.

•Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.

TAKEUCHI FLEET MANAGEMENT

•2 Year Standard Service

•Minimize Downtime

•Remote Diagnostics

•Utilization Tracking

•Proactive Maintenance

•Control Costs

•Geofencing

INCREASED PROTECTION

•All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.

•Heavy duty counterweight protects vital engine and hydraulic components from damage.

•Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.

OPERATOR FOCUSED

•Pilot controls are low effort and precise.

•Suspension seat reduces operator fatigue and features fore/aft, tilt, and weight adjustments.

•Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.

•Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.

PEACE OF MIND

The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
