TB335R — COMPACT EXCAVATOR

Loaded with state-of-the-art technology and a fresh well-appointed cabin with intuitive functions, the TB335R represents the first short tail swing compact excavator offering in the 3.5t class for Takeuchi. Features include updated high-definition monitors with greater functionality, jog dial controls, wraparound counterweight, dedicated coupler circuit on cab models, and excellent service access for easy maintenance. The TB335R delivers a superior working range and excellent power that ensures all-day productivity and performance.

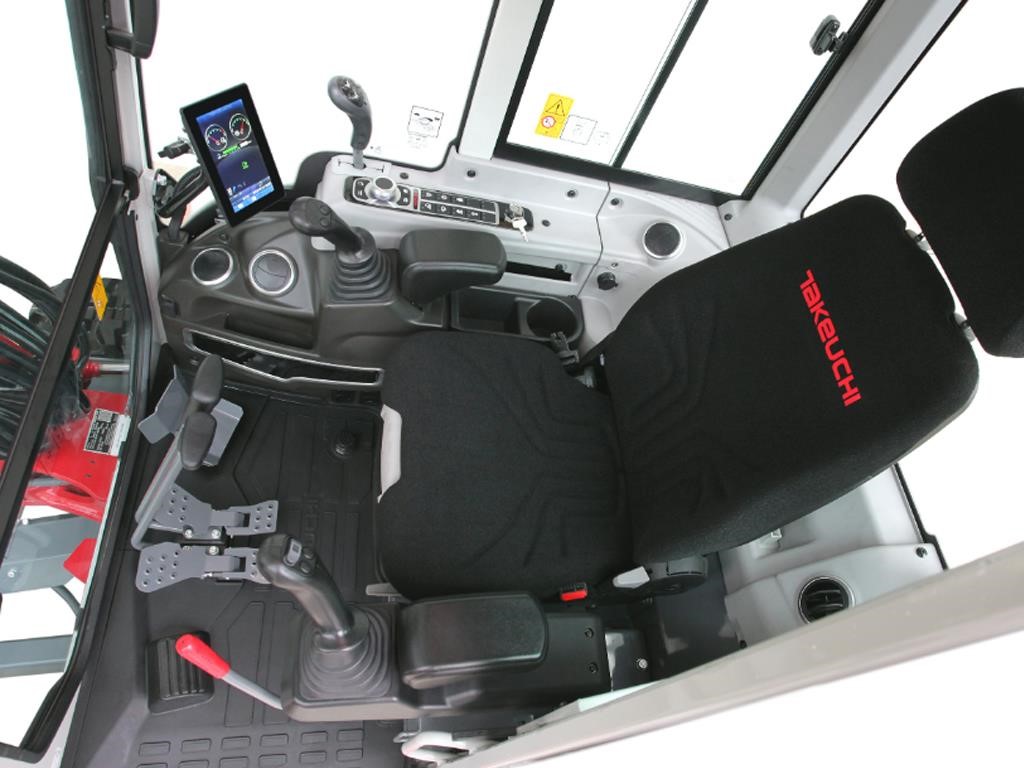

A comfortable operator is a productive operator and the TB335R features a wide range of improvements that will enhance the operator’s experience. Features include a fully redesigned interior that includes one touch controls, jog dial, high-definition color monitor, and a deluxe high back suspension seat that has fore/aft/tilt and multiple height adjustments. Low effort hydraulic pilot controls serve as an extension of the operator delivering precise operation while minimizing fatigue. The cabin interior is inviting and spacious allowing the operator to remain comfortable and productive throughout the day.

Daily inspections and maintenance are easy to carry out thanks in part to a swing out engine hood and overhead opening right side cover. With the hoods open, the operator can quickly inspect the water separator, radiator and oil cooler, hydraulic oil level sight gauge, fuel level, dual element air cleaners, coolant level, engine oil dipstick, and battery.

PRODUCT FEATURES

ENGINE

– U.S. EPA Final Tier 4 / EU Stage 5

– Automatic Fuel Priming System

– Double Element Air Filter

– Automatic Idle

– Working Modes: Standard and ECO

– Engine Preheat Starting Aid

– High Capacity Radiator and Hydraulic Oil Cooler

– High Capacity Fuel Filters

– Engine Safe Start System

– Engine Auto Stop

UNDERCARRIAGE AND FRAME

– Triple Flanged Track Rollers

– 2-Speed Axial Piston Travel Motors

– Integrated Load Sensing Automatic Shift Down

– Sloped Frame with Open Centers

– Large Wrap Around Counterweight

– 11.8’’ Rubber Tracks

– Heavy Duty Backfill Blade with Float

ELECTRICAL

– 4.3” High Definition Multifunction LCD Color Monitor (Canopy)

– 7” Multifunction Touchscreen Color Monitor (Cab)

– Jog Dial with Multifunction Panel

– LED Light Package Including Boom Light and Cab Mounted Lights

– Travel Alarm

– Beacon Socket and Lamp Switch(Cab)

TAKEUCHI FLEET MANAGEMENT

– 2 Year Standard Service

– Minimize Downtime

– Remote Diagnostics

– Utilization Tracking

– Proactive Maintenance

– Control Costs

OPERATOR’S STATION

– ROPS/TOPS/OPG (TOP Guard, Level I)

– Deluxe High Back Suspension Seat with Head Rest

– 2” Retractable Seat Belt

– 12V Power Outlet

– Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM/FM Radio with Bluetooth

HYDRAULIC & WORKING EQUIPMENT

– Variable Displacement, Open Center Hydraulics

– Cushioned Boom and Swing Cylinders

– Hydraulic Pilot Controls

– Proportional Control for Primary Auxiliary Circuit with Detent

– 3rd Auxiliary Circuit for Quick Hitch (Cab Only)

– Primary Auxiliary Hydraulic Circuit Plumbed to Arm

– Multiple Attachment Presets

– Flow Selector Valve, Primary Auxiliary Circuit

– Pattern Change Valve (ISO or SAE)

– Pilot Accumulator

– Main Boom Cylinder Guard

– Long Arm with Integrated Thumb Mount

– Dual Pin Position Bucket (optional)

– Mechanical Bucket Quick Coupler (optional)

– Main Pin Hydraulic Thumb (optional)

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
