TAKEUCHI TB350R–COMPACT EXCAVATOR

Featuring a wide array of state-of-the-art technology and a cabin that welcomes you, the Takeuchi TB350R has been designed from the ground up to ensure your success and comfort throughout the workday. The short tail swing, 5-ton TB350R is at home in a wide range of applications and delivers the power and performance you have come to expect from Takeuchi. A high flow primary auxiliary circuit delivers up to 24.6 gpm enabling you to utilize a wide variety of hydraulically driven attachments, and a standard long arm gives you greater dig depth, reach, and dump height. Impressive breakout and traction forces enhance the capability of the TB350R when working in the most demanding conditions.

BENEFITS

OPERATOR COMFORT

• Whether you choose a canopy or cab configuration, you will immediately notice the attention to detail, functionality, and the uncluttered look of the cabin on the TB350R. To improve the operator experience cabins now include high definition, multifunction color monitors, jog dial, and one touch switches in lieu of rocker switches to control a variety of machine functions.

DURABILITY

• Built for the long haul, the TB350R has a wide range of features such as a quiet and dependable Kubota engine with no DPF, high-capacity radiator and hydraulic oil cooler, steel construction, heavy-duty blade design, oversized components, and triple flange rollers to ensure uptime, longevity, and return on your investment.

PERFORMANCE

• The TB350R features a short tail swing design that enables the operator to worry less about rear swing impacts while working on confined jobsites, around structures, and various objects/hazards that may be encountered.

SERVICEABILITY

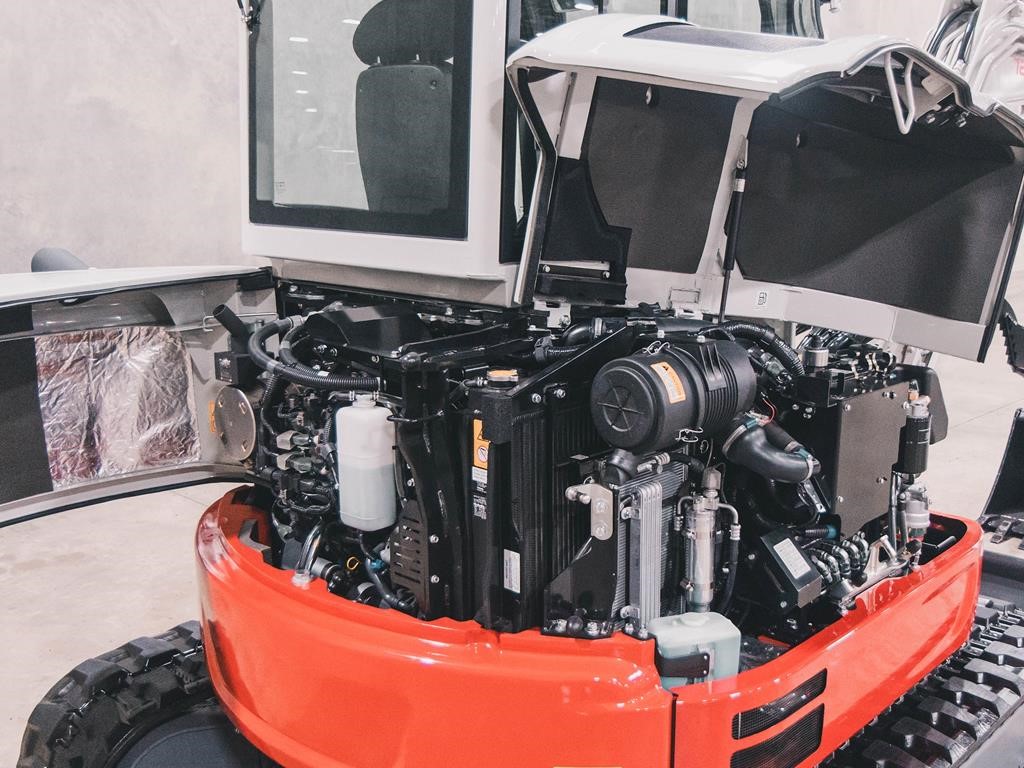

• A lockable swing out engine cover provides excellent access to daily inspection and maintenance points, and a right-side cover that opens overhead allows you to easily access the fuel tank with sight gauge, hydraulic tank, hydraulic oil level sight gauge, and battery.

SHORT TAIL SWING, COMPACT DESIGN

• Provides a stable operating platform, enables you to work in more confined areas, and allows you to focus more on your job worrying less about rear swing impacts.

FUNCTION AND EFFICIENCY

• The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.

• The standard long arm with integrated thumb mount delivers a wide working range, impressive dig depth, and simplifies thumb installation.

• Load sensing two speed travel down shifts from low torque/high speed mode to high torque/low speed mode automatically when turning, pushing with the backfill blade, or traveling up an incline.

• Large slew bearing provides greater longevity and stability over the life of the machine.

• Cushioned cylinders improve the life of the cylinders by reducing shock and they reduce felt recoil to the operator for greater comfort.

INCREASED PROTECTION

• All steel construction ensures body integrity through greater strength and rigidity provides exceptional protection.

• Heavy duty counterweight protects vital engine and hydraulic components from damage.

• Triple flange track rollers improve track life by providing greater support of the track system, and they maintain multiple contact points reducing the risk of de-tracking.

OPERATOR FOCUSED

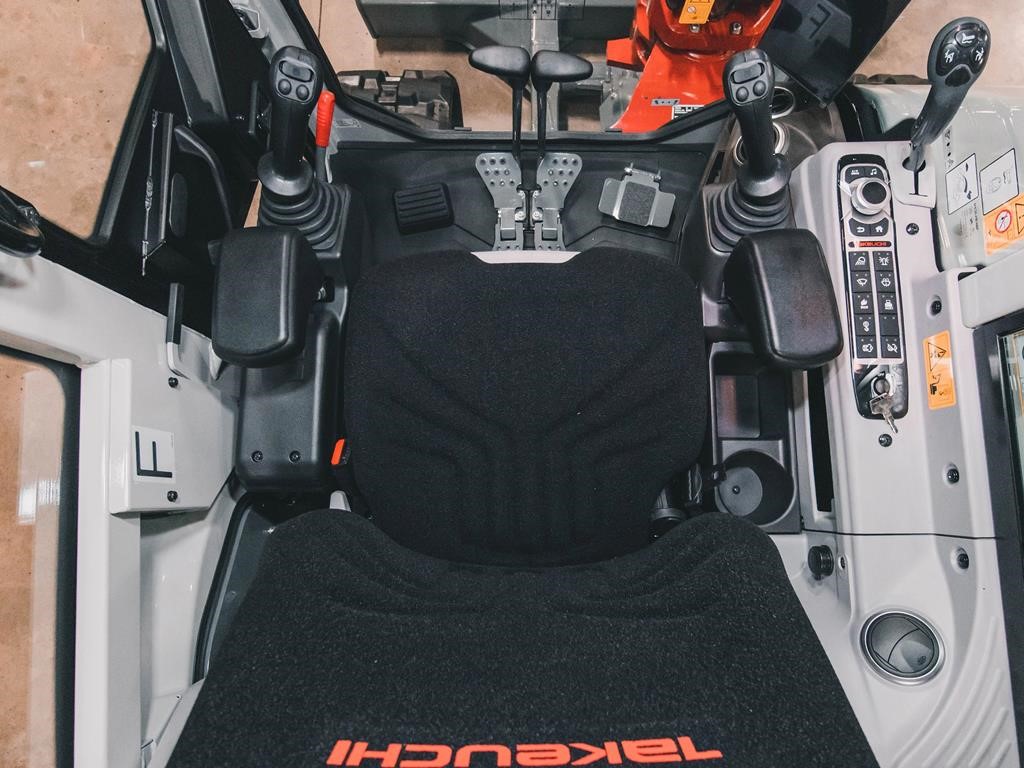

• Deluxe high back adjustable suspension seat reduces operator fatigue while properly positioning the operator for greater visibility of the work equipment and surrounding jobsite.

• Canopy configuration features a high definition multifunction color monitor while cab models include a large 7” touchscreen multifunction color monitor placing a wide range of functions at your fingertips that include HVAC, radio, attachment presets, and flow settings.

• The jog dial and one touch pad allow the operator to easily control throttle position and multiple machine functions.

PEACE OF MIND

• The safe start system requires the safety lockout lever be in the raised position to start the excavator ensuring hydraulic functions are inactive at start-up.

• Standard LED lighting provides exceptional visibility in low light conditions.

• The overload alarm will sound (when ON) if you exceed hydraulic capacity.

EASE OF MAINTENANCE

• Swing out rear door and right-side cover that opens high overhead provide exceptional access to inspection and maintenance points.

FEATURES

ENGINE

• Kubota V2607-CR-E5B

• US EPA Tier 4 Final/EU Stage V

• DOC + DPF Exhaust After Treatment

• Automatic Fuel Priming System

• Dual Element Air Cleaner

• Automatic Engine Idle Feature

• Working Modes: Standard and ECO

• Automatic Cold Start Device

• High Capacity Radiator and Hydraulic Oil

• Cooler

• Engine Safe Start System

• Engine Auto Stop

UNDERCARRIAGE AND FRAME

• Triple Flanged Track Rollers

• 2-Speed Axial Piston Travel Motors

• Integrated Load Sensing Automatic Down Shift

• Heavy Duty Backfill Blade with Float

• Large Wrap Around Protective Counterweight

ELECTRICAL

• 4.3″ High Definition Multifunction LCD Color Monitor (Canopy)

• 7″ Multifunction Touchscreen Color Monitor (Cab)

• Jog Dial with Multifunction Panel

• LED Light Package Including Boom Light and Cab Mounted Lights

• Travel Alarm

• Beacon Socket and Lamp Switch (Cab Only)

TAKEUCHI FLEET MANAGEMENT

• 2 Year Standard Service

• Minimize Downtime

• Remote Diagnostics

• Utilization Tracking

• Proactive Maintenance

• Control Costs

• Geofencing

OPERATOR’S STATION

• ROPS/TOPS/OPG (TOP Guard, Level I)

• Deluxe High Back Suspension Seat with Head Rest

• 2″ Retractable Seat Belt

• 12V Power Outlet

• Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM/FM Radio with Bluetooth

HYDRAULIC AND WORKING EQUIPMENT

• Variable Displacement, Open Center Hydraulics

• Cushioned Boom and Swing Cylinders

• Hydraulic Pilot Controls

• Proportional Control for Primary Auxiliary Circuit with Detent

• High Flow Primary Auxiliary Circuit Plumbed to Mid-Arm with Shutoff Valves

• Secondary Auxiliary Hydraulic Circuit Plumbed to Mid-Arm with Shutoff Valves (Cab Only)

• Integrated Hydraulic Attachment Quick Connect System (Cab Only)

• Multiple Attachment Presets

• Flow Selector Valve, Primary Auxiliary Circuit

• Pattern Change Valve (ISO or SAE)

• Pilot Accumulator

• Boom Holding Valve

• Main Boom Cylinder Guard

• Long Arm with Integrated Thumb Mount

• Dual Pin Position Buckets (Optional)

• Mechanical Bucket Quick Couplet (Optional)

• Main Pin Hydraulic Thumb (Optional)

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
