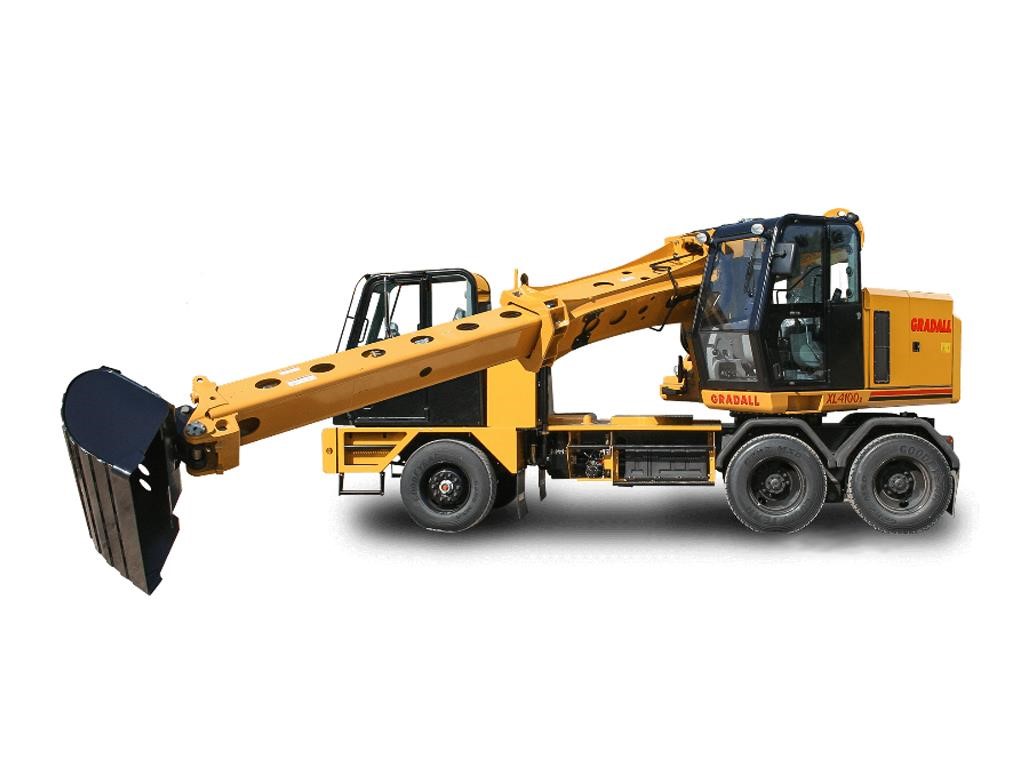

XL5100V HIGHWAY SPEED WHEELED EXCAVATOR — Drive Gradall versatility at 60 mph, eliminating the need for truck and trailer

Gradall XL Series V and Discovery highway-speed excavators travel quickly to one or more jobsites and then back to the safety of the equipment yard at the end of the day. With Gradall’s world-famous full tilting, telescoping boom, and an array of available attachments, both XL and Discovery models offer versatility with unmatched mobility. Choose from XL Series V or the Discovery models built on a Freightliner chassis, designed with government and specialty contractors’ budgets in mind.

FEATURES

CHASSIS DESIGN

• Both upper structure and carrier are powered by a single Volvo engine that increases fuel efficiency by 5%

• Engine meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements

• Over-the-road highway speed travel at 60 mph

• Carriers available with 4 x 2 or 6 x 4 drive, with optional 4 x 4 and 6 x 6

• Front axle lockout cylinders and strong box plate frame construction provide stable work platform

• No need for outriggers

• Six-speed automatic transmission

CHASSIS CAB

• Standard convenience features include an adjustable steering column, dual reading lights and radio

• Ergonomically designed interior with extra sound-deadening

• Rubber mounts isolate cab from frame, creating comfortable ride

• Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed

• Engine shutdown controlled by engine electronics

• Indicator lights and controls for front axle engagement (4 x 4 and 6 x 6 models) and rear axle differential lock

• Comfort features including air suspension seat, sliding windows, fresh air heater and defroster and tinted glass

BOOM

• Full boom tilts 220° for efficient sloping, grading and spreading material

• No loss of power to attachment tilting capability

• Consistent boom force through the entire dig cycle

• Dig down at 75° angle

• Rugged telescoping boom telescopes up to 33’ 9”

• Low profile for work under bridges, trees and in tunnels

• Full-length boom visibility during the entire dig cycle

• Fast cycle times – ditching, loading and spreading

• Quick attach bolt system handles full range of attachments

OPERATOR CAB

• Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch

• Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests

• Internal tooth swing bearing provides smooth, stable movement

• With foot pedals, reposition carrier with new electric remote drive system at speeds up to 5 mph

• Excellent job site and full boom visibility

• Standard air conditioning

• Optional rollover protection

• Removable, stow-able front window brings fresh air into the cab

ADVANCED SYSTEMS

• High performance, high reliability 24-volt electrical system

• Legendary Bosch Rexroth design and reliability

• All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves

• Combined electrical system for chassis and excavator delivers advanced, effective operation

EXCAVATOR

• Short tail swing won’t obstruct traffic

• Stable, without the need for outriggers

• All new electric remote drive system for chassis repositioning

• No need for a second engine

HIGHWAY SPEED VERSATILITY

• Asphalt and concrete repair

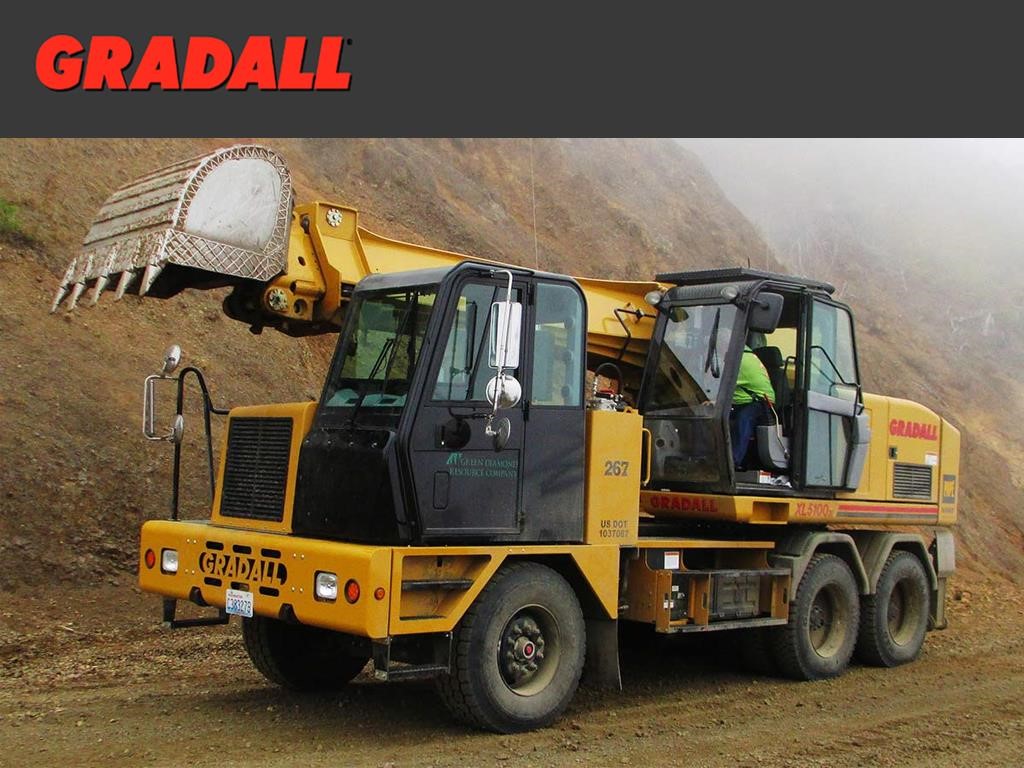

• Mass excavation

• Demolition

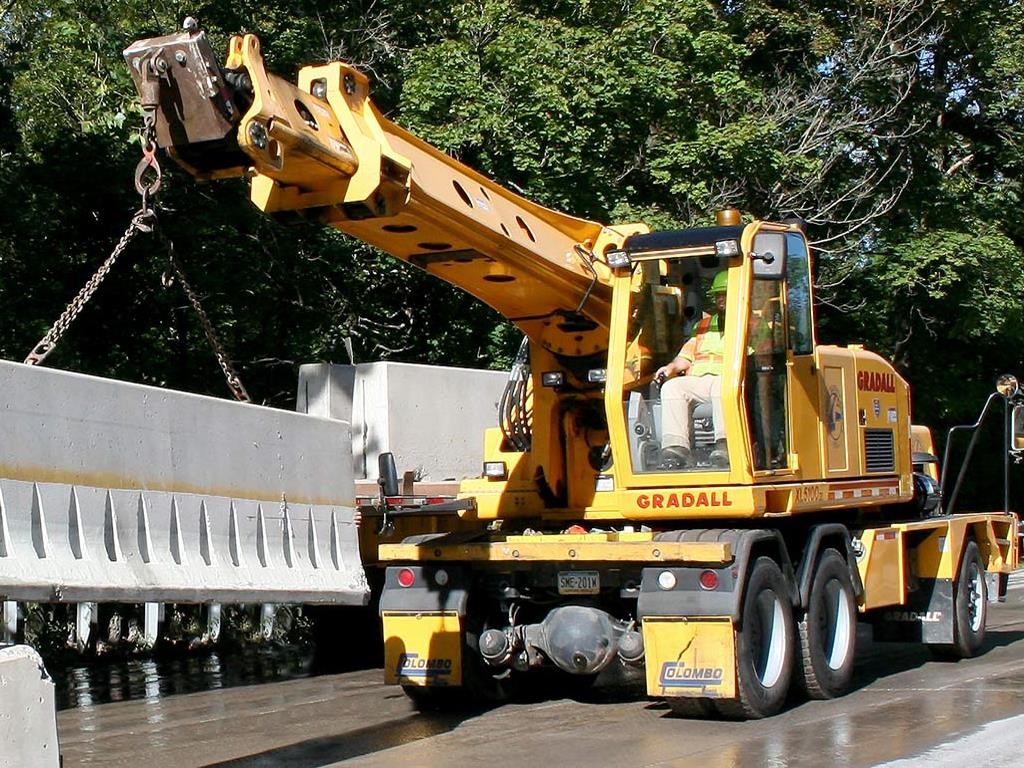

• Barrier placement

• Ditching

• Sloping

• Finished grading

• Spreading rip-rap

• Curb, gutter and sidewalk replacement

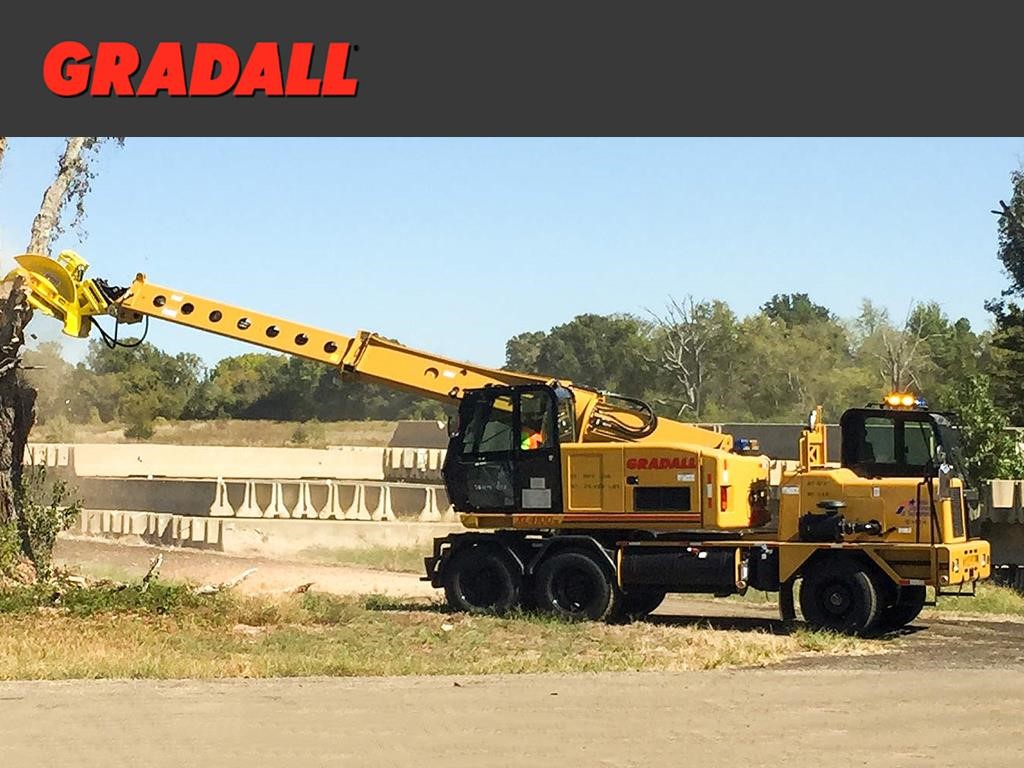

• Tree and vegetation trimming

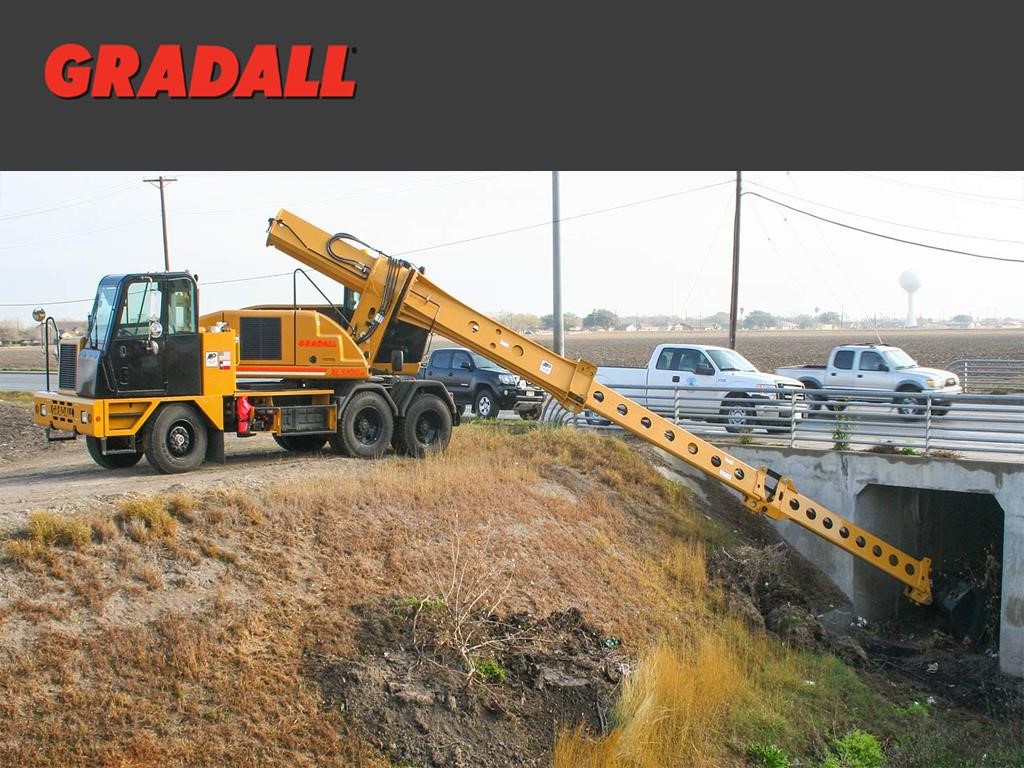

• Storm and canal cleanout

• Material movement

• Culvert replacement

• Mowing

• Guardrail cleanout

• Debris cleanup

• Bridge replacement

• Landscaping

• Dredging

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
