XL3200V CRAWLER EXCAVATORS — Handle more jobs with one machine thanks to the versatile Gradall boom

RAISING CRAWLER EXCAVATOR EXPECTATIONS

No other crawler can handle so many different jobs even working in tunnels under bridges and on the ground floors of multi-story buildings. Maneuvering on rocky surfaces, in sand and on uneven terrain, Gradall crawlers handle a wider variety of jobs with full-tilting, telescoping boom movements.

FEATURES

CHASSIS DESIGN

• Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements

• Dual range high torque piston motor powers each track.

• To ensure travel and stopping capability, models have three-stage planetary drive, with integral speed limiting valve, and automatic spring-set hydraulic release wet disc parking brake

• Triple grouser excavator pads in a choice of widths enhance tracking ability on rough terrain, with high range travel speeds up to 3.4 mph

• Tracks counter-rotate to pivot machine about the swing centerline

BOOM

• Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material

• No loss of power to attachment tilting capability

• Consistent boom force through the entire dig cycle

• Dig down at 75° angle

• Rugged boom telescopes out up to 33’ 10”

• Low profile for work under bridges, trees and in tunnels

• Full-length boom visibility during the entire dig cycle

• Fast cycle times for ditching, loading and spreading

• Quick attach bolt system handles full range of attachments

OPERATOR CAB

• Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch

• Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests

• Internal tooth swing bearing provides smooth, stable movement

• Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges

• Excellent visibility of the boom through the entire dig cycle

• Standard air conditioning

• Optional rollover protection

• Removable, stowable front window brings fresh air into the cab

ADVANCED SYSTEMS

• High performance, high reliability 24-volt electrical system

• Legendary Bosch Rexroth design and reliability

• All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages

EXCAVATOR

• Short tail swing won’t obstruct traffic

• Stable digging platform for work in any direction, without need to stop and lower outriggers

• Triangular telescoping boom design, with full power through the entire dig cycle

• Cycle speeds comparable or exceeding conventional excavators

• Electronic joysticks provide precise control over boom and attachment positioning

GRADALL CRAWLER VERSATILITY

• Asphalt and concrete repair

• Mass excavation

• Demolition

• Ditching

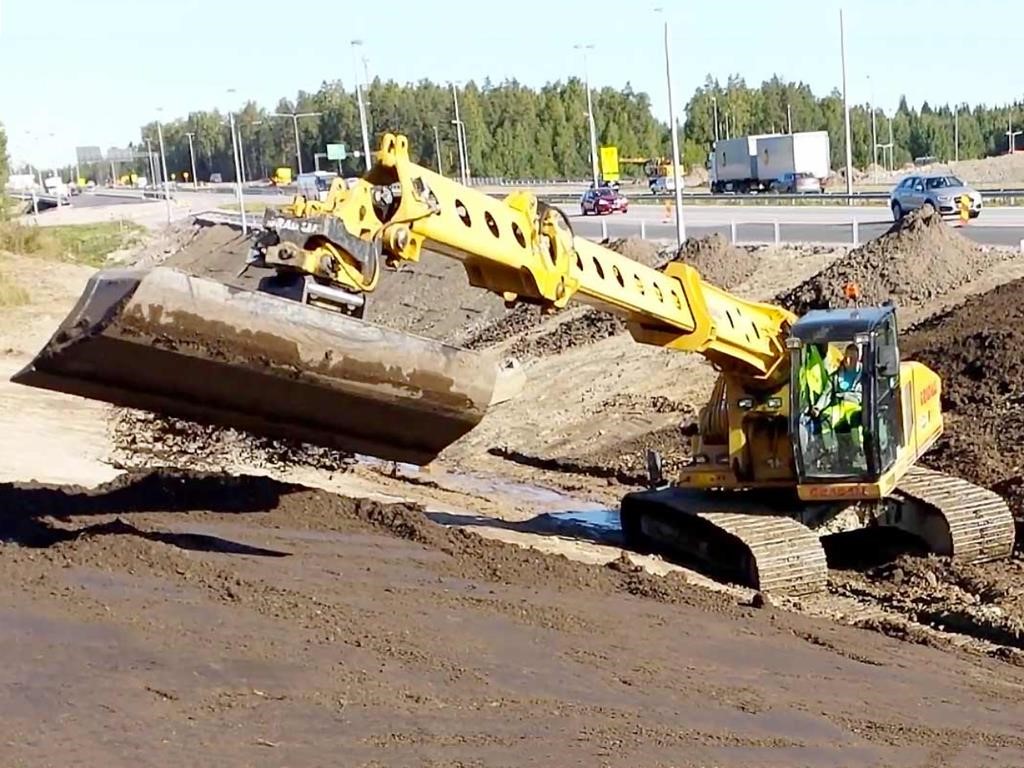

• Sloping

• Finished grading

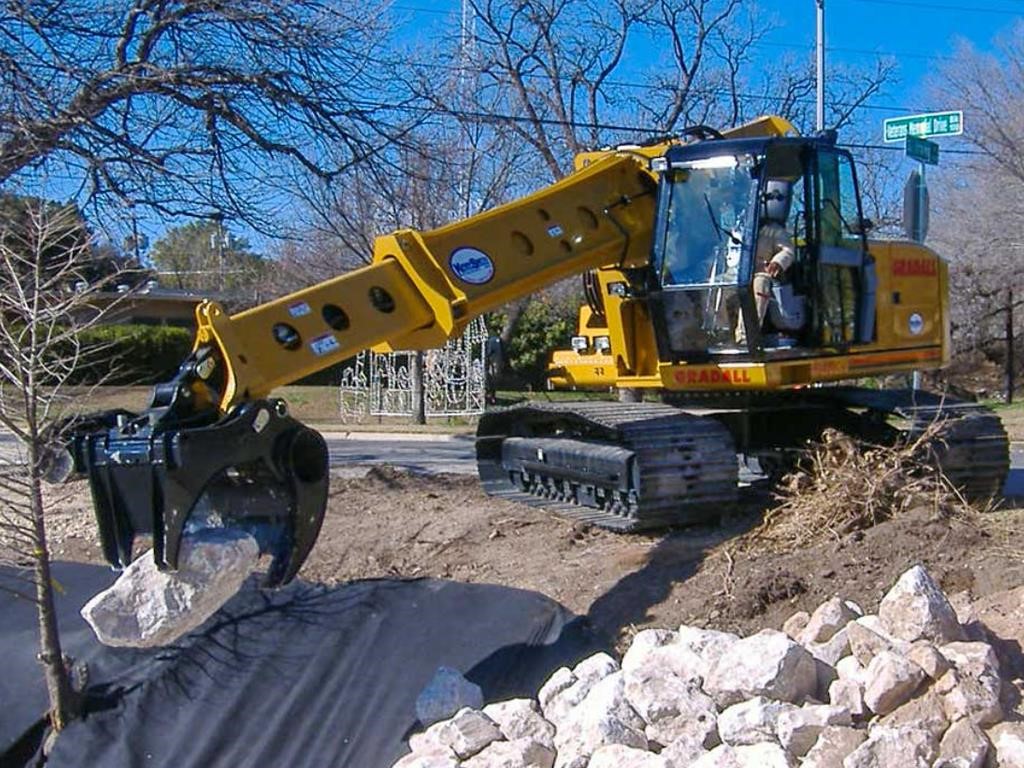

• Spreading rip-rap

• Curb, gutter and sidewalk replacement

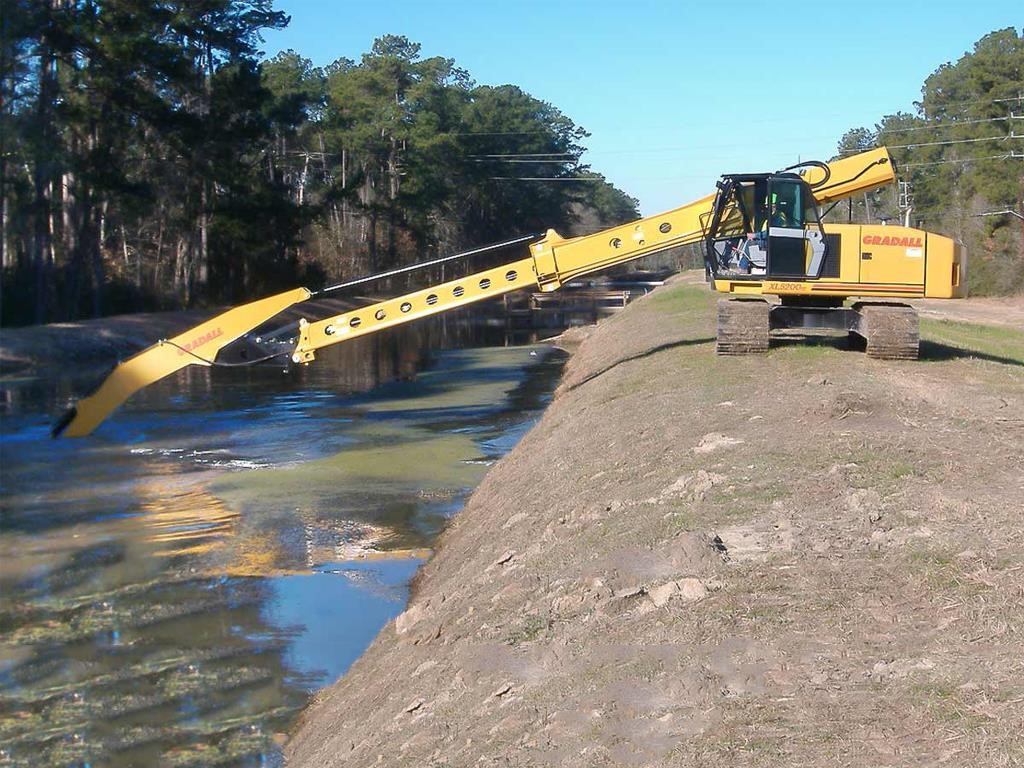

• Storm and canal cleanout

• Material movement

• Culvert replacement

• Guardrail cleanout

• Debris cleanup

• Bridge replacement

• Landscaping

• Dredging

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
