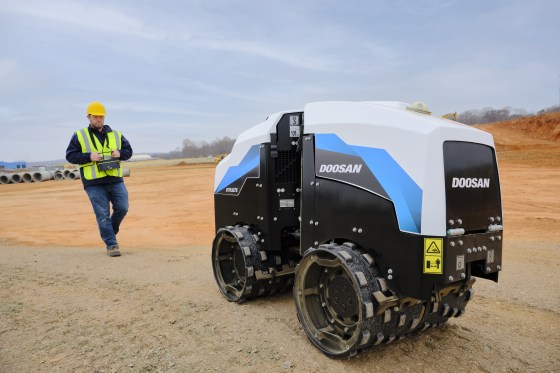

The DTR 3275 is perated using solar-powered remote control for maximum comfort and visibility. A small machine tackling big challenges. DTR 3275 trench rollers are exceptionally versatile machines thanks to their high productivity and adjustable performance.
- Weight lb (kg): 3197 (1450)
- Machine Size (W X L) in (mm): 23.7 x 78 (601 x 1980)
- Structure backfill work
- Electric and cable installation
- Dumpsite and landfill job sites
- Pipeline construction
- Commercial, residential and industrial development
- Confined work spaces
Miscellaneous
|
Fuel tank capacity – G (L) |
7.4 (28) |
|
|---|---|---|
|
Travel speed forward – mph (kph) |
1.7 (2.8) |
|
|
Working speed – mph (kph) |
.87 (1.4) |
|
|
Gradeability |
30% |
|
|
Hydraulic oil capacity – G (L) |
4.2 (16) |
|
|
Oscilation angle |
±7° |
|
|
Turning radius inner |
1540 / 1440 mm |
|
|
Turning radius outer |
2190 / 2290 mm |
Engine
|
Make & Model |
Yanmar 3TNV80F |
|
|---|---|---|
|
Fuel |
Diesel |
|
|
Engine output – HP |
20 |
|
|
Maximum torque |
68.4 / 1800 Nm(ft lb)/rpm |
|
|
Number of cylinders |
3 |
|
|
Drive system |
Hydrostatic |
|
|
Engine complies with emission regulations |
Tier 4 Final |
Weight and Dimensions
|
Machine weight – lbs (kg) |
3197 (1450) |
|
|---|---|---|
|
Machine height – in (mm) |
51.9 (1317) |
|
|
Machine length – in (mm) |
78 (1980) |
|
|
Machine width – in (mm) |
23.7 (601) |
|
|
Machine length with bumper – in (mm) |
87.7 (2227) |
|
|
Drum diameter – in (mm) |
20.7 (525) |
|
|
Drum width – in (mm) |
33.5 (850) |
Compaction Forces
|
Max Vibration frequency – Hz |
40 |
|
|---|---|---|
|
Max Centrifugal force – kN |
75/36 |
|
|
Amplitude – mm |
1.1 / 0.6 |
