TOWMASTER T-20 — DECK-OVER TRAILER

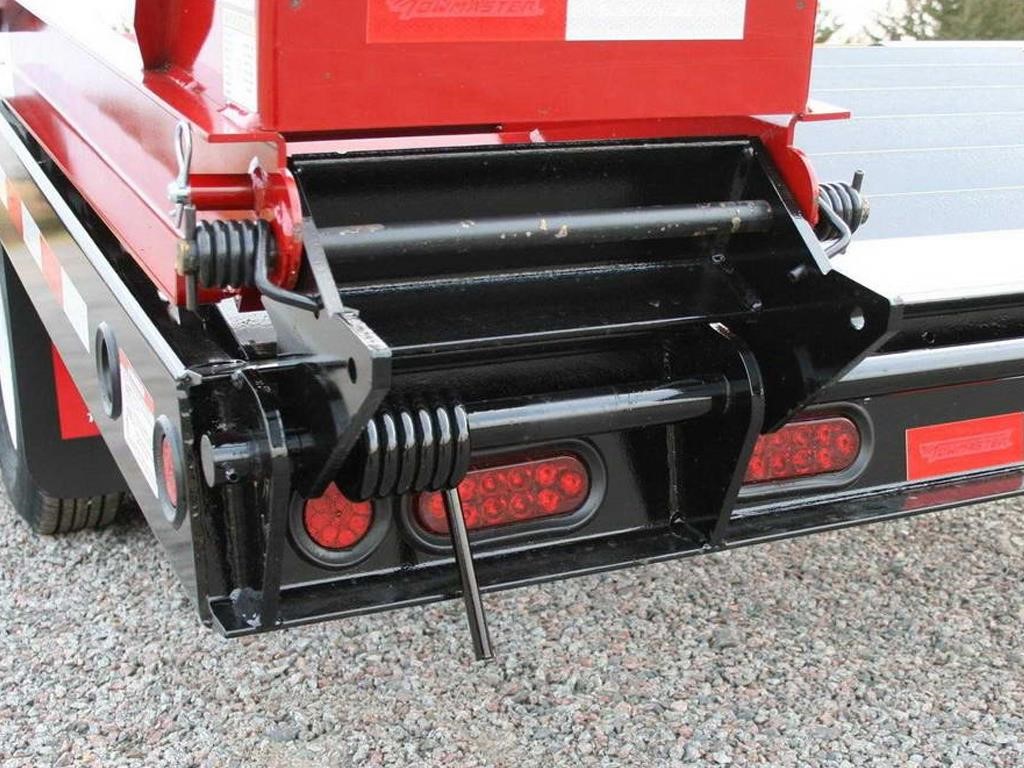

The premium line of Towmaster® deck-over trailers has proven to offer durability, longevity and style that other brands try to emulate. Our build quality and design creates a trailer that is easy to own and easy to maintain. They are built on our famous I-Beam main frame with a 20-foot deck and self-cleaning angle iron beavertail. Two-way spring-assist ramps are standard.

STANDARD EQUIPMENT

• Adjustable hitch height

• 7-pole round electrical plug

• Weather resistant sealed modular wiring

• Grommet mounted LED lights

• Registration holder

• Rust inhibiting primer

• Durable, rust inhibiting top coat! Die-cut UV resistant vinyl decals

• D.O.T. approved conspicuity tape

• Mud flaps

• Trailer color: Equipment black

• Ramp color: Equipment Red

OPTIONAL EQUIPMENT

• Gooseneck

• 25K two-speed parking jack

• Dual parking jacks

• Additional deck length

• Additional tie-downs

• Rub rail with stake pockets

• 12K electric winch

• Spare tire and wheel mount

• Spare tire and wheel

• Tire upgrade (load range G)

• Double-break beavertail

• Several beavertail options

• Color options: Construction Yellow, Equipment Red, Blue, Charcoal

• Galvanizing

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.

  • Suspension / Tires - Hubs: Oil Bath
  • Frame / Ramps - Beavertail (angle-degrees): 5' | 1524 mm (14)
  • Tongue - Storage Tray with Lid: S
  • Frame / Ramps - Headboard (in/mm): 5.5" | 140 mm
  • Frame / Ramps - Ramps (ft-in x in/mm): 5' x 21" | 1524 x 533 mm
  • Capacity | Dimensions - GVWR : 25,990 lbs | 11,789 kg
  • Capacity | Dimensions - Deck Height Loaded: 34' | 864 mm
  • Capacity | Dimensions - Overall Width : 8'6" | 2591 mm
  • Frame / Ramps - Deck Material: 2” nom. White Oak
  • Suspension / Tires - Brake Size : 12.25" x 4" | 311 x 102 mm
  • Frame / Ramps - Wood Protectors: S
  • Capacity | Dimensions - Capacity Rating : 18,690 lbs | 8478 kg
  • Suspension / Tires - Electric Brakes: S
  • Frame / Ramps - Channel Side Rails (in/mm): 8" | 203 mm
  • Capacity | Dimensions - GAWR : 20,000 lbs | 9072 kg
  • Suspension / Tires - Hutchens Spring Suspension: S
  • Tongue - Bolt-on Drop-Leg Parking Jack: 12K
  • Capacity | Dimensions - Overall Length : 31'4" | 9550 mm
  • Suspension / Tires - Axle Spread (in/mm): 49" | 1245 mm
  • Frame / Ramps - Forged D-Ring Tie Downs - Total/Side : 8 | 4
  • Capacity | Dimensions - Approx. Weight : 7,300 lbs | 3311 kg
  • Frame / Ramps - One-Piece Cold-Formed Frame Rails: S
  • Capacity | Dimensions - Deck Length : 20' | 6096 mm
  • Frame / Ramps - Crossmembers: 3” Jr I-beam
  • Suspension / Tires - Air Brakes - Full ABS Modulated, Park Brake All Axles : O
  • Frame / Ramps - Main Beam: W10 x 17, Gr. 50
  • Suspension / Tires - Axle Capacity - each: 10,000 lbs | 4536 kg
  • Tongue - Tongue Length : 5'2" | 1575 mm
  • Tongue - Pintle Ring : S
  • Frame / Ramps - Two-Way Spring Assist: S
  • Suspension / Tires - Wheel Bolt Pattern: 8-bolt
  • Suspension / Tires - No. of Axles: 2
  • Suspension / Tires - Tires / Load Range Rating: 235 | 85R16 | E
  • Suspension / Tires - Hub Piloted Budd-type Wheels : 16" x 6" | 406 x 152 mm
  • Tongue - High-Tensile Safety Chain : 3/8" Grade 70
