TOWMASTER T-20LP — DECK-OVER TRAILER

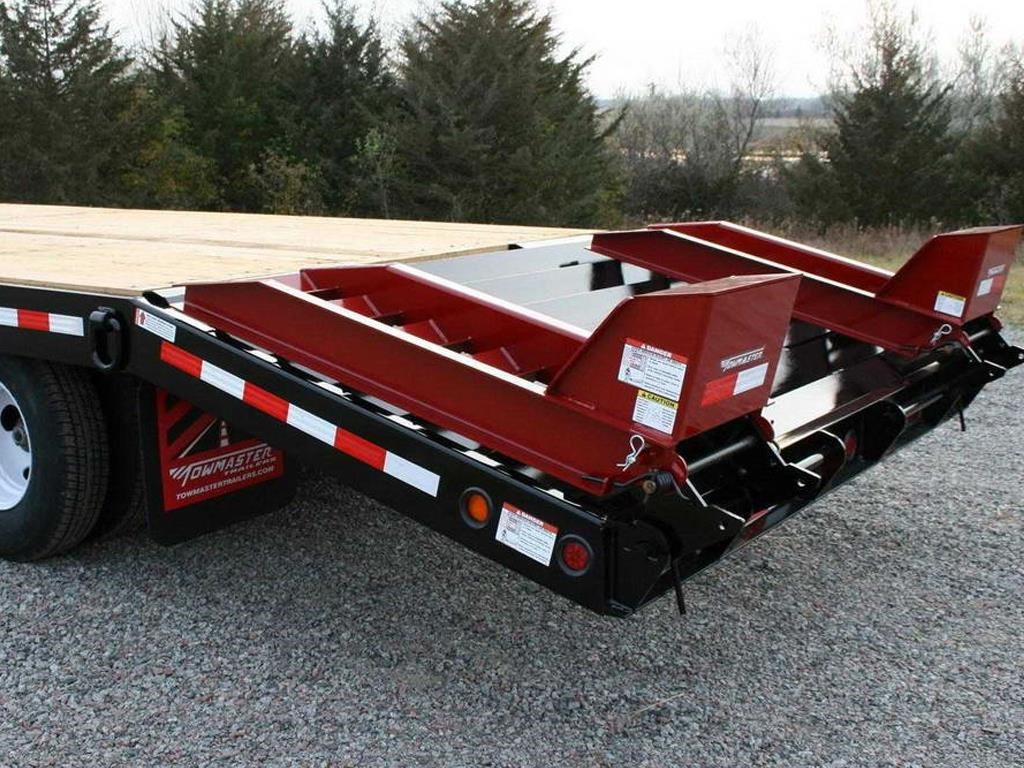

The premium line of Towmaster® deck-over trailers has proven to offer durability, longevity and style that other brands try to emulate. Our build quality and design creates a trailer that is easy to own and easy to maintain. They are built on our famous I-Beam main frame with a 20-foot deck and self-cleaning angle iron beavertail. Two-way spring-assist ramps are standard.

STANDARD EQUIPMENT

• Adjustable hitch height

• 7-pole round electrical plug

• Weather resistant sealed modular wiring

• Grommet mounted LED lights

• Registration holder

• Rust inhibiting primer

• Durable, rust inhibiting top coat! Die-cut UV resistant vinyl decals

• D.O.T. approved conspicuity tape

• Mud flaps

• Trailer color: Equipment black

• Ramp color: Equipment Red

OPTIONAL EQUIPMENT

• Gooseneck

• 25K two-speed parking jack

• Dual parking jacks

• Additional deck length

• Additional tie-downs

• Rub rail with stake pockets

• 12K electric winch

• Spare tire and wheel mount

• Spare tire and wheel

• Tire upgrade (load range G)

• Double-break beavertail

• Several beavertail options

• Color options: Construction Yellow, Equipment Red, Blue, Charcoal

• Galvanizing

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.

  • Frame / Ramps - Forged D-Ring Tie Downs - Total | Side : 8 | 4
  • Suspension / Tires - Axle Spread : 49" | 1245 mm
  • Capacity / Dimensions - Capacity Rating : 18,690 lbs | 8478 kg
  • Frame / Ramps - Ramps : 5' x 21" | 1524 x 533 mm
  • Frame / Ramps - Main Beam: W8 x 17, Gr. 50
  • Suspension / Tires - Axle Capacity - Each: 10,000 lbs | 4536 kg
  • Tongue - Storage Tray with Lid: Standard
  • Capacity / Dimensions - Approx. Weight : 7,300 lbs | 3311 kg
  • Suspension / Tires - Tires / Load Range Rating: 235 | 85R16 | E
  • Frame / Ramps - Crossmembers: 3” Jr I-beam
  • Tongue - Tongue Length : 5'2" | 1575 mm

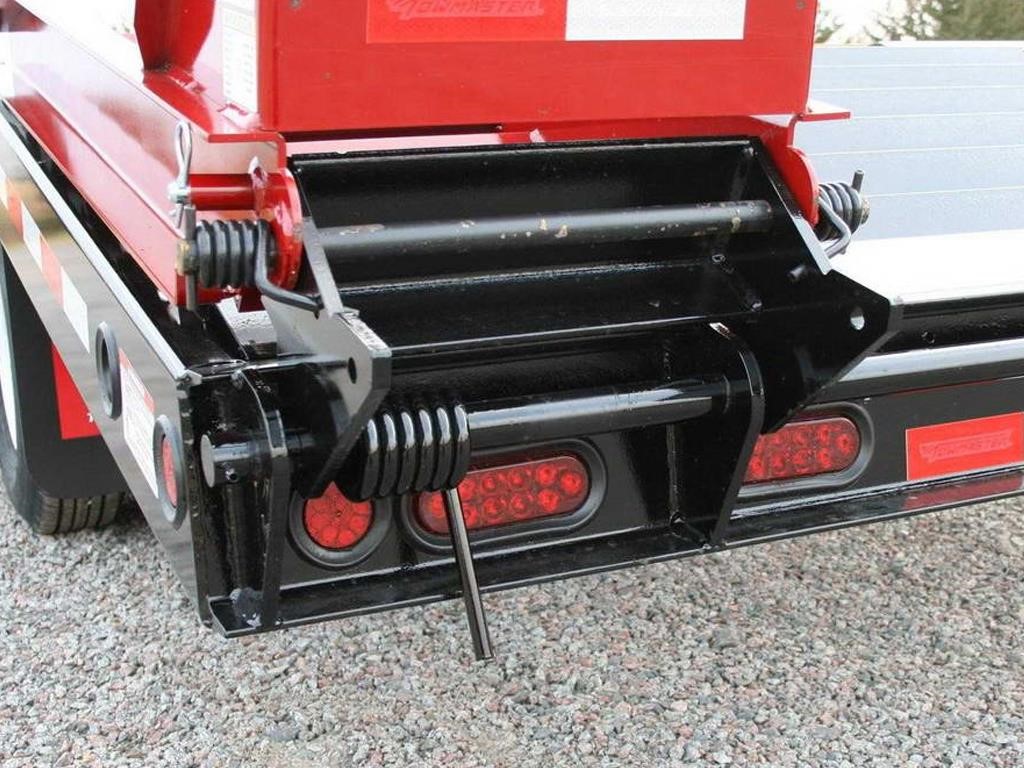

  • Frame / Ramps - Two-Way Spring Assist: Standard
  • Suspension / Tires - Hubs: Oil Bath
  • Suspension / Tires - Air Brakes - Full ABS Modulated, Park Brake All Axles : Optional
  • Capacity / Dimensions - Overall Length : 31'4" | 9550 mm
  • Capacity / Dimensions - Deck Length : 20' | 6096 mm
  • Frame / Ramps - Beavertail (angle-degrees): 5' | 1524 mm (12)
  • Frame / Ramps - Headboard : 5.5" | 140 mm
  • Frame / Ramps - Wood Protectors: Standard
  • Suspension / Tires - Brake Size : 12.25" x 4" | 311 x 102 mm
  • Tongue - High-Tensile Safety Chain : 3/8" Grade 70
  • Tongue - Bolt-on Drop-Leg Parking Jack: 12K
  • Capacity / Dimensions - Deck Height - Loaded: 32" | 813 mm
  • Capacity / Dimensions - GVWR : 25,990 lbs | 11,789 kg
  • Tongue - Pintle Ring : Standard
  • Frame / Ramps - Channel Side Rails : 8" | 203 mm
  • Suspension / Tires - No. of Axles: 2
  • Frame / Ramps - One-Piece Cold-Formed Frame Rails: Standard
  • Suspension / Tires - Wheel Bolt Pattern: 8-bolt
  • Suspension / Tires - Hutchens Spring Suspension: Standard
  • Capacity / Dimensions - Overall Width : 8"6" | 2591 mm
  • Frame / Ramps - Deck Material: 2” nom. White Oak
  • Suspension / Tires - Electric Brakes: Standard
  • Capacity / Dimensions - GAWR : 20,000 lbs | 9072 kg
  • Suspension / Tires - Hub Piloted Budd-type Wheels : 16" x 6" | 406 x 152 mm
