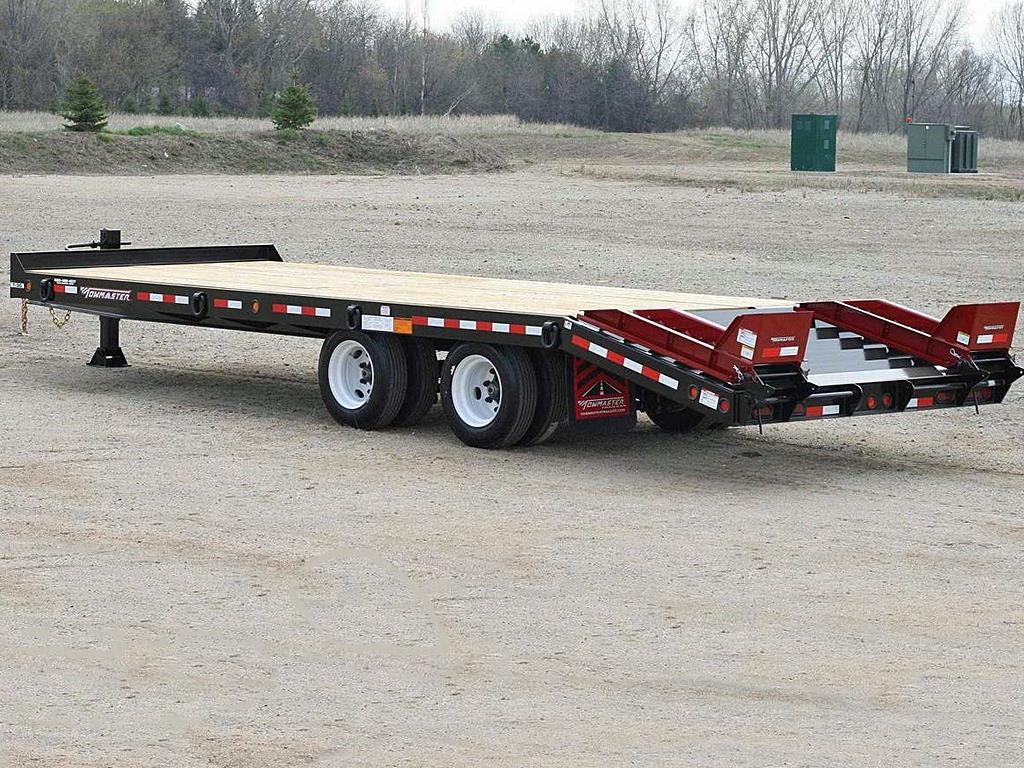

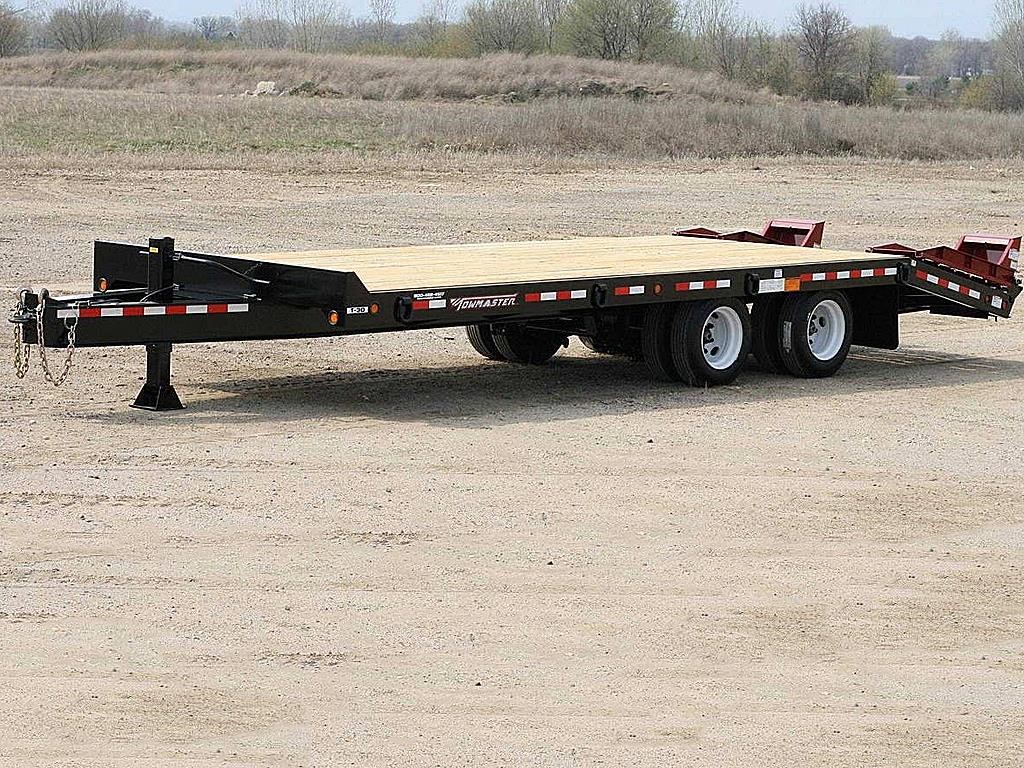

TOWMASTER T-30 — DECK-OVER TRAILER
The premium line of Towmaster® deck-over trailers has proven to offer durability, longevity and style that other brands try to emulate. Our build quality and design creates a trailer that is easy to own and easy to maintain. They are built on our famous I-Beam main frame with a 20-foot deck and self-cleaning angle iron beavertail. Two-way spring-assist ramps are standard on all Towmaster T-series deck-over models.
STANDARD EQUIPMENT
• Adjustable hitch height
• 7-pole round electrical plug
• Weather resistant sealed modular wiring
• Grommet mounted LED lights
• Registration holder
• Rust inhibiting primer
• Durable, rust inhibiting top coat
• Die-cut UV resistant vinyl decals
• D.O.T. approved conspicuity tape
• Mud flaps
• Trailer color: Equipment black
• Ramp color: Equipment Red
OPTIONAL EQUIPMENT
• Gooseneck
• 25K two-speed parking jack
• Dual parking jacks
• Additional deck length
• Additional tie-downs
• Rub rail with stake pockets
• 12K electric winch
• Spare tire and wheel mount
• Spare tire and wheel
• Double-break beavertail
• Several beavertail options
• Color options: Construction Yellow, Equipment Red, Blue, Charcoal
• Galvanizing
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.
- FRAME / RAMPS - Main Beam: W10 x 26, Gr. 50
- CAPACITY / DIMENSIONS - Approx. Weight: 8,300 lbs | 3765 kg

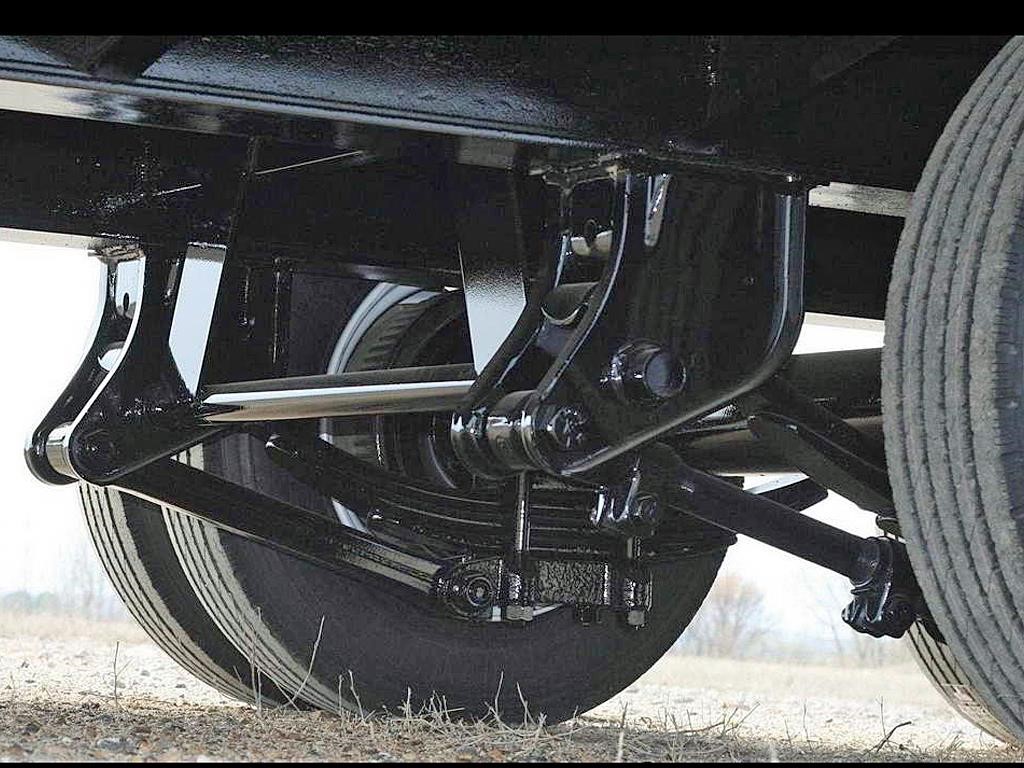

- SUSPENSION / TIRES - Hutchens Spring Suspension: Standard
- SUSPENSION / TIRES - Axle Capacity - Each: 15,000 lbs | 6803 kg
- SUSPENSION / TIRES - Air Brakes - Full ABS Modulated, Park Brake All Axles : N/A
- CAPACITY / DIMENSIONS - GAWR: 30,000 lbs | 13,608 kg
- CAPACITY / DIMENSIONS - Deck Height - Loaded: 33.5" | 851 mm
- CAPACITY / DIMENSIONS - Overall Length: 31'4" | 9550 mm
- TONGUE - Bolt-on Drop-Leg Parking Jack: 25K
- FRAME / RAMPS - Deck Material: 2” nom. White Oak
- TONGUE - Storage Tray with Lid: Standard
- SUSPENSION / TIRES - Brake Size: 12.25" x 5" | 311 x 127 mm
- FRAME / RAMPS - Crossmembers: 3” Jr I-beam
- SUSPENSION / TIRES - Hubs: Oil Bath
- FRAME / RAMPS - Beavertail (Angle-Degrees): 5'| 1524 mm (14)
- SUSPENSION / TIRES - Tires / Load Range Rating: 215/75R17.5 | H
- CAPACITY / DIMENSIONS - Capacity Rating: 30,000 lbs | 13,608 kg
- TONGUE - Pintle Ring : Standard
- FRAME / RAMPS - Forged D-Ring Tie Downs - Total | Side: 8 | 4
- CAPACITY / DIMENSIONS - GVWR: 38,300 lbs | 17,373 kg
- TONGUE - High-Tensile Safety Chain: 1/2" Grade 70
- FRAME / RAMPS - Wood Protectors: Standard
- FRAME / RAMPS - Channel Side Rails: 8" | 203 mm
- SUSPENSION / TIRES - Wheel Bolt Pattern: 8-Bolt
- SUSPENSION / TIRES - Hub Piloted Budd-type Wheels: 17.5 "x 6.75" | 445 x 171 mm
- FRAME / RAMPS - One-Piece Cold-Formed Frame Rails: Standard
- FRAME / RAMPS - Ramps: 5' x 21" | 1524 x 533 mm
- FRAME / RAMPS - Headboard: 5.5" | 140 mm
- TONGUE - Tongue Length: 5'2" | 1575 mm
- SUSPENSION / TIRES - No. of Axles: 2
- CAPACITY / DIMENSIONS - Overall Width: 8'6" | 2591 mm
- SUSPENSION / TIRES - Electric Brakes: Standard
- CAPACITY / DIMENSIONS - Deck Length: 20' | 6096 mm
- SUSPENSION / TIRES - Axle Spread: 49" | 1245 mm
- FRAME / RAMPS - Two-Way Spring Assist: Standard
