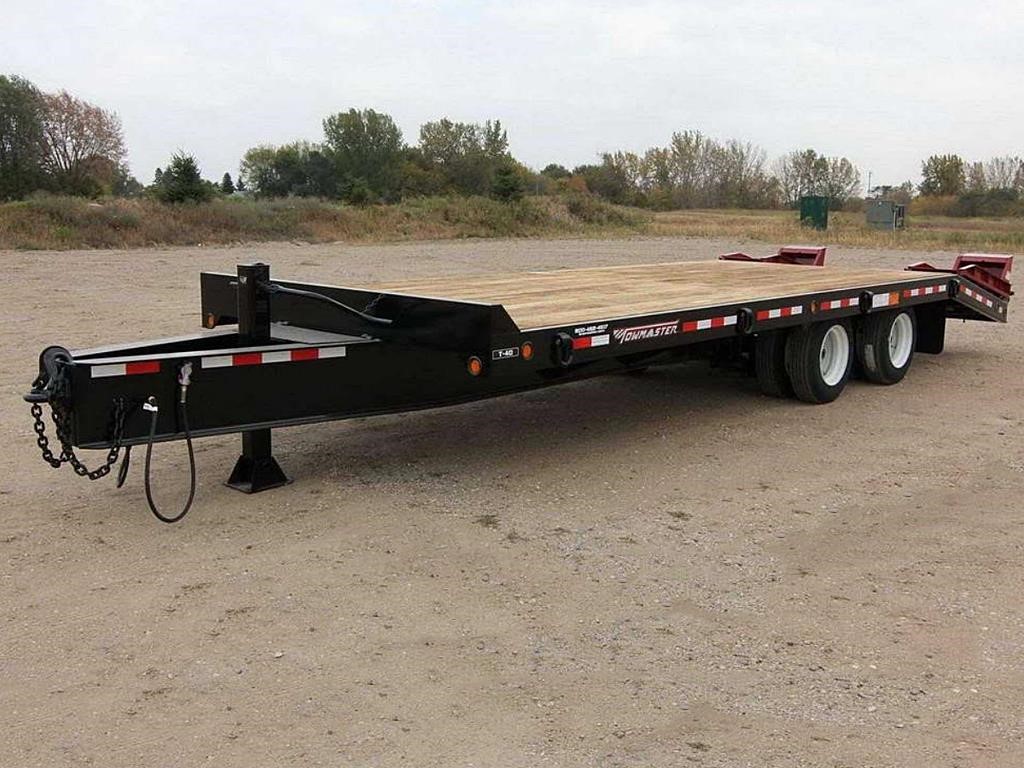

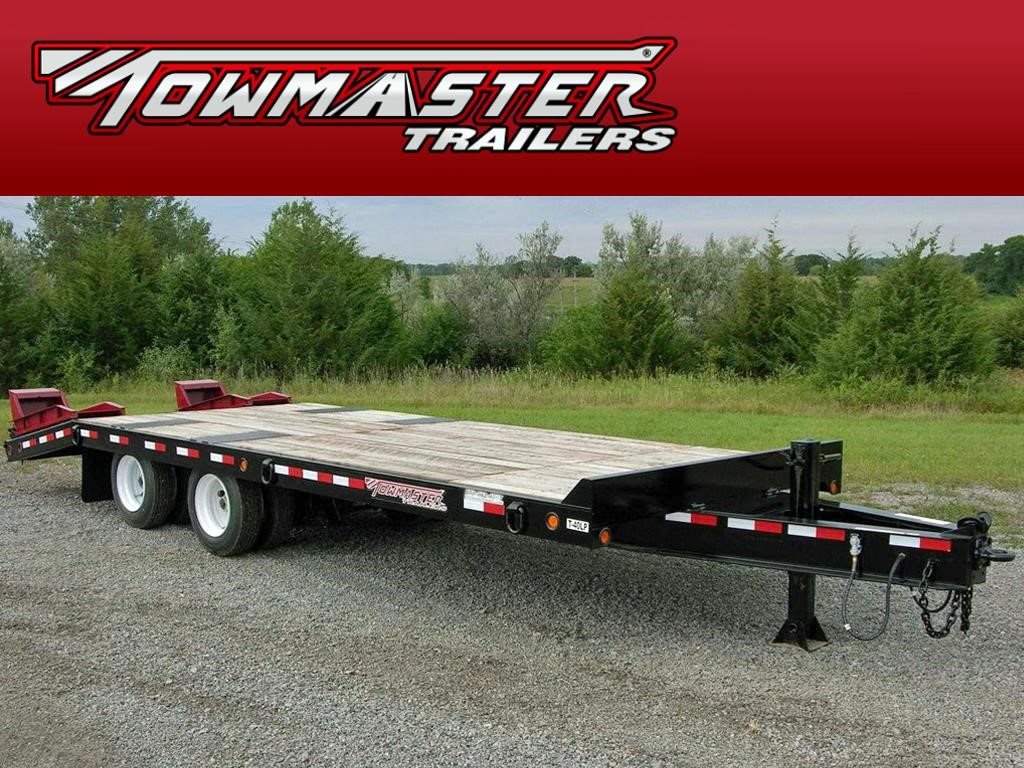

TOWMASTER T-40 — DECK-OVER TRAILER
These premium Towmaster® deck-over trailers are built more durable and more stylish to provide a great looking trailer that will last a long time. They are great for hauling heavy equipment of all types. If you need a lower profile trailer, the T-40LP gives you an extra 2-inches and lower loading angle. Two-way spring-assist ramps and wood protectors are standard.
STANDARD EQUIPMENT
• Adjustable hitch height
• 7-pole round electrical plug
• Weather resistant sealed modular wiring
• Grommet mounted LED lights
• Registration holder
• Rust inhibiting primer
• Durable, rust inhibiting top coat
• Die-cut UV resistant vinyl decals
• D.O.T. approved conspicuity tape
• Mud flaps
• Trailer color: Equipment black
• Ramp color: Equipment Red
OPTIONAL EQUIPMENT
• Dual parking jacks
• Additional deck length
• Additional tie-downs
• Rub rail with stake pockets
• 12K electric winch
• Spare tire and wheel mount
• Spare tire and wheel
• Double-break beavertail
• Several beavertail options
• Color options: Construction Yellow, Equipment Red, Blue, Charcoal
• Galvanizing
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.
- Frame / Ramps - Headboard : 5.5" | 140 mm

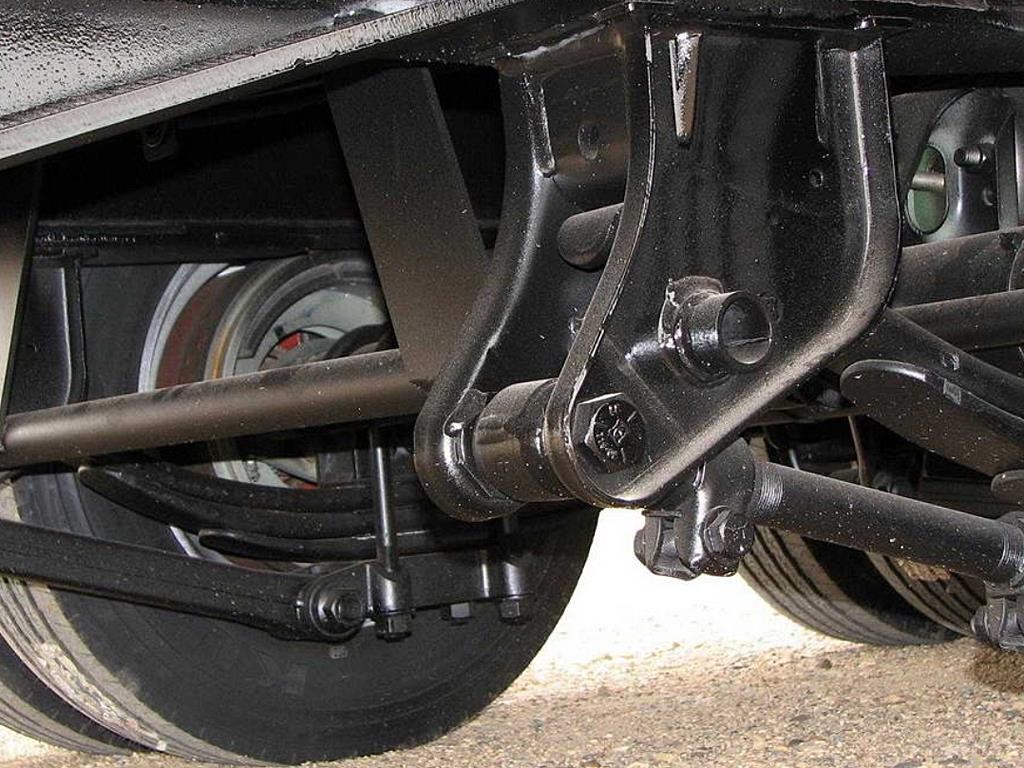

- Suspension / Tires - Hutchens Spring Suspension: Standard
- Capacity / Dimensions - GVWR : 48,800 lbs | 22,135 kg
- Frame / Ramps - Channel Side Rails : 8" | 203 mm
- Suspension / Tires - Axle Capacity - Each : 22,500 lbs | 10,206 kg
- Frame / Ramps - Beavertail (angle-degrees): 5" | 1524 mm (14)
- Capacity / Dimensions - GAWR : 45,000 lbs | 20,411 kg
- Suspension / Tires - Air Brakes - Full ABS Modulated, Park Brake All Axles : Standard
- Tongue - Pintle Ring : Standard
- Capacity / Dimensions - Overall Length : 31'4" | 9550 mm
- Suspension / Tires - Tires / Load Range Rating: 235/75R17.5 | H

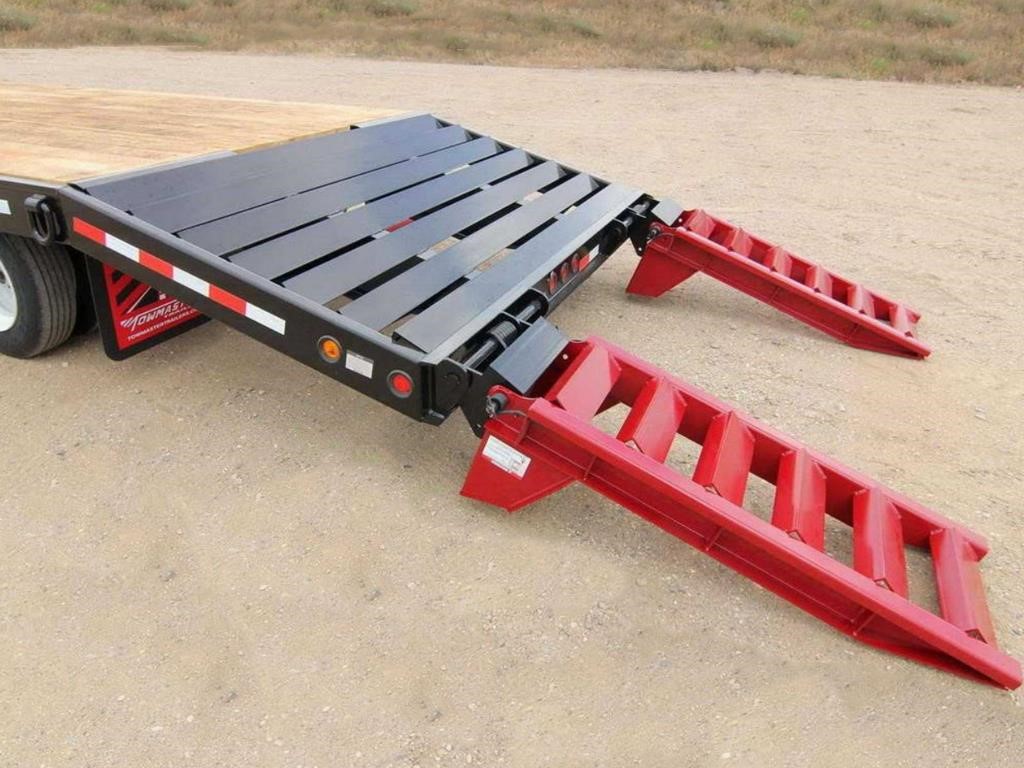

- Frame / Ramps - Two-Way Spring Assist: Standard
- Frame / Ramps - Ramps : 5' x 21" | 1524 x 533 mm
- Frame / Ramps - Forged D-Ring Tie Downs : 8 Total | 4 Side
- Frame / Ramps - Deck Material: 2” nom. White Oak
- Tongue - High-Tensile Safety Chain : 1/2" Grade 80
- Capacity / Dimensions - Deck Height - Empty : 33" | 838 mm

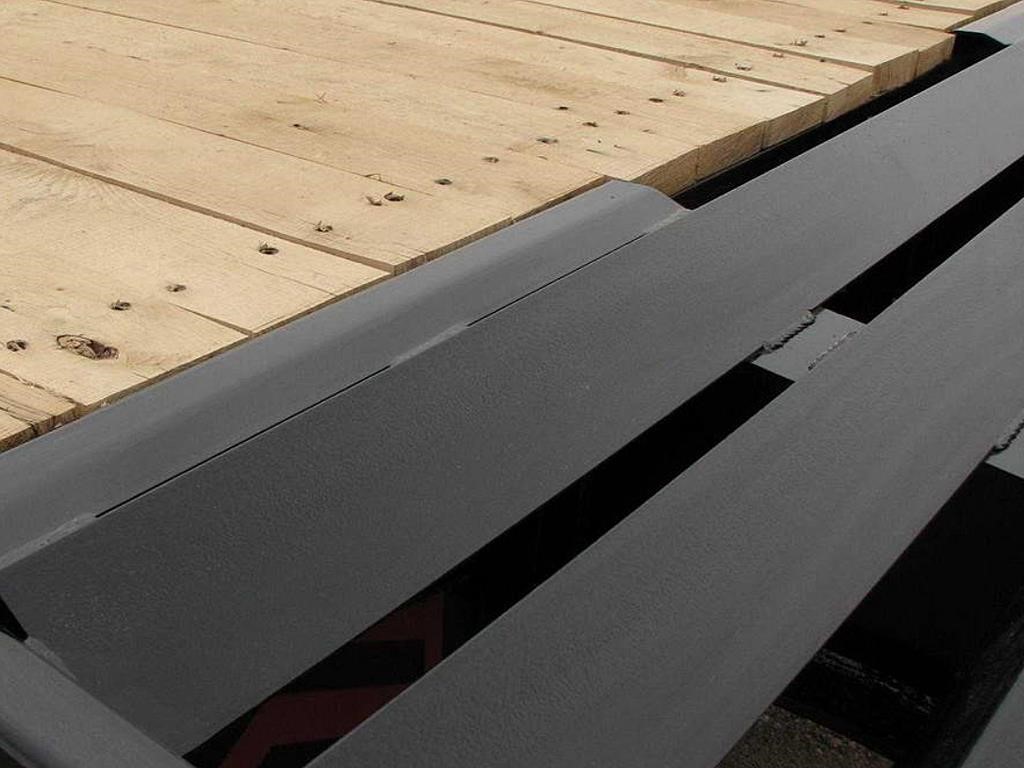

- Frame / Ramps - Wood Protectors: Standard
- Suspension / Tires - Hub Piloted Budd-type Wheels : 17.5"x 6.75" | 445 x 171 mm
- Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
- Tongue - Bolt-on Drop-Leg Parking Jack: 25K
- Capacity / Dimensions - Capacity Rating : 40,000 lbs | 18,144 kg
- Suspension / Tires - Brake Size : 12.25 "x 7.5" | 311 x 191 mm
- Frame / Ramps - One-Piece Cold-Formed Frame Rails: Standard
- Capacity / Dimensions - Deck Length : 20' | 6096 mm
- Tongue - Storage Tray with Lid: Standard
- Tongue - Tongue Length : 5'2" | 1575 mm
- Suspension / Tires - Axle Spread : 49" | 1245 mm
- Frame / Ramps - Crossmembers: 3” Jr I-beam
- Suspension / Tires - No. of Axles: 2
- Suspension / Tires - Wheel Bolt Pattern: 8-bolt
- Frame / Ramps - Main Beam: W16 x 26, Gr. 50
- Capacity / Dimensions - Approx. Weight : 8,800 lbs | 3992 kg
- Suspension / Tires - Hubs: Oil Bath
