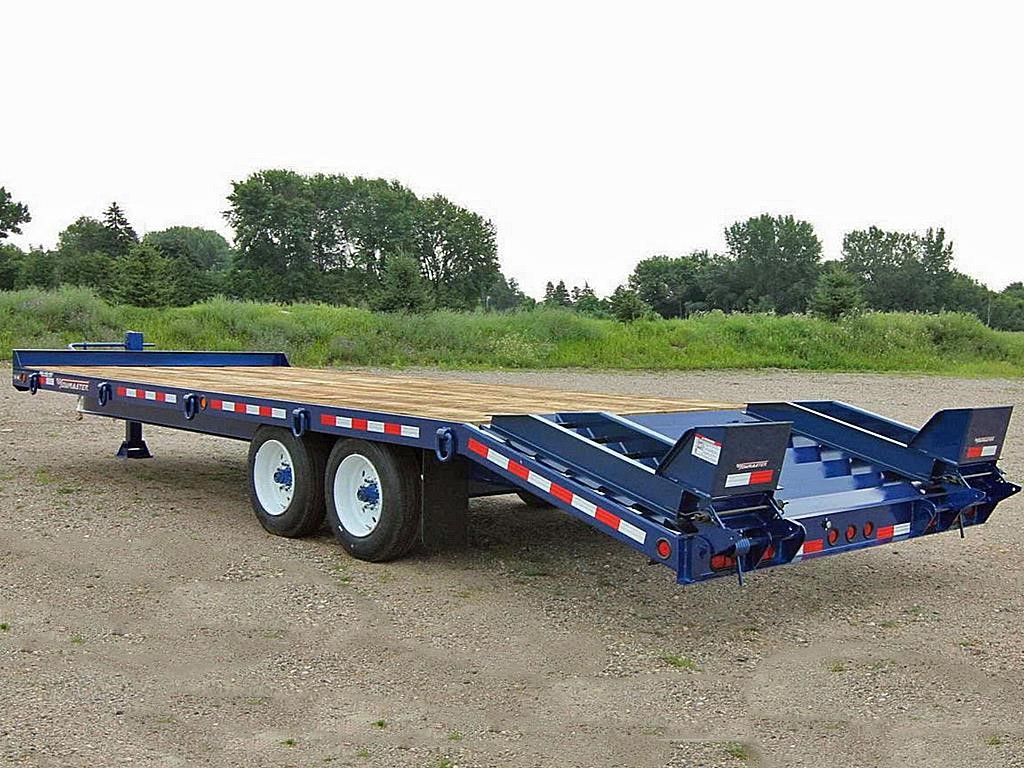

TOWMASTER TC-16 — DECK-OVER TRAILER
The economical TC-16 is a great trailer for mid-sized equipment. It’s built on the Towmaster I-beam frame and features 3-inch I-beam crossmembers, 8’-6” wide oak wood deck, 5-foot angle-iron beavertail and 5-foot one-way spring assist ramps. Sealed wiring and grommet mounted incandescent lights are standard.
STANDARD EQUIPMENT
• Adjustable hitch height
• RV electrical plug
• Weather resistant sealed modular wiring
• Grommet mounted LED lights
• Registration holder
• Rust inhibiting primer
• Durable, rust inhibiting top coat
• Die-cut UV resistant vinyl decals
• D.O.T. approved conspicuity tape
• Mud flaps
• Adjustable ramp width spacing
• Trailer color: Equipment black
• Ramp color: Equipment Red
OPTIONAL EQUIPMENT
• 2-5/16 ball coupler
• Gooseneck
• 6-pole round electrical plug
• Storage tray lid
• 8K electric winch
• Additional tie-downs
• D-ring tie-downs
• E-Z Lube hubs
• Spare tire and wheel mount
• Spare tire and wheel
• Ramp lift springs
• Several ramp options
• Color options: Construction Yellow, Equipment Red, Blue, Charcoal
• Galvanizing
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.
- Capacity / Dimensions - Overall Length : 31'2" | 9500 mm
- Frame / Ramps - Main Beam: W10 x 17, Gr. 50
- Tongue - Tongue Length : 5' | 1524 mm
- Tongue - Pintle Ring : 3”
- Capacity / Dimensions - Deck Length : 20' | 6096 mm
- Suspension / Tires - Axle Spread : 36" | 914 mm
- Suspension / Tires - Hubs: Standard Lube
- Suspension / Tires - Battery Break-Away Kit w/Tow Charger: Standard
- Suspension / Tires - Wheels : 17.5" x 6.75" | 445 x 171 mm
- Suspension / Tires - Wheel Bolt Pattern: 8-bolt
- Frame / Ramps - One-Piece Cold-Formed Frame Rails: Standard

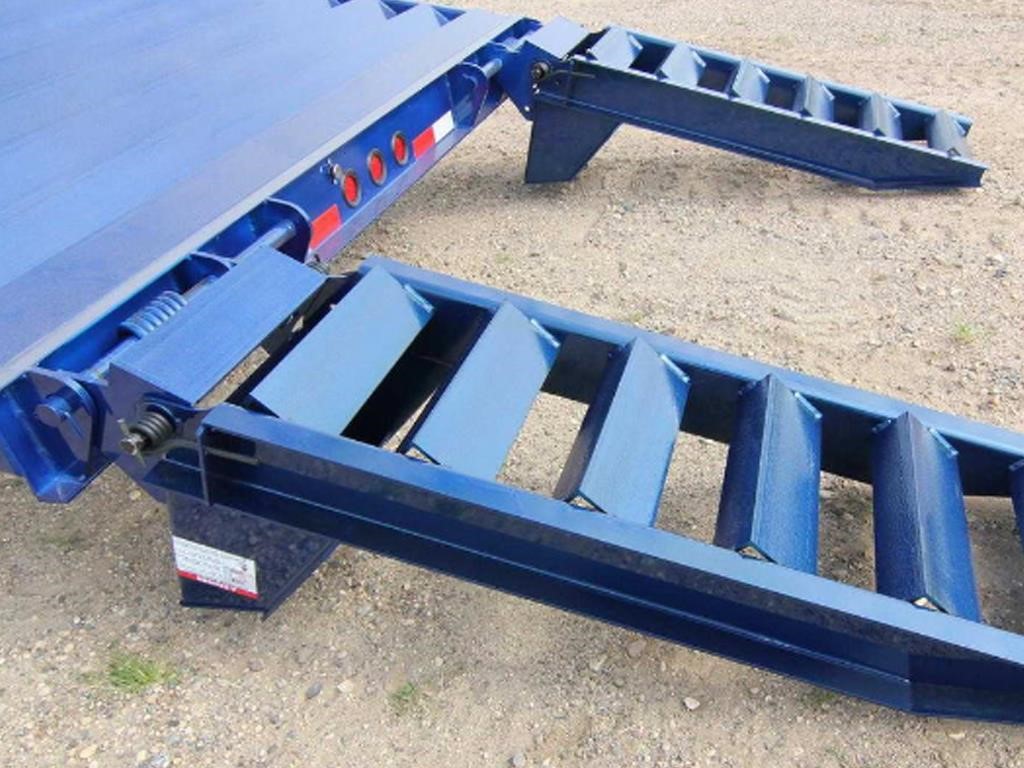

- Frame / Ramps - Ladder Style Ramps : 5' x 21" | 1524 x 533 mm
- Capacity / Dimensions - GVWR : 21,900 lbs | 9934 kg

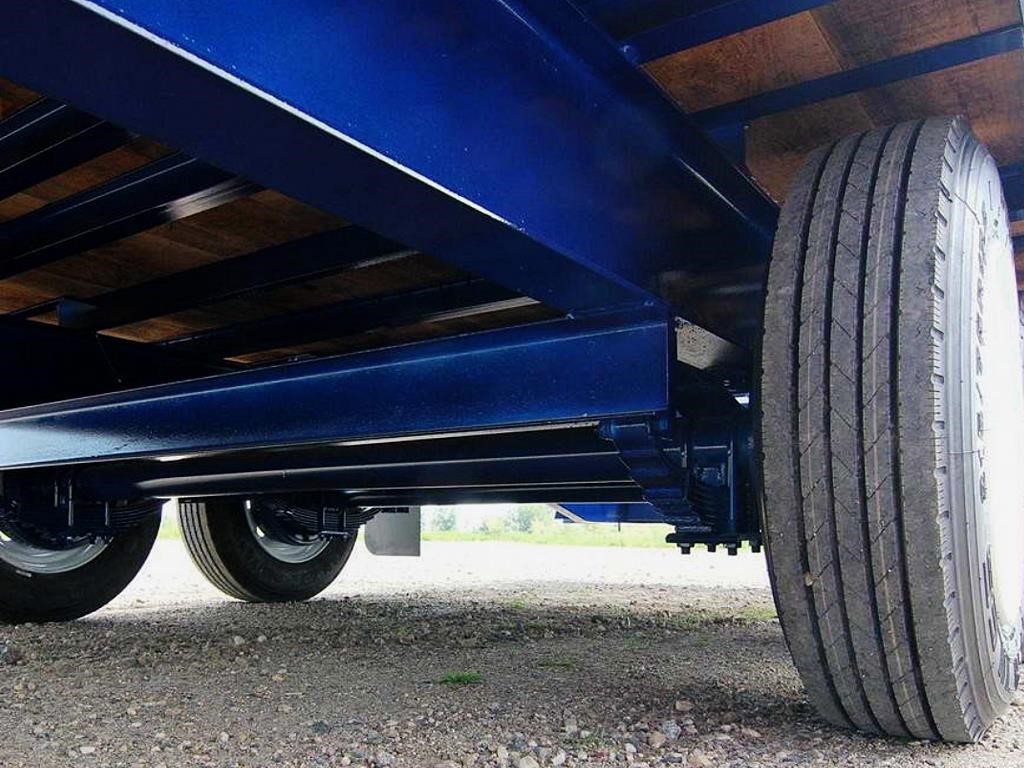

- Frame / Ramps - Crossmembers: 3” Jr I-beam
- Suspension / Tires - Slipper Spring Suspension: Standard
- Frame / Ramps - Tie Downs: D-rings
- Suspension / Tires - Axle Capacity - Each: 8,000 lbs | 3629 kg
- Suspension / Tires - Brake Size : 12.25" x 3.38" | 311 x 86 mm
- Suspension / Tires - Tires / Load Range Rating: 215/75R17.5 | H
- Suspension / Tires - Electric Brakes w/Forward Adjust : Standard
- Suspension / Tires - No. of Axles: 2
- Tongue - High-Tensile Safety Chain : 3/8" Grade 70
- Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
- Tongue - Storage Tray Lid: Optional
- Frame / Ramps - Deck Material: 2” nom. White Oak
- Tongue - Bolt-on Drop-Leg Parking Jack: 12K
- Capacity / Dimensions - Capacity Rating : 16,000 lbs | 7258 kg
- Frame / Ramps - Tie Downs : 8 Total | 4 Side
- Capacity / Dimensions - Approx. Weight : 5,900 lbs | 2676 kg
- Capacity / Dimensions - GAWR : 16,000 lbs | 7257 kg
- Frame / Ramps - Off-the-Ground Spring Assist: Standard
- Frame / Ramps - Channel Side Rails : 6" | 152 mm

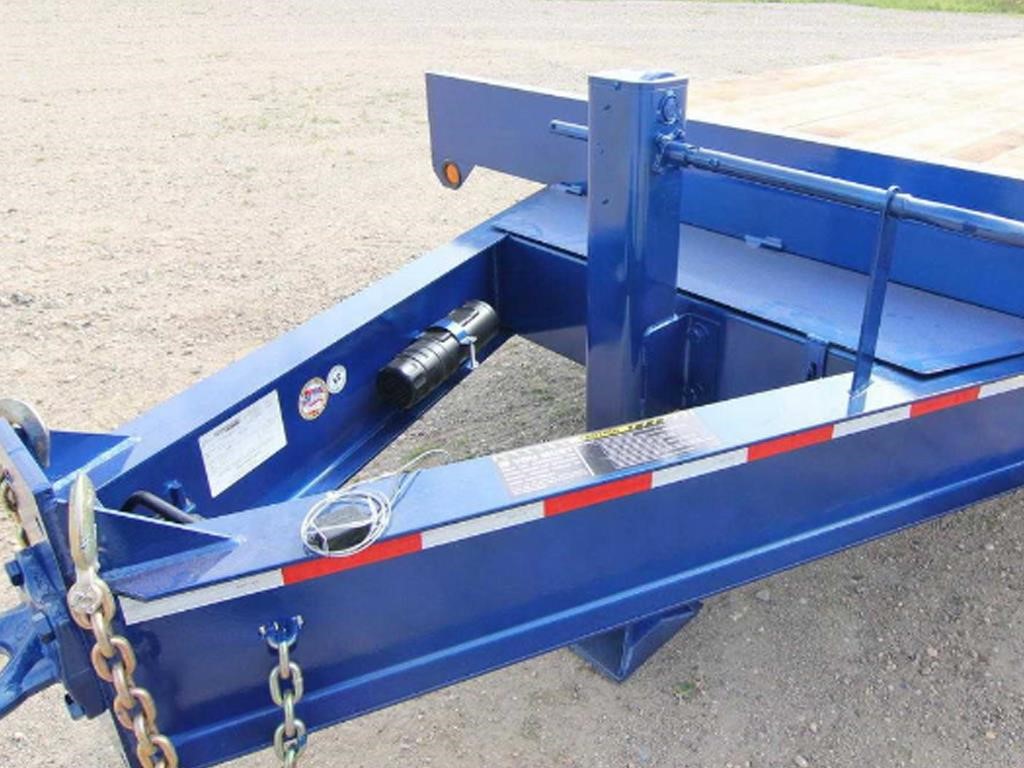

- Tongue - Storage Tray: Standard
- Frame / Ramps - Beavertail (angle-degrees): 5' | 1524 mm (14)
- Frame / Ramps - Headboard : 5.5" | 140 mm
- Capacity / Dimensions - Deck Height - Loaded: 32.5" | 826 mm
- Frame / Ramps - Beavertail Type: Angle-Iron
